CYP PRO-HDMIFO-4K User manual
PRO-HDMIFO-4K
HDMI to Optical Transmitter & Receiver kit
(4K Resolution Support)
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 15/11/2013 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Transmitter Front and Rear Panels....... 8
6.2 Receiver Front and Rear Panels ............ 9
7. Specications...................................... 10
8. Connection and Installation .............. 11
9. Acronyms............................................. 12
6
1. INTRODUCTION
The PRO-HDMIFO-4K is a Transmitter and Receiver set for sending
Ultra High Denition 4K HDMI signals over long distances via Fiber
Optic cabling. Connect a HDMI source to the Transmitter unit and the
uncompressed signal will be passed over ber optic to the Receiver where
it is outputted as HDMI for connection to the display. HDMI Transmission
distances of up to 300m can be achieved using this advanced ber optic
technology.
2. APPLICATIONS
Digital signage
Airport signage
Advertising displays
Video wall displays
Surveillance systems
Residential Installations
3. PACKAGE CONTENTS
HDMI to Optical Transmitter
Optical to HDMI Receiver
2 x 5V DC Power Adaptors
Operational Manual
4. SYSTEM REQUIREMENTS
Source device such as a DVD or Blu-ray player with HDMI cables and
output displays such as HDTV’s and Monitors with HDMI ports.
7
5. FEATURES
HDMI v1.4, HDCP and DVI compliant
Long distance transmission up to 300m with OM3 50/125um cable
Fast data transmission
FPGA-based solution
Supports EDID reading
Supports HD resolutions: 480i to 1080i, plus 1080p24/25/30, and 2K x 4K
Supplied with Locking PSU
High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM
Supports 3D signalsSupports the reading of EDID information
8
6. OPERATION CONTROLS AND FUNCTIONS

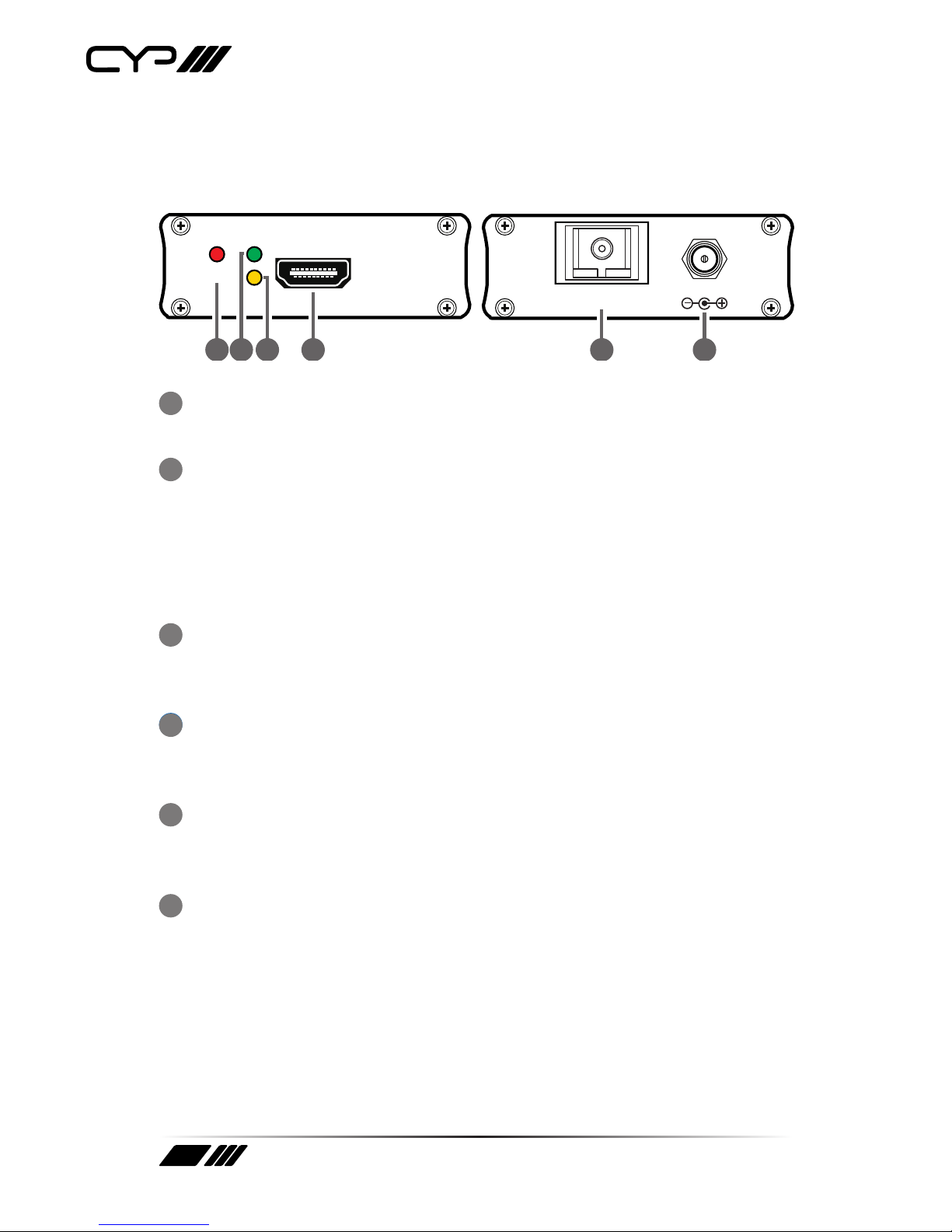

6.1 Transmitter Front and Rear Panels
POWER
OPTICAL
LINK HDMI IN
OPTICAL
DC 5V
HDMI
LINK
1 2 3 4 5 6
1POWER LED:
This LED will illuminate when connected to an AC wall outlet.
2OPTICAL LINK LED:
The LED will illuminate when the optical cable is connected and
has successfully detected and communicated data between the
Transmitter and Receiver. If the LED is not illuminated then check that
the ber optic cable is properly connected and that the cable itself is
undamaged.
3HDMI LINK LED:
This LED will illuminate when the Transmitter unit is receiving a HDMI
signal from the source device.
4
HDMI INPUT:
Connect to an HDMI input source such as a DVD or Blu-ray player with
a HDMI cable.
5OPTICAL:
Connect the SC-SC multi-mode optical cable to the Transmitter and
Receiver units.
6DC 5V:
Connect to the power adaptor included in the package to an AC wall
outlet for power supply.
9
6.2 Receiver Front and Rear Panels
POWER
OPTICAL
LINK HDMI OUT
OPTICAL
DC 5V
HDMI
LINK
1 2 3 4 5 6
1POWER LED:
This LED will illuminate when connected to an AC wall outlet..
2OPTICAL LINK LED:
The LED will illuminate when the optical cable is connected and
has successfully detected and communicated data between the
Transmitter and Receiver. If the LED is not illuminated then check that
the ber optic cable is properly connected and that the cable itself is
undamaged.
3HDMI LINK LED:
This LED will illuminate when the device is successfully communicating
with the display.
4HDMI OUTPUT:
Connect to a HDMI Display device, such as a TV or monitor, with a
HDMI cable.
5OPTICAL:
Connect the SC-SC multi-mode ber optical cable to the Transmitter
and Receiver units.
6DC 5V:
Connect to the power adaptor included in the package from the AC
wall outlet for power supply.
10
7. SPECIFICATIONS
Video Bandwidth 340 MHz/10.2 Gbps
Optical Fiber OM3 50/125um, SC-SC connector
Transmitter
Input Port 1×HDMI
Output Port 1×Multi-mode Fiber Optical
Receiver
Input Port 1×Multi-mode Fiber Optical
Output port 1×HDMI
Resolution Support PC: VGA ~ WUXGA
HD: 3D & 480i ~ 1080p (50/60 Hz),
4K×2K (24/25/30Hz)
HDMI In/Out Cable
Distance
Up to 10m (In) and 10m (Out) at 8-bit
Up to 6m (In) and 6m (Out) at 12-bit
Optical Cable Distance Up to 300 Meters with OM3 50/125um
optical ber cable
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 65.5mm (W) x 125.5mm(D) x 21.6mm(H)/
Each
Weight 200 g/Each
Chassis Material Aluminum
Colour Black
Operating Temperature 0 °C ~ 40 °C
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 1.5 W (TX), 1.3 W (RX)
