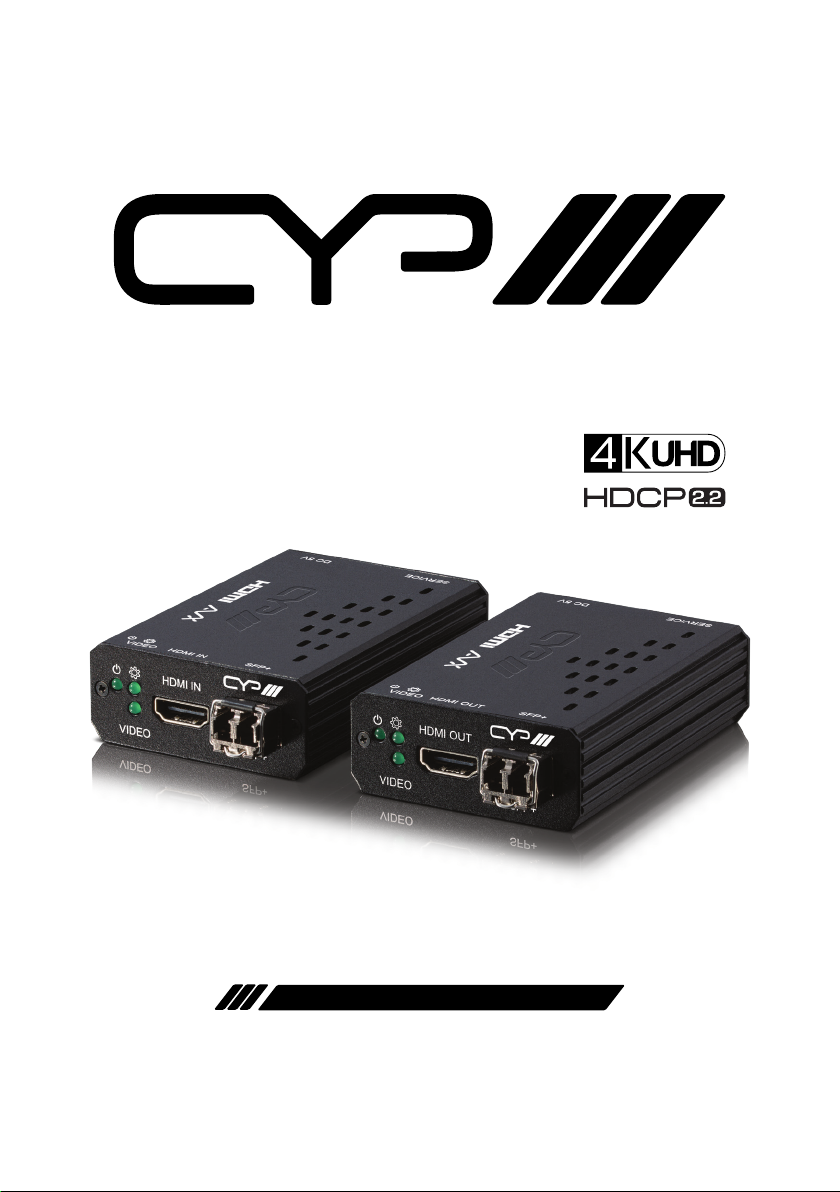

CYP AVX-101F-KIT User manual

AVX-101F-KIT

UHD+HDMI over Fiber Transmitter & Receiver

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use

to avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2021/07/09 Preliminary release

CONTENTS

1. Introduction..................................................1

2. Applications ..................................................1

3. Package Contents ......................................... 1

4. System Requirements ..................................1

5. Features.........................................................2

6. Operation Controls and Functions ..............3

6.1 Transmitter Front Panel .....................................3

6.2 Transmitter Rear Panel.......................................4

6.3 Receiver Front Panel...........................................4

6.4 Receiver Rear Panel.............................................5

7. Connection Diagram ....................................6

8. Specifications................................................7

8.1 Technical Specifications ....................................7

8.2 Video Specifications............................................8

8.3 Audio Specifications...........................................9

8.3.1 Digital Audio ..............................................9

8.4 Cable Specifications ........................................ 10

9. Acronyms.....................................................11

1. INTRODUCTION

This 4K UHD+HDMI over Fiber Transmitter and Receiver Set is designed

for high-quality AV extension with minimum latency. By using a

sophisticated ultra-light compression scheme (lossless for most content)

it’s a great solution for extending 4K@60Hz (4:4:4) HDMI audio/video

streams. Advanced HDMI content such as HDR (High Dynamic Range),

10-bit colour and multi-channel HD Bitstream audio can be easily

transmitted. The use of interchangeable, eld replaceable, SFP+ modules

allows for transmission distances of up to 30km (Maximum transmission

distance depends on the SFP+ modules used). Additionally, this extender

set's compact form factor makes it ideal for installation in tight spaces, or

inclusion in A/V travel kits.

2. APPLICATIONS

A/V extension without RF interference

Long distance data and video transmission

Household entertainment

Lecture halls, meeting rooms, and classrooms

Point-to-Point Secure Video Conferencing

3. PACKAGE CONTENTS

1× UHD+HDMI over Fiber Transmitter

1× UHD+HDMI over Fiber Receiver

2× 5V/2.6A DC Power Adapter

1× Operation Manual

4. SYSTEM REQUIREMENTS

HDMI receiving equipment such as an HDTV, monitor, or audio

amplifier

IEEE 802.3ae compatible SFP+ fiber module supporting a dual-optical

fiber connection style, such as LC, or a pre-terminated crossover dual-

optical fiber cable

Note: Single-mode and multi-mode support is dependent on the SFP+

modules used.

5. FEATURES

HDMI 2.0 and DVI 1.0 compatible

HDCP 2.2 and HDCP 1.x compliant

1 HDMI input (TX), 1 HDMI Output (RX)

1 ber (SFP+) Connection

Ultra-light compression, lossless for most content

Extension up to 30km (maximum distance depends on the SFP+

module and type of ber used)

Supports up to 4K UHD+(18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output

Supports pass-through of 10/12-bit HDR sources

Supports pass-through of audio formats including LPCM (up to 8

channels), Bitstream and HD Bitstream

Simple, hassle free, point-to-point connection

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter Front Panel

HDMI OUT

VIDEO SFP+

DC 5VSERVICE

HDMI IN SFP+VIDEO

1 3

4 5

1Power ( ) LED: This LED will illuminate to indicate the unit is on and

receiving power.

Note: This LED will blink during the firmware update process.

2System ( ) LED: This LED will illuminate to indicate that the system is

stable and ready to process audio/video streams.

Note: This LED will blink during the firmware update process.

3VIDEO LED: This LED will illuminate to indicate that the video source

is stable, and streaming is in process.

4HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for

digital video and audio output.

5SFP+ Port: Insert a standard SFP+ module, and connect the

appropriate optical cable to allow data reception from a compatible

transmitter.

Note: The SFP+ module must support a dual-optical fiber connection

style, such as LC, or be pre-terminated dual-optical fiber cables. Single-

mode and multi-mode support is dependent on the SFP+ modules used.

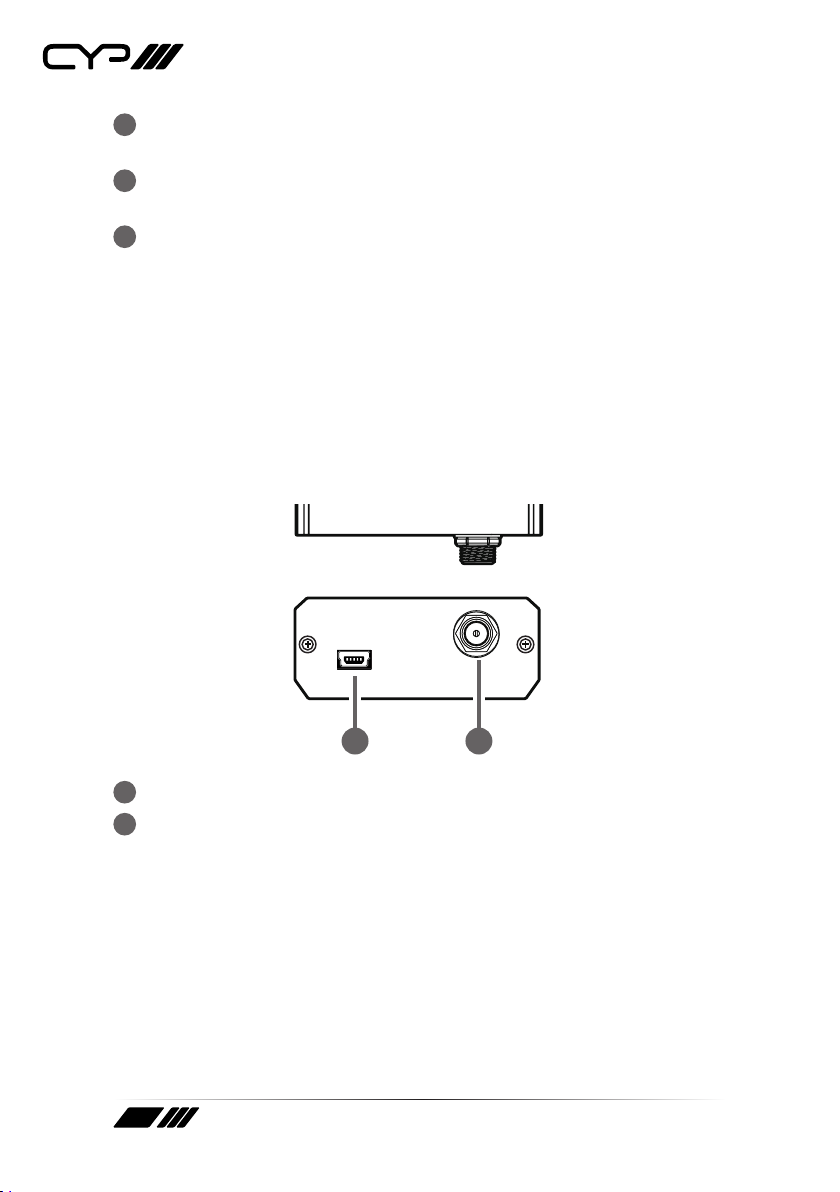

6.2 Transmitter Rear Panel

DC 5VSERVICE

HDMI IN SFP+VIDEO

1 2

1SERVICE (USB Mini-B) Port: This port is for rmware update only.

2DC 5V Port: Plug the 5V DC power adapter into this port and connect

it to an AC wall outlet for power.

6.3 Receiver Front Panel

HDMI IN

VIDEO SFP+

DC 5VSERVICE

HDMI IN SFP+VIDEO

1 3

4 5

1Power ( ) LED: This LED will illuminate to indicate the unit is on and

receiving power.

Note: This LED will blink during the firmware update process.

2System ( ) LED: This LED will illuminate to indicate that the system is

stable and ready to process audio/video streams.

Note: This LED will blink during the firmware update process.

3VIDEO LED: This LED will illuminate to indicate that the video source

is stable, and streaming is in process.

4HDMI IN Port: Connect to HDMI source equipment such as a media

player, game console, or set-top box.

5SFP+ Port: Insert a standard SFP+ module, and connect the

appropriate optical cable to allow data transmission to a compatible

receiver.

Note: The SFP+ module must support a dual-optical fiber connection

style, such as LC, or be pre-terminated dual-optical fiber cables. Single-

mode and multi-mode support is dependent on the SFP+ modules used.

6.4 Receiver Rear Panel

DC 5VSERVICE

HDMI IN SFP+VIDEO

1 2

1SERVICE (USB Mini-B) Port: This port is for rmware update only.

2DC 5V Port: Plug the 5V DC power adapter into this port and connect

it to an AC wall outlet for power.
