Instruction Manual

Model 4115-300

Ka-Band Block Upconverter

Weather Resistant Unit

November 2015, Rev. H

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be

reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating

the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 • FAX (770) 886-7964 • Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 4115-300 Ka-Band Upconverter, Weather Resistant*

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Message Protocol 5

2.2 M&C Commands 6

2.3 M&C Queries 7

2.4 Ethernet Interface Installation 9

2.4.1 Methods of Connection 9

2.4.2 Ethernet Configuration 9

2.4.3 Web page M&C 10

2.4.4 SNMP Configuration 11

2.5 Upconverter Outline Drawings 14

2.6 Physical Interface 15

2.7 Installation/Operation 16

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 • FAX (770) 886-7964 • Toll Free 888-900-5588

WEB www.crosstechnologies.com • E-MAIL [email protected]

4115-300 Manual, Rev. H Page 2 11/16/15

MODEL 4115-300 Ka-Band Upconverter, Weather Resistant*

1.0 General

1.1 Equipment Description

The 4115-300 Ka-band Block Upconverter converts 0.95 - 1.95 GHz up to 27.5 - 31.0 GHz in four selectable

fixed bands. Front panel LEDs provide indication of DC Power and PLL Alarms. The L-band to RF gain is +30

dB. Connectors are 2.92.mm for RF Out and RF Monitor, SMA for the external reference input and reference

output and Type N (all female) for the L-band. Gain, band select, and internal 10 MHz frequency are controlled

by the Ethernet M&C. In AUTO, the 10 MHz reference stays in external if the external level is in the +2 to +8

dBm range. It is powered by a 100-240 ± 10% VAC power supply, and mounted in a 8”Wide X 6”High X

16”Deep Weather Resistant enclosure.

NOTE: *Weather Resistant enclosures are designed to be water resistant for installation in an outdoor enclosure/antenna hut OR

mounted outdoors on an antenna assembly at their specified temperature ranges. They are designed to be located “out in the

elements” (water, sleet, snow, etc.) but they are not designed to be “submerged under” water. If an extended temperature range is

required, there is an Extended Temperature option (Option W21; -30˚C to +60˚C) available at an additional cost. Contact Cross for

quote.

••

•

••

L-BAND IN

10M IN

STATUS /

CONTROL ETHERNET

POWER

ALARM

J3 J4

10M OUT

FUSE

AC IN

MODEL 4115 UPCONVERTER

RF MON

RF OUTPUT

J1 .

.. .

••

•• J6

CROSS TECHNOLOGIES INC.

....

.....

....

... .

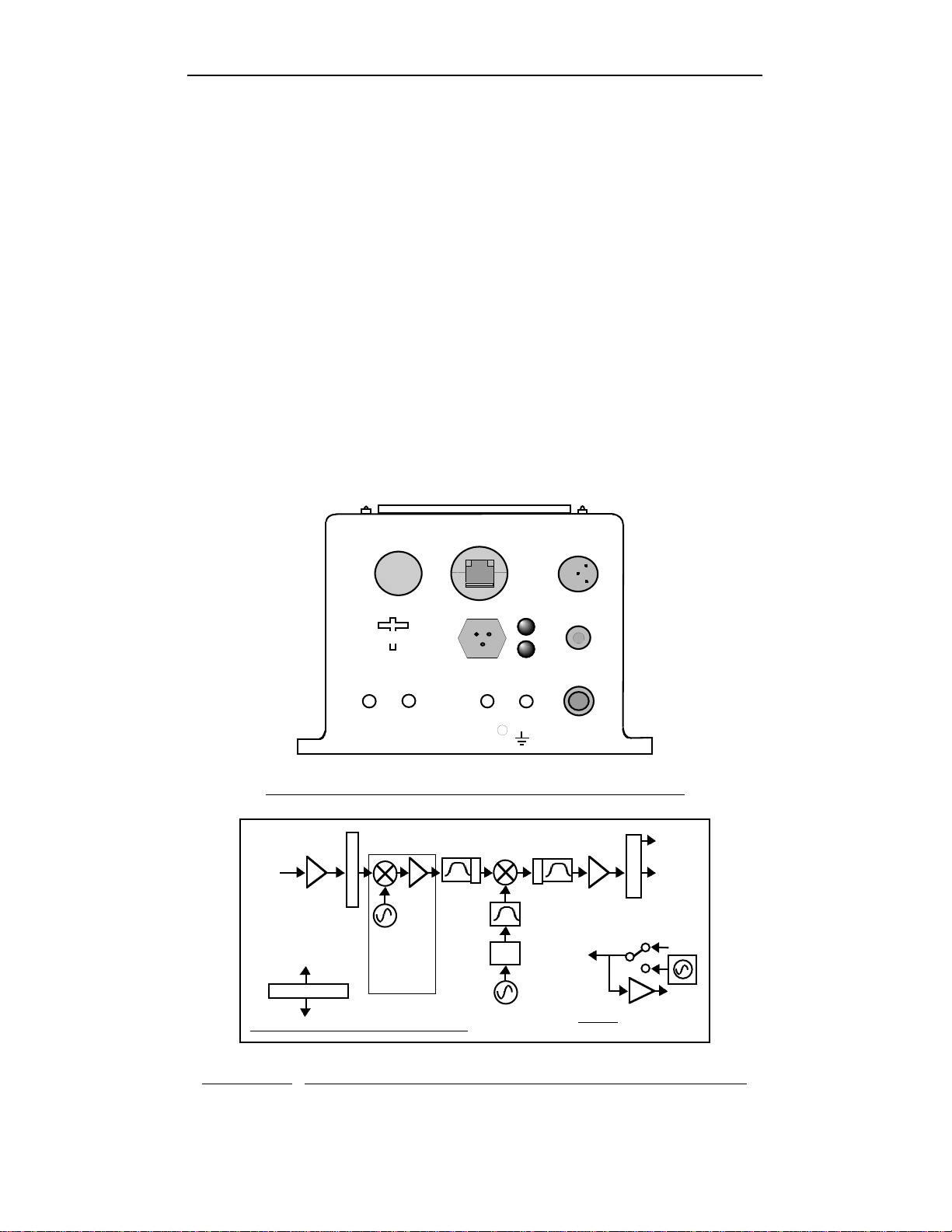

Model 4115-300 Ka-Band Block Upconverter Front Panel

0.95

1.95

GHz

11.7 to 13.2 GHz

EXT

10 M

PLLS

27.5 to 31

GHz BP

1 - 7.94

2 - 8.14

3 - 8.40

4 - 8.90

GHz

SW,PLL,ATT,VCC CONTROL

M&C

CONTROLLER

-20 RF

MON

10 M

MON

15.8 to 17.8

GHz BP

27.5 to

31 GHz

OUT

4115-300 Upconverter Block Diagram REV. B

6/01/11

1 - 10.67

2 - 10.77

3 - 11.25

4 - 11.25

GHz

UPCON-513

FIGURE 1.0 Model 4115-300 Ka-Band Block Upconverter Block Diagram

4115-300 Manual, Rev. H Page 3 11/16/15

1.2 Technical Characteristics

Technical Characteristics continued on page 5...

4115-300 Manual, Rev. H Page 4 11/16/15

±2 dB, over RF band; ± 0.5 dB, 40 MHz BW, Fre

uenc

Sense-Non-Invertin

Fre

uenc

Res

onse

Channel Characteristics

LO Characteristics

± 0.05

m maximum over tem

internal reference

;

external reference in

utFre

uenc

Accurac

< -45 dBC for two carriers at 4 MHz s

acin

each at -5 dBm outIntermodulation <-50 dBm, over 27.0 - 27.5 and 31.0 - 31.5 GHz BandS

urious, Out of Band

SIGNAL RELATED <-50 dBC in band, -15 to 0 dBm out;

SIGNAL INDEPENDENT, <-55 dBm; over 27.5 to 31 GHz Band

urious, Inband

+2 to +8 dBm in

Monitor Out

ut = in

ut level ± 1.0 dB

50 ohms10 MHz Level In/Mon

Band S

ecificLO Fre

uenc

+ 30 ± 3 dB,

(

+30 to 0 dB variable in 0.5 dB Ste

)

Gain @ Fc

-105-95-80-75-65

1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ F (Hz) >

Controls

Indicators

Green LEDPower

Gain, band select and internal 10 MHz frequency via Ethernet,

M&C or Status/Control Connector

Gain, Band, 10M Fre

uenc

Red LED, External Contact ClosurePLL, Alarm

TABLE 1.0 4115-300 Block Upconverter Specifications**

Band 4 - 30.0 to 31.0

+8 dBm, maximum

ainOut

ut 1 dB Com

ression

Band 3 - 29.0 to 30.0

Band 2 - 28.0 to 29.0

-40 to -15 dBmIn

ut Level 20 dB maximum

ainNoise Fi

ure, Maximum 0.95 to 1.95 GHzFre

uenc

(

GHz

)

>60 dB @ 0 dBm Out

utMute at Maximum Level Out

-15 to 0 dBmOut

ut Level Ran

Out

ut Characteristics

Band 1 - 27.5 to 28.5Fre

uenc

(

GHz

)

50Ω/ 14 dB

Mute & UnmuteIm

edance / Return Loss

50Ω/ 14 dBIm

edance / Return Loss

Technical Characteristics continued from page 4...

4115-300 Manual, Rev. H Page 5 11/16/15

e N

(

female

)

, 50ΩL-Band Connector

100-240 ±10% VAC, 47-63 Hz, 25 Watts Maximum,

FCI Clipper Series CL1M1102, Weather Resistant Connector.

Power

8” Wide X 6” High X 16” Deep, Weatherized Resistant* EnclosureSize

Status/Control Connector, MS3112E14-18S;

Mating Cable Connector, MS3116F14-18P.

Ethernet Conector, RJF21B; Mating Cable Connector, RJF6G;

Cable interface, Standard RJ45.

AC Input Connector, Clipper Series, CL1M1102,Mating Cable Connector, CL1F1101.

(Unless otherwise specified, the mating connector is provided preassembled onto a

standard NEMA 5-15 U.S. power cord.)

M&C Connector(s)

SMA

(

female

)

, 50Ω10 MHz Connectors

2.92mm

(

40 GHz

)

female, 50ΩRF Out, Mon. Connector

Other

2.0 Installation

The 4115-300 Ka-Band Upconverter consists of a 8”W X 6”H X 16”D Weather Resistant* enclosure.

A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 4115-300 can be

secured to a mounting plate using the 4 holes on the bottom of the front and rear panel. (See Figure 2.5 for

mounting dimensions.)

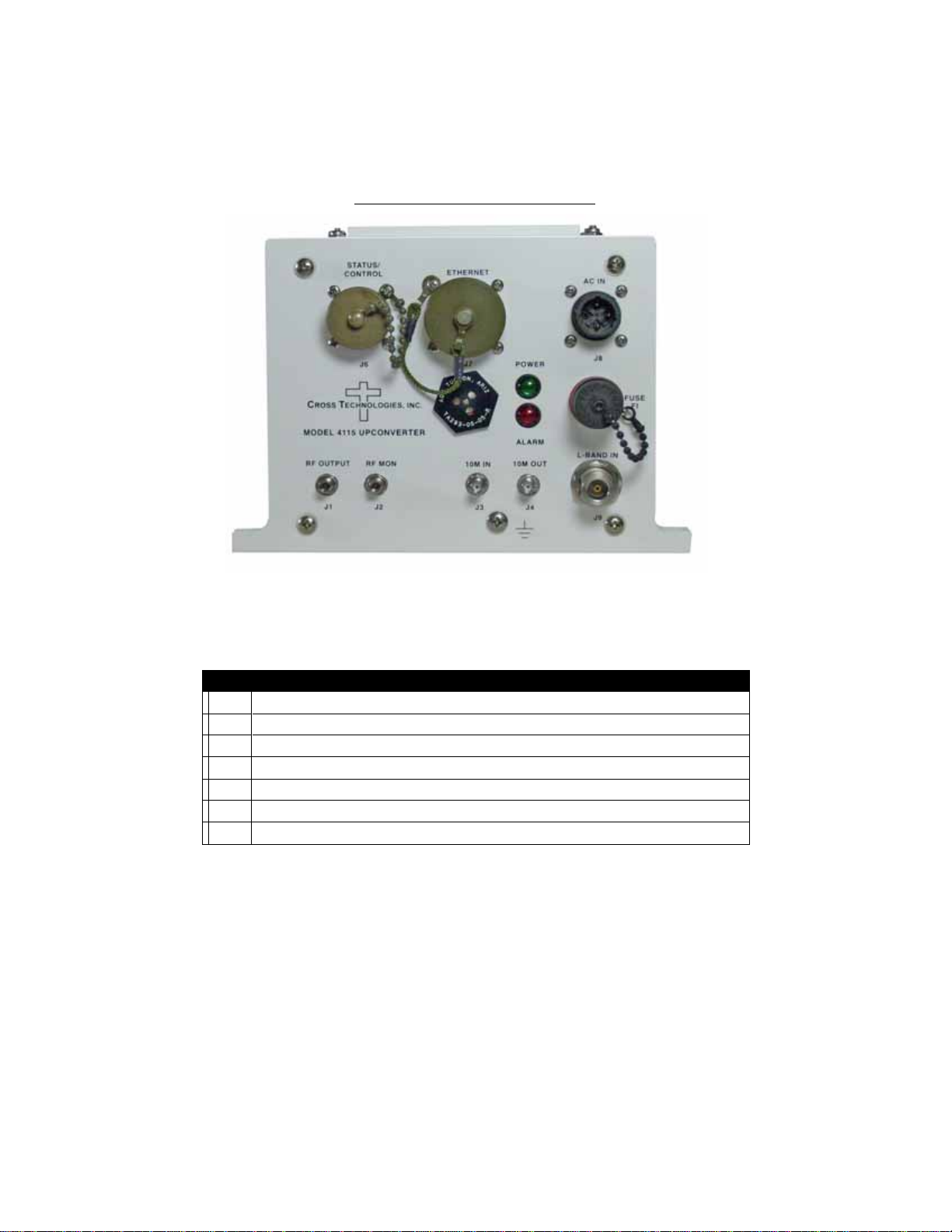

Figure 2 - 4115-300 Front Panel

2.0.1 Connection to AC Input Power

The 4115-300 is furnished with a pre-assembled AC power input cable as described below.

4115-

1 Power Input Connector, FCI Clipper Series, CL1M1102 & Crimp Pins

Matin

Mating Connector FCI Clipper Series, CL1F1101, Crimp Pins

and CCL101021

and CL101021 Backshell

Pin Input Connector Pin Description

1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.

2 Neutral

3 Ground

2.1 Message Protocol

The serial format for the RS232/RS422/RS485 port is 9600 baud, 8 data bits, no parity, and 1 stop bit.

All messages consist of ASCII printable characters so standard terminals and terminal emulator programs may

be used to control and monitor the unit. All messages begin with the open bracket character “{”(ASCII 0x7B)

and end with the close bracket character “}” (ASCII 0x7D). Messages consisting of commands to set or change

operating parameters and modes of the unit begin with “C” (ascii 0x43) followed by a command specific

character. Messages consisting of queries to report operating parameters and modes begin with “S”

(ASCII 0x53) followed by a parameter specific character.

4115-300 Manual, Rev. H Page 6 11/16/15

2.2 M&C Commands

The following tables summarize the commands and status queries applicable to the

4115-300 frequency converter.

*PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected.

Table 2.0 Model 4115-300 M&C Commands

x = 4 to select band 3: in = (950 to 1950 MHz)

out

(

30000

31000

MHz

)

x = 1 to select RS422

x = 0 to unmute output

x = 1 to mute the output

where:{aaCMx}Set Mute

Range: +2000 to +8000

xxxxx = 5 characters

where:{aaCOxxxxx}Set Int. 10 MHz reference offset

Range: 0 to 31

xx = 2 characters

where:{aaCRxx}Set RS485 address

x = 2 to select RS485

x = 0 to select RS232

where:

{aaCIx}

Set Serial Interface

Range: 000 to 300 (00.0 to 30.0 in 0.5 dB steps)

xxx = 3 characters

where:

{

aaCGxxx

}

Set

Gain

x = 3 to select band 3: in = (950 to 1950 MHz)

out

(

29.0

30.0

MHz

)

x = 2 to select band 2: in = (950 to 1950 MHz)

out

(

28.0

29.0

MHz

)

x = 1 to select band 1: in = (950 to 1950 MHz)

out

(

27.5

28.5

MHz

)

where:

{

aaCBx

}

Set

Fre

uenc

Band

DescriptionSyntaxCommand

Table 2.0: Model 4115-300 M&C Commands

4115-300 Manual, Rev. H Page 7 11/16/15

2.3 M&C Queries Table 2.1 Model 4115-300 M&C Queries

x = if band 4 is selected in = (950 to 1950 MHz)

out

(

30.0

31.0

MHz

)

x = 1 if mute is on

x = 0 if mute is off

Returns {aaSMx} where:

{

aaSM

}

Mute

RS422

selected

Example: {aaSG245} indicates the current

ain

settin

24.5

Range: 00 to 31

RS485

selected

Auto

MHz

reference

selected

xx = 2 characters

Returns {aaSAxx} where:

{

aaSR

}

RS485 address

x = 0 if RS232 is selected

Returns {aaSIx} where:{aaSI}

Serial Interface

x = 2 if External 10 MHz reference is selected

x = 1 if Internal 10 MHz reference is selected

Returns {aaSEx} where:{aaSE}

10 MHz reference

Range: 0 to 300 ( in 0.5 dB steps)

xxx = 3 characters

Returns {aaSGxxx} where:

{

aaSG

}

Gain

x = if band 3 is selected in = (950 to 2050 MHz)

out

(

29.0

30.0

MHz

)

x = 2 if band 2 is selected in = (950 to 2050 MHz)

out

(

28.0

29.0

MHz

)

x = 1 if band 1 is selected in = (950 to 2050 MHz)

out

(

27.5

28.5

MHz

)

Returns {aaSBx} where:

{

aaSB

}

Fre

uenc

Band

DescriptionSyntaxQueries

Table 2.1: Model 4115-300 M&C Queries

continued on page 8...

4115-300 Manual, Rev. H Page 8 11/16/15

Table 2.1 Model 4115-300 M&C Queries (Continued from page 7...)

returns

{

aaSVxxxxxxxx

yyyy}

where:

{aaSV}

Model

and

firmware

revision

Ran

+2000

+8000

xxxxx

characters

yyyy = unit firmware rev.

xxxxxxxx = unit model number

Range (-99 to +99) degrees Celsius

xxx = 3 characters

Returns {aaSTxxx} where:{aaST}

Internal Temperature

y = 0 if unit is using internal 10 MHz ref,

unit

usin

external

reference

x = 0 if no summary alarm, x = 1 if summary alarm

Returns {aaSAxy} where:

{

aaSA

}

Unit

Status

Returns {aaSOxxxxx} where:

{

aaSO

}

Int.

MHz

reference

offset

DescriptionSyntaxQueries

Table 2.1: Model 4115-300 M&C Queries - Continued...

4115-300 Manual, Rev. H Page 9 11/16/15

2.4 ETHERNET Interface Installation and Operation

The 4115-300 frequency upconverter is equipped with a 10/100 Base-T compatible Ethernet interface for

control and monitoring of its operating parameters. An HTML script interface allows the user to monitor and

control the converter using a standard web browser. SNMP (Simple Network Management Protocol) is also

supported. Contact Cross Technologies for the SNMP MIB file.

2.4.1 Methods of Connection

Directly Connected to a PC:

For control from a local PC, attach the 4115-300’s Ethernet port to the Ethernet network connector

on the PC using a crossover RJ-45 cable.

LAN Connection

For LAN connections, attach the 4115-300 Ethernet port to the LAN using a normal RJ-45 cable.

Use any PC on the LAN to connect to the 4115-300.

2.4.2 Ethernet Configuration

Each 4115-300 must be configured with an appropriate IP address, Netmask, and Gateway assigned by your

network manager. The 4115-300 is set at the factory with a static address of 192.168.123.2. The device server

in the 4115-300 has a built in HTTP based configuration manager that is used to configure network settings. To

access the configuration manager open a web browser and enter the IP address of the 4115-300 in the browser's

address field. The window shown in Figure 2-A will appear. As delivered, there is no password set. Choose

your user name and password here or leave those fields blank and click OK to proceed to the configuration

manager web page.

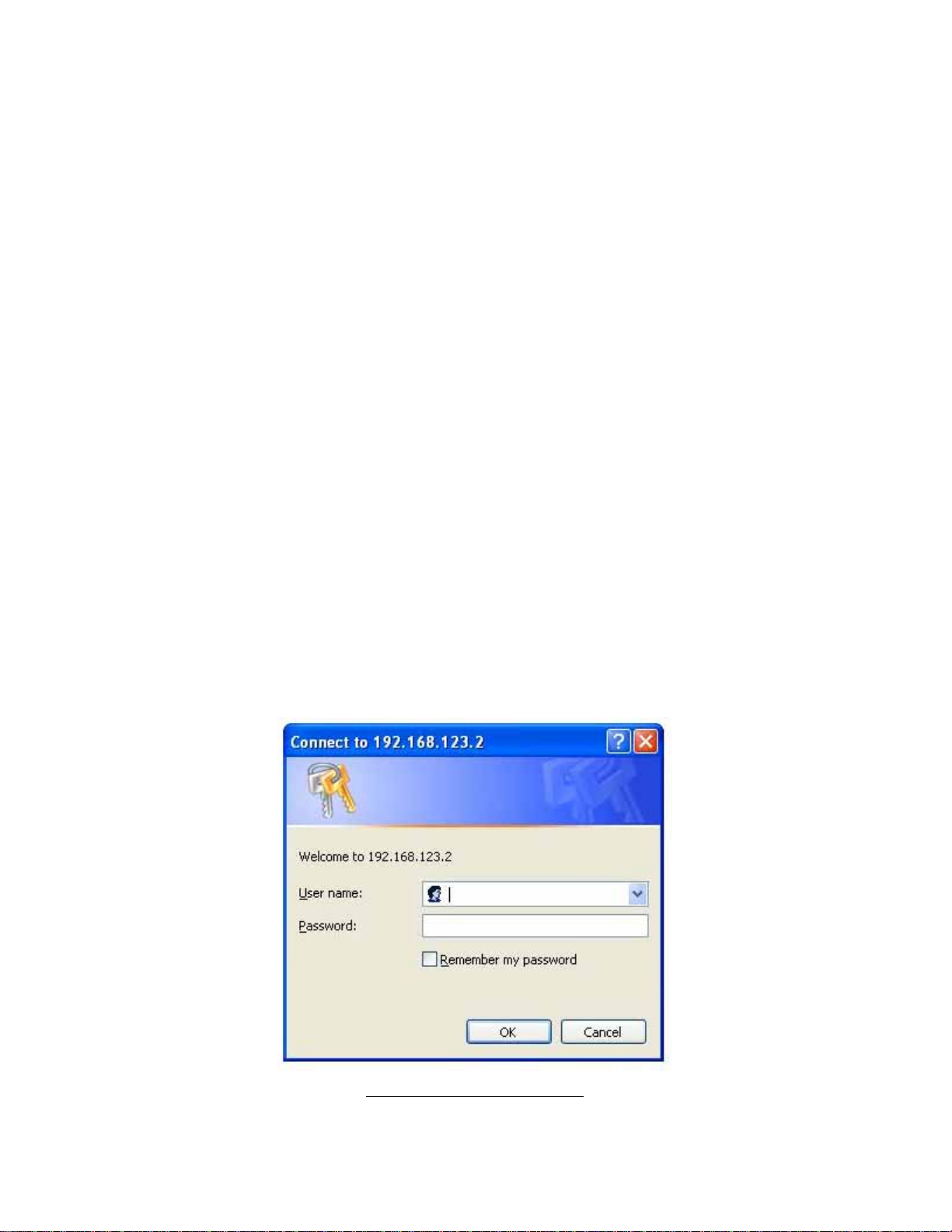

Figure 2-A: Password Screen
