Cross Technologies 2117 User manual

Instruction Manual

Model 2117-8485

Up/Downconverter

November 2019

MODEL 2117

CROSS TECHNOLOGIES INC.

EXT

10MHZ POWERALARM

UP/DOWNCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

All manuals and user guides at all-guides.com

INSTRUCTION MANUAL

MODEL 2117-8485 Up/Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Mechanical 5

2.2 Front & Rear Inputs and Outputs 6

2.3 Available Options/Pinouts 7

2.4 Installation/Operation 8

2.5 Use Information 9

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2117-8485 Manual Page 2 11/14/19

All manuals and user guides at all-guides.com

MODEL 2117-8485 Up/Downconverter

1.0 General

The 2117-8485 Up/Downconverter converts 1.80 - 1.90 GHz to 8.40 - 8.50 GHz and 8.40-8.50 GHz to 1.50 -

1.60 GHz, with non-inverting spectrums. Front panel LEDs provide indication of DC Power, External 10 MHz,

and PLL Alarm. The gain is +20 dB for the upconverter and -20 dB for the downconverter. Connectors are

Type N female for the RF output and input, BNC female for the L-band input and output and external reference

input and reference output. A three-way switch controls which 10 MHz reference is being used. In the AUTO

position, the internal reference is used unless a +3 dBm ± 3 dB, 10MHz reference signal is connected to the

external reference input. The 2117 is powered by a 100-240 ± 10% VAC power supply, and in a 1 3/4” X 19” X

19” rack mount chassis.

MODEL 2117

CROSS TECHNOLOGIES INC.

EXT

10MHZ POWERALARM

UP/DOWNCONVERTER

FRONT PANEL

GND

EXT REF

IN REF

OUT

INT EXTAUTO

S1 J112

J11

MONITOR

AND

CONTROL

15 234 6

J111

RF2 IN RF2 OUT

J102J101

RF1 OUT RF1 IN

DOWNCON UPCONV

REAR PANEL

FIGURE 1.1 Model 2117-8485 Front and Rear Panels

2117-8485

Up/Downconverter

Block Diagram

10 MHz

To PLLs

EXT 10 M

10 M

MON

1.80 to 1.90

GHz IN

RF2 In

8.40 to 8.50 GHz BP 1.90 GHz LP

8.40 to 8.50

GHz OUT

RF2 Out

6.60 GHz

8.40 to 8.50

GHz IN

RF1 In

1.50 to 1.60

GHz OUT

RF1 Out

8.40 to 8.50 GHz BP

6.90 GHz

1.60 GHz LP

Upconverter

Downconverter

ATT. ATT.

FIGURE 1.2 Model 2117-8485 Up/Downconverter Block Diagram

2117-8485 Manual Page 3 11/14/19

All manuals and user guides at all-guides.com

1.2 Technical Characteristics

TABLE 1.0 2117-8485 Up/Downconverter Specifications*

EQUIPMENT SPECIFICATIONS*

SPECIFICATIONS*

Input

Input Characteristics

DOWN

Impedance/Return Loss 50Ω/14 dB 50Ω/14 dB

Frequency 1.80-1.90 GHz 8.40-8.50 GHz

Noise Figure, Max. 20 dB @ max gain 25 dB @ max gain

Input Level range -40 to -20 dBm -20 to 0 dBm

Output

Output Characteristics

Impedance/Return Loss 50 Ω/14 dB 50 Ω/14 dB

Frequency (GHz) 8.40-8.50 GHz 1.50-1.60 GHz

Output Level Range -20 to 0 dBm -40 to -20 dBm

1 dB comp, max gain +10 dBm -10 dBm

Mute @ 0 dBm out >50 dB N/A

Channel

Channel Characteristics

Gain, max. at Fc, fixed +20 ±2 dB -20 ±2 dB

Image Rejection >60 dBC >60 dBC

Spurious, Inband, sig. rel. <-50 dBC, 0dBm <-50 dBC, -5dBm

Spurious, Inband, sig. ind. <-50 dBC, Gmax <-50 dBC, Gmax

urious, Out of band

<-50 dBm, Gmax <-50 dBm, Gmax

2 tone 4MHz; Max -10 ea <-50 dBC,Gmax <-50 dBC,Gmax

Frequency Resp. band ±1.5 dB ±1.5 dB

Frequency Resp. 40 MHz ± 0.5 dB ± 0.5 dB

Frequency Sense non-inverting non-inverting

LO Characteristics

LO Frequency Downconverter - 6.90 GHz; Upconverter - 6.60 GHz

Frequency Accuracy ± 0.01 ppm max over temp internal reference; external reference input

10 MHz Level +3 dBm, ± 3dB, 75 ohms, External In or Internal out

-110-100-85-80-70

1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise

Fre

(

)

Controls, Indicators

INT/AUTO/EXT Switch Selects internal or external 10 MHz (rear panel DP3T switch)

Ext 10 MHz Yellow LED, indicates external 10 MHz reference selected

PLL Alarm Red LED, External contact closure

Power Green LED

Other RF1 In, RF2 Out N-Type (female), 50Ω

RF1 Out, RF2 In N-Type (female), 50Ω

10 MHz Connectors BNC (female), 75Ωconnector; works with 50Ωor 75Ω

Alarm Connector DB9 - NO or NC contact closure on Alarm

Size 19 inch Standard Chassis 1.75”high X 14.0” deep

Power 100-240 ± 10% VAC, 47-63 Hz, 50 watts maximum

Options

Connector Options See TABLE 2.2

*+10˚C to +40˚C; Specifications subject to change without notice.

2117-8485 Manual Page 4 11/14/19

All manuals and user guides at all-guides.com

2.0 Installation

2.1 Mechanical - The 2117-8485 consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by 14 inch deep

chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2117-8485 can

be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2117-8485 is assembled.

PS IN

PIN 1, +12 VDC

PIN 2, +5 VDC

PIN 3, +5 VDC

PIN 4, GROUND

PIN 5, GROUND

PIN 6, -12 VDC

PIN 7, +24 VDC

PIN 8, +24 VDC

POWER

SUPPLY

FIGURE 2.0 2117-8485 Mechanical Assembly

2117-8485 Manual Page 5 11/14/19

All manuals and user guides at all-guides.com

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.

INT AUTO EXT

GND

J102

AND

MONITOR

CONTROL

J2 - EXT 10 MHz INPUT

BNC (Female), 75Ωinsert

external 10 MHz reference

here

(

dBm

± 3 dB)

J11 - ALARM

DB9 (Female)

connector.

See table 2.1

5 23

J8-10 MHz OUTPUT

BNC (Female), 75Ω

J101 - RF1 OUT

1.5 to 1.6 GHZ

BNC Type Female 50Ω

-40

-20

dBM

J102

8.4 to 8.5

N-Type Female 50Ω

-20

dBM

J112

8.4 to 8.5

N-type Female 50Ω

-20

dBM

S1 - 10MHz SWITCH

3 position switch INT selects 10MHz

ref. Auto selects internal10MHZ ref.

unless a 0 dBm ± 3 dB 10 MHz

signal is inserted on J2 EXT selects

external

10MHz

reference

from

J2.

J2 J101 J111 UPCON

J112

J111

1.8 to 1.9

BNC

-40

-20

RF2 IN

RF2 OUT

J11

RF1 IN

DOWNCON

J102

RF1 OUT

EXT REF

IN RF

OUT

AC INPUT

100-240 VAC, 47-60 Hz

Uses 2 amp Slow Blo,

5mm

fuse.

Shown below (Option P48) - Rear Panel Input/Output Signals

with Option P48, 48 VDC nominal 36-72 VDC, 2.5A maximum.

INT AUTO EXT

GND

J102

AND

MONITOR

CONTROL

5 23

36 TO 72 VDC

• •

•

DC INPUT

J14 S1

J2 J101 J111 UPCON

J112

RF2 IN

RF2 OUT

J11

RF1 IN

DOWNCON

J102

RF1 OUT

EXT REF

IN RF

OUT

DS2 - ALARM LED

Lights RED when PLL

comes out of lock.

DS1 - POWER LED A

Lights GREEN when DC voltage is

present from AC power supply.

DS3 - EXT 10MHZ LED

Lights YELLOW when external

10MHz reference is active.

POWER

EXT

10MHZ ALARM

FIGURE 2.2 2117-8485 Front Panel Controls and Indicators

2117-8485 Manual Page 6 11/14/19

All manuals and user guides at all-guides.com

TABLE 2.1 JJ11

TABLE 2.1 J11 Pinouts (DB9)

Pin Function

1 Not Used

2 Not Used

3 Not Used

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

TABLE 2.3 DDC1

TABLE 2.3 DC1 Pinouts

Pin# Function

1 Minus DC input

2NC

3 Plus DC input

4NC

Shell Ground

FIGURE 2.1 2117-8485 Rear Panel I/Oʼs FIGURE 2.3 2117-8485 DC1 Pinouts

TABLE 2.2 Available Options

P48 = 48 VDC Nominal 36-72 VDC, 2.5A max.

R = Redundant AC Power Supply

Available Connector Options

NF 50ΩN-Type (RF), 75ΩF-Type (L-Band)

N50ΩN-Type (RF), 75ΩBNC (L-Band)

NN 50ΩN-Type (RF), 50ΩN-Type (L-Band)

SS 50ΩSMA (RF), 50ΩSMA (L-Band)

FIGURE 2.2 2117-8485 Available Options

AC Fuse - 2 amp slow blow (Type T),

5 mm X 20 mm

FUSE DRAWER

SPARE FUSE

INPUT

100-240± 10%VA

47-63 Hz

2A MAX

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

FIGURE 2.3 Fuse Location and Spare Fuse

2117-8485 Manual Page 7 11/14/19

All manuals and user guides at all-guides.com

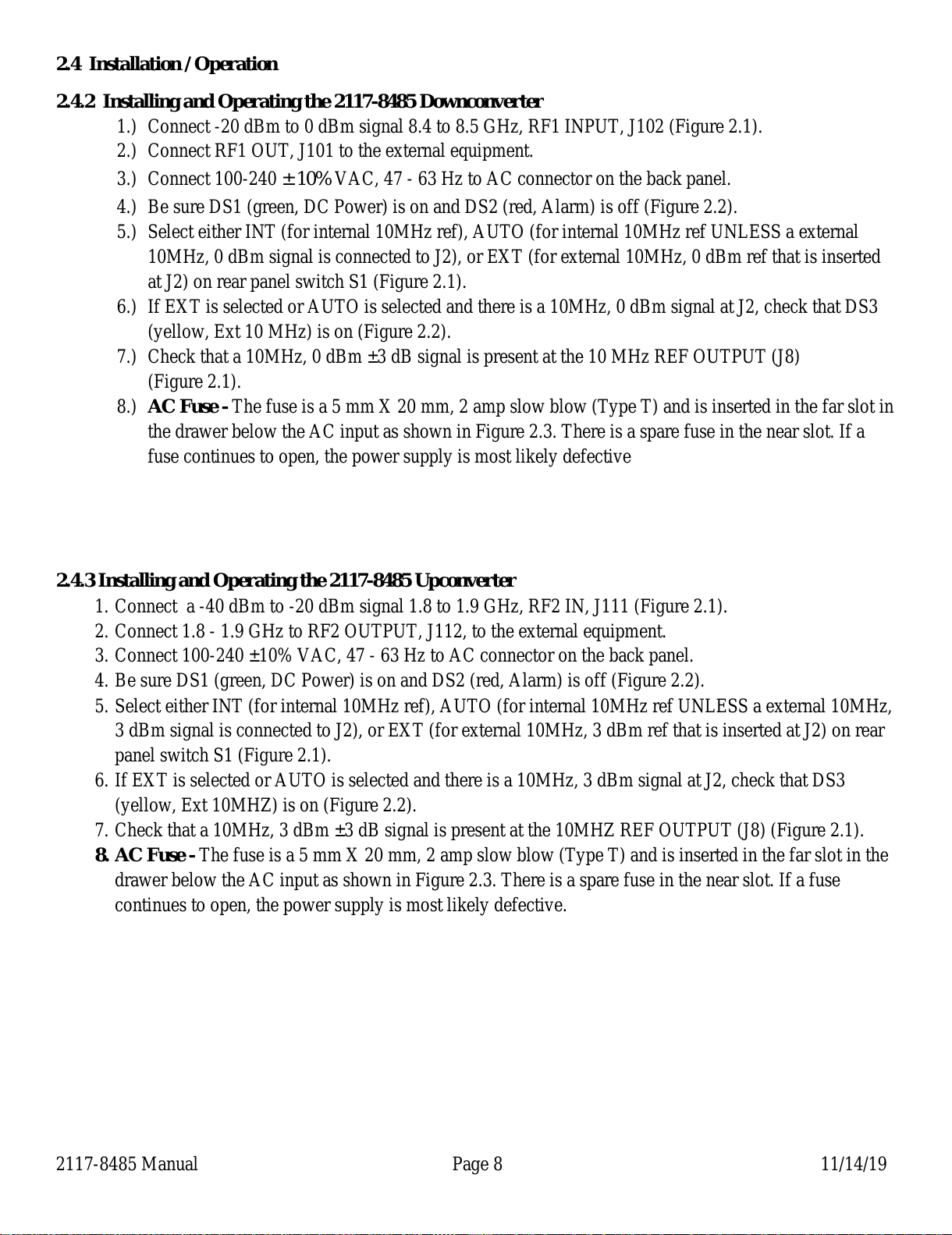

2.4 Installation / Operation

2.4.2 Installing and Operating the 2117-8485 Downconverter

1.) Connect -20 dBm to 0 dBm signal 8.4 to 8.5 GHz, RF1 INPUT, J102 (Figure 2.1).

2.) Connect RF1 OUT, J101 to the external equipment.

3.) Connect 100-240 ± 10% VAC, 47 - 63 Hz to AC connector on the back panel.

4.) Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

5.) Select either INT (for internal 10MHz ref), AUTO (for internal 10MHz ref UNLESS a external

10MHz, 0 dBm signal is connected to J2), or EXT (for external 10MHz, 0 dBm ref that is inserted

at J2) on rear panel switch S1 (Figure 2.1).

6.) If EXT is selected or AUTO is selected and there is a 10MHz, 0 dBm signal at J2, check that DS3

(yellow, Ext 10 MHz) is on (Figure 2.2).

7.) Check that a 10MHz, 0 dBm ±3 dB signal is present at the 10 MHz REF OUTPUT (J8)

(Figure 2.1).

8.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in

the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a

fuse continues to open, the power supply is most likely defective

2.4.3 Installing and Operating the 2117-8485 Upconverter

1. Connect a -40 dBm to -20 dBm signal 1.8 to 1.9 GHz, RF2 IN, J111 (Figure 2.1).

2. Connect 1.8 - 1.9 GHz to RF2 OUTPUT, J112, to the external equipment.

3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.

4. Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

5. Select either INT (for internal 10MHz ref), AUTO (for internal 10MHz ref UNLESS a external 10MHz,

3 dBm signal is connected to J2), or EXT (for external 10MHz, 3 dBm ref that is inserted at J2) on rear

panel switch S1 (Figure 2.1).

6. If EXT is selected or AUTO is selected and there is a 10MHz, 3 dBm signal at J2, check that DS3

(yellow, Ext 10MHZ) is on (Figure 2.2).

7. Check that a 10MHz, 3 dBm ±3 dB signal is present at the 10MHZ REF OUTPUT (J8) (Figure 2.1).

8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the

drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse

continues to open, the power supply is most likely defective.

2117-8485 Manual Page 8 11/14/19

All manuals and user guides at all-guides.com

Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra. (Maximum Recommended Ambient Temperature)

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2117-8485 Manual Page 9 11/14/19

All manuals and user guides at all-guides.com

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2117-8485 Manual Page 10 11/14/19

All manuals and user guides at all-guides.com

This manual suits for next models

Table of contents

Other Cross Technologies Media Converter manuals

Cross Technologies

Cross Technologies 3117-3338 720 Series User manual

Cross Technologies

Cross Technologies 2116-182193 User manual

Cross Technologies

Cross Technologies 4115-41-212 User manual

Cross Technologies

Cross Technologies 2015-26 User manual

Cross Technologies

Cross Technologies 2115-122 User manual

Cross Technologies

Cross Technologies 2017-14 User manual

Cross Technologies

Cross Technologies 2017-0923 370 Series User manual

Cross Technologies

Cross Technologies 2015-24 User manual

Cross Technologies

Cross Technologies 2017-93 User manual

Cross Technologies

Cross Technologies 2415-x02 User manual

Cross Technologies

Cross Technologies 2115-275-1845 User manual

Cross Technologies

Cross Technologies 2116-140T120 User manual

Cross Technologies

Cross Technologies 1584 User manual

Cross Technologies

Cross Technologies 1584-29 User manual

Cross Technologies

Cross Technologies 2017-03 User manual

Cross Technologies

Cross Technologies 2016-25 User manual

Cross Technologies

Cross Technologies 2017-1727-140 User manual

Cross Technologies

Cross Technologies 3115-21-109 User manual

Cross Technologies

Cross Technologies 2016-02-1200 User manual

Cross Technologies

Cross Technologies 3116-192 User manual

Cross Technologies

Cross Technologies 2015-03A User manual

Cross Technologies

Cross Technologies 2016-03A User manual

Cross Technologies

Cross Technologies 3016-1520-1200 User manual

Cross Technologies

Cross Technologies 2415 0925 Series User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
