Instruction Manual

Model 2017-14

UHF, L-Band, Up/Downconverter

January 2013, Rev. 0

EXECUTE

MODEL 2017

CROSS TECHNOLOGIES INC.

U U > L G = 10.0

D L > U G = 25.0 INT

MUTE

UPCONVERTERDOWNCONVERTER

REMOTEALARM POWER ALARM

UP/DOWNCONVERTER

RF MONITOR

--------- UPCONV--------

RF MONITOR

------- DNCONV--------

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be

reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating

the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2017-14 UHF, L-Band, Up/Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Environmental Use Information 8

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear I/O’s 10

2.3 Front Panel Controls, Indicators 12

2.4 Operation 13

2.5 Menu Settings 15

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There

are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2017-14 Manual, Rev. 0 Page 2 01/31/13

MODEL 2017-14 UHF, L-Band, Up/Downconverter

1.0 General

1.1 Equipment Description

The 2017-14 UHF, L-band Up/Downconverter converts 0.2-0.4 GHz to 1.2-1.4 GHz (Up) and 1.2-1.4 GHz to

0.2-0.4 GHz (Down). Multi-function switches select the gain (0 to +30 dB range for the Upconverter and

Downconverter), and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm

(red), remote operation (yellow), and Upconverter mute (yellow). Remote operation allows selection of gain

and external 10 MHz Reference (Option E1). Gain settings appear on the LCD display. Connectors are BNC

female for UHF and the optional external reference input and output (OPTION E1), and Type F female for

L-band. A high stability (±0.01 ppm Option H) option is also available. It is powered by a 100-240 ±10% VAC

power supply and housed in a 1.75” X 19” X 16” 1RU chassis.

EXECUTE

MODEL 2017

CROSS TECHNOLOGIES INC.

U U > L G = 10.0

D L > U G = 25.0 INT

MUTE

UPCONVERTERDOWNCONVERTER

REMOTEALARM POWER ALARM

UP/DOWNCONVERTER

RF MONITOR

--------- UPCONV--------

RF MONITOR

------- DNCONV--------

FRONT PANEL

AC UPCONVERTER

GND

DOWNCONVERTER

J4 J5

J3J18J2

RF IN 10 MHZ REF 10 MHZ IF IN

EXT REF

IF OUT OUTPUT INPUT

J10

AND

MONITOR

CONTROL

J20

234 6789

RF OUT

REAR PANEL

Figure 1.1 Model 2017-14 Front and Rear Panels

PLL,ATT, CONTROL

M&C

CONTROLLER

0.2 - 0.4

GHz

UHF OUT

1.2

1.4

GHz

+10

L-band

MON** 0.5 GHz LP

2017-14 Up / Downconverter Block Diagram

EXT**

10 M10 M

PLLS

0.2

0.4

GHz

2.075 GHz BP

T1.2-1.4

GHz

L-band

OUT

-20 dBC

L-band MON**

2.075 GHz BP

0.5 GHz LP

L > U Downconverter

U > L Upconverter

1.5 GHz LP

2.375

GHz

2.375

GHz

3.375

GHz

3.375

GHz

1.5 GHz LP

**OPTIONAL**

Figure 1.2 Model 2017-14 Up/Downconverter Block Diagram

2017-14 Manual, Rev. 0 Page 3 01/31/13

2017-14 Manual, Rev. 0 Page 4 01/31/13

1.2 Technical Characteristics

nthesizer

Characteristics

NONE

Fixed Fre

uenc

Fre

uenc

Ste

± 1.0

m internal reference

(

±0.01

m, O

tion -H

)

Fre

uenc

Accurac

-110-100-85-80-75 1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ Frequency

100-240 ± 10% VAC

47-63 Hz

45 watts maximumPower

BNC

(

female

50Ω/75Ω10 MHz Connectors

e F

(

female

)

/ BNC

(

female

)

RF/IF

(

UHF

)

Connector

Other

RS232C

9600 baud

;

(

RS485

tion Q

Ethernet O

tional

)

Remote

Controls

Indicators

19 inch

1 RU Standard Chassis

1.75” hi

h X 16.0” dee

Size DB9 - NO or NC contact closure on AlarmAlarm/Remote Connector

Green LED

Red LED

Yellow LEDPower/Alarm/Remote Direct readout LCD;

ushbutton switches or remote selectionGain Selection

3 dBm ± 3 dB, 75 ohms

(

tion E1

)

10 MHz Level In/Out Level

TABLE 1.0 2017-14 UHF, L-Band, Up/Downconverter Specifications*

+10 dBm1 dB Com

, maximum

ain

< -60 dBmS

urious, in Band, Si

nal ind.. < -55 dBC, 0 dBmS

urious, in Band, Si

nal rel.

Non-invertin

Fre

uenc

Sense ± 0.5 dBFre

uenc

Res

onse

40 MHz ± 2 dBFre

uenc

Res

onse Band < -50 dBmIntermod - 2 Carriers < -55 dBmS

urious, Out of Band

< -55 dBC, minimumIma

e Re

ection +30 to 0 dBGain, Ran

e, 0.5dB ste

> 60 dBMute @ 0 dBm Out

-20 dBC OUT

(

±3 DB

)

Mon. Level

(

tion W78

)

20 db @ max.

ainNoise Fi

ure

maximum

+30 ± 3 dBGain

Maximum at Fc

Channel

Characteristics

-15 to 0 dBmOut

ut Level Ran

0.2 to 0.4 GHzFre

uenc

Out

Characteristics

(

UHF

)

1.2 to 1.4 GHzFre

uenc

(

GHz

)

50Ω/ 14 dBIm

edance/Return Loss

-40 to -25 dBmIn

ut Level Ran

50Ω/ 14 dBIm

edance/Return Loss

UPCONVERTER

+10 dBm1 dB Com

maximum

ain

< -60 dBmS

urious

in Band

nal ind. < -50 dBC, 0 dBmS

urious, in Band, Si

nal rel.

Non-invertin

Fre

uenc

Sense ± 0.5 dBFre

uenc

Res

onse, 40 MHz ± 2 dBFre

uenc

Res

onse Band < -50 dBmIntermod - 2 Carriers < -45 dBmS

urious, Out of Band

> 50 dB, minimumIma

e Re

ection +30 to 0 dBGain

Ran

0.5dB ste

N/AMute @ 0 dBm Out

+10 dBm IN

(

±3 DB

)

Mon. Level

(

tion W78

)

15 @ max.

ainNoise Fi

ure, maximum

+30 ± 3 dBGain, Max at Fc

Channel

Characteristics

-20 to 0 dBmOut

ut Level Ran

1.2 to 1.4 GHzFre

uenc

Out

Characteristics

(

UHF

)

0.2 to 0.4 GHzFre

uenc

(

GHz

)

50Ω/ 14 dBIm

edance/Return Loss

-50 to -30 dBmIn

ut Level Ran

50Ω/ 14 dBIm

edance/Return Loss

DOWNCONVERTER

.2 - .4 GHz Out≥-40 dBc @ maximum in

ut level

Downconverter

2nd

Harm

1.2 Technical Characteristics continued...

SMA, 50Ω(RF), 50ΩBNC (IF)

50ΩN-Type (RF), 50ΩBNC (IF)

50ΩN-Type (RF), 75ΩBNC (IF)

75ΩF-Type (RF), 50ΩBNC (IF)

50ΩBNC (RF), 50ΩBNC (IF)

50ΩBNC (RF), 75ΩBNC (IF)

75ΩBNC (RF), 75ΩBNC (IF)

Ethernet; with TCP/IP, Telnet®

Ethernet; with Web Browser and SNMP

Ethernet; with Web Browser

RS485/422

External Temperature 0C to +50C

RF/RF Monitor Ports (Front Panel)

High stability (±0.01 ppm) Internal Reference

Connectors/Im

edance

W28

Remote M&C Interfaces

Available O

tions: UHF

L-Band U

/Downconverter

W18

W31

W78

External 10 MHz Reference / Auto Switch

2017-14 Manual, Rev. 0 Page 5 01/31/13

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 male

J10 Pinouts (RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2017-14 Manual, Rev. 0 Page 6 01/31/13

B) Status Requests

Table 1.1 lists the status requests for the 2017-14 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.1 2017-14 Status R

equests

Status Requests

Command Syntax* Description

Command Status {aaS1} Returns {aaS1bbbcccdefg} where:

• bbb = Upconverter Gain (000 to 300) 00.0 to 30.0 dB

• ccc = Downconverter Gain (000 to 300) 00.0 to 30.0 dB

• d - Receiver synth alarm: 0 = normal, 1 = alarm

• e - Transmitter synth alarm: 0 = normal, 1 = alarm

• f - Summary alarm: 0 = normal, 1 = alarm

• g - Transmit signal disabled: 0 = muted, 1 = not muted

External 10MHz (option -E) {aaS2} Returns {aaS2bc} where:

• b - Reference Mode where:

1 = Internal, 2 = External, 3 = Auto

• c = Current Reference where:

1 = Internal, 2 = External

2017-14 Manual, Rev. 0 Page 7 01/31/13

C) Commands

Table 1.2 lists the commands for the 2017-14 and briefly describes them. After a command is sent the 2017-14

sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only option -Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2017-14 Commands

Command Syntax* Description

Set Transmit Gain {aaC3xxx} where:

• xxx = 3 characters

• Range: 000 to 300 (00.0 to 30.0 in 0.5 dB steps)

Set Receiver Gain {aaC4xxx} where:

• xxx = 3 characters

• Range: 000 to 300 (00.0 to 30.0 in 0.5 dB steps)

Enable Tx {aaCAx} where x =:

• 0 to disable Tx signal

• 1 to enable Tx signal

10MHz Reference (option -E1) {aaCEx} where x =:

• 1 = Internal Reference

• 2 = External Reference

• 3 = Auto Reference

Enable Remote # Just # sign

Disable Remote {aaCR0}* {CR and zero}

2017-14 Manual, Rev. 0 Page 8 01/31/13

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2017-14 Manual, Rev. 0 Page 9 01/31/13

2.0 Installation

2.1 Mechanical

The 2017-14 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A

switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2017-14 can be secured to

a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2017-14 is assembled.

POWER

SUPPLY

Figure 2.0 Model 2017-14 Mechanical Assembly

2017-14 Manual, Rev. 0 Page 10 01/31/13

Table of contents

Other Cross Technologies Media Converter manuals

Cross Technologies

Cross Technologies 4116-285-2450 User manual

Cross Technologies

Cross Technologies 4116-31-184 User manual

Cross Technologies

Cross Technologies 2116-116 User manual

Cross Technologies

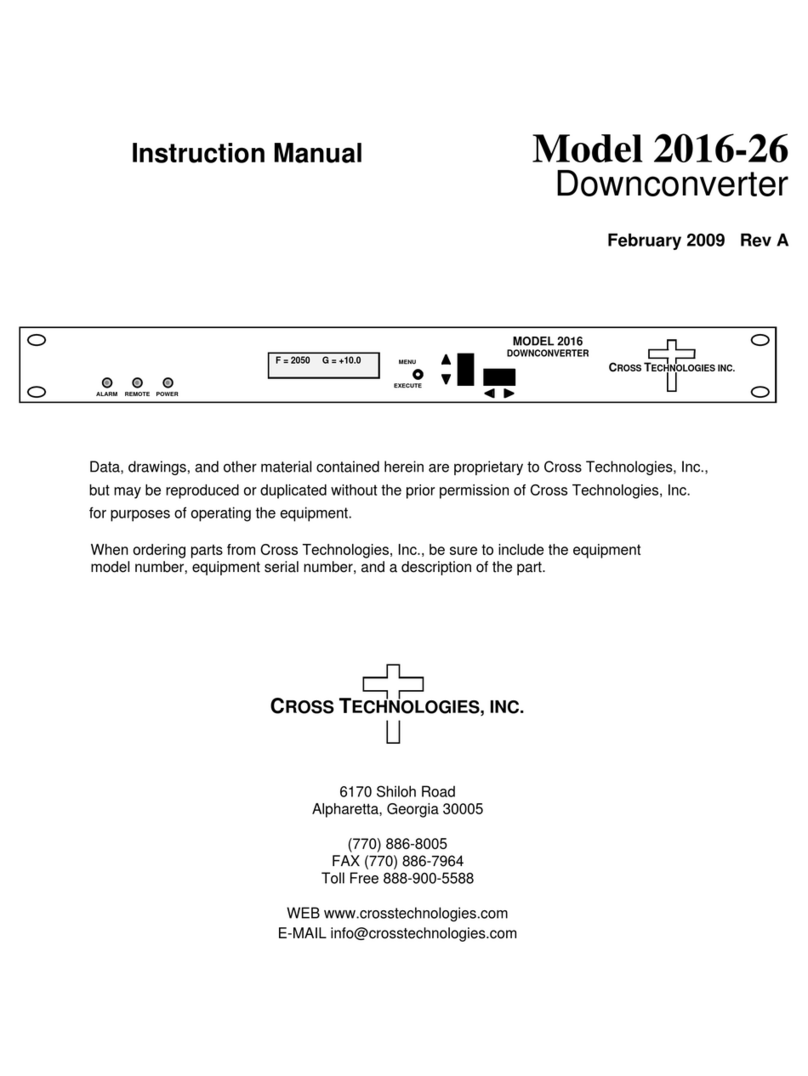

Cross Technologies 2016-26 User manual

Cross Technologies

Cross Technologies 2015-26 User manual

Cross Technologies

Cross Technologies 2017-0923 370 Series User manual

Cross Technologies

Cross Technologies 2015-05 User manual

Cross Technologies

Cross Technologies 2416 25 Series User manual

Cross Technologies

Cross Technologies 2016-12 User manual

Cross Technologies

Cross Technologies 1584-29 User manual

Cross Technologies

Cross Technologies 4115-300 User manual

Cross Technologies

Cross Technologies 2116-182193 User manual

Cross Technologies

Cross Technologies 2116-21-1014 User manual

Cross Technologies

Cross Technologies 2016-05A User manual

Cross Technologies

Cross Technologies 2116-140T120 User manual

Cross Technologies

Cross Technologies 2017-03 User manual

Cross Technologies

Cross Technologies 4115-41-212 User manual

Cross Technologies

Cross Technologies 2016-02-1200 User manual

Cross Technologies

Cross Technologies 2415 0925 Series User manual

Cross Technologies

Cross Technologies 2116-300-1600 User manual

Cross Technologies

Cross Technologies 2015-03A User manual

Cross Technologies

Cross Technologies 3116-22-23 User manual

Cross Technologies

Cross Technologies 3016-2124 User manual

Cross Technologies

Cross Technologies 2416-x02 User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
