Compaq Deskpro EX Manual

logo Registered U.S. Patent and Trademar Office.

Microsoft, MS-DOS, Windows and other names of Microsoft

products referenced herein are trademar s or registered

trademar s of Microsoft Corporation.

Intel and Pentium are registered trademar s of Intel Corporation.

MMX and Celeron are trademar s of Intel Corporation.

Product names mentioned herein may be trademar s and/or

registered trademar s of their respective companies.

Spare Part Number: 201858-001

Part Number: 215879-001

Documentation (Not shown)

Description Spare Part No.

Maintenance & Service Guide 201856-001

Service Reference Guide 152611-001

Illustrated Parts Map 201858-001

Compaq Quick Troubleshootin Guide 153837-001

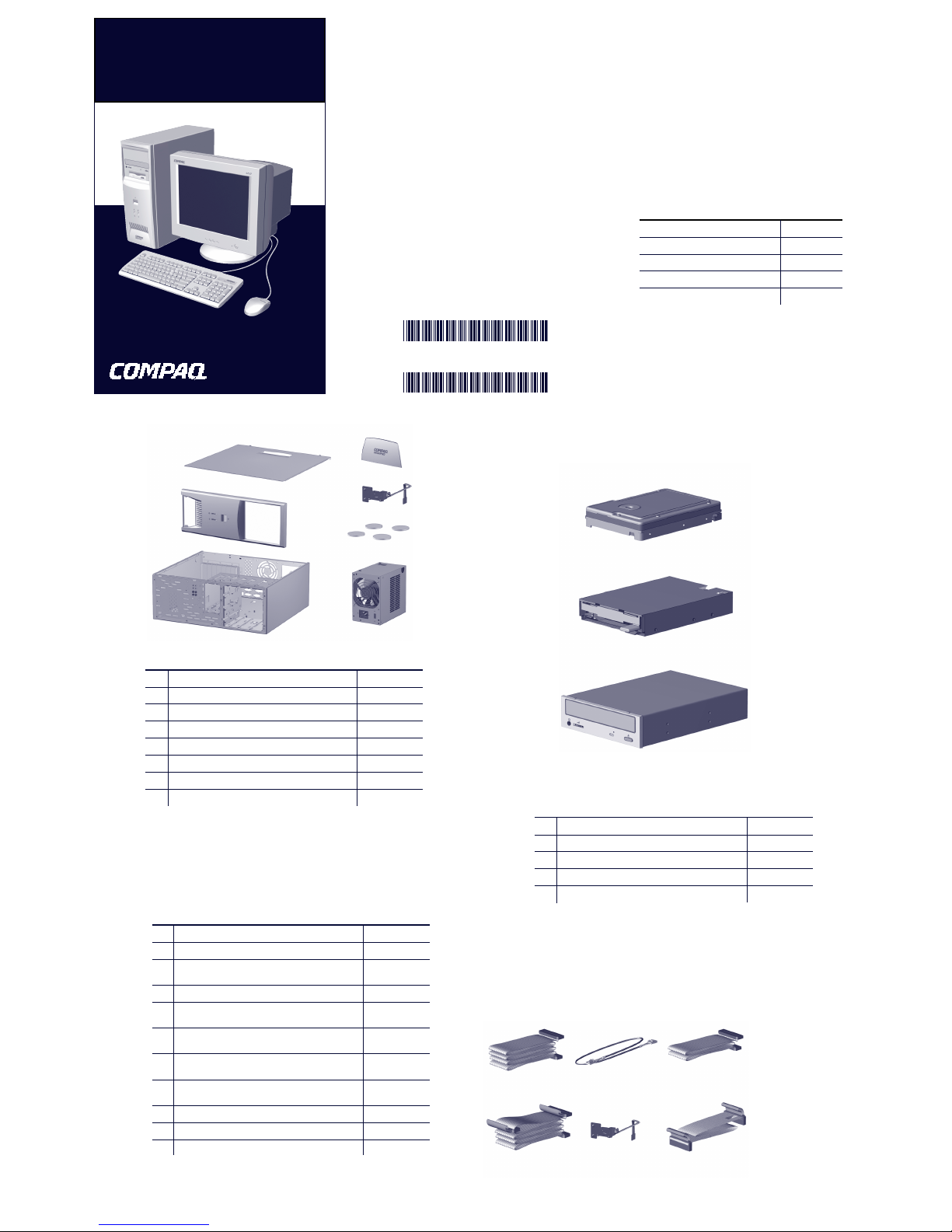

Compaq Des pro EX and EXS

Illustrated Parts Map

Mass Storage Devices

Item Description Spare Part No.

8 10-GB Hard drive with (4) mounting screws 203139-001

* 15-GB Hard drive with (4) mounting screws 202903-001

9 Dis ette drive, 3.5-inch 158266-001

10 48X CD-ROM drive 187263-001

*Not shown

11 12

System Unit

Item Description Spare Part No.

1 Access panel Not spared

2 Front bezel 166868-001

3 Chassis assembly (reference only) Not spared

Logo Kit (only minitower version,166806-002 used)

166924-001

5 Power switch with cable, LED and switch holder 199854-001

6 Feet Misc Plastics Kit

7 Power supply 201828-001

*Not shown

14 16

Cables

Item Description Spare Part No.

Cable Kit, includes: 192264-001

11 Single device, hard drive/CD-ROM

cable, 18” (108950-019)

12 Audio cable, 21”, (387527-001)

* Single device, hard drive/CD-ROM cable,

12.5” (105876-001)

* Audio cable, 21” (288489-001)

(not used for this product)

13 Single device, hard drive/CD-ROM

cable, 9.75” (108950-021)

14 Dual device, hard drive/CD-ROM cable,

18”, 10” to the first connector 196667-001

15 Power switch/LED cable 199854-001

16 Dis ette drive cable 161735-001

* CD audio cable 149806-001

*Not shown

Compaq Des pro EX and EXS

Series of Personal Computers

Minitower Models

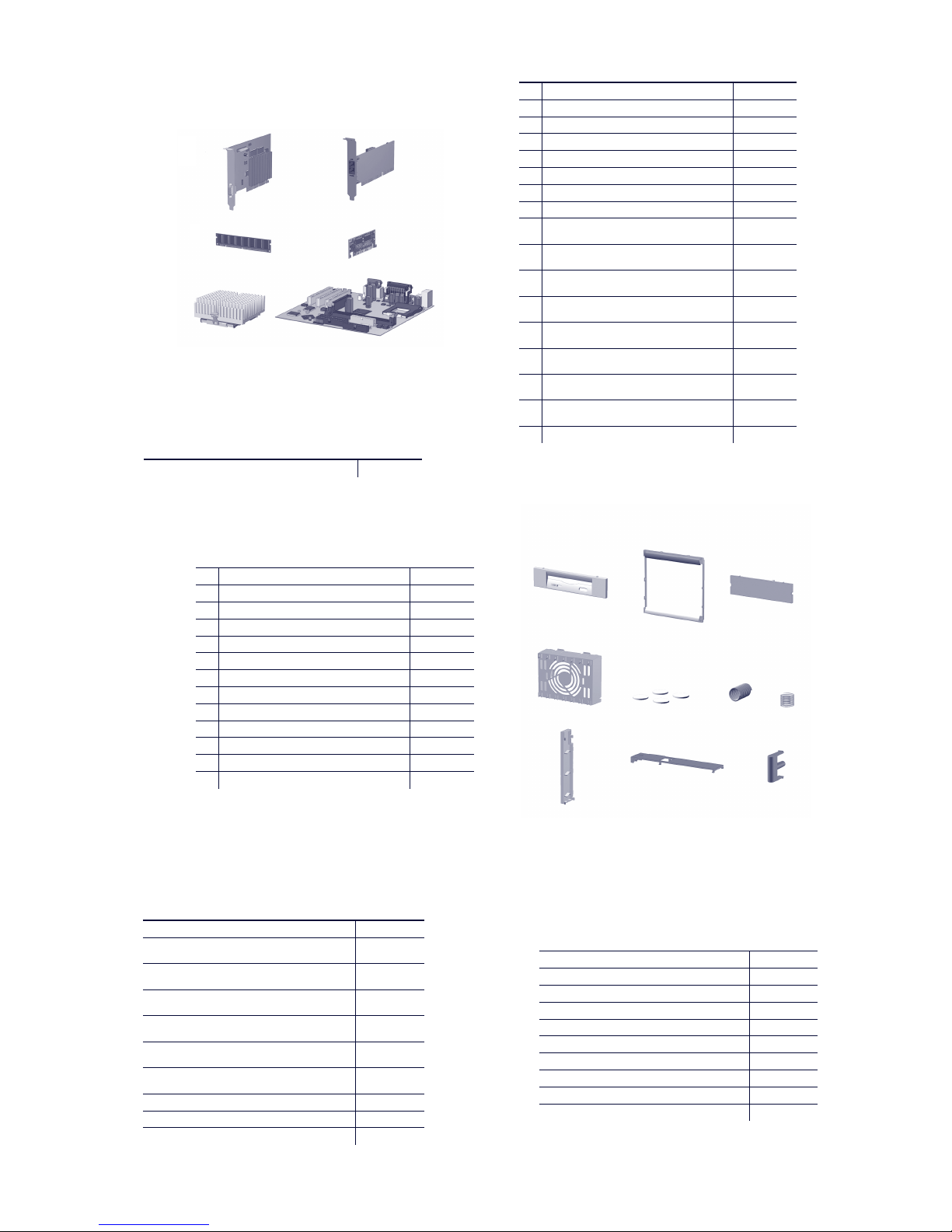

Standard and Optional Boards

Item Description Spare Part No.

17 Nvidia M64, 16MB SDRAM AGP Card 182757-001

18 10/100 PCI Networ Interface Card 188297-001

Memory Module (SDIMM, 133MHz)

19 128MB 170081-001

* 256MB 192014-001

20 AIMM (GPA) 4MB, 133MHz Graphics Card 192012-001

Processor, Intel Pentium III

21 566/66 MHz with heatsin (191832-001) 203967-001

and clip (223575-001)

* 600/66 MHz with heatsin (191832-001) 192011-001

and clip (223575-001)

* 667/66 MHz with heatsin (191832-001) 192007-001

and clip (223575-001)

* 700/66 MHz with heatsin (191832-001) 203968-001

and clip (223575-001)

* 733/133 MHz with heatsin (191832-001) 192008-001

and clip (223575-001)

* 800/133 MHz with heatsin (191832-001) 192009-001

and clip (223575-001)

* 866/133 MHz with fansin (191845-002). 192006-001

Fansin includes fan, heatsin , and clip.

* 933/133 MHz with fansin (191845-002). 203969-001

Fansin includes fan, heatsin , and clip.

22 System board 203966-001

*Not shown

Miscellaneous Screw Kit (Not shown

Miscellaneous Screw Kit, includes: 179180-001

6-32 x 1/4 hi-top, thread-forming screw with

serrations (5 ea.) (192308-001)

6-19 x 5/16 panhead, plastite screw (4 ea.)

(101346-068)

6-19 x 5/16 hi-top, taptite screw with captive

washer (4 ea.) (114399-069)

6-32 x 3/16 hi-top, thread-forming screw with

serrations (5 ea.) (192308-003)

M3 x 5mm, hi-top, taptite screw with serrations

(4 ea.) (247348-001)

6-32 x 3/16 buttonhead tamper-resistant,

taptite screw with serrations (3 ea.) (296769-002)

6-32 x 5/16 hi-top, taptite screw (4 ea.) (109834-568)

6-19 x 1/2 Panhead, plastite screw (5 ea.) (101346-071)

Thumbscrew, molded cap (4 ea.) (179333-002)

Keyboards (Not shown

Easy Access Keyboard-US 123130-xxx

Dutch -331

Finnish -351

French -051

International -B31

Norwegian -091

Spanish -071

Swedish -101

United Kingdom -031

U.S. -001

Miscellaneous Parts (Not shown

Mouse – Scroll, Opal 334689-002

Miscellaneous Plastics Kit

Item Description Spare Part No.

Miscellaneous Plastics Kit, includes: 166878-001

23 Dis ette bezel (166776-001)

24 Panel, sub (166835-001)

25 Bezel, blan (166775-001)

26 Card guide (166778-001)

27 Foot, rubber (4 ea.) (166939-002)

28 Spring, power button (166837-001)

29 Springs, driveloc (2 ea.) (166837-002)

30 Driveloc , DT (166779-001)

31 Driveloc , MT (166780-001)

32 Button, power (166774-001)

* Retention mechanism (2 ea.) (350767-001)

*Not shown

2221
