Coffee Queen Princess User manual
Service manual
A TASTE OF THE FUTURE
Rev.070903
S / GB
Princess
COFFEE QUEEN
Your retail dealer
...............................................................................
...............................................................................
1. Table (list) of contents.
1. Table of contents sid. 2
2. Generally 3
3. Overview of components front 4
3. Overview of components mixing system 5
4. SERVICE; Installation and start
Locate the brewer 6
Connectings: Electricity/Water 6
Starting up machine 6
Fylla behållare med ingredienser 7
5. DRIFT
Making coffee in a cup, chocolate,, 8
Making coffee in a jug
6. CLEANING
Weekly cleaning
Dismantle mixing system 9
Washing parts 9
Reassemble mixing system 10
7. CLEANING programs:
Automatic cleaning of mixing bowl (only): 11
Automatic cleaning of mixing bowl 1 or 2 12
Automatic cleaning of In/Outlet valves: 13
8. Cup counter o Easy access 14
9. Safety functions 15
10. Failure messages 15
11. Storage / Transport. 15
12. DIMENSION SKETCH 16
13. Circuit diagram. 17
14. Spare part list 18-20
15. Exploded view 21-27
2.
2. Generally. Princess
We congratulate to your choice of a Coffee Queen coffee machine.
Please read through this manual before you take the machine into operation
for the first time.
The manual contents important instructions for a safe and proper usage of the machine.
Always keep this manual within reach for the user!
Coffee Queen / Princess
- making coffee cup by cup
- Jug facility with key switch
- 8 choices of drinks,
- 2 - 4 ingredients canisters,
- electronically temperature controlled
- adjustable coffee strenght
- clock functions
- manufactured in stainless steel
FACTS:
Height 495 mm
Width 310mm
Depth 490mm
Tankage 2.0 litre
Electricity 230V/2200W
Water connection ½”outside thread
Capacity:
Cups of coffee 4 canisters 130 cups/filling
Cups of coffee 3 canisters 275 cups/filling
Ingredient canisters Coffee, Espresso, Chocolate, Topping (milk).
3.
4.
3. Overview of components , front Princess
Outlet/ drinks
Drip tray
Drip tray insert
Cupholder
Strenght of drinks
++ or - -
8 choices of
drinks
Key switch
(cup and jug choice)
Display
Door lock
Te
Coffee
Topping
3. Overview of components , mixer system Princess
5.
Detail; Ingredients; Width; Height; Depth; Volum e/ L; Amount / unit i n Princess
II III IV
Canister; coffee 134 156 230 2,5 2 1 -
Canister; coffee 67 156 225 1,15 - - 1
Canister; espresso 67 156 225 1,15 - - 1
Canister; choco 67 156 225 1,15 - 1 1
Canister; topping 67 156 225 1,15 - 1 1
OUTLET / drinks
Ingredients
canister
Chute
Mixing bowl
ON/OFF-
switch
Princess II Princess IV
Instant Coffee Instant Coffee
Topping Espresso
Chocolate
Topping
Princess III
Instant Coffee
Chocolate
Topping
6.
4. Service. Installation and start Princess
1. Locate the brewer on a flat Connect the electrical plug to a separate
level and waterproof surface. grounded wall socket
NOTE! Make sure there is a space behind the machine
for free flow of air. ( minimum 10cm ).
2. Connect attached water tube to cold water with an R 1/2”.
Make sure that the water hose not are kinked anywhere when machine is
pushed into place.
Please flush the water tube before connecting to machine, this to avoid any
particles to destroy the inlet valve.
3. Open the water inlet.
4. Turn on the ON-OFF switch inside the door.
Water is been filled into the tank automatically with
2,0 litres of water. The heating will not start before
the water level reaches the level sensor.
Set temperature is approx. 85ºC.
5. Close door.
Grounded wall socket
230V 10A
ON / OFF
Switch
7.
4. Service. Installation and start Princess
6. Fill canisters with ingredients. 6.3.
Take out (this to avoid unnecessery spillage in
the machine) ingredient canisters and fill them
with ingredients.
6.1. Turn up the chute. se picture 6.2.
6.2. Lift up the ingredient canister and
pull out. 6.1.
6.3. Lift of the lid and fill the canister with
ingredients.
7. When placing the ingredient canisters;
Make sure that the outlet pipes on the ingredient canisters are touching the steam traps (A).
8. When the water is heated up to right temperature
the text ”please wait” will disappear and ”please wait”
the machine is ready to use.
(A).
(A).
4
Making coffe in a jug. Making coffe in a cup. Chocolate etc.
1a. Place a jug in the centre of the cup holder..
2a. Turn on the key with jug symbole clockwise. 1. Place a cup in the centre of the cup holder..
3a. 4 cups of brewing is standard settings, 2. The strenght has a standard setting,
Change amount of cups by pushing + or - button.
Optional up to 12 cups or down to if you wish to increase or decrease it, do as follows
1 cup brewing. if not continue to point 3.
4a. Push the button ”Coffee”.. Stronger drink;
Increase by pushing + or ++ for 5% or 10%
5a.Wait until the light and text alternative
”Please wait” has been Weaker drink;
turned off before you take out the jug. Decrease by pushing - or -- for 5% or 10%
(the indication lamp will go up or down
depending of choice).
3. Choose drink by pushing on the button to the right
of each menu
The display will show; ”Please wait”, and the light on
the cup will light up.
4.Wait until the light on cup and the text ”Please wait”
has been turned off before you take your cup.
5. Enjoy your drink.
8.
5. DRIFT; Making coffee in a cup Princess
++
+
-
- -
2.
3.
3.
2a.
9.
6. CLEANING: Weekly cleaning Princess
(D)
Dismantle : Mixer system
1.
Loosen outlet hose (A) and
turn lock knob (B)
anti-clockwise.
3.
Loosen whipper (D) pull
whipper straight out from the
machine.
(E)
(A)
(B) (C)
Cleaning
Wash these parts:
.6.
A. Mixer bowl
B. Steam trap
C. Whipper
D. Assembly plate
Make sure this parts are dry
before use
2.
Loosen mixer bowl.
Pull apart (C).
4.
Turn lock knob anti-
clockwise.(E) until it stops
5. Clean with a wet rag and
drought drily.
10.

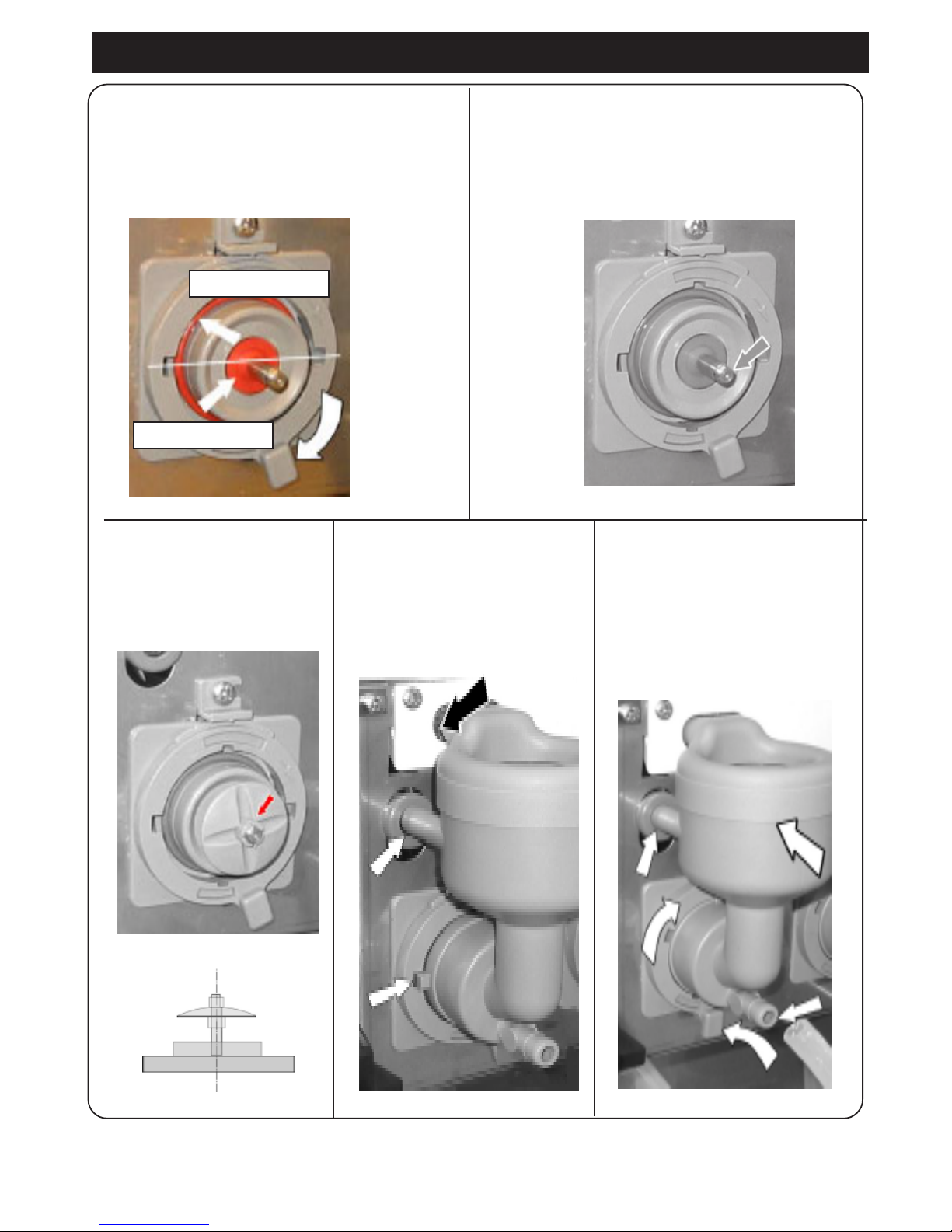

6. CLEANING: Weekly cleaning Princess
REASSEMBLE: Mixer system
7.
Reassemble the assembly plate by turning
lock knob (F) clockwise. INSPECT gaskets.
pil (G).
9.
Assemble whipper , pull until
you hear a clicking noise. (H).
10.
Assemble mixer bowl and steam
trap (J) see picture.
11.
Easily push the mixer bowl
towards, according to (K) and lock
with lock knob (L).Connect outlet
hose (M).
(NOTE! make sure that all water
hose are connected at right place
(H)
(J)
(J)
(J)
(K)
(M)
(L)
(G)
F F
F
8.
Make sure that the motor whippers plane side
will be in accordance with the whippers plane
side. see next (G) and picture (H).
INSPECT
INSPECT
