Coffee Queen CAFELINO TRIO User manual
User manual
CQ CAFÉLINO TRIO
Rev. 110511
U / EN
Your retail dealer
...............................................................................
...............................................................................
1. Contents.
1. Contents sid. 2
2. General 3
3. Component overview, front 4
3. Component overview, inside machine 5
3. Component overview, programming switch 6
3. Component overview, function buttons 7
4. SERVICE; Installation and Start-up
Position machine 8
Hook up water to machine 8
Start machine 8
Fill concentrate in container 9
5. OPERATION
Dispensing drink into cup 10
6. CLEANING
Every day
Cleaning of entire mixer system 11
CLEANING
Remove mixer system 12
Wash parts 12
Re-install mixer system 12
7. Recipe PROGRAMMING
Using the pin code, adjust value of drinks 13 - 17
8. Reset Cup counter 18
9. Storage and transportation 19
10. Dimension sketch 20
11. Cleaning and care 21
2.
2. General. Cafélino Trio
Thank you for choosing a Cafélino Trio. We hope you enjoy it!
The machine must be connected correctly for your own safety.
Read the user guide before using the machine.
- The guide contains important instructions for proper and safe use of the machine.
- Always keep the guide close at hand.
Cafélino Trio
- Makes single beverage servings
- 4 drink options
- 3 concentrate containers
- Electronic temperature control
- Cleaning function inside panel.
- Hot water outlet
Facts:
Height 536 mm
Width 211 mm
Depth 446 mm
Power supply 230V/2200W
Cold water hook-up ½” external thread for fitting factory-supplied tube
3.

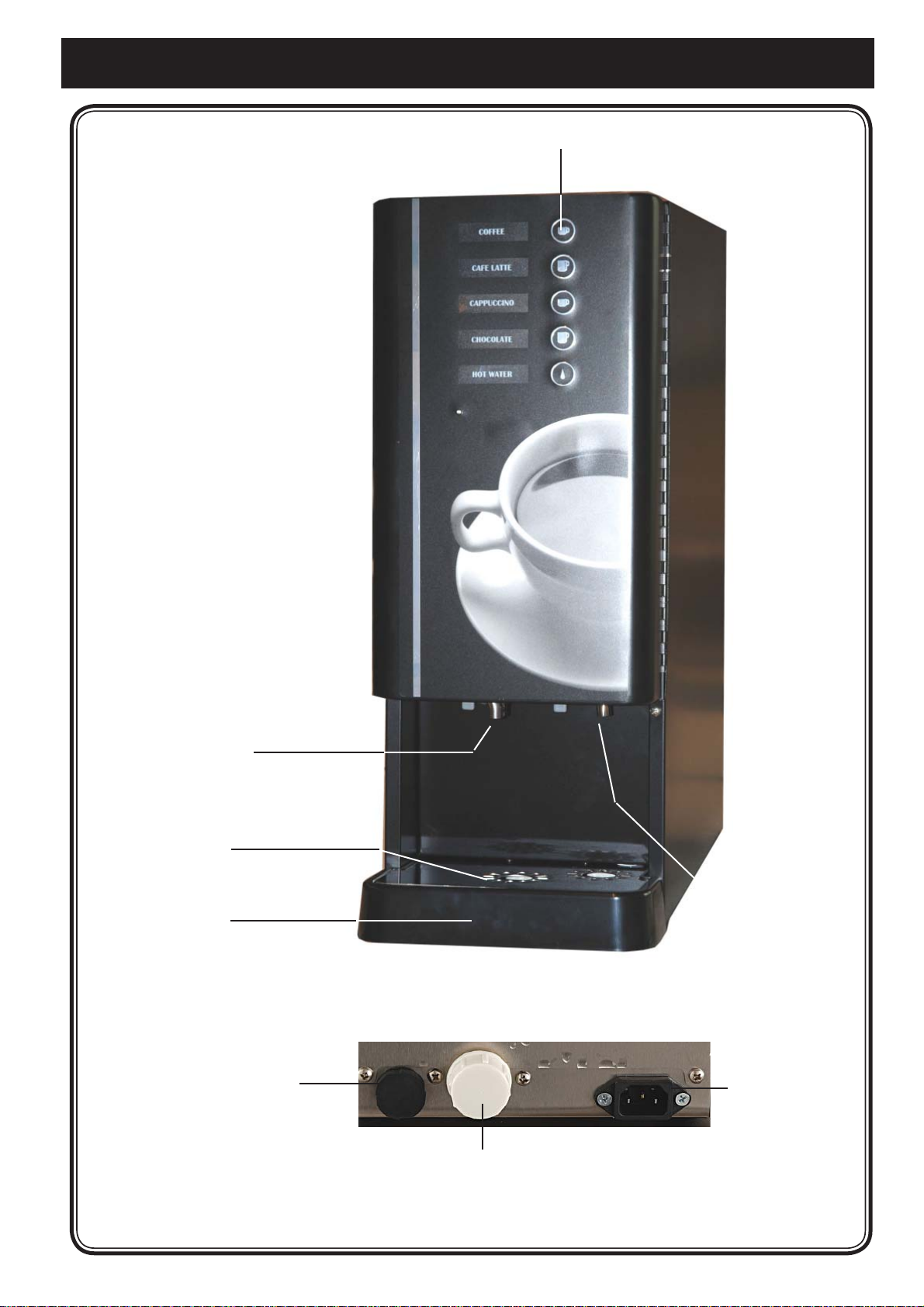

3. Component view, front. Cafélino Trio
4.
Tap for drink
Drip tray
insert
Drip tray Hot water
outlet
Connection of
power cord
Service plug
Emptying of water tank
Water hook-up
Touch panel

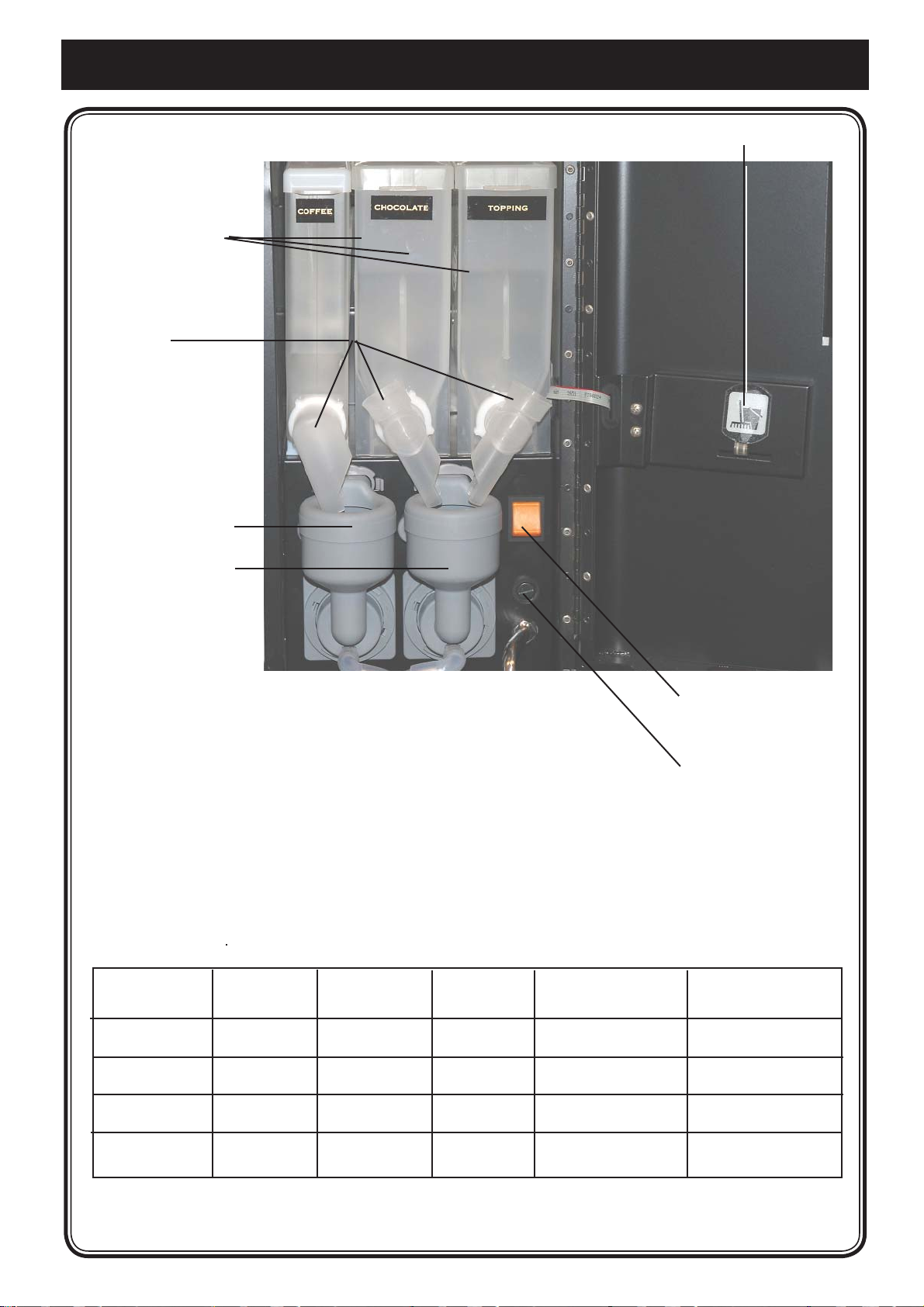

3. Component view, inside machine. Cafélino Trio
5.
Chute
Concentrate
container
ON/OFF
switch
4 Amp fuse
Cleaning button
Steam trap
Mixer bowl
Container: Width Depth Height Cafélino Trio
1 45 225 200 Coffee
2 67 225 200 Chocolate
3 67 225 200 Topping
1 2 3
3. Component view, electronic switch. Cafélino Trio
6.
Programming
switch
Programming switch, placed behind concentrate containers.

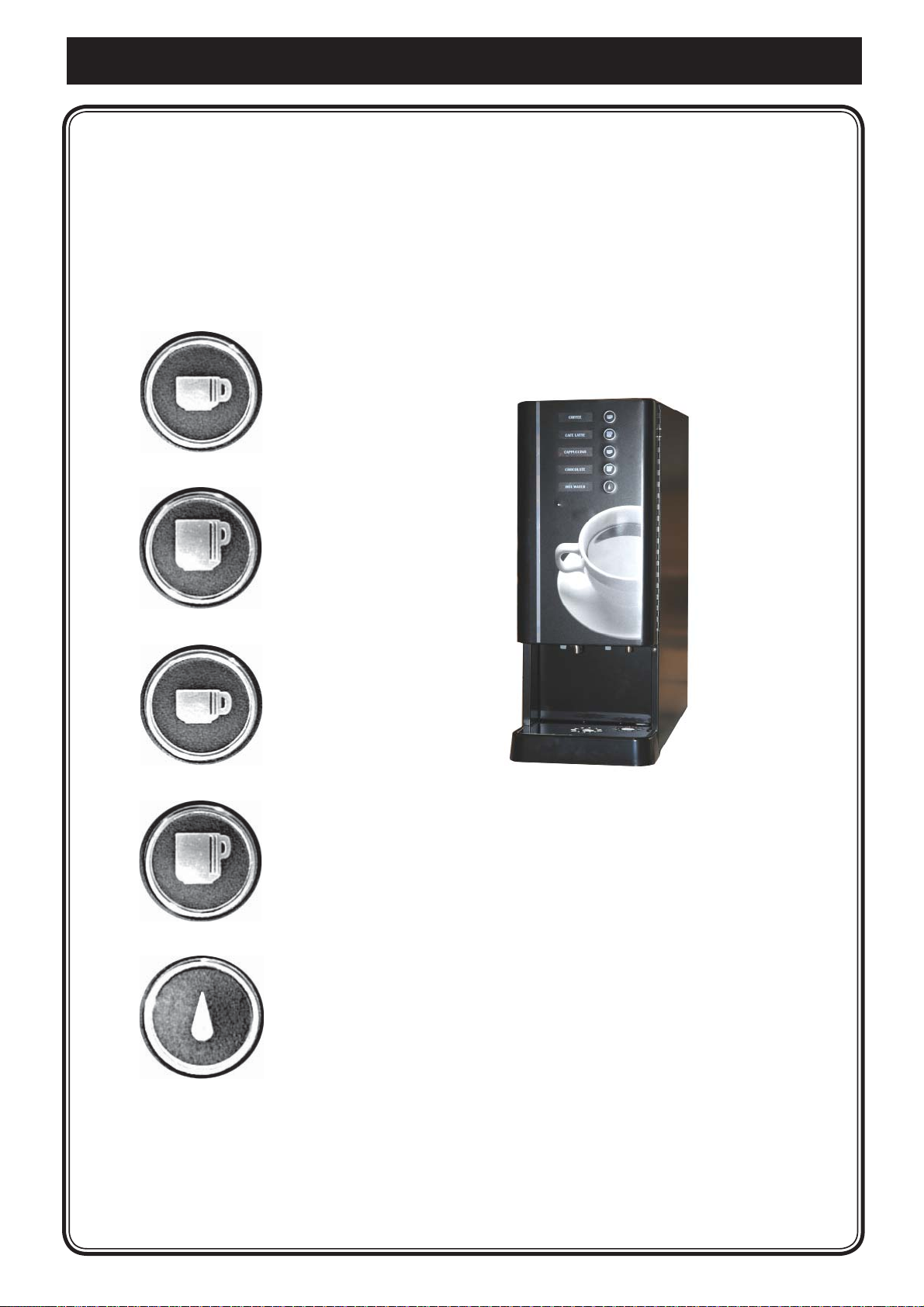

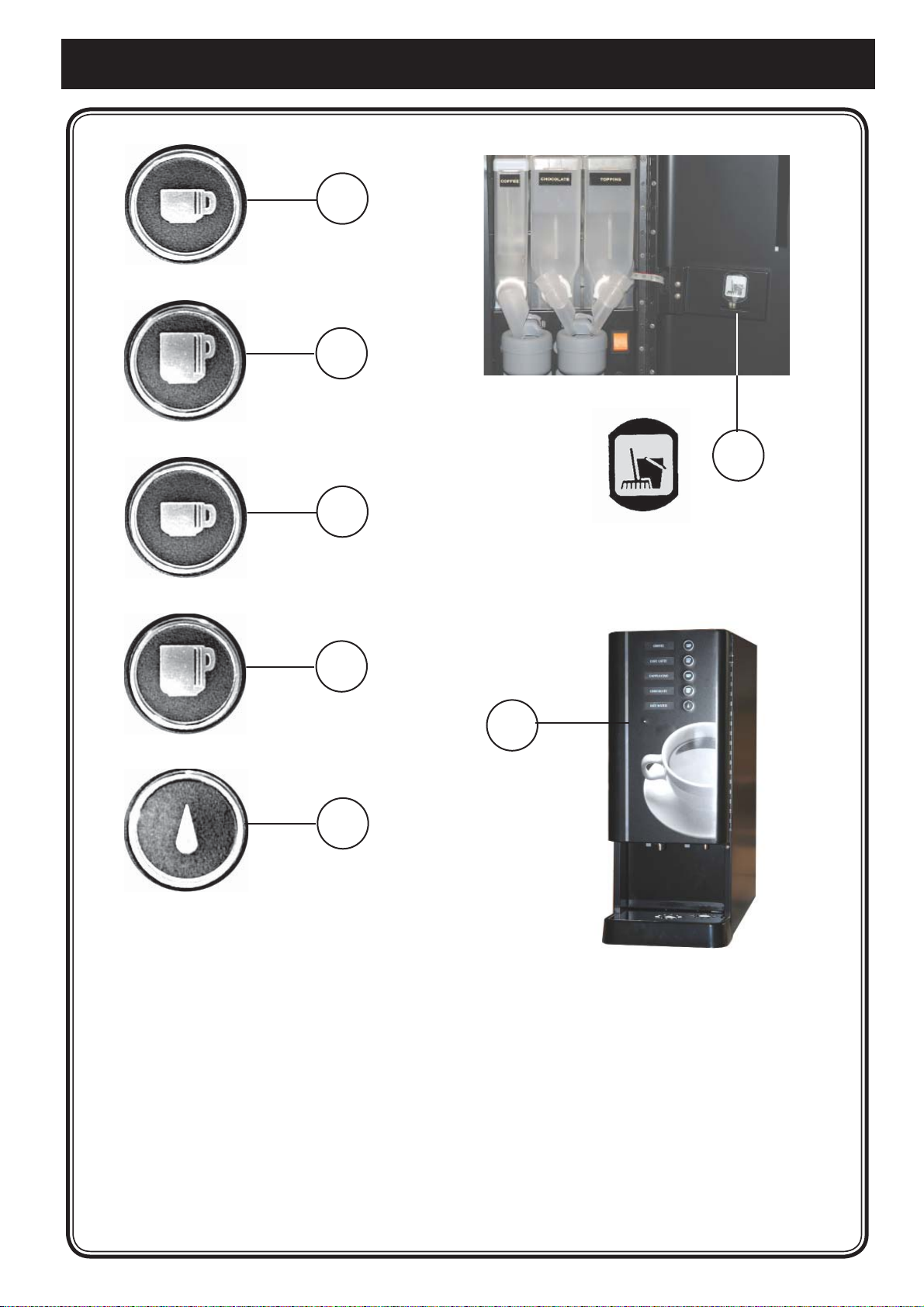

3. Component view, function buttons. Cafélino Trio
7.
Function buttons
1. Standard cup (group 1)
2. Large cup (group 1)
1. Standard cup (group 2)
2. Large cup . (group 2)
3. Hot water
4. Cleaning of mixing system.
5. Ready lamp
- The lamp lights constantly when the machine is ready.
- The lamp blinks when a drink is being poured.
1
2
1
2
3
4
5

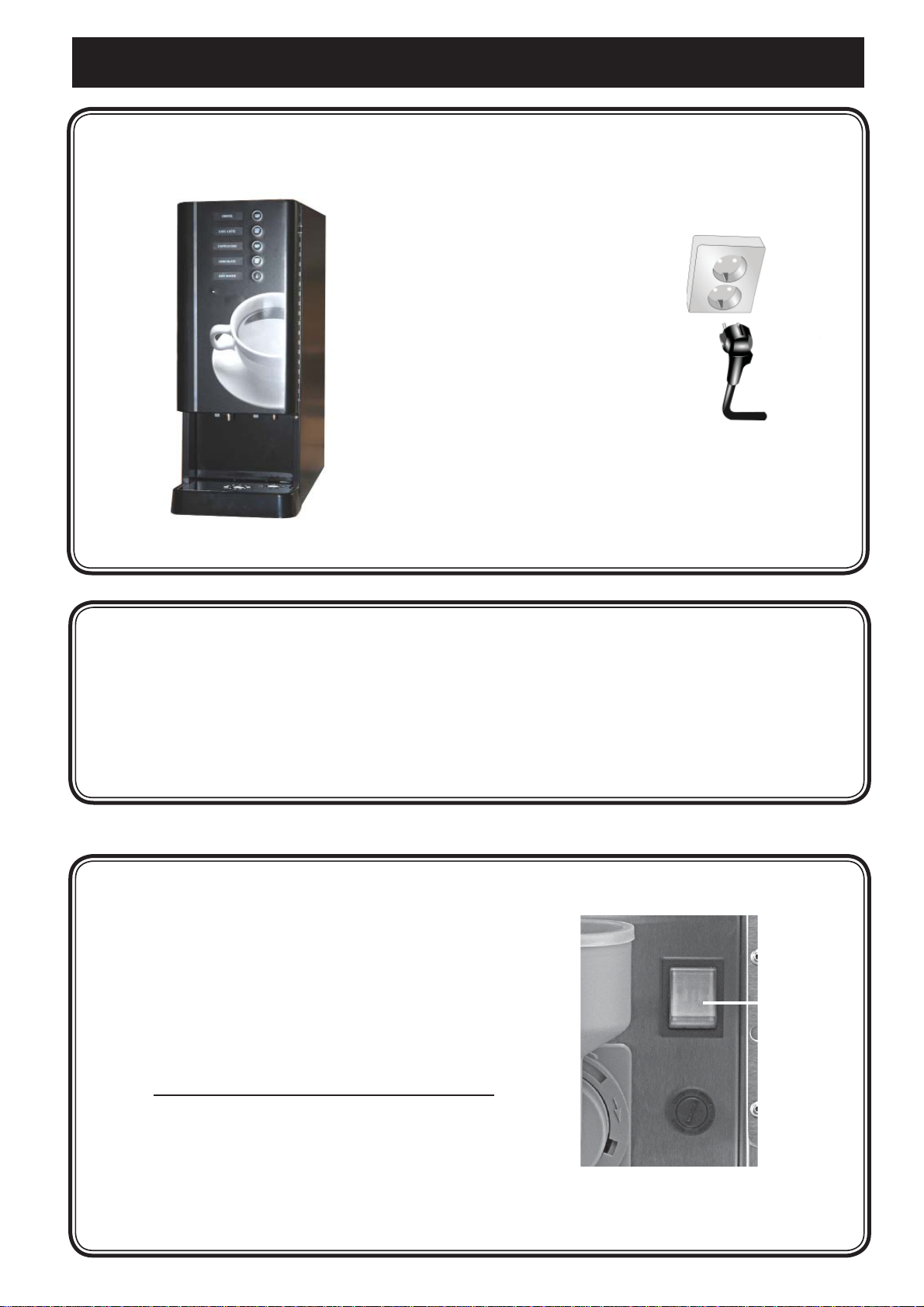

4. Service. Installation and Start-up Cafélino Trio
1. Place the machine on a flat Connect the plug to an
waterproof surface. earthed 230V 10A wall outlet.
Note: Make sure air is able to circulate freely
behind the machine.
2. Connect the factory-supplied tube to the cold water feed using a ½” R- connection
piece. Make sure no folding or sharp bending occurs when you push the machine
back in place.
If the water pipeline is new, flush the system with water first to remove copper
shavings. These can damage the inlet valve.
3. Open the water tap.
4. Hit the ON/OFF switch inside the panel.
The water tank will fill automatically with
1.8 litres of water.
The element will not be powered until the water
reaches the level indicator.
The temperature is set to 85º Celsius.
5. Shut the panel door.
8.
ON / OFF
switch
4. Service. Installation and start-up Cafélino Trio

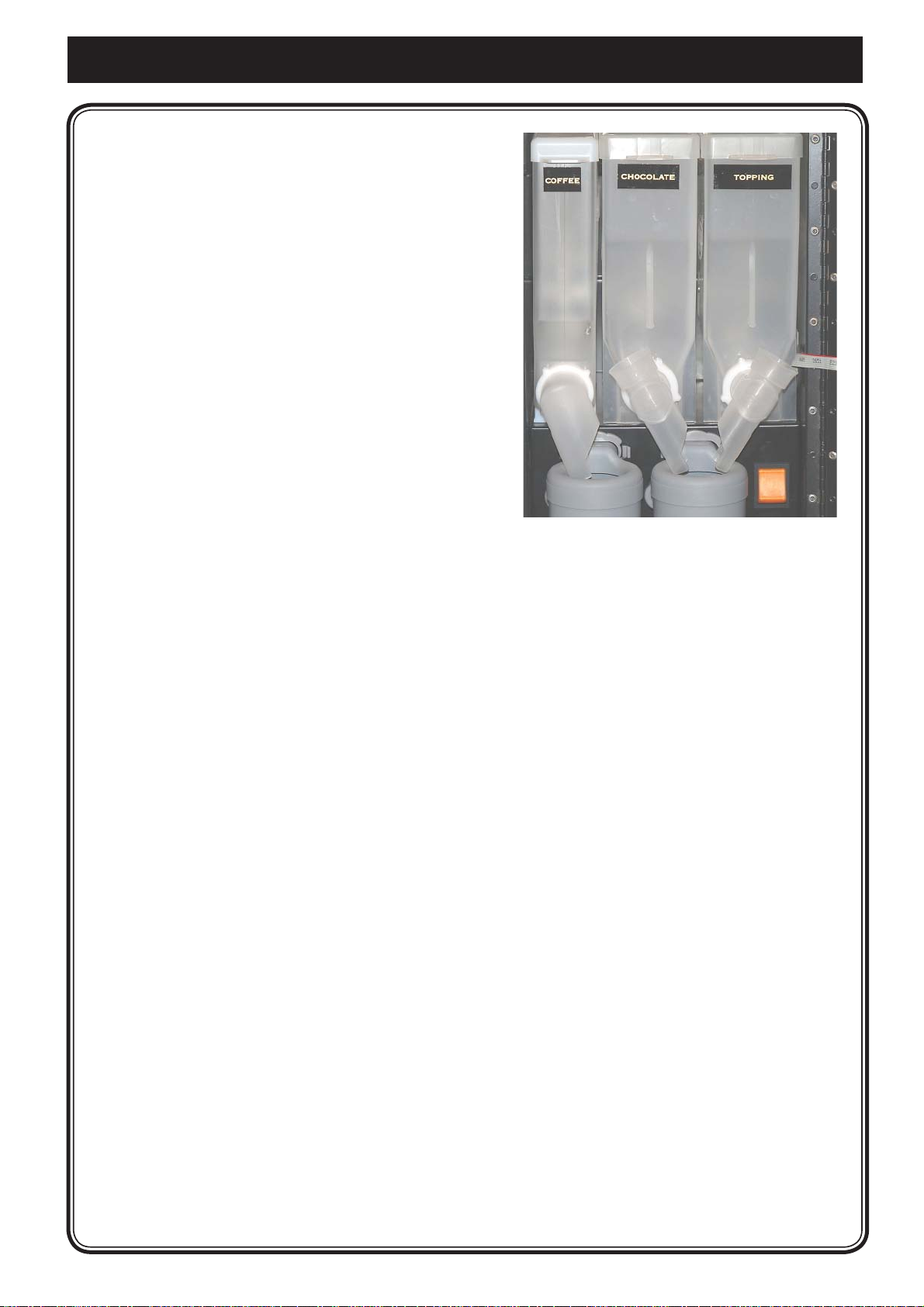

6. Fill concentrate into canister.
Remove the concentrate container to
avoid spilling the concentrate in the
machine) and fill with ingredients.
1. Twist the concentrate tube up out
of the mixing bowl.
2. Lift the front edge of the
concentrate container and pull out.
3. Lift the lid and fill with concentrate.
A
7. When placing the concentrate
container
Make sure the chute is close to
the condensation traps (A), as illustrated.
9.
(A).
(A).
Dispensing drink into cup, Coffee, Chocolate, etc.
1.Centre a cup on the drip tray.
2. Select a drink the lamp will flash.
3. Wait until the light stops flashing before removing the cup.
10.
5. OPERATION; Dispensing drink into cup Cafélino Trio
