Coffee Queen CHOCOLINO DUO User manual

User manual

CHOCOLINO DUO

CAFÉLINO DUO

Rev. 090107

U / EN

Your retail dealer

...............................................................................

1. Contents.

1. Contents sid. 2

2. General 3

3. Component overview, front 4

3. Component overview, inside machine 5

3. Component overview, programming switch 6

3. Component overview, function buttons 7

4. SERVICE; Installation and Start-up

Position machine 8

Hook up water to machine 8

Start machine 8

Fill concentrate in container 9

5. OPERATION

Dispensing drink into cup 10

6. CLEANING

Every day

Cleaning of entire mixer system 11

CLEANING

Every week

Remove mixer system 12

Wash parts 12

Re-install mixer system 12

7. Recipe PROGRAMMING

Using the pin code, adjust value of drinks 13 - 19

8. Reset Cup counter 20

9. Storage and transportation 21

10. Dimension sketch 22

11. Cleaning and care 23

2. General. Chocolino Duo / Cafélino Duo

Thank you for choosing a Chocolino Duo/Cafélino Duo. We hope you enjoy it!

The machine must be connected correctly for your own safety.

Read the user guide before using the machine.

- The guide contains important instructions for proper and safe use of the machine.

- Always keep the guide close at hand.

Chocolino Duo/Cafélino Duo

- Makes single beverage servings

- 4 drink options

- 2 concentrate containers

- Electronic temperature control

- Cleaning function inside panel.

- Hot water outlet

Facts:

Height 536 mm

Width 211 mm

Depth 446 mm

Power supply 230V/2200W

Cold water hook-up ½” external thread for ﬁtting factory-supplied tube

3. Component view, front. Chocolino Duo / Cafélino Duo

Tap for drink

Drip tray

insert

Drip tray Hot water

outlet

Connection of

power cord

Service plug

Emptying of water tank

Water hook-up

Menu for

drinks

Touch panel

3. Component view, inside machine. Chocolino Duo / Cafélino Duo

Chute

Concentrate

container

ON/OFF

switch

4 Amp fuse

Cleaning button

Steam trap

Mixer bowl

1 2

Container: Width Depth Height Chocolino duo Cafélino duo

1 67 225 200 Chocolate Coffee

2 67 225 200 Chocolate Topping

3. Component view, electronic switch. Chocolino Duo / Cafélino Duo

Programming

switch

Programming switch, placed behind concentrate containers.

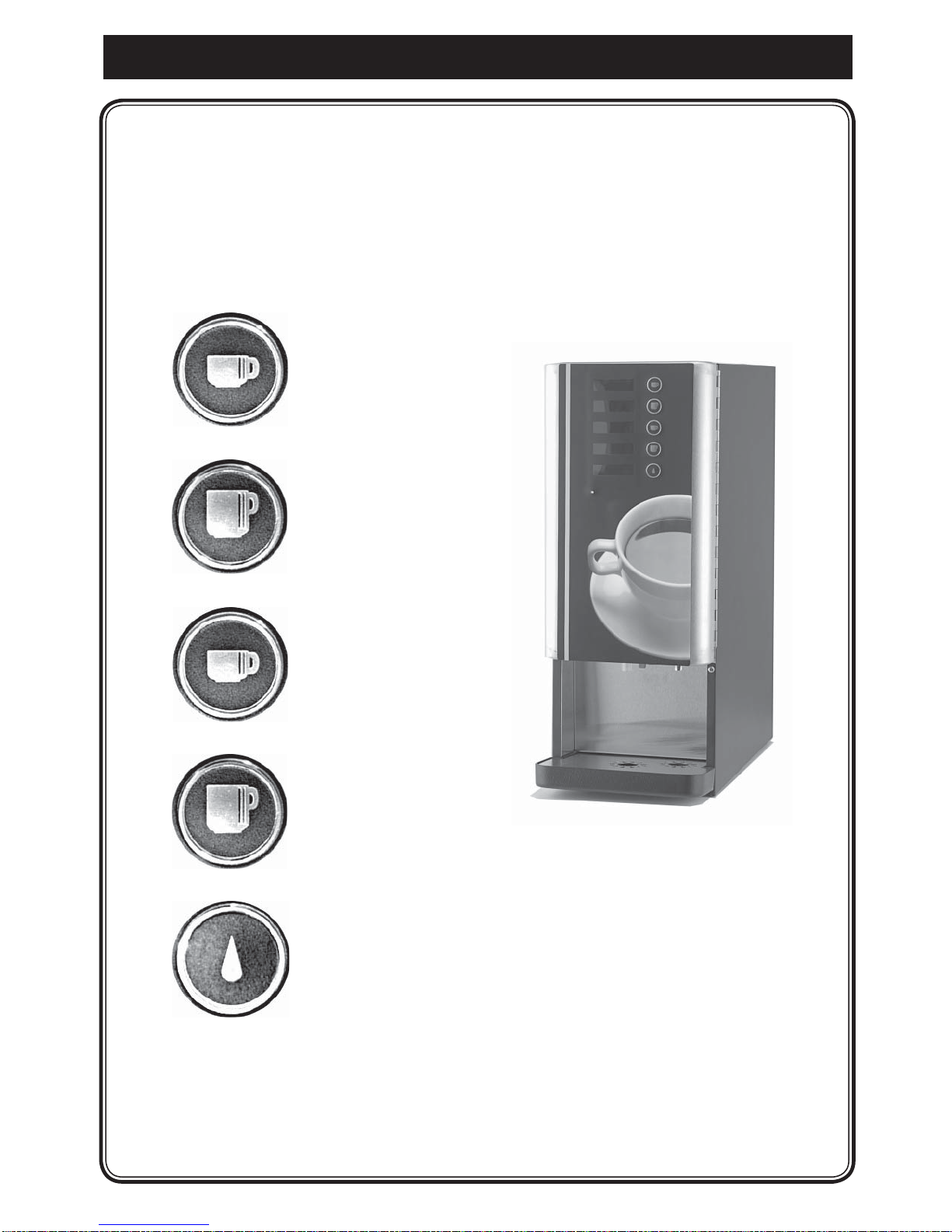

3. Component view, function buttons. Chocolino Duo/ Cafélino Duo

Function buttons

1. Standard cup (group 1)

2. Large cup (group 1)

1. Standard cup (group 2)

2. Large cup . (group 2)

3. Hot water

4. Cleaning of mixing system.

5. Ready lamp

- The lamp lights constantly when the machine is ready.

- The lamp blinks when a drink is being poured.

4. Service. Installation and Start-up Chocolino Duo / Cafélino Duo

1. Place the machine on a ﬂat Connect the plug to an

waterproof surface. earthed 230V 10A wall outlet.

Note: Make sure air is able to circulate freely

behind the machine.

2. Connect the factory-supplied tube to the cold water feed using a ½” R- connection

piece. Make sure no folding or sharp bending occurs when you push the machine

back in place.

If the water pipeline is new, ﬂush the system with water ﬁrst to remove copper

shavings. These can damage the inlet valve.

3. Open the water tap.

4. Hit the ON/OFF switch inside the panel.

The water tank will ﬁll automatically with

1.8 litres of water.

The element will not be powered until the water

reaches the level indicator.

The temperature is set to 85º Celsius.

5. Shut the panel door.

ON / OFF

switch

(A).

4. Service. Installation and start-up Chocolino Duo/Cafélino Duo

6. Fill concentrate into canister.

Remove the concentrate container to

avoid spilling the concentrate in the

machine) and ﬁll with ingredients.

1. Twist the concentrate tube up out

of the mixing bowl.

2. Lift the front edge of the

concentrate container and pull out.

3. Lift the lid and ﬁll with concentrate.

7. When placing the concentrate

container

Make sure the chute is close to

the condensation traps (A), as illustrated.

Dispensing drink into cup, Chocolate, etc.

1.Centre a cup on the drip tray.

2. Select a drink the lamp will ﬂash.

3. Wait until the light stops ﬂashing before removing the cup.

10.

5. OPERATION; Dispensing drink into cup Chocolino Duo/Cafélino Duo
