Code Alarm Ca 5152 User manual

1ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONAL

SERIES

Automatic / Manual Transmission

Remote Start with Keyless Entry

Installation Guide

ca 5152

2 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Before You Begin ......................................................................................3

Wire Connection Guide ...........................................................................4

11 Pin Main Harness .................................................................................5

3 Pin Parking Light Harness .....................................................................9

6 Pin Start Harness .................................................................................10

4 Pin Alternate Harness.......................................................................... 11

2 Pin Door Lock Harness........................................................................12

Additional Ports ......................................................................................16

Antenna / LED / Programming Port .......................................................16

DBIPort....................................................................................................16

Telematic Interface Port..........................................................................16

Set Up & Programming..........................................................................17

Transmitter Programming........................................................................17

Manual Feature Programming.................................................................17

Programming Feature Banks ..................................................................18

Tach Programming ..................................................................................20

Smart Tachless Mode .............................................................................20

Feature Descriptions ............................................................................. 21

Transmitter Button Functions .............................................................26

Remote Start Shutdown Diagnostics ................................................27

System Layout.........................................................................................28

Table of Contents

3ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE ATEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

4 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

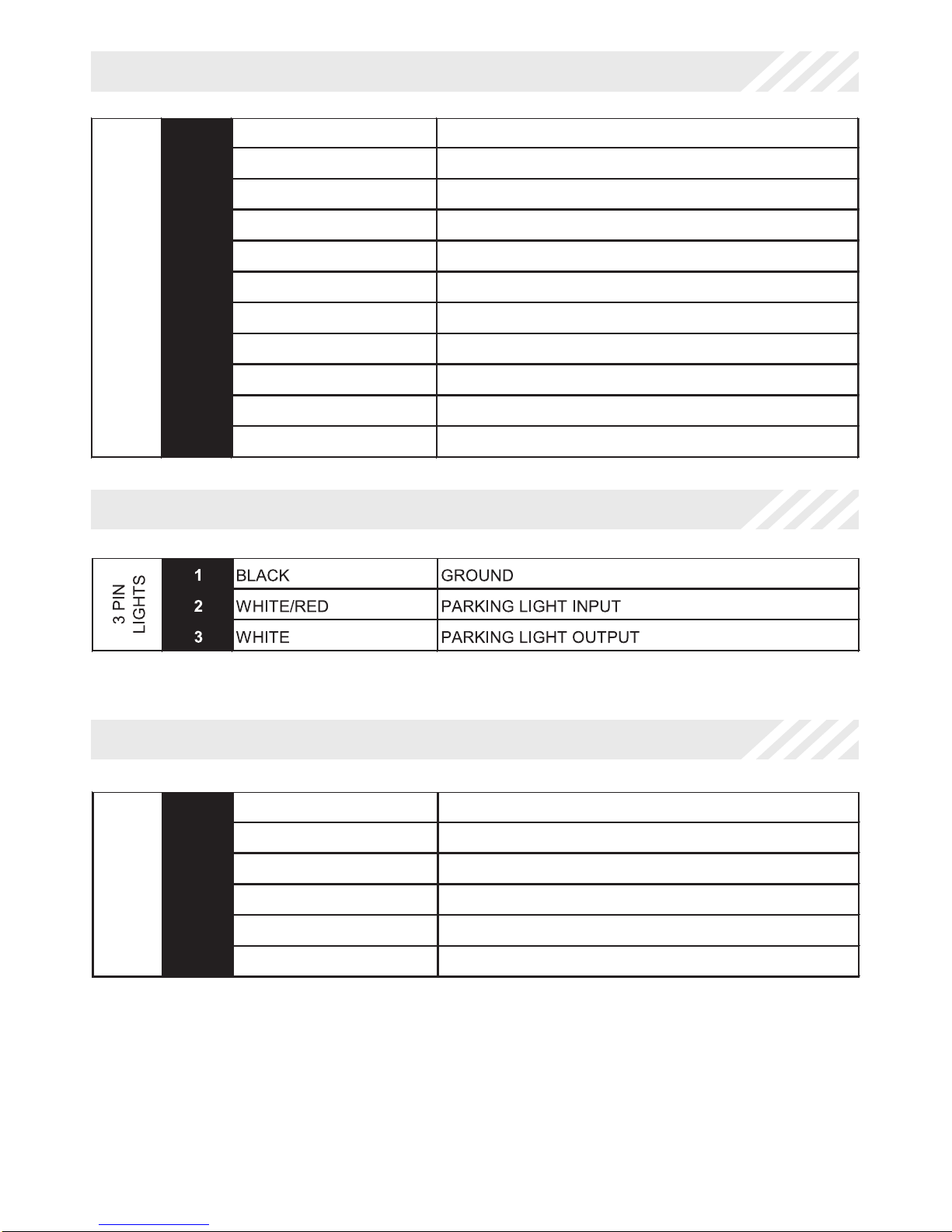

6 Pin Start Harness

11 Pin Main Harness

3 Pin Parking Light Harness

1GRAY/RED PARKING BRAKE INPUT ( - )

2PURPLE DOOR INPUT ( + )

3GREEN DOOR INPUT ( - )

4BLACK/WHITE ILLUMINATED ENTRY OUTPUT ( - )

5BROWN/BLACK HORN OUTPUT ( - )

6RED/WHITE TRUNK RELEASE OUTPUT ( - )

7BLUE/BLACK IGNITION 3 ( - )

8PURPLE/WHITE TACH INPUT

9GRAY HOOD PIN INPUT ( - )

10 BROWN/RED BRAKE INPUT ( + )

11 VIOLET/BLACK AUX 1 OUTPUT ( - )

11 PIN MAIN

1PURPLE STARTER OUTPUT - MOTOR SIDE

2RED BATTERY 12V ( + )

3ORANGE ACCESSORY 1 ( + )

4PINK/WHITE IGNITION 2 ( + )

5RED/WHITE BATTERY 12V ( + )

6PINK IGNITION 1 ( + )

6 PIN START

5ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

11 Pin Main Harness

4 Pin Alternate Harness

2 Pin Door Lock Harness

2 PURPLE DOORTRIGGERINPUT( +)

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register positive voltage (POS) when the door is

opened and the interior light is on. This wire will

off.

Connect the PURPLE wire to the vehicle’s positive door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide.

1 GRAY/RED PARKING BRAKEINPUT( -)

Locate the vehicle’s parking brake wire.

Verification: This wire will register ground when the vehicle’s PARKING

BRAKE is engaged.

NOTE: The following connection is required for Manual Transmission

Mode.

1LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )

2LT BLUE FACTORY ARM / PULSE AFTER START ( - )

3GREEN/WHITE PULSE AFTER SHUTDOWN ( - )

4BLACK/YELLOW PULSE DURING CRANK ( - )

4 PIN

ALTERNATE

OUTPUT

6 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

4 BLACK/WHITE ILLUMINATEDENTRYOUTPUT(-)

This wire provides a ( - ) 500mA output for 30 seconds when the system is

disarmed capable of driving relays.

Locate the vehicle’s dome light or pin switch wire.

Verification: This wire will register positive voltage or ground when the

vehicle's dome light is turned ON.

5 BROWN/BLACK HORNOUTPUT ( -)

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 500mA.

6 RED/WHITE TRUNKRELEASE OUTPUT(- )

Locate the vehicle’s trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when

the trunk release is activated.

This is a low current output, 500mA and is configurable in option programming.

3 GREEN DOORTRIGGERINPUT (-)

Locate the vehicle’s dome light or door pin switch wire.

Verification: This wire will register ground (NEG) when the door is opened

and the interior light is on. This wire will register positive voltage when the

door is closed and the interior light is off.

Connect the GREEN wire to the vehicle’s negative door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide.

7ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK ActiveOutput

Wire

VATS Control Module

Matching Value

Resistor

Ignition Switch

VATS Wire #1, WHITE or WHITE/BLACK

VATS Wire #2, WHITE or VIOLET/WHITE

X CUT

GM VATS

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or

3rd Ignition Wire

Jump To PINK

Ignition Output

Wire From

Control Module

Ignition 3 Accessory 2/3

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or 3rd

Accessory Wire

Jump To ORANGE

Accessory Output

Wire From

Control Module

7 BLUE/BLACK IGNITION3 /ACTIVEOUTPUT( -)

The Active Output/Ignition 3 output wire provides a ground output when the remote

start function is activated and remains until 4 seconds after the remote start is

shutdown. The Ignition 3 output wire can be used for several functions listed

below. If this wire will be used for multiple application's a 1 amp diode is required

in-line with the stripe facing the control module.

Factory transponder (coded key) bypass.

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not

supplied).

Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).

Accessory 2/3 output, see the following diagram. Use an SPDT relay (not

supplied).

8 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

9 GRAY HOODPIN INPUT(-)

Install a Hood Pin Switch and connect to the GRAY wire. This connection is

required for Remote Start.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE: Be sure to loom the wire, and seal the grommet.

10 BROWN/RED BRAKE INPUT ( + )

Locate the vehicle’s brake light wire at the brake pedal mounted switch. This

connection is required for Remote Start.

Verification: This wire registers positive voltage when the brake pedal is

pressed.

Connect the BROWN/RED wire to the vehicle’s brake light wire.

8 PURPLE/WHITE TACHINPUT

Locate the vehicle’s ignition coil or fuel injector in the engine compartment.

Verification: Test using the following procedure:

1. Set voltmeter to AC VOLTS.

2. Attach positive lead of a volt meter to a constant 12-volt source.

3. Attach negative lead of a volt meter to the wire to be tested.

4. Start the engine.

5. Have someone press on the gas pedal slightly as you monitor the meter. If

connected to the correct wire, the voltage reading will increase as the engine’s

RPM increases.

Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil

or fuel injector.

11 VIOLET/BLACK AUX 1

This wire provides a ( - ) 500mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

To activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

9ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

1 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

3 Pin Parking Light Harness

2 WHITE/RED PARKINGLIGHTINPUT

3 WHITE PARKINGLIGHTOUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

10 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.

6 Pin Start Harness

1 PURPLE STARTER OUTPUT ( + )

Locate the vehicle starter wire.

Verification: This wire registers voltage only when the key is turned to the

START position.

Verification:

The starter wire registers voltage when the key is turned to the

START position.

Connect the PURPLE wire to the vehicle starter wire.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

3 ORANGE ACCESSORY 1 ( + )

Locate the vehicle’s accessory wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START(or CRANK) position.

Connect the ORANGE wire to the vehicle’s accessory wire.

4 PINK/WHITE IGNITION 2 ( + )

Locate the vehicle’s 2nd ignition wire at the ignition switch (if equipped).

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START(or CRANK) position.

Connect the PINK/WHITE wire to the vehicle’s ignition 2 wire.

Programmable output: IGN, ACC, Start.

Other manuals for ca 5152

Table of contents

Other Code Alarm Car Alarm manuals

Code Alarm

Code Alarm 2000 User manual

Code Alarm

Code Alarm PROFESSIONAL SERIES CA 1551 User manual

Code Alarm

Code Alarm ca 1552 Professional Series User manual

Code Alarm

Code Alarm caSEC Installation and operating manual

Code Alarm

Code Alarm ca 2051 User manual

Code Alarm

Code Alarm CA100 User manual

Code Alarm

Code Alarm CA 180 User manual

Code Alarm

Code Alarm ca1153 User manual

Code Alarm

Code Alarm Ca 1053 User manual

Code Alarm

Code Alarm CA 110 User manual

Code Alarm

Code Alarm PRO 3500 Specifications

Code Alarm

Code Alarm CA 310 User manual

Code Alarm

Code Alarm Professional ca6153 User manual

Code Alarm

Code Alarm CATX520 Operating instructions

Code Alarm

Code Alarm F20 User manual

Code Alarm

Code Alarm Professional Series CA 1050 User manual

Code Alarm

Code Alarm CA 421 User manual

Code Alarm

Code Alarm CA611 User manual

Code Alarm

Code Alarm CA 671 User manual

Code Alarm

Code Alarm CA 420A User manual

Code Alarm

Code Alarm CA1355E User manual

Code Alarm

Code Alarm SRT 1600 User manual

Code Alarm

Code Alarm CA 510 User manual

Code Alarm

Code Alarm ELITE Series User manual

Popular Car Alarm manuals by other brands

Clifford

Clifford 3606X owner's guide

Ultra Start

Ultra Start 2500M SERIES install guide

Ultra Start

Ultra Start 650 Series owner's manual

Audiovox

Audiovox Prestige Platinum+ APS-511C owner's manual

Sparkrite

Sparkrite SRA8 Guide

Viper

Viper 4708V owner's manual

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Installation and maintenance manual

Falcon

Falcon Predator XL3 Installer manual

Audiovox

Audiovox Auto Security XR91 Programming guide

Clifford

Clifford Sabre II owner's manual

CrimeStopper

CrimeStopper CS-8717 Wiring diagram

Ultra Start

Ultra Start 450 SERIES install guide

Scytek electronic

Scytek electronic Vectra X3 product manual

Excalibur

Excalibur AL-1860-EDPB Operation guide

Clifford

Clifford CYBER 2 owner's manual

Gemini

Gemini 7057 user manual

FlashLogic

FlashLogic FLRSBA PRESTIGE Product guide

Magicar

Magicar FAI-440 manual

Code Alarm ca 5152 User manual

Popular Car Alarm manuals by other brands
