MicroBio MB1 Bioaerosol Sampler Operating Manual

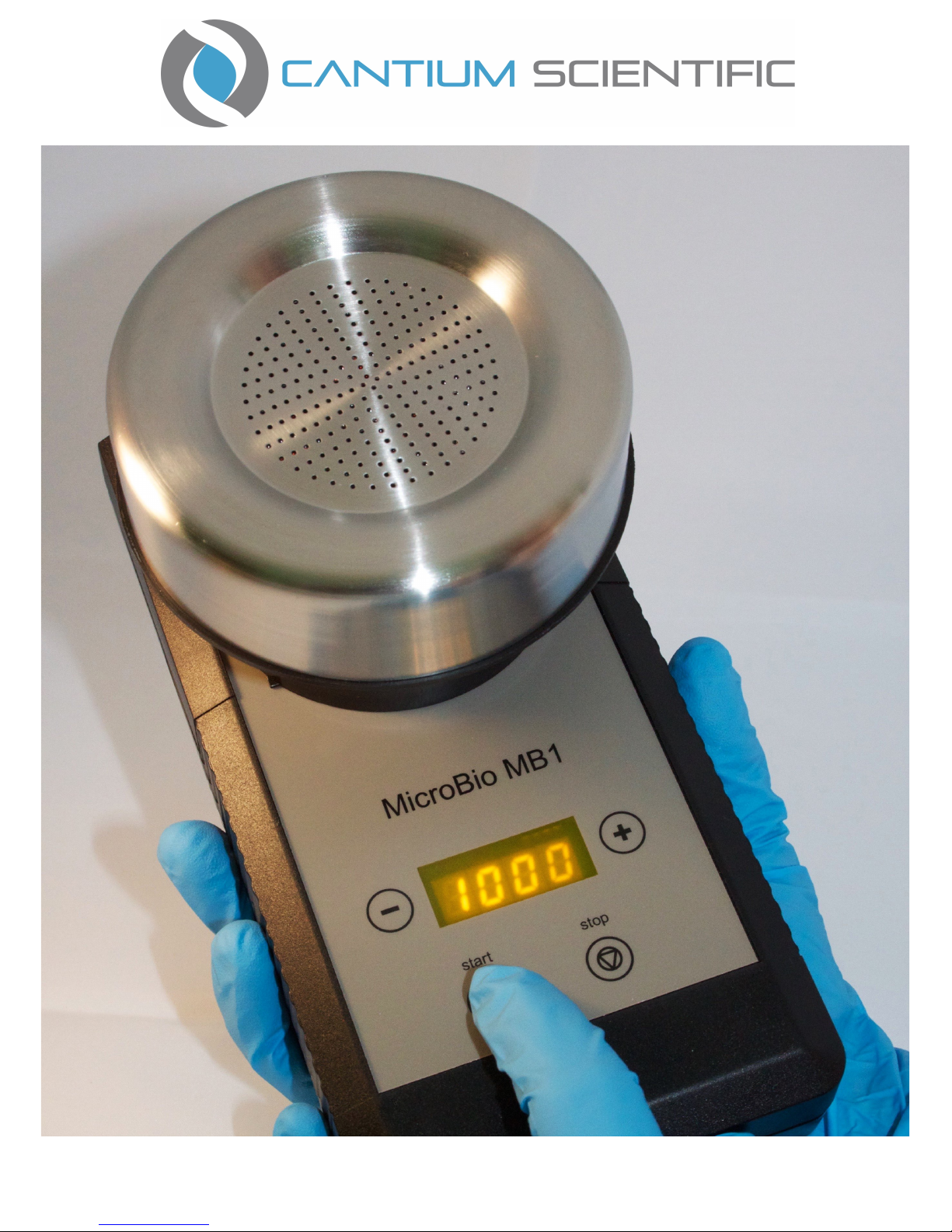

MicroBio MB1
Bioaerosol Sampler
Operating Manual
"
This work is licensed under a
Creative Commons Attribution, Non-Commercial, ShareAlike 4.0
International License.
https://creativecommons.org/licenses/by-nc-sa/4.0/
Cantium Scientific Limited!
Clarendon Gardens!
Dartford!
Kent!
DA2 6EY
United Kingdom!
!
Tel: +44 (0) 1322 252000!
!
www.cantiumscientific.com!
!
October 2016
Printed in England
1
2
Contents!
!
Regulatory Compliance 5...................................................................................
Warranty 7..........................................................................................................
MicroBio MB1 Technical Specification 8.............................................................
Introduction 9......................................................................................................
Installing Battery 10..............................................................................................
Sampling 11..........................................................................................................
Selection of Media 11...........................................................................................
IQ / OQ / PQ 11....................................................................................................
Inserting a Contact Plate or Petri Dish 12............................................................
Switching On and Off 13.......................................................................................
Setting Sample Volume 13...................................................................................
Starting / Stopping Samples 14............................................................................
Delayed Start 14...................................................................................................
Temperature and Humidity 15..............................................................................
Determining Results 15........................................................................................
Change Plate / Dish Type 17................................................................................
Cleaning 18..........................................................................................................
Validation 19.........................................................................................................
Calibration 19.......................................................................................................
Troubleshooting 20...............................................................................................
Technical Support 20............................................................................................
Appendix A - 220 Hole Count Correction Table 21...............................................
Appendix B - 400 Hole Count Correction Table 22...............................................
Appendix C - Culture Media Types 23..................................................................
Appendix D - Replacement Parts 24....................................................................
3
Appendix E - Bioaerosols 26................................................................................
What is a bioaerosol? 26......................................................................................
Sources of Bioaerosols 26....................................................................................
Monitoring of Bioaerosols 27................................................................................
4
Regulatory Compliance
EC Declaration of Conformity
This is to certify that MicroBio MB1 products manufactured from April 2014
meet the following European Community Directives:
Electromagnetic Compatibility (EMC) Directive 89/336/EEC repealed by
2004/108/EC to the following standard:
EN 61326-1 Scientific, Test and Measurement Equipment
Referencing:
!
EN 55011 / CISPR11 Emissions for Industrial, Scientific and
Medical Equipment
EN 61000-4-2 Immunity to Electrostatic Discharge
!
EN 61000-4-3 Radiated Immunity
Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical
and Electronic Equipment (EEE) Directive (2011/65/EU)
Signed:
S Plumridge CEng MIET MIEEE FRSA!
Managing Director!
Cantium Scientific Limited!
5
WEEE and Recycling
Applicable to EC States only.
At the end of this product's useful life, please dispose at an appropriate
recycling collection point provided in your country, or return it to your local
distributor who is obliged to take the product for safe recycling and disposal
under the Waste Electrical and Electronic Equipment Directive 2002/96/EC
amended by 2003/108/EC.
Outside of the European Community, consult local regulations or your local
distributor.
The MicroBio MB1 enclosure and fan housing is manufactured from ABS
plastic. The petri dish support plate and fan body are manufactured from
glass reinforced nylon. Electronics need to be recycled by approved
organisations.
6
Warranty
The manufacturer warrants this product to be free from defects in materials
and workmanship for 24 months from the date of purchase.#
If your product is found to be defective within that period, please contact
Cantium Scientific Limited or your local distributor who will arrange for repair
of the instrument, or if necessary a replacement.
This warranty does not cover accidental damage, wear and tear,
consequential or incidental loss. The warranty excludes rechargeable cells
supplied with the sampler.
Damage caused by cleaning materials and methods not recommended by
the manufacturer, use beyond the specification, use in wash down areas
(unless used in approved protective bags), or modifications without prior
permission from the manufacturer will invalidate the warranty.
This warranty does not affect your statutory rights.
7
MicroBio MB1 Technical Specification!
*Based upon random samples until low battery warning given.#These tests were undertaken on units fitted with
new and fully charged Ansmann Max-e 2500 mA.Hr NiMh cells. Actual battery life may vary due to volume taken
per sample, interval between samples, age of cells, and other environmental effects, such as humidity and
temperature.
‡ Calibrated at 1013mbar 20ºC. Environmental conditions will affect air pressure thus mass/volumetric flow rates.!
Flow Rate:#
100 L.min-1 ‡
Sample Volume:
10 to 2,000 litres in varying steps
Sampling Volume Capacity:
~ 60,000 litres before recharge*
d50 Particle size:
1.7 µm (220 x 1mm hole head)
1.35 µm (400 x 0.7mm hole head)
Mean particle velocity:
9.62 ms-1 (220 x 1mm hole head)
10.7 ms-1 (400 x 0.7mm hole head)
Other Features:
Auto switch off
Delayed start up to 60 minutes
4-digit 7-seg LED display
Sample cancel feature
Padded carry bag supplied
Weight (excluding charger
and carry bag):
650 g (inc. battery and petri dish)
Dimensions:#
196 x 100 x 110 mm (inc. head)
Power:#
4 x AA NiMh Cells!
6V at 250mA (maximum)
Noise Level:##
< 75dB @ 1m
Environmental Operating
Range:
-10 to 50°C up to 90% RH‡
Sampling Plate:
55mm/65mm contact plate or 90mm petri dish
Sampling Head:
316 grade stainless steel 220 x 1mm holes
or Anodised aluminium 400 x 0.7mm holes
8
Introduction
!
The MicroBio MB1 is part of the MicroBio range of bioaerosol samplers and
is one of the most economical hand-held samplers in the world for
monitoring airborne micro-organisms or bioaerosols.
The MicroBio range meets the standard required for a reference sampler, as
fully validated by the UK Department of Trade and Industry Validation of
Analytical Methods (VAM) programme.
The sampler collects airborne micro-organisms by drawing a stream of air at
a constant flow rate through a series of small holes in a metal head.
Particles suspended in the air stream impinge onto the surface of a sterile
culture medium in a contact plate or petri dish.
After exposure to a set volume of air, the contact plate or petri dish is
removed and incubated. The number of colonies which develop are
counted, enabling a calculation to be made to determine the concentration of
micro-organisms in the air (CFU / m3- colony forming units per cubic metre).
