Bushnell Neo Handheld User manual
User
Manual
Model #
368050/368050C Lit # 98-1353/05-10
®
3
Section 1:
Introduction
Welcome 4
Important Information 5
Package Contents / Additional Requirements 6
Battery Information 7
Section 2: Using the Neo Sync Application
Download the Software 8
Install the Software 9
About the Sync App / Before You Launch the Sync App 10
Downloading Courses 11
Sending Courses to Your Neo 13
Settings 14
Section 3: Playing Golf With Your Neo
Controls and Parts Reference 15
Button Functions 16
Start Up / Main Menu 17
Play Golf Mode 18
Button Functions 19
Shot Distance Feature 19
The Play Menu 20
Map Course Page 21
Course Name Function 21
Map GPS Point Function 22
Other Main Menu Pages 23
Settings Page 24
Section 4: Troubleshooting Problems 26
Table of Contents
4
Dear Valued Consumer:
We sincerely hope you will nd your Bushnell Neo both enjoyable and easy
to use. Knowing the exact distance for each shot will assist you in lowering
your score and enhance your overall golng experience.
This User Manual was created for you to get the most out of your new device.
It only takes a few minutes to read, after which you can immediately begin
using the Bushnell Neo and enjoying its many features.
Also, please be sure to set up your iGolf.com membership (using the Neo
Sync application as described in this manual). As a member, you have access
to all the features and benets iGolf.com has to oer, including access to an
extensive database of GPS enabled golf course les for use on your Bushnell
Neo.
Thank you for choosing Bushnell.
Welcome
Introduction
5
Important Information
Introduction
Legal Disclaimer
Additional Information
By using this product, you agree that Bushnell Outdoor Products will not be
held legally responsible for any injury or damage to you or any person or
property caused by the user’s improper operation and/or poor judgment
while using this product.
Note: See the Warranty statement for other limitations on our liability.
The Global Positioning System (GPS), a network of 32 satellites orbiting Earth,
is operated and maintained by the U.S. government. This GPS device requires
at least 3 satellites to be acquired to accurately determine your position. Any
change made to the system by the government could aect the accuracy
and performance of this product.
6
Package Contents
1 - Bushnell Neo
1 - Belt Clip
1 - USB Cable
1 - AC/DC 5V Adapter
1 - Quick Start Guide
Additional Requirements*
PC with Windows 7, Vista, XP or 2000
or Mac with OS X, version 10.4.x or later **
Available USB port
*Required to transfer course data les.
**Windows is a registered trademark of Microsoft Corporation in the United States and
other countries. Mac and Mac OS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Note: earlier versions of the Neo also included a CD-Rom containing the Sync App and
Drivers. This CD is no longer included or necessary, as the latest software for your Neo
is now provided as a le download at www.bushnell golfgps.com as described in this
manual.
Package Contents – Additional Requirements
Introduction
7
Battery Information
This product contains an internal rechargeable lithium-ion battery. Under
normal operating conditions, a new battery will last 14-16 hours on a
full charge. However, battery life is diminished due to a variety of factors
including temperature and backlight usage. All rechargeable batteries lose
their eective charge length over time.
The internal battery can be charged by connecting the included USB cable
to the device and a computer. Alternatively, the battery can be charged by
connecting the USB cable to the device and using the included adapter to
plug the charger into a standard 110V wall outlet. The battery should be
charged for at least six hours before using the Neo for the rst time.
Battery Information
Introduction
8
Using the Neo Sync Application
Download the Software
Follow these instructions to assist in the proper and complete installation
of the Neo Sync software application on your computer. Conrm the Neo is
NOT connected with the USB cable to your computer before beginning the
installation.
1. Go to www.bushnellgolfgps.com. Make sure you have the latest
version & update of Java for Windows* (link provided-click to
download).
2. Click Download and Install Software and Save the le (zip folder)
to your desktop. You will automatically receive the correct le
contents for your computer OS.
* Mac Users: use the Software Update feature (in the Apple menu) to ensure
you have the most up-to-date version of Java for your Mac.
DOWNLOAD
1-JAVA
2-Sync
App
9
Using the Neo Sync Application

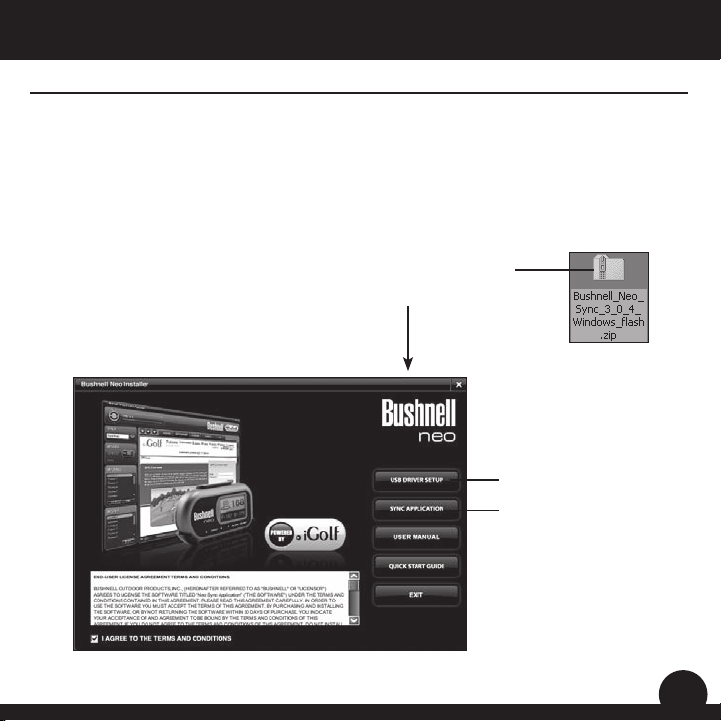

Install the Software
1. “Unzip”* the downloaded le and open the folder inside. Double
click Bushnell_Neo_Installer.exe to run the Neo Sync App installer.
2. Click “USB Driver Setup” to install the required driver.
3. Click “Sync Application”to install the Sync software.
*Free software to decompress zip les is available on the internet if it was not included
with your PC or Mac.
1-Unzip downloaded folder
and run the Installer
INSTALL
2-USB Driver
3-Sync App
10
Introduction
The Bushnell Neo Sync application provides the user with all the tools
required to let the Neo communicate with your Windows or Mac computer*.
Using this interface, the user can control every aspect of golf course le
management.
* Compatible with Windows 7, Vista, XP ,2000 and Mac OSX
*Windows is a registered trademark of Microsoft
Corporation.
Mac and Mac OS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Using the Neo Sync Application
About the Sync App
Before You Launch the Sync App
1. Charge the Neo for at least 6 hours using the supplied AC adapter
& USB cable (the Neo’s battery will also be charged whenever it is
connected to a computer, but this will take longer to fully charge it for
the rst time).
2. Connect the cable to a USB port on your computer.
3. Insert other end of the cable into the USB port on the Neo (under the
rubber plug on the left side-see photo above).
4. Hold the Power button for approximately 2 seconds, until the display
shows “Bushnell Neo”.
5. A “USB Mode” message will appear on the Neo’s display when it is
ready to accept data, and the Sync App
will indicate “Connected” (at top left).
