Brickcom PZ-040 12x Series User manual

12x PTZ Network Camera

PZ-040 12x Series

Quick Installation Guide

Read Before You Use

1. Power off the camera device immediately if it starts

smoking or smells unusual.

2. Power off the camera device

immediately if the camera is exposed to rain

or liquid.

3. Do not set the camera device near any

heat sources. (Ex: television and oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the specific operating

temperature.

6. Do not set the camera device in any wet

and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. PZ-040D/E 12x

b. Product CD

c. Mounting Kit

d. I/O Cable

e. Warranty Card

f. Screw Bag

g. Easy Installation Guide

i. Alignment Sticker

2. Device Description

Video Out

Microphone/Line In (Green)

Light Sensor

12 IR LEDs

Audio Out (Red)

General I/O Terminal Block

DC Power Connector

Ethernet RJ45 10/100 Socket

I/O Cable

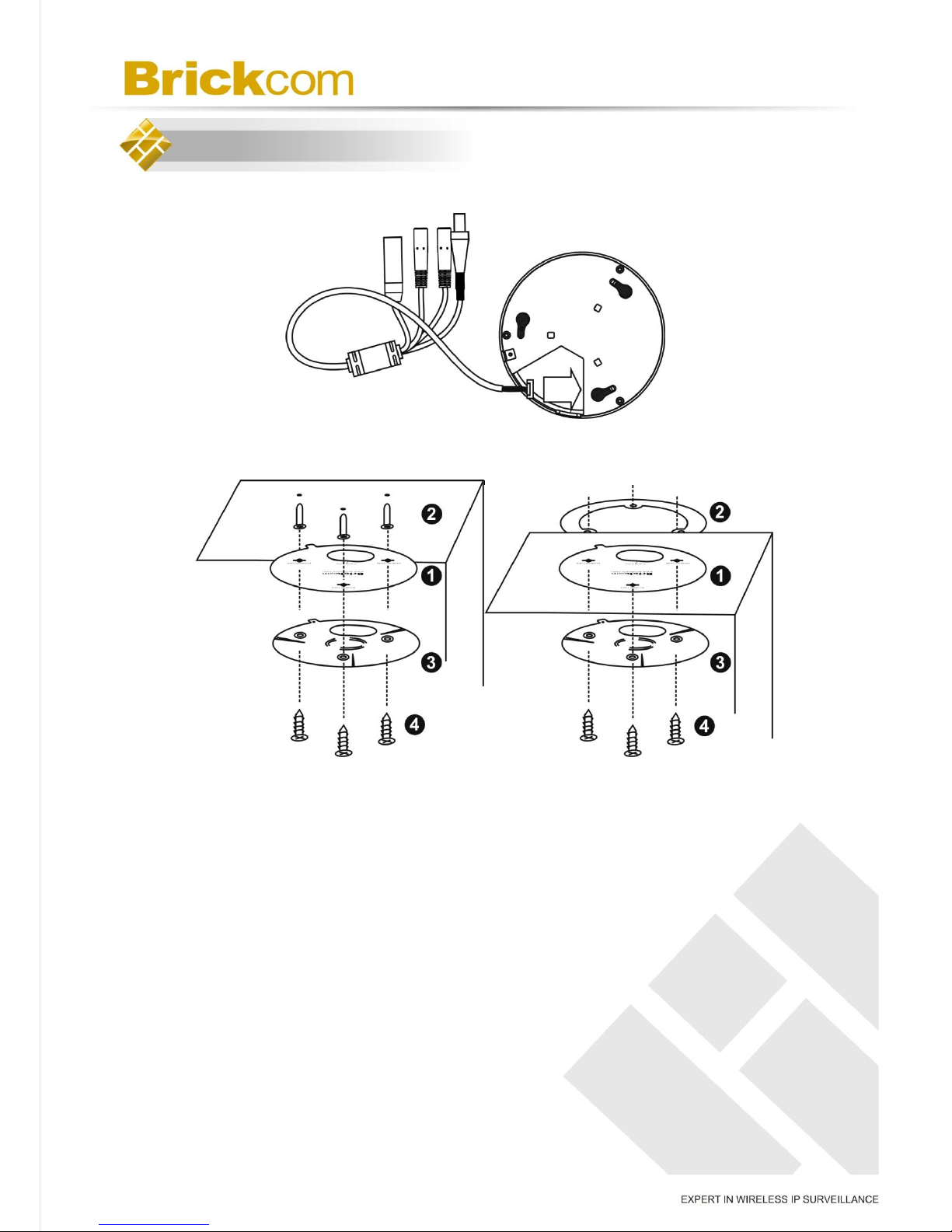

3. Hardware Installation

1.Connect the supplied I/O cable to the camera.

2.Install the Mounting Kit

Step1.Choose a location on the wall or ceiling to place the camera.

Attach the location sticker to the desired spot. Drill holes through

the three location holes and cable hole on the sticker.

Step2.For Hard Ceiling Mount, hammer the three plastic anchors that are

provided into the three location holes.

For Soft Ceiling Mount, place the hollow plate on the back side of

the ceiling and align the three holes on the plate with the screw

location holes.

Step3.Mount the metal plate on the ceiling and position the three screw

slots over the plastic anchors. Insert the three screws provided in

the product package into the holes and use a screwdriver to

tighten the screws clockwise until they are secure.

Hard Ceiling Mount

Soft Ceiling Mount

3.Loosen the screw on the rim of the metal plate but do not remove the

screw completely.

4.Push all cables and connectors through the cable hole into the ceiling, and

attach the PTZ camera to the metal plate.

5.Turn the PTZ camera counter clockwise until it is in a locked position

6.Tighten the screws on the metal plate.

4. Camera Connection

1. Basic Connection (Without PoE)

1.1 Connect the camera to a switch using a standard Ethernet cable.

1.2 Connect the power adapter from the camera to a power outlet.

Note: A DC12V 2A power adapter is required.

2. Power over Ethernet (PoE) Connection

2.1 The PZ-040D/E is High Power PoE compliant, so there are two

options for connecting the camera to a power and Ethernet

source. The camera can either be connected to a High

PoE-enabled switch or a non-PoE switch

A. If using a High Power PoE-enabled switch

Use a single Ethernet cable to connect the camera to the High Power

PoE-enabled switch.

Note: The PoE switch must be able to provide IEEE802.3at High

Power PoE.It is recommended that a Brickcom PS-7242-AT 24

port high power PoE switch be used.

B. If using a non-PoE switch

1. Use a standard Ethernet cable to connect the camera to a High Power

PoE Injector.

2. Use a standard Ethernet cable to connect the High Power PoE Injector

to the non-PoE switch.

3. Use a standard power cable to connect the High Power PoE Injector to

a power outlet.

Note: The PoE injector must be able to provide IEEE802.3at High

Power PoE. It is recommended that a Brickcom POE30U high

power PoE injector be used.

7. Setup the Network Camera

1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool

directly from the CD-ROM to start the installation. When installing the

Brickcom software kit for the first time, select a desired language for the

interface. The available languages are listed in the scroll box. Click

“Install” and follow the steps to install the EasyConfig wizard on the

desired computer.

Please follow the InstallShield Wizard instructions to finish the Brickcom

Software Kit installation.
