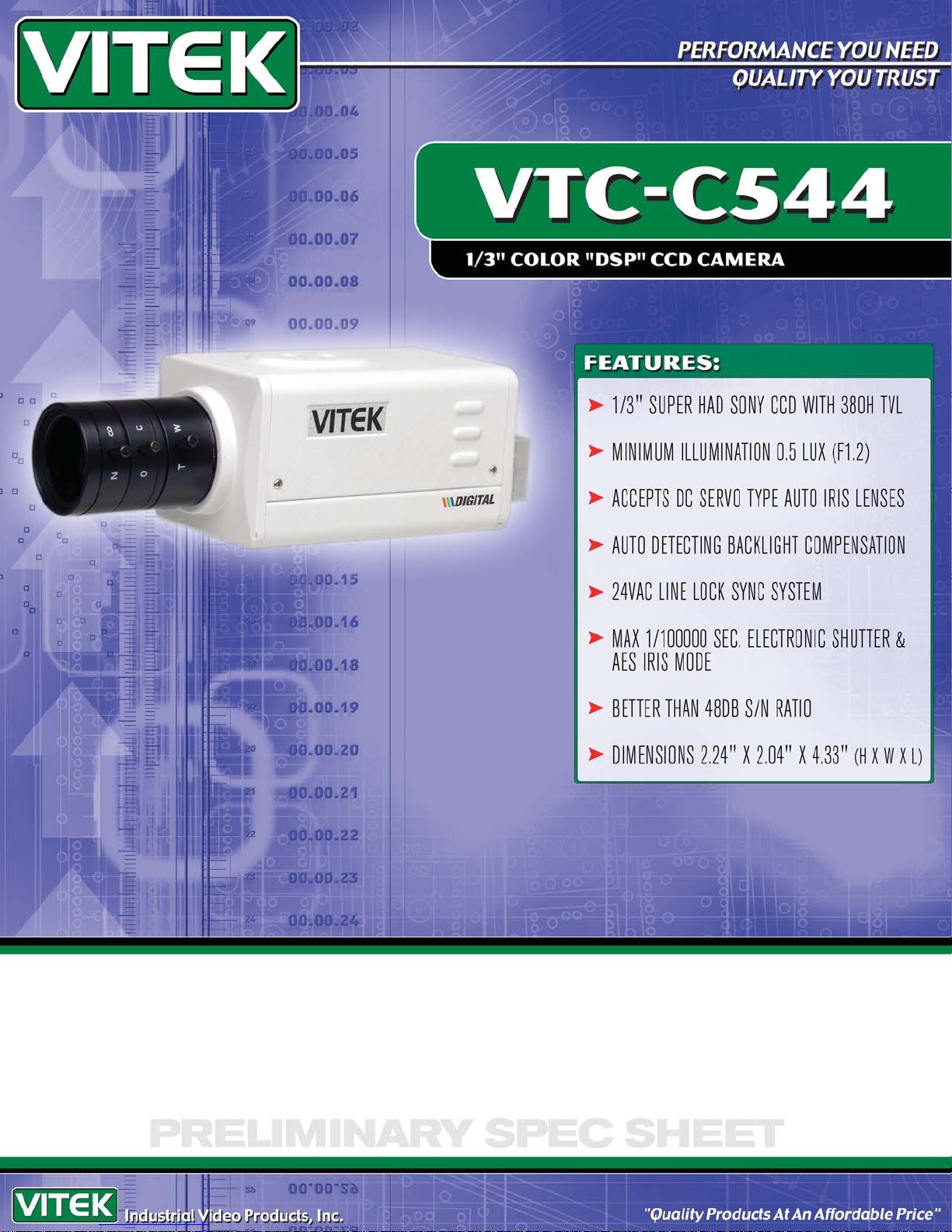

Vitek VTC-C544 User manual

BLACK PANTONE 356 PANTONE 356 (50%) PANTONE 356 (15%)

Industrial Video Products, Inc. "Quality Products At An Affordable Price"

Specifications

PERFORMANCE YOU NEED

QUALITY YOU TRUST

9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352

PHONE: 888-VITEK-70 818-771-0300 FAX: 818-771-0400

WWW.VITEKCCTV.COM

Image device

Signal system

Picture Elements

Scanning system

Sync system

Horizontal resolution

Minimum illumination

Aperture correction

Gain

S/N ratio

Auto exposure system

Auto iris lens

ATW

Backlight compensation

Video output signal

Lens mount

Operating temperature

Power source

Power consumption

Dimensions (W x H x D)

1/3” interline transfer SONY Super HAD CCD

PAL/NTSC standard

PAL: 542(H) x 582(V), NTSC: 542(H) X492 (V)

PAL: 625 lines, NTSC: 525 lines

Line-Lock (24V AC Model)

380 TV lines

0.5 lux at F1.2

H aperture and V aperture

Max. Gain 36dB; Off

Better than 48dB

AES (CCD iris): 1/50(1/60) - 1/100,000 sec. / Auto Iris mode: PAL: 1/50; NTSC: 1/60 sec.

Accepts DC servo iris lens

ATW: 3200°K to 7500°K

Auto detects On/off; Histogram plus windows weight BLC

Composite: 1 V p-p at 75Oload

C & CS mount

-10°C to 50°C

AC 24V

2W (AC type)

57 x 52 x 110mm

VTC-C544

VTC-C544
