Brickcom OB-E400AF Datasheet

Easy Installation Guide

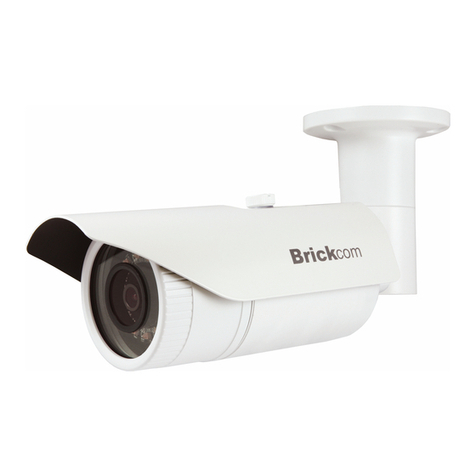

Megapixel Day & Night

Bullet Network Camera

OB-E400Af

OB-E200Af &OB-E200Nf

English

2

Step 1. Check Package Contents

a. Network Camera

b. Screw bag (*OB-E400Af)

(*)

c. Location Sticker

d. Product CD

e. Easy Installation Guide

f. Warranty Card

g. High Power PoE (Optional)

(Please refer to bottom message)

h. Waterproof connector (OB-E400Af

Only)

The product is intended to be supplied by a Listed Power Unit marked “L.P.S”(or “Limited Power Source”) and

rated output 24V AC, 50/60 Hz, 0.7A minimum or 12V DC, 1A minimum or 48V DC, 0.25A minimum”

“The product shall be installed by a qualified service person and the installation shall conform to all local codes”

“The product is to be connected to only PoE networks without routing to the outside plant

3

Hardware Installation

Do not mount the camera on any soft material. The camera may fall and be damaged.

A compliant waterproof connector shall be attached tightly to the conduit hole of the

Vandal Dome Network Camera, and all the cables shall run through the connector for

the camera to be IP66-compliant.

This document is for the easy installation purpose only; please refer to the user

manual for more details.

Step 1. Camera Installation

A. Drill three holes into the wall.

B. Hammer the supplied plastic anchors into the three holes.

C. Use a screwdriver and the supplied screws to secure the plate to the

wall.

4

Step 2. Camera Connection

The Bullet Series is DC12V and PoE compliant, so there are two options for

connecting the camera to a power and Ethernet source. The camera can either be

connected to a PoE-enabled switch or a non-PoE switch.

a. If using a PoE-enabled switch:

i. Use a single Ethernet cable to connect the camera to the PoE-enabled

switch.

5

b. If using a non-PoE switch:

i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.

ii. Use a standard RJ-45 cable to connect the PoE Injector to the

non-PoE switch.

iii. Use a standard power cable to connect the PoE Injector to a power

outlet.

c. If using the DC12V for the power Supply. The RJ45 cable will be data

transmission.

6

Software Installation

Step 1. Install the EasyConfig Software

Insert the CD into the CD-ROM, and follow the instructions of the InstallShield

Wizard to finish installation.

Step 2. Launch the EasyConfig Software

Launch the EasyConfig software, and click on the camera from the survey list

to connect.

7

Follow the EasyConfig software to configure the camera’s IP address and

EasyLinkTM settings.

Step 3. Installation Completed

Clickto view the live video feed of the network camera.

Other manuals for OB-E400AF

1

This manual suits for next models

2

Table of contents

Other Brickcom Security Camera manuals

Brickcom

Brickcom VD-131Af User manual

Brickcom

Brickcom CB-100A Series User manual

Brickcom

Brickcom PZ-040 12x Series User manual

Brickcom

Brickcom VD-130A V2 Series User manual

Brickcom

Brickcom CB-500A Series User manual

Brickcom

Brickcom Mini Dome Series User manual

Brickcom

Brickcom FD-100A Series User manual

Brickcom

Brickcom VD-100A Instructions for use

Brickcom

Brickcom Fixed Box Series User manual

Brickcom

Brickcom VD-E200Af series Datasheet

Brickcom

Brickcom OSD-040 36x Series User manual

Brickcom

Brickcom FB-100A Series User manual

Brickcom

Brickcom OB-130Np Instructions for use

Brickcom

Brickcom WFB-100A User manual

Brickcom

Brickcom Vandal Dome Series Datasheet

Brickcom

Brickcom OSD-200 20xp User manual

Brickcom

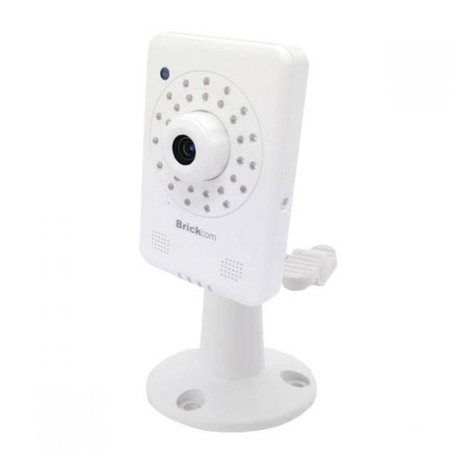

Brickcom Mini Box Series User manual
