Brickcom FD-100A Series User manual

Megapixel Day & Night

Fixed Dome Network Camera

FD-100A Series

Quick Installation Guide

Quality Service Group

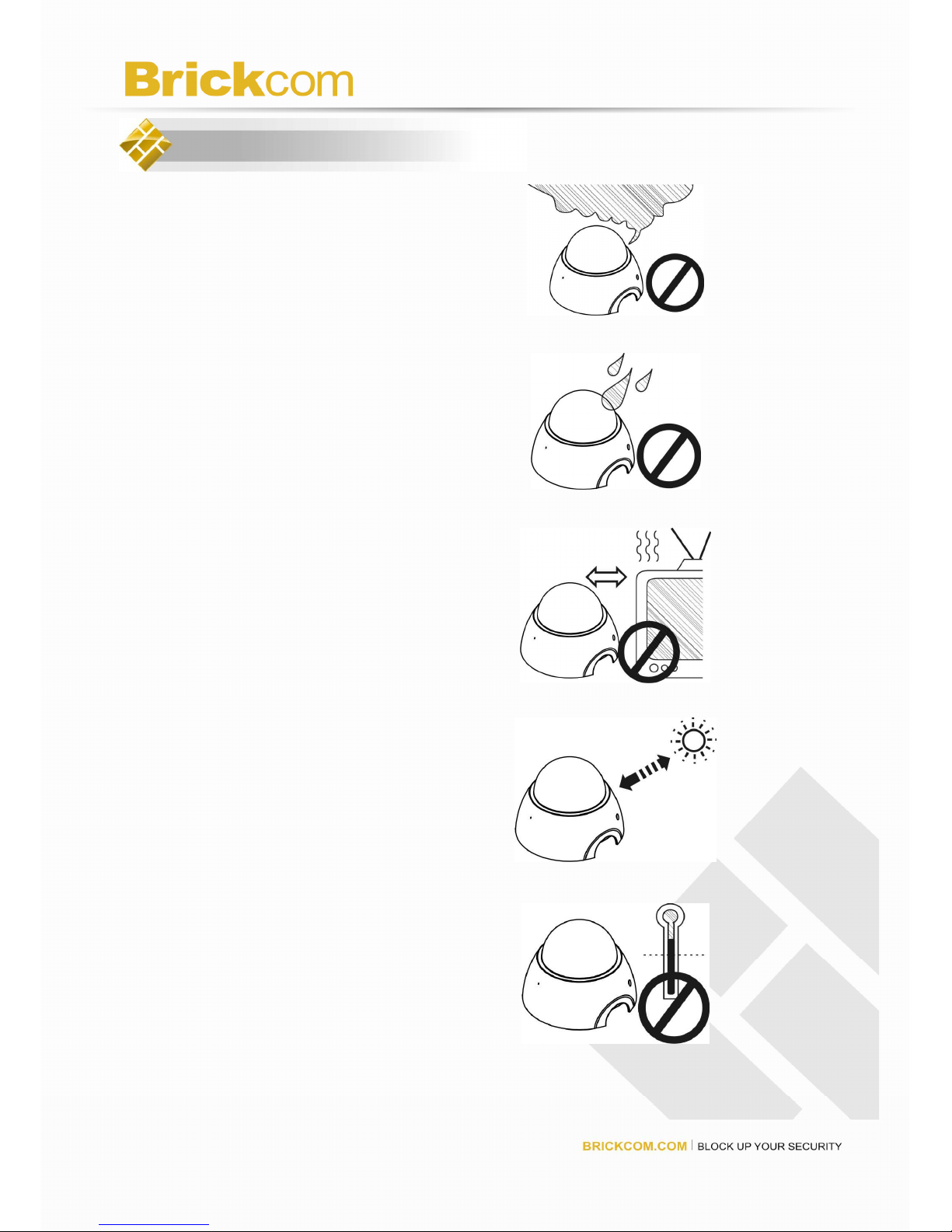

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or smells

unusual.

2. Power off the camera device

immediately if the camera is exposed to

rain or liquid.

3. Do not set the camera device near any

heat sources. (Ex: television and oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the

specific operating temperature.

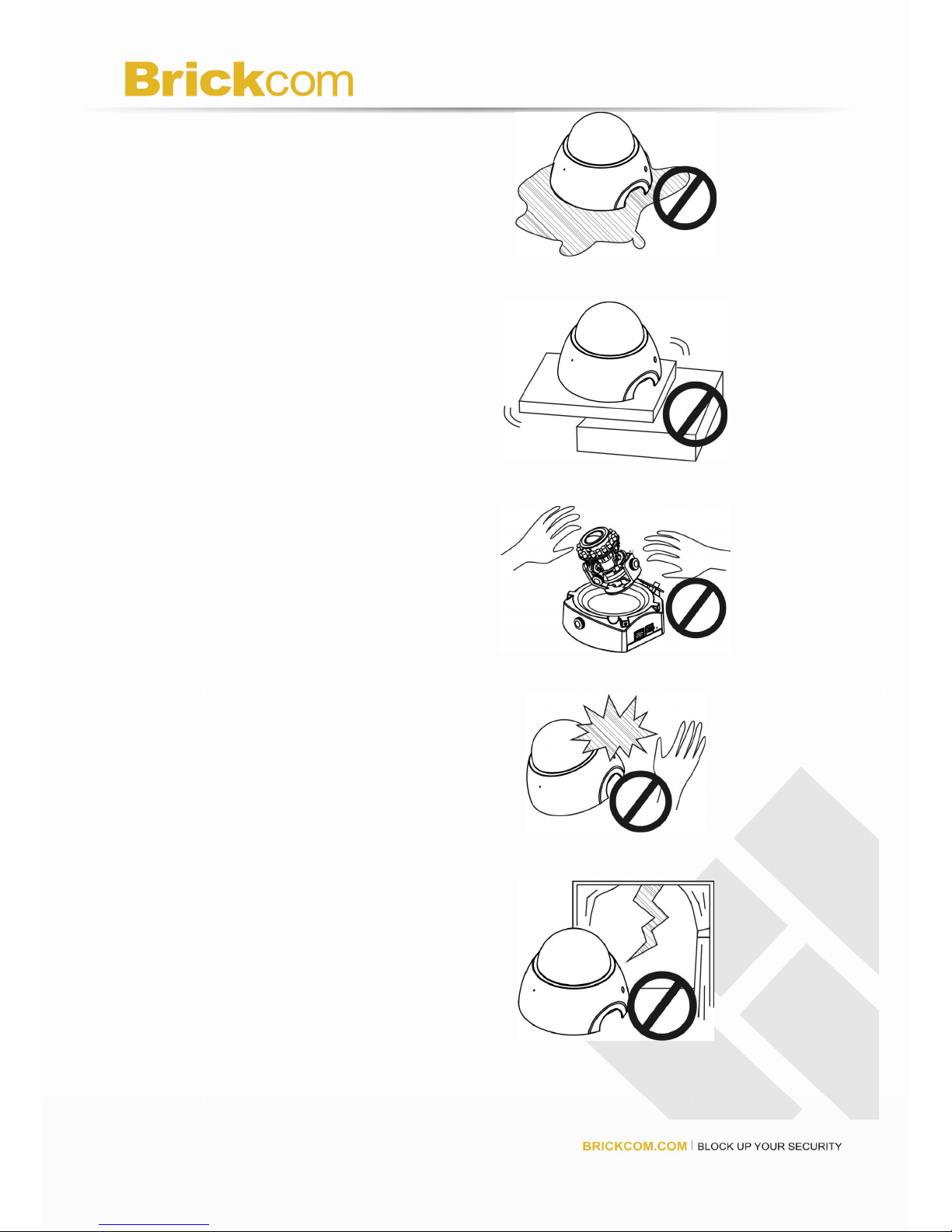

6. Do not set the camera device in any wet

and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

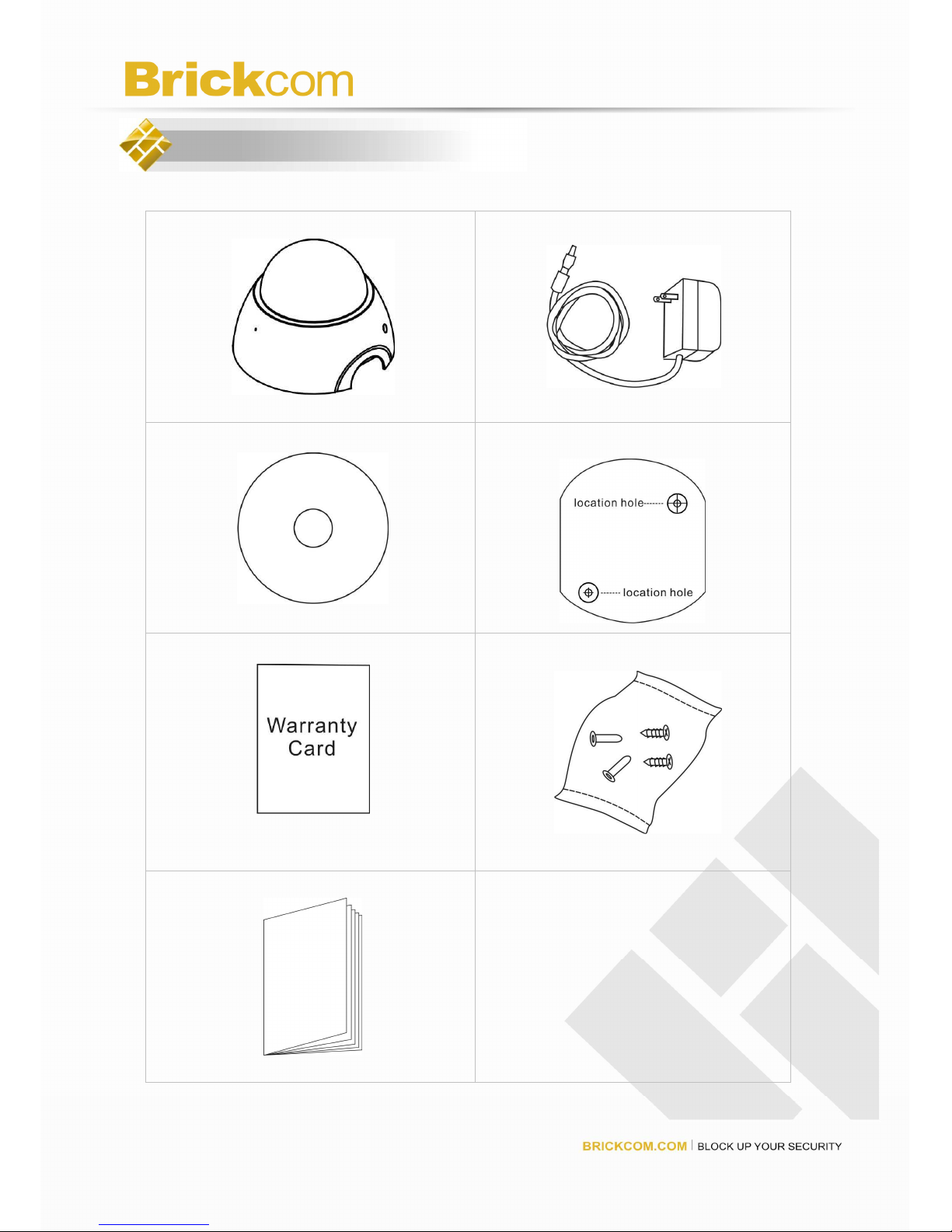

1. Check Package Contents

a. FD-100A

b. Power Adapter

c. Product CD

d. Location Sticker

e. Warranty Card

f. Screws bag

g. Quick Guide

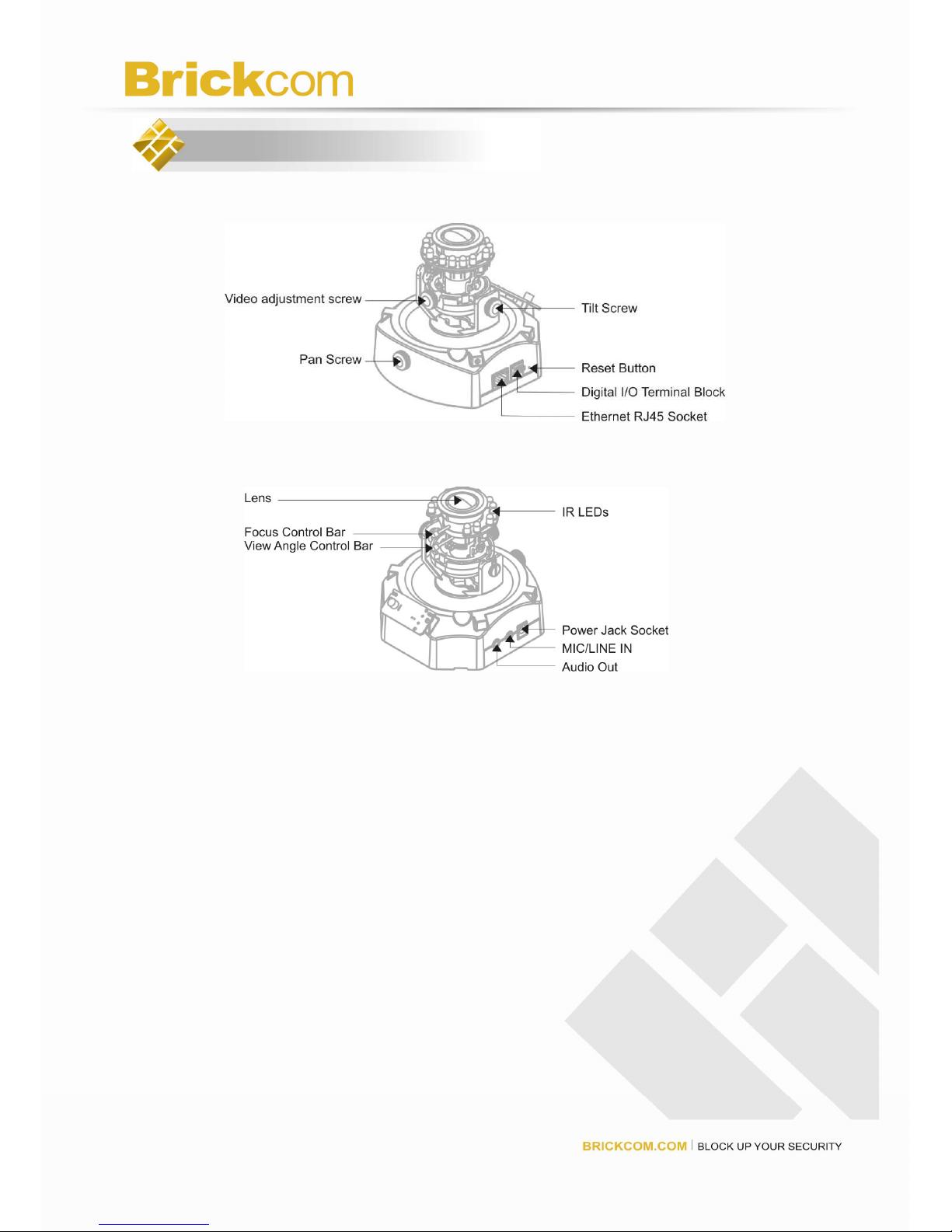

2. Device Description

3. System Requirements

Operating System:

Microsoft Windows XP Home Edition SP2

Microsoft Windows XP Professional SP2

Computer:

IBM PC/AT Compatible

CPU:

Pentium 3GHz or faster

Memory:

1024 MB or more

Monitor:

1024 x 768 pixels or more, 24-bit True color or better

Network Interface:

10/100Mbps Network interface card must be installed

Web Browser:

Microsoft Internet Explorer 6.0 SP2 or higher

Adobe Reader:

Adobe Reader 8.0 or higher

Audio:

The audio function will not work if a sound card is not installed in the PC. Audio

may be interrupted depending on network traffic.

4. Hardware Installation

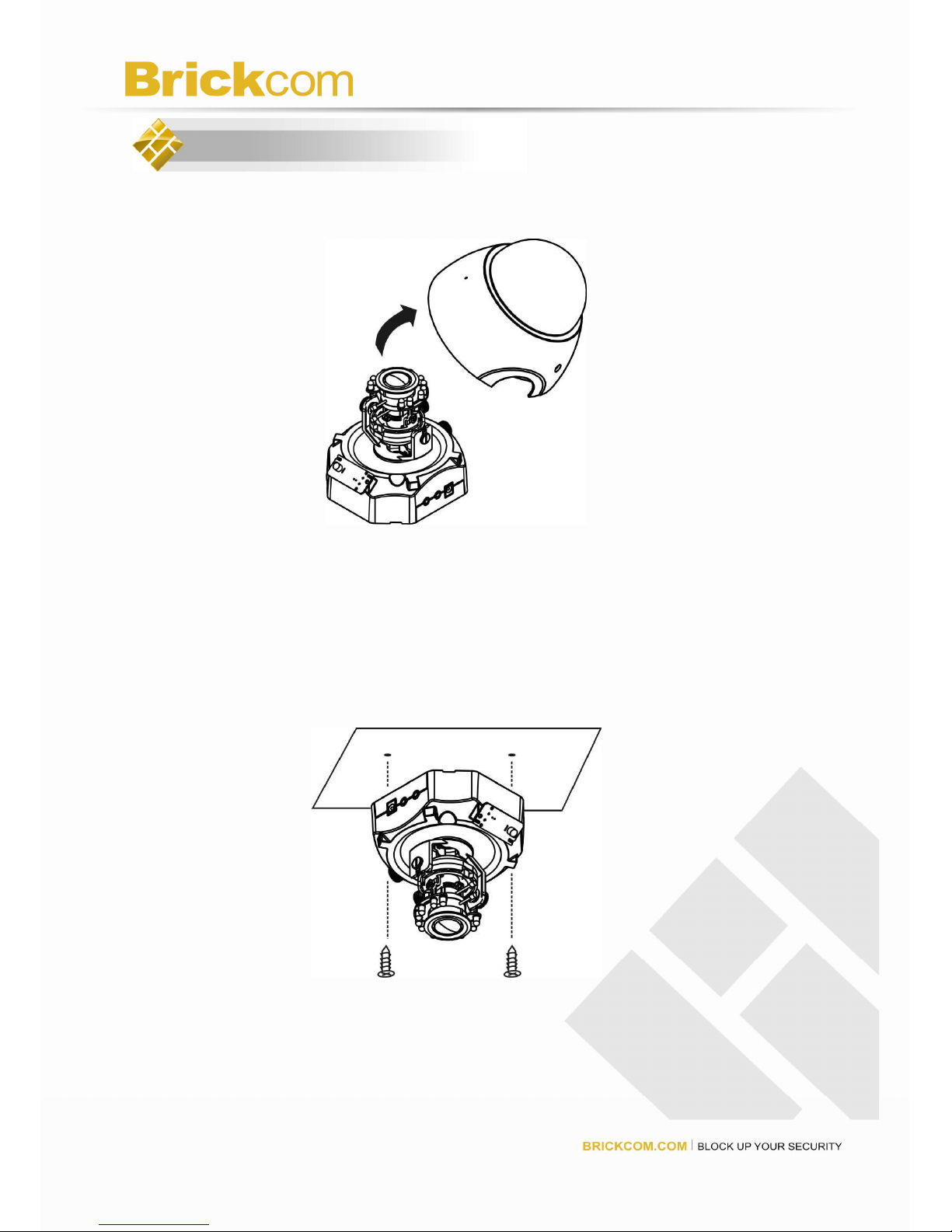

4.1 Remove the dome cover from the camera device.

For ceiling installation:

4.2 The user needs the two screws which are included in the product

package and a screwdriver. Mount the camera on the desired

location and use the screwdriver to tighten the screws clockwise

through the two holes on each side of the device as shown below.

The best place to mount the camera is into a ceiling stud.

WARNING: Do not mount the camera on a soft material. The camera may

fall and be damaged.

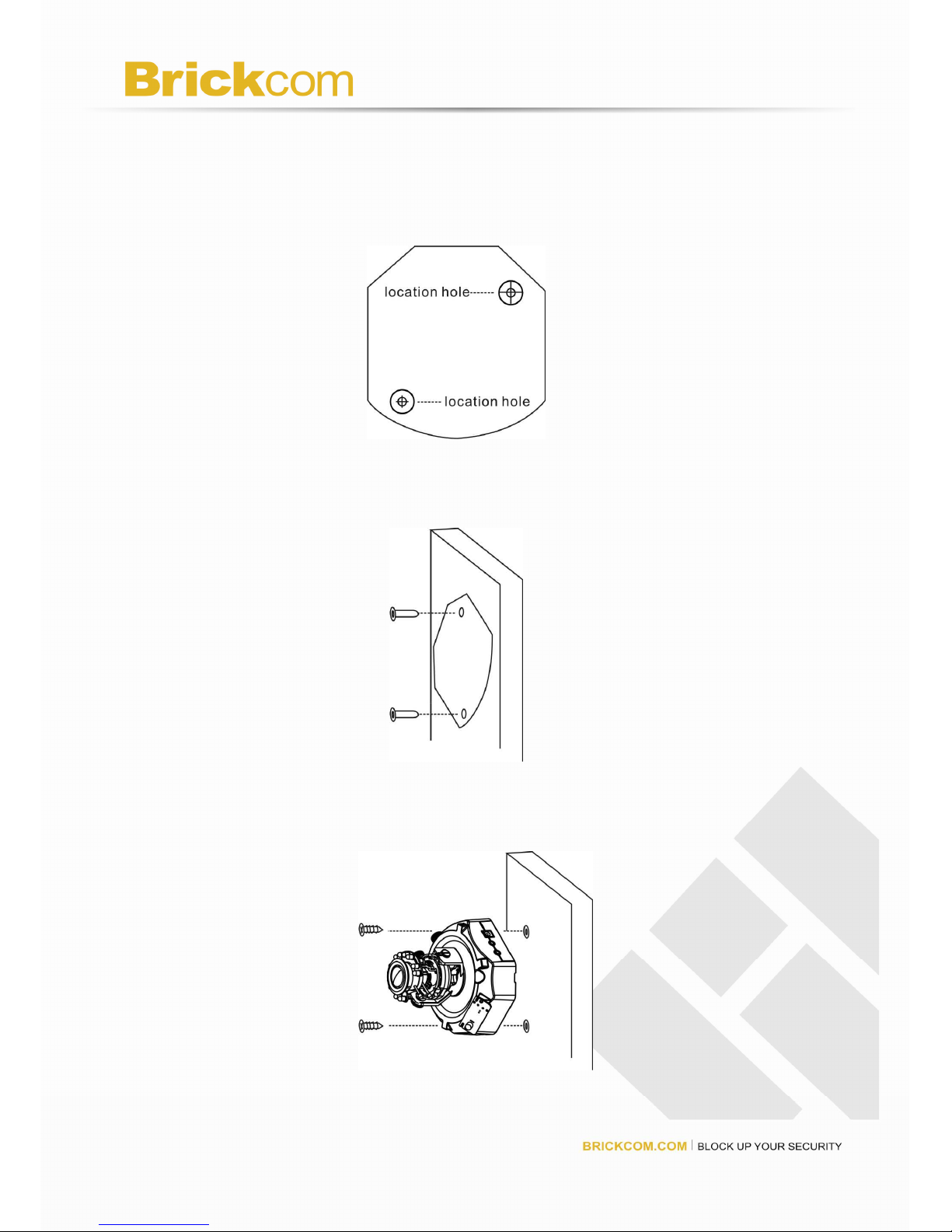

For wall installation:

4.3 Chose the location on the wall to place the camera. Attach the

location sticker to the desired spot.

4.4 Drill two holes through the center of the two location holes on the

sticker.

4.5 Hammer the two plastic anchors which are provided in the product

package into the two location holes.

4.6 Mount the camera on the wall and position to two screw slots over the

plastic anchors. Insert the screams into the holes and use the

screwdriver to tighten the screws clockwise until they are secure.

4.7 Place the dome cover back on the camera device.

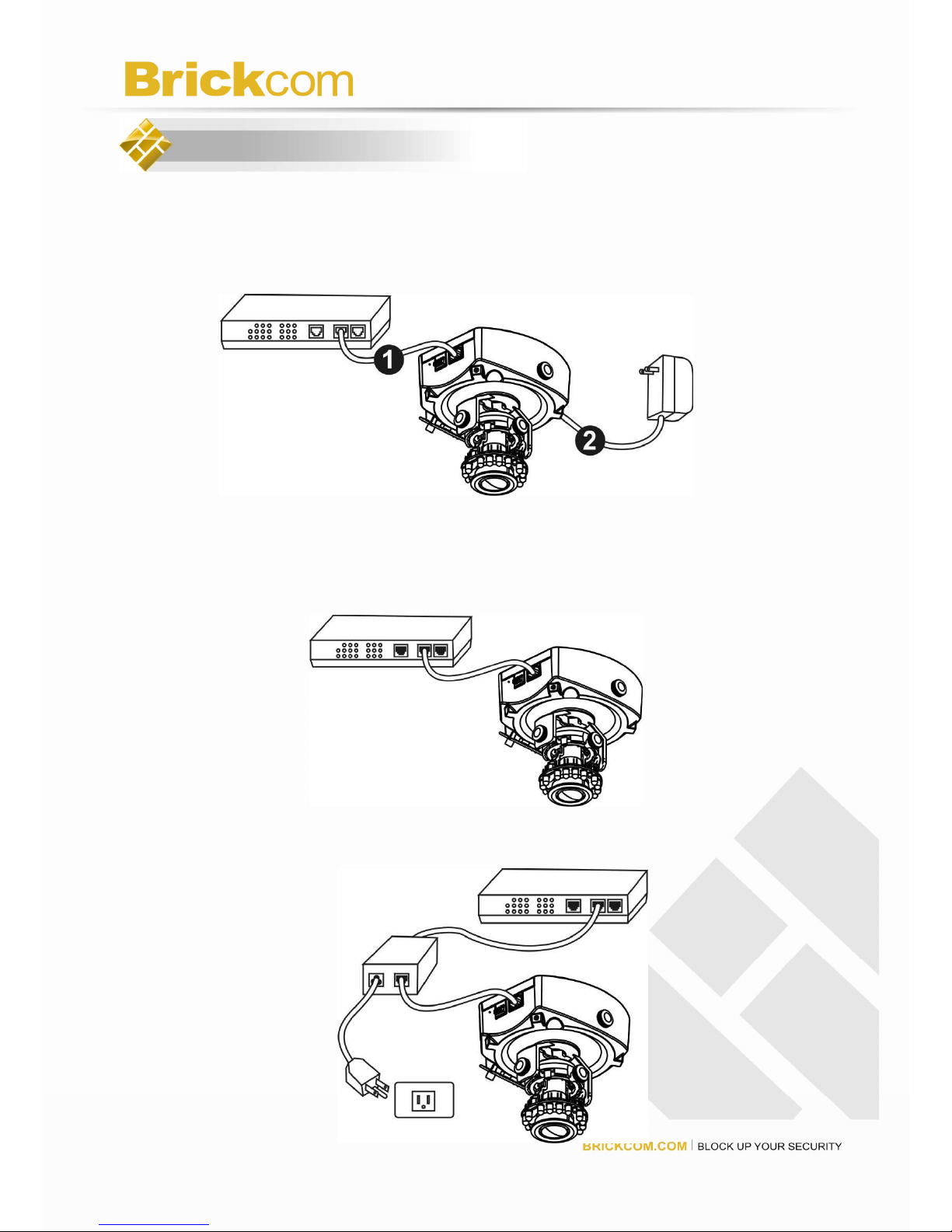

5. Camera Connection

5.1 Basic Connection (Without PoE)

5.1.1 Connect the power adaptor to the camera device.

5.1.2 Connect the camera to the Ethernet hub using a RJ45 Ethernet

cable.

5.2 Power over Ethernet (PoE) Connection

5.2.1 Connect the camera to a PoE-enabled hub via single Ethernet

cable.

5.2.2 Connect the camera to a non-PoE hub via PoE Injector.

6. Adjust the Lens focus range and zoom viewing

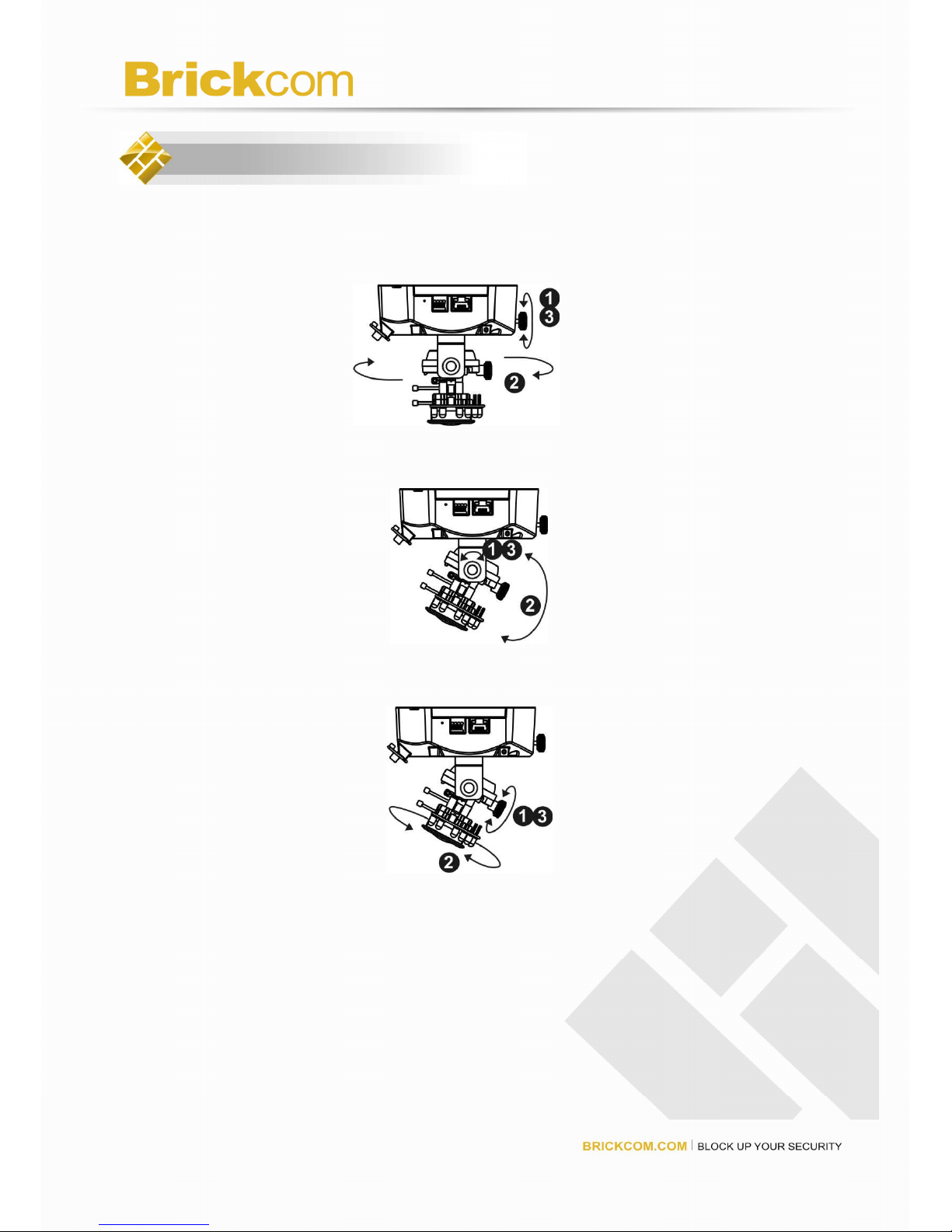

6.1 How to adjust the Lens angle?

6.1.1 Release the pan screw and then rotate the lens to left or right.

After completion, tighten the pan screw.

6.1.2 Release the tilt screw on both side of the device and then rotate

the lens to up or down. After completion, tighten the tilt screw.

6.1.3 Release the video adjustment screw and then adjust the lens

direction. After completion, tighten the video adjustment screw.
