BLOTZ B10-CS-203 User manual
10mm 5x3 Office Block Foyer
B10-CS-203
Please read these instructions fully before starting construction.
PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due
care and remember to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold
pieces in place while you allow glue to dry.
Remove the front wall section, window pieces
and corner bracers from the sprue as shown
above.
Glue the windows behind the wall as shown, then glut
the bracers to the back of the wall.
The rear wall is formed the same way.
Each side wall is formed from the pieces shown
above. Glue the windows behind the wall section.
Glue the pieces together to form a square.
The porch is made from these pieces.
Glue the canopy pieces to the front wall.
The add the legs.
The completed foyer.

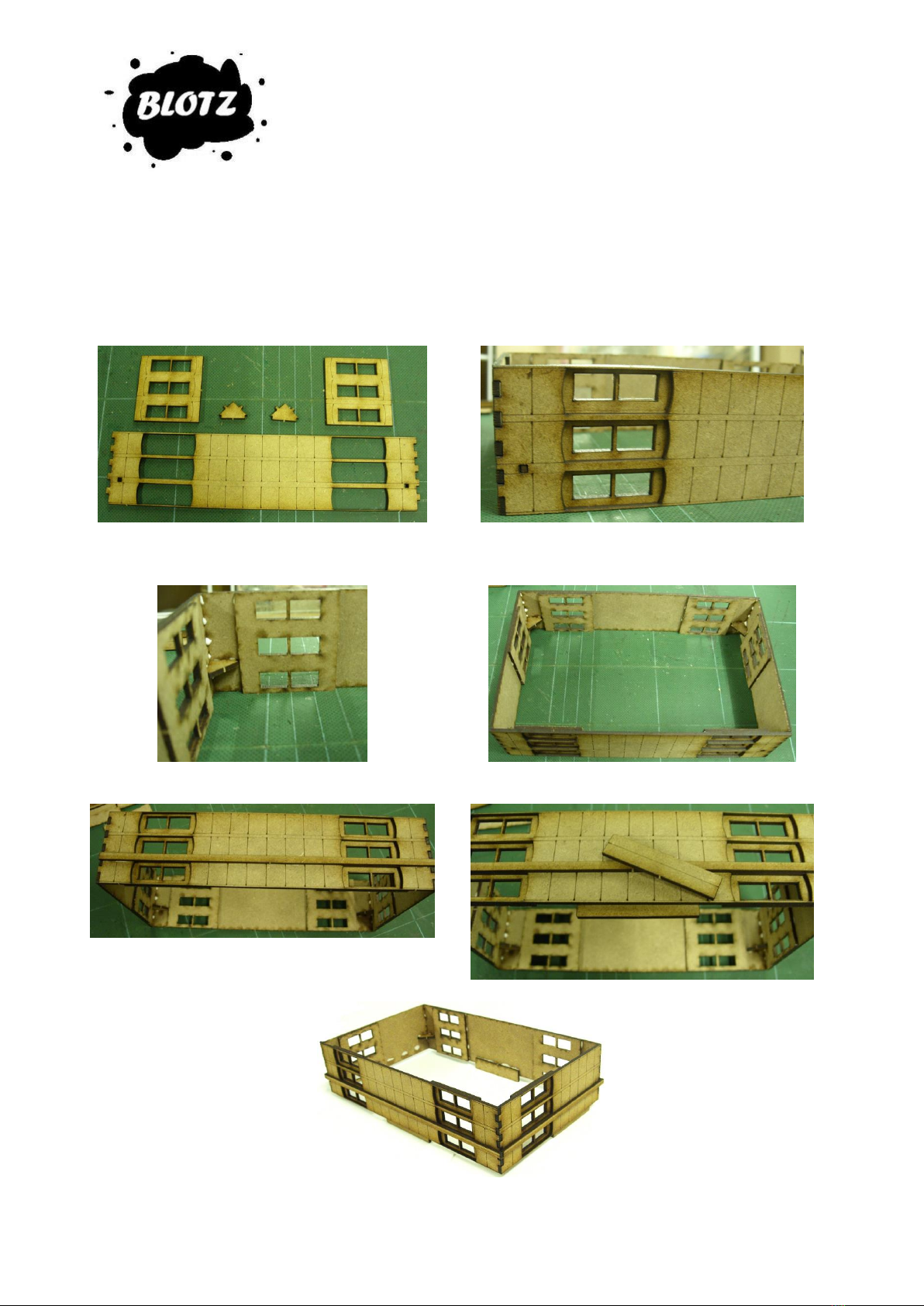

10mm 5x3 Office Block Middle
B10-CS-254
Please read these instructions fully before starting construction.
PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due
care and remember to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold
pieces in place while you allow glue to dry.
Remove the front wall section, windows and
corner bracers from the sprue as shown above.
Glue the windows to the back of the wall, then add the
corner bracers. Repeat this for the rear wall.
The side walls are formed in the same way.
Glue the four sections together to form an open
square.
Attach the decorative strip between the bottom
and middle windows.
Glue the internal supports into place.
The completed mid-section.

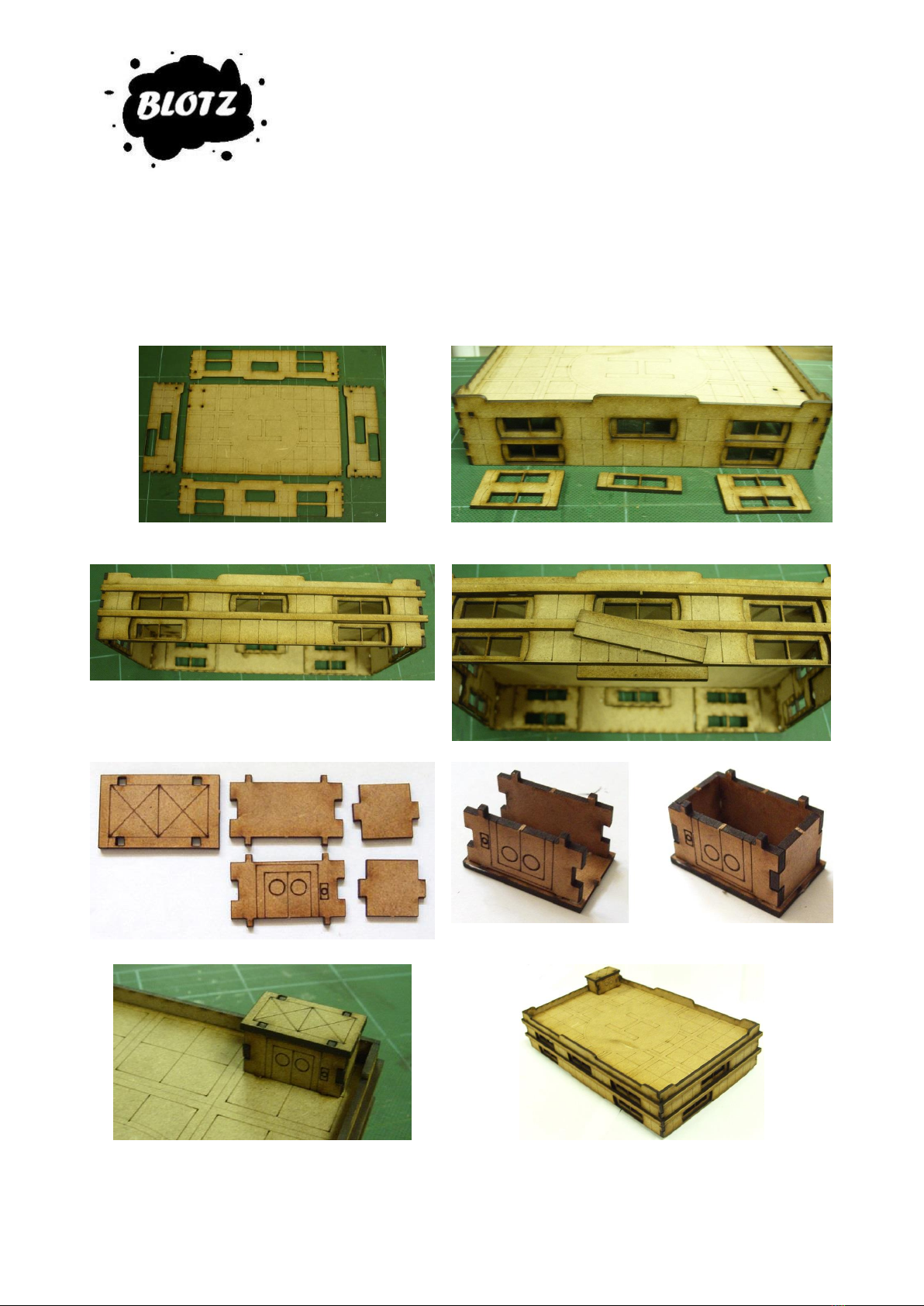

10mm 5x3 Office Block Roof
B10-CS-304
Please read these instructions fully before starting construction.
PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due
care and remember to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold
pieces in place while you allow glue to dry.
Remove the roof and four walls from the sprue.
Glue the walls to the roof, then attach the windows
behind the walls.
Add the decorative strips as shown.
Glue the internal supports into place.
The lift is formed from the pieces shown above.
Glue the long walls to the roof, then add the side
walls.
Add the lift to the roof.
The completed roof.

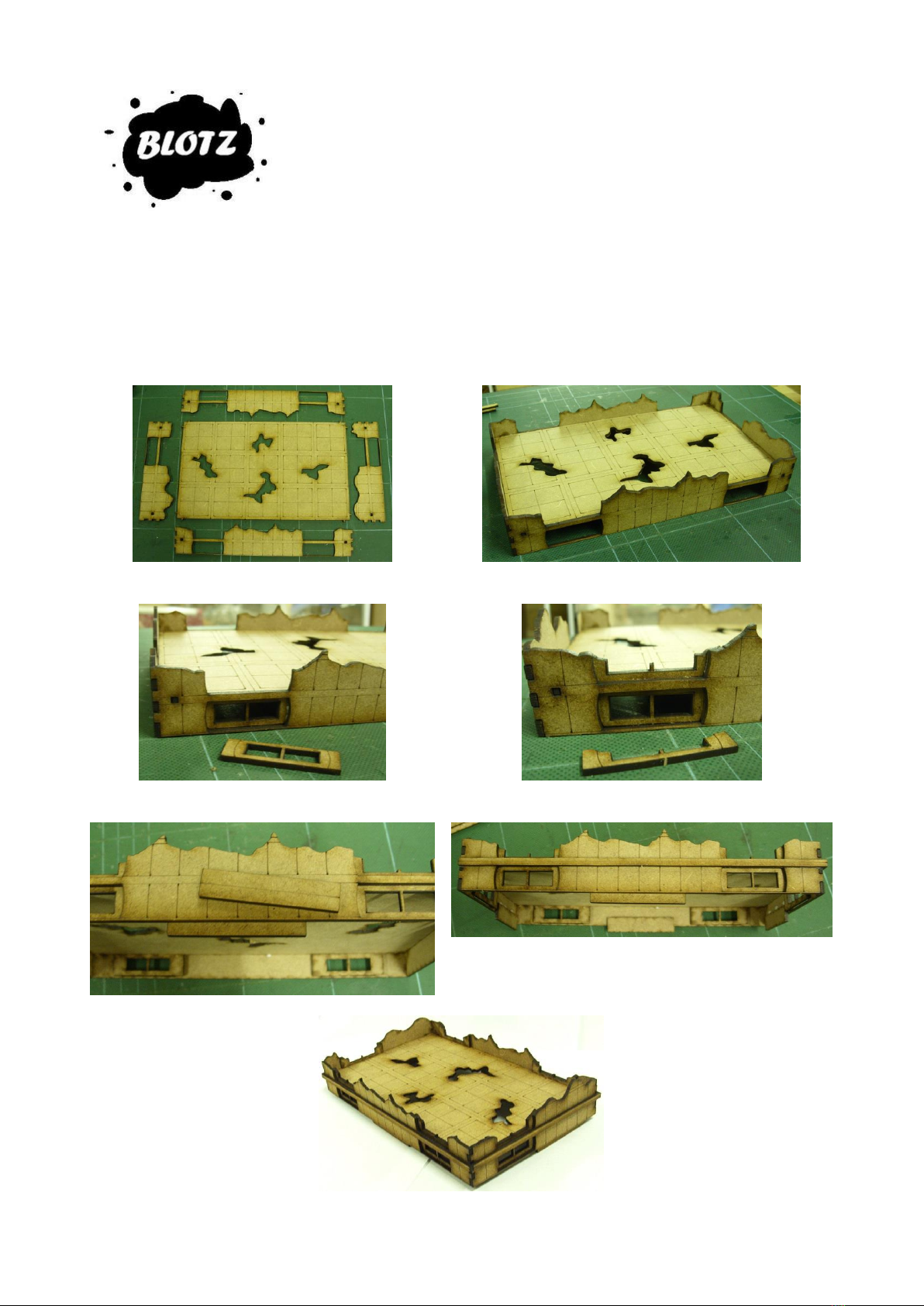

10mm 5x3 Office Block Ruined Middle
B10-CS-255
Please read these instructions fully before starting construction.
PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due
care and remember to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold
pieces in place while you allow glue to dry.
Take the floor and four wall sections.
Glue the walls into place with the floor using the lugs /
holes provided.
Glue the rectangular windows behind the lower
windows as shown above.
The attach each upper windows, ensuring its shape
matches the shape of the surrounding wall.
Glue the four supports into place.
Finally attach the decorative strips.
The completed broken section.
