Bard CMC-15 User manual
7960-245A
Page 1
DESCRIPTION
The CMC-15 is a field installable start kit. It is a
positive temperature coefficient resistor (PTCR) that
increases starting torque by momentarily increasing the
current to the start winding of the compressor. The
CMC-15 consists of:
1. PTCR 910-1097
2. Installation Instructions 7960-245
3. CMC-15 unit label 7961-312-0009
For use with all WA/WL181 – WA/WL601 Hi-Boy Wall
Mount Heat Pumps and Air Conditioners (“A” Electrical
Versions ONLY).
INSTALLATION INSTRUCTIONS
CMC-15
START KIT
Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
INSTALLATION INSTRUCTIONS
Disconnect all power to unit. Remove control panel
inner and outer covers. Circled numbers on Figure 1
correspond to installation instruction steps. Dashed
lines indicate that a wire has been disconnected from
this terminal.
Step 1. Mount start kit (PTCR) in position shown in
Figure 1, Step 1.
Step 2. Connect wires between terminals (Herm) and
(C) of dual can capacitor as shown in Figure
1, Step 2.
Step 3. Recheck wiring. Refer to Figure 1.
Step 4. Replace all panels and covers. This
completes installation.
7960-245A
Page 2

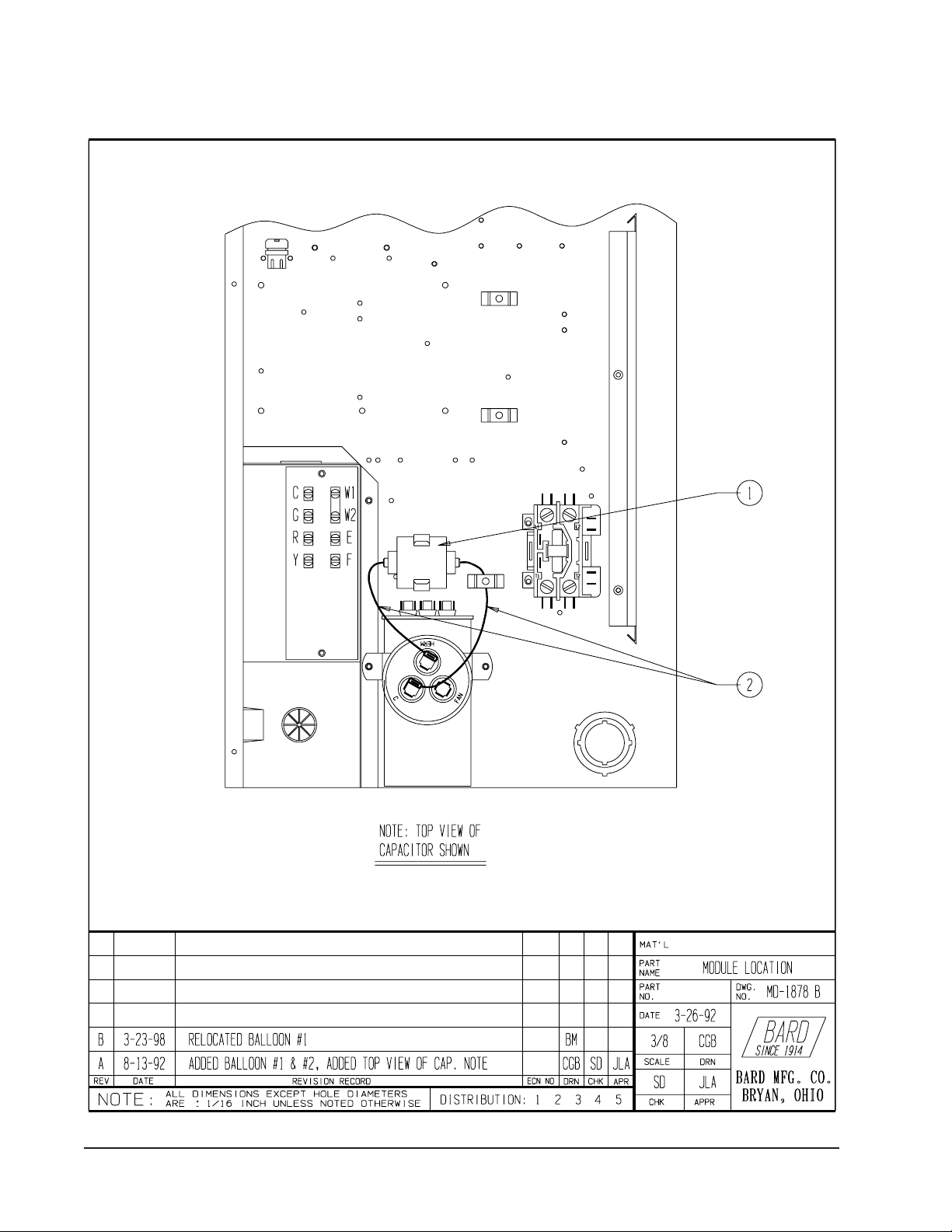

FIGURE 1
