Audiovox Prestige APS-2K4 Operating instructions
1
2
1
3
3
4
5
BUTTON RECEIVER
CHANNEL SYSTEM FUNCTION
Lock And Arm Alarm, also initiate and
terminates *Panic
Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May be
programmed to unlock driver's door or all
doors. Also will initiate and terminate
*Panic.
Pulsed or switched output to control
Remote Trunk Release or optional device
connected to channel 3.
When pressed and release two times, will
provide pulsed output or activate the
Remote Start option when installed.
Whensoequipped,thisbuttoncanbeused
to operate an optional device connected
to channel 4.
Whensoequipped,thisbuttoncanbeused
to operate an optional device connected
to channel 5.
This transmitter makes use of icons (symbols) to identify the reaction
your security system/keyless entry/and or remote start system, where
applicable, will have when any icon (button) is pressed. These icons
are programmed at time of installation to meet the needs of the individual
and to complement the vehicle that the system is installed in. To replace
a transmitter or add transmitters, please follow the programming
instructions listed on the pages of this manual.
Transmitter Programming Guide
Model APS-2K4
* Where So Equipped
2
Some of the more popular options available for the unused Option
Buttons of your transmitter are:
AS 9554 Remote Garage Door Interface
AS 9075 Remote car starter
AS 9153 Remote window roll up
AS 9256 Remote trunk release relay
Although the most common use of the transmitter buttons are shown on
the front page of this guide, any button or button combination can be
programmed into any receiver channel. Additionally, if all 4 buttons are
used and you require access to a 5th channel, you would program a
combination of buttons to control the 5th function. i.e... you have
programmed lock for arm, unlock for disarm, trunk for trunk release,
and OPT1 for garage door operation, and you've added a window up
module that you want independent control of, you would program unlock
andtrunk buttonspressed simultaneouslyinto thereceiver tocontrol this
function independently. Also, if you do not program a transmitter button
into channel 2 which is the separate unlock/disarm channel, then
whatever button is programmed into channel 1 will serve as both
lock/arm & unlock/disarm.
PROGRAMMING TRANSMITTERS:
NOTE: It is important to remember that during the programming mode,
each individual step must be completed within 15 seconds of the
previous step. If the 15 second time limit expires between steps,
the unit will automatically exit the program mode. This is
indicated by a long chirp from the siren.
Non alarm models will flash the parking lights only to confirm the
transmitter code has been learned and stored.
NOTE: Because the system may be capable of sounding a siren, the
vehicle horn, or both, where the siren chirp is referenced below,
the siren may chirp, the horn may beep, or both devices may
sound.
TO PROGRAM ADDITIONAL TRANSMITTERS:
1) Enter the vehicle, and turn the ignition switch to the on position.
2) Press and release the valet push button switch three times.
3) The dash mounted LED will flash 1x, and the siren will chirp 1x,
indicating that the system is ready to accept programming of channel
#1 which is arm/lock, disarm/unlock/unlock 2, and panic functions.
4) Press andholdthe lockor lock/unlocksymbol buttonof thetransmitter
you wish to program for 4 seconds or until a long chirp is heard from
the siren.
3
"Repeat step 4 for each transmitter you wish to program".
NOTE: If your transmitter button has the Lock/Unlock icon on one
button, press and release the valet push button switch 2 times
then move on to step #8.
5) Press and release the valet push button switch onetime to advanceto
channel2. Thesiren willchirp 2times andthe dashmounted LEDwill
Flash 2 times, indicating that the unit is ready to accept programming
for channel # 2 which is only used for separate lock and unlock
button transmitters, and is the disarm/unlock/unlock 2 and panic.
6) Press and hold the unlock symbol button of the transmitter you wish
to program for 4 seconds or until a long chirp is heard from the
siren.
"Repeat step 6 for each transmitter you wish to program".
7) Press and release the valet push button switch one time to ad-
vance to channel 3. The siren will chirp 3 times and the dash
mounted LED will flash 3 times, indicating that the unit is ready
to accept programming for channel # 3 which is the trunk re-
lease/alternate output channel of the system.
8) Press and hold the trunk/key symbol button of the transmitteryouwish
to program for 4 seconds oruntil a long chirp is heard from the siren.
"Repeat step 8 for each transmitter you wish to program".
9) Press and release the valet push button switch one time to advance
tochannel 4ifso equipped.The sirenwill chirp4 timesand thedash
mounted LED will Flash 4 times, indicating that the unit is ready to
acceptprogrammingforchannel# 4,optionaldevice(whereequipped)
10) Press and hold the Option button of the transmitter you wish to
program for 4 seconds or until a long chirp is heard from the siren.
"Repeat step 10 for each transmitter you wish to program".
11) Press and release the valet push button switch one time to advance
tochannel 5 ifso equipped. Thesiren willchirp 5times andthe dash
mounted LED will Flash 5 times, indicating that the unit is ready to
acceptprogrammingforchannel#5 optionaldevice(where equipped)
12) Press and hold the second Option button of the transmitter you wish
to program for 4 seconds or until a long chirp is heard from the siren.
"Repeat step 12 for each transmitter you wish to program".
ERASINGTRANSMITTERS IFTHEYHAVE BEENLOSTOR STOLEN:
NOTE: Before you begin to erase the lost or stolen transmitter(s), have
all transmitters available that you wish to remain programmed.
These will be used during the program process to identify
transmitters that will continue to be used.
Enter the transmitter program mode:
1. Turn the ignition switch to the “ON” position.
2. Within10 seconds,press andrelease thevalet/program switchthree
times. (Siren emits 1 short chirp indicating channel 1 has been
entered)
3. Within 10 Seconds, Press and hold the ARM or ARM/DISARM
button of the first transmitter you wish to remain stored into the
control unit until a single chirp is heard from the siren.
(Repeat this for each transmitter you wish to remain stored in the control
unit).
The receiver stores up to four transmitters. To be certain all transmitter
slots in the receiver are occupied with transmitters you wish to continue
to use and all others are erased, you will have to fill all four receiver
slots. If in step 3 you identified one transmitter, you will have to fill the
additional 3 slots. If in step 3 you identified two transmitters, you will
have to fill the additional two slots, etc...
4. Press and hold any unused button or combination of buttons until a
long chirp is heard from the siren. Release and press the button or
button combination again and again until all remaining slots are full.
NOTE: The button or combination of buttons entered will also control the
armor arm/disarmfunctionuntil additionaltransmittersare added.
All unwanted transmitters are now deleted.
REPRIORITIZING A TRANSMITTER’S PROGRAMMING:
To reprogram a receiver channel with a different transmitter button once
a code has been stored:
1. Enter the transmitter program mode of the receiver channel to be
reprogrammed. Using any unused button or combination of buttons,
push out the stored code by pressing the unused button until a long
chirp is heard, then repeat 3 additional times. After this, you can add
any desired unused transmitter button. This action erases only the
buttonstored ofthe transmitter youare programming. Allothercodes
will remain stored.
2. Enter the transmitter program mode. Using any transmitter button
press and hold until a long chirp is heard. If a single chirp or multiple
chirps, (up to 7 chirps), are heard, the unit is indicating that the
transmitter has already beenprogrammed elsewherein the receiver.
Release the transmitter button and within 5 seconds press and hold
until a long chirp is heard. This action forces the unit to erase all
stored codes of that transmitter.
The unit then exits the program mode the siren emits the program mode
4

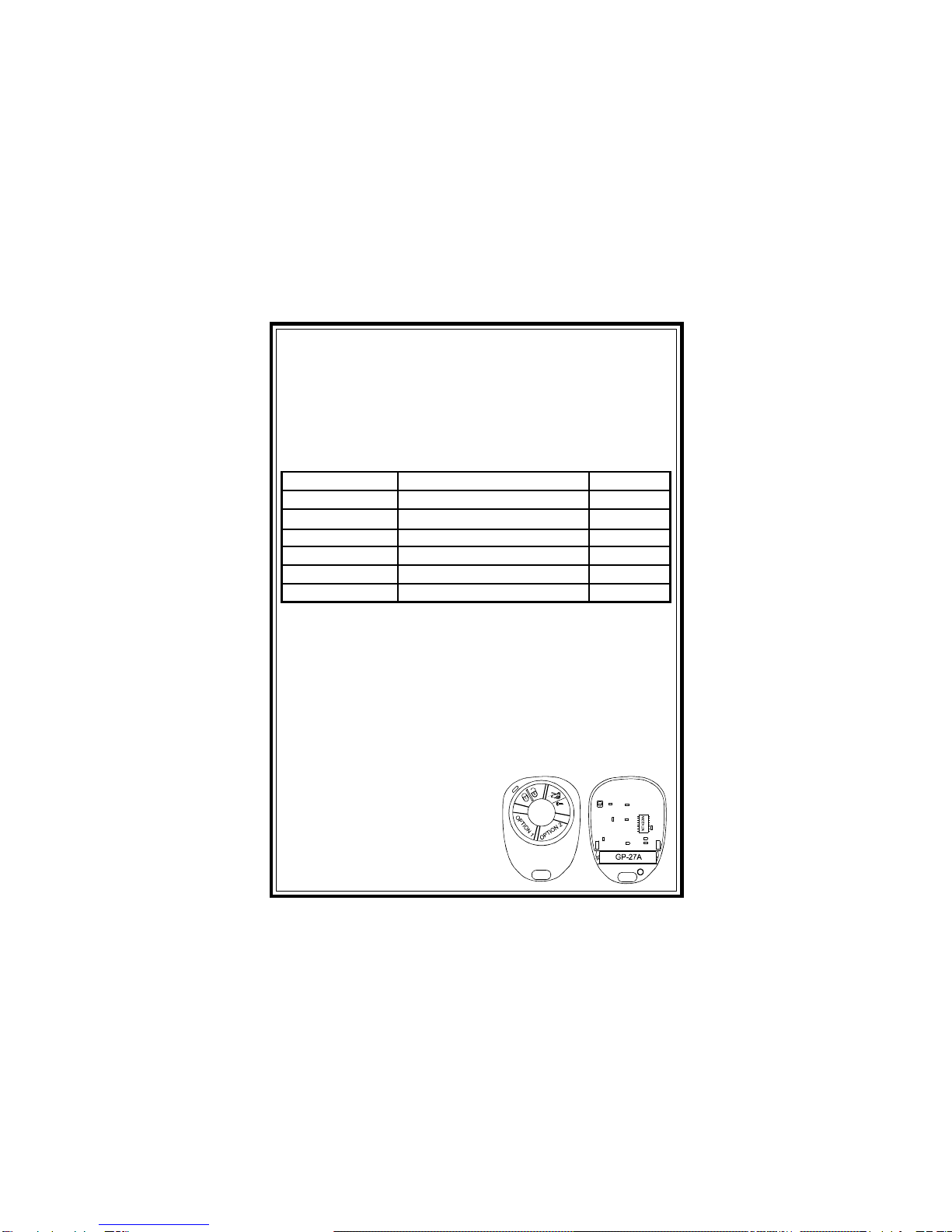

BATTERY REPLACEMENT:
Thetransmitter incorporatesa smallLED visiblethrough thecase which
is used to indicate battery condition. You will notice a decrease in
transmitter range as the battery condition deteriorates.
To replace the battery:
1) Remove the small # 0 phillips head screw from the rear of the case.
2) Remove the rear cover to access the discharged battery paying
attention to the proper polarity orientation.
3) Carefully remove and properly dispose of the discharged battery.
4) Insert the new battery, close the case, then reinstall the small case
screw removed in step 1.
5) If you accidently dislodge the circuit board from the transmitter
housing, be certain that the rubber
membrane is seated properly, and
the buttons are properly exposed
fromthe front view of the case, then
insert the circuit board and return
to step #4.
QUICK REFERENCE CHART:
You can program any individual channel without reprogramming all
channels. To go directly to a particular receiver channel follow the
chart below:
CHANNEL
1 Ign. On Then
2 Ign. On Then
3 Ign. On Then
4 Ign. On Then
5 Ign. On Then
6 Ign. On Then
VALET SWITCH
Press and Release 3 Times
Press and Release 4 Times
Press and Release 5 Times
Press and Release 6 Times
Press and Release 7 Times
Press and Release 8 Times
LED
1 Flashes
2 Flashes
3 Flashes
4 Flashes
5 Flashes
6 Flashes
exit chirp pattern. All transmitter buttons for that transmitter must now
be reprogrammed. Any other transmitter stored in the unit’s memory still
remain operational. If the button is released and not pressed again
within the 5 second period, no change in programming has been made
to the receiver channel. The programmer can move onto a different
channel or erase the transmitter codes as described in 1 above.
5

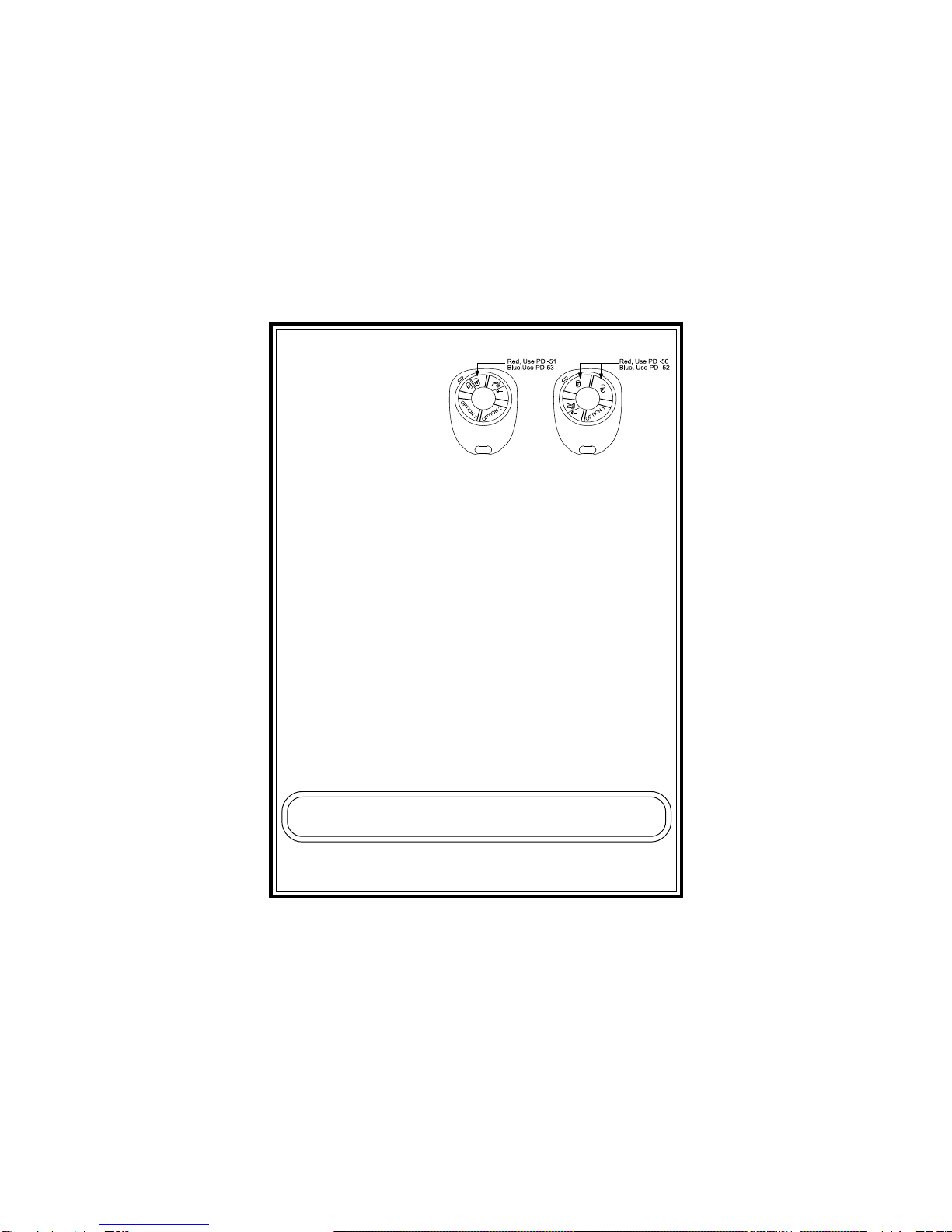

1) Pad Number: _____________________________________
2) Name: __________________________________________
3) Address: ________________________________________
4) City: ________________ State: _____ Zip Code: ________
5) Telephone Number: (_____) _______________
6) Total Number Of Transmitters Required:
Cost Per Transmitter is: $65.00
Multiply By Number Of Transmitters X ______
7) Enter Total Amount Enclosed _________________
(New York State Residents must include the appropriate sales tax)
8) Method of Payment:
qMastercard qVisa qCheck or Money Order (do not send cash)
Make Checks Payable To Audiovox Corporation
Credit Card Number: _________________________________
Credit Card Expiration Date: ____ / _____ / _____
9) Mail this form along with your payment to:
ORDERFORMFORTRANSMITTER APS-2K4
Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788
Attn.:TRANSMITTERDEPARTMENT
Attention:TransmitterOrdering
Department
Important: To help us expedite
your order, please print all of
the information legibly and mail
this form and your payment
according to the instructions
below.
Indicate the pad number of your transmitter selected from the pads shown above.
Note: Transmitter model number found on back of case. ___________
(Credit card purchasers can order additional or replacement
transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and
follow the instructions from the operator interface.
128-5754A
© 2000 Audiovox Electronics Corp., Hauppauge, NY, 11788
Table of contents
Other Audiovox Car Alarm manuals
Audiovox
Audiovox Pursuit Pro 9544FT3 User manual
Audiovox
Audiovox Professional PS-330i User manual
Audiovox
Audiovox Exclusive EX-6000 User manual
Audiovox
Audiovox Auto Security SS92 Operating instructions
Audiovox
Audiovox AVT-597 User manual
Audiovox
Audiovox Pursuit PRO 9445FT User manual
Audiovox
Audiovox UltraGuard PRO 9549UG User manual
Audiovox
Audiovox APD-510 User manual
Audiovox
Audiovox Prestige Platinum APS-150-A User manual
Audiovox
Audiovox Pursuit PRO-9344FT User manual
Audiovox
Audiovox Prestige Platinum 128-5730A User manual
Audiovox
Audiovox Prestige Platinum 128-8124 User manual
Audiovox
Audiovox Professional PS-330i User manual
Audiovox
Audiovox APS-800 User manual
Audiovox
Audiovox Prestige APS-15R User manual
Audiovox
Audiovox APS-25C User manual
Audiovox
Audiovox Pursuit PRO9776C User manual
Audiovox
Audiovox Prestige Platinum APS-300R User manual
Audiovox
Audiovox Prestige Platinum APS-410 User manual
Audiovox
Audiovox AA-RS40CS User manual
Popular Car Alarm manuals by other brands
Clifford
Clifford 3606X owner's guide
Ultra Start
Ultra Start 2500M SERIES install guide
Ultra Start
Ultra Start 650 Series owner's manual
Sparkrite
Sparkrite SRA8 Guide
Viper
Viper 4708V owner's manual
Federal Signal Corporation
Federal Signal Corporation Pathfinder Siren Series Installation and maintenance manual
