Audiovox 5BCRCS User manual

The APS-996 Model have a configurable receiver that allows the transmitter

to be programmed to operate the Lock Unlock functions with one transmitter

button or with two transmitter buttons (separate Lock/Unlock). In addition,

the receiver also allows driver priority function. This driver priority function

takes place when ever a particular transmitter is used to unlock the vehicle

regardless of the selection of one button or two button operation.

The following indicates the receiver programmable slots.

1 Lock/Unlock or Lock

2 Unlock if Programmed

3 Trunk Release & or Remote Start (Optional on some models)

4 Auxiliary Output

5 Auxiliary Output

6 Driver 1Priority or Sperate Output

7 Driver 2 Priority or Separate Output

Receiver channels 6 or 7 will accept the programming of transmitter

channel 1 if used as the Lock/Unlock button, or Channel 2 when separate

Lock Unlock buttons are programmed. In this way, whenever the transmit-

ter is used to unlock the vehicle, channel 6 or 7, when programmed, will

provide a pulsed ground output. This output can be connecter to the driver

priority function of the vehicle to reset preset user features. Please consult

with your installation centers technician to see if this feature is available in

your vehicle.

NOTE: A total of 4 transmitters may be programmed into any receiver

channel.

Force programming a transmitter, removing a transmitter, or reprioritizing a

transmitter is covered later in this manual.

Also, if you do not program a transmitter button into channel 2 which is the

separate unlock/disarm channel, then whatever button is programmed into

channel 1 will serve as both lock/arm & unlock/disarm.

Note: The RED Button serves as a function button in combination with other

buttons explained in your owners manual. This button may not be used to

operate a receiver channel.

NOTE: The Option Button is predetermined and programmed for access to

Time Start, and Temperture Start & Check so it cannot be used for multiple

button operation of any other feature. It will however operate for any single

button programming.

TOENTERTHEPROGRAMMODE:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, Press and release the valet/program switch three

times.

(Siren emits 1 short chirp indicating channel 1 has been entered)

Model 5BCR

ProgrammingGuide

3. Within 10 Seconds, Press and hold the button of the first transmitter you

wish to control the Lock&Arm feature of your security system until a long

chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Lock/Arm

feature).

4. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 2 short chirps indicating channel 2 has been entered)

5. Within 10 Seconds, Press and hold any unused button(s) of the first

transmitter you wish to control the Unlock/Disarm feature of your security

system until a long chirp is heard from the siren.

NOTE: This channel is used only if you desire separate control of the

Lock/Unlock feature. If you wish to operate the Lock/Unlock features from

a single button, move onto step 6 as whatever button is programmed into

channel 1 will control both Lock & Arm/Unlock & Disarm.

(Repeat this for each transmitter you wish to operate the Unlock/Disarm

feature).

6. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 3 short chirps indicating channel 3 has been entered)

7. Within 10 Seconds, Press and hold any unused button(s) of the first

transmitter you wish to control Channel 3 output, (Trunk Release) until a

long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 3 output

(Trunk Release)

8. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 4 short chirps indicating channel 4 has been entered)

9. Within 10 Seconds, Press and hold any unused button(s) of the first

transmitter you wish to control Channel 4 output, (Auxiliary Output 1) until

a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 4

output)

10. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 5 short chirps indicating channel 5 has been entered)

11. Within 10 Seconds, Press and hold any unused button(s) of the first

transmitter you wish to control Channel 5 output, (Auxiliary Output 2) until

a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 5

output)

12. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 6 short chirps indicating channel 6 has been entered)

13. Within 10 Seconds, Press and hold the unlock button, (or any unused

button(s)), of the first transmitter you wish to control Channel 6 output,

(Driver Priority 1) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 6

output, Driver Priority 1)

14. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 7 short chirps indicating channel 7 has been entered)

15 .Within 10 Seconds, Press and hold the unlock button (or any unused

button(s)) of the first transmitter you wish to control Channel 7 output,

(Driver Priority 2) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 7

output, Driver Priority 2)

NOTE: Channels 6 and 7 can be used as a separate output to control a

function other than driver priority. Simply programming any unused

transmitter button other than the unlock button will allow complete

independent control of these outputs.

ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:

NOTE: Before you begin to erase the lost or stolen transmitter(s), have all

transmitters available that you wish to remain programmed. These will be

used during the program process to identify transmitters that will continue

to be used.

Enter the transmitter program mode:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, press and release the valet/program switch three

times. (Siren emits 1 short chirp indicating channel 1 has been entered)

3 .Within 10 Seconds, Press and hold the ARM or ARM/DISARM button of

the first transmitter you wish to remain stored into the control unit until a

single chirp is heard from the siren.

(Repeat this for each transmitter you wish to remain stored in the control

unit).

The receiver stores up to four transmitters. To be certain all transmitter

slots in the receiver are occupied with transmitters you wish to continue

to use, and all others are erased, you will have to fill all four receiver slots.

If in step 3 you identified one transmitter, you will have to fill the additional

3 slots. If in step 3 you identified two transmitters, you will have to fill the

additional two slots, etc...

4. Press and hold any unused button or combination of buttons until a long

chirp is heard from the siren. Release and press the button or button

combination again and again until all remaining slots are full.

Repeat this procedure with the appropriate transmitter buttons for all other

receiver channels.

REPRIORITIZING A TRANSMITTER’S PROGRAMMING:

To reprogram a receiver channel with a different transmitter button once a

code has been stored, there will be two options:

1. Enter the transmitter program mode of the receiver channel to be

reprogrammed. Using any unused button or combination of buttons, push

out the stored code by pressing the unused button until a long chirp is

heard, then repeat 3 additional times. After this, you can add any desired

unused transmitter button. This action erases only that particular receiver

channel, all other codes will remain stored.

2. Enter the transmitter program mode. Using any transmitter button press

and hold until a long chirp is heard. If a single chirp or multiple chirps, (up

to 7 chirps), are heard, the unit is indicating that the transmitter has

already been programmed elsewhere in the receiver. Release the

transmitter button and within 5 seconds press and hold until a long chirp is

heard. This action forces the unit to erase all stored codes of that

transmitter.

The unit then exits the program mode the siren emits the program mode

exit chirp pattern. All transmitter buttons for that transmitter must now be

reprogrammed. Any other transmitter stored in the unit’s memory still

remain operational. If the button is released and not pressed again within

the 5 second period, no change in programming has been made to the

receiver channel. The programmer can move onto a different channel or

erase the transmitter codes as described in 1 above.

REPLACINGTHEBATTERY:

You will notice a decrease in transmitter range as the battery condition

deteriorates. There is also a low battery indicator that indicate no bars in the

LCD panel, as shown below, when the battery begins to

fail. Transmitter battery replacement is recommended at

leastevery 6 to8 months, dependingupon how frequently

the transmitter is used.

To replace the transmitter battery:

1.Slidebackthelocktabonthebacksideofthe transmittercaseinthedirection

shown.

2. Slide back the battery case cover in the direction shown.

3. Remove the discharged battery, making note of the location of the + and -

contacts shown, and replace with a new type akaline 1.5 volt AAA Battery.

4. Making note of the location of the (+) and (-) contacts, insert a new AAA

battery alkaline 1.5 volt.

5. Replace battery cover being certain to close the battery case lock clip to

prevent accidential opening.

Attention: Transmitter Ordering Department

Important: To help us expedite your order, please print all of the information

legibly and mail this form and your payment according to the instructions

below.

1) Name:___________________________________________

2) Address:_________________________________________

3) City:________________State:________Zip Code:__________

4 Telephone Number:( )_____________________

5) Total Number Of Transmitters Required:_______

Cost Per Transmitter is: $85.00

Multiply By Number Of Transmitters X

6) Enter Total Amount Enclosed _______

(New York State Residents must include the appropriate sales tax)

7) Method of Payment:

Mastercard Visa Check or Money Order (do not send cash)

Make Checks Payable To Audiovox Corporation

Credit Card Number:___________________________________

Credit Card Expiration Date: ____/___/____

8) Mail this form along with your payment to:

Transmitter Ordering Department

Audiovox Corporation 150 Marcus Blvd., Hauppauge N.Y. 11788

Credit card purchasers can order additional or replacement

transmittersby phone. Simply dial1-800 - 645-4994,and follow

the instructions from the operator interface

ORDERFORMFORTRANSMITTER5BCR



128-6386

Table of contents

Other Audiovox Car Alarm manuals

Audiovox

Audiovox Pursuit PRO-9775 User manual

Audiovox

Audiovox Prestige Platinum APS-250-A User manual

Audiovox

Audiovox Platinum APS 996 User manual

Audiovox

Audiovox Pursuit PRO-9342WOS2 User manual

Audiovox

Audiovox Pursuit PRO 9649 User manual

Audiovox

Audiovox Prestige Platinum APS-150-A User manual

Audiovox

Audiovox Prestige Platinum APS-510 User manual

Audiovox

Audiovox Prestige APS-25CH User manual

Audiovox

Audiovox PRO 9549FT3 User manual

Audiovox

Audiovox 5BCR Operating instructions

Audiovox

Audiovox Pursuit Series User manual

Audiovox

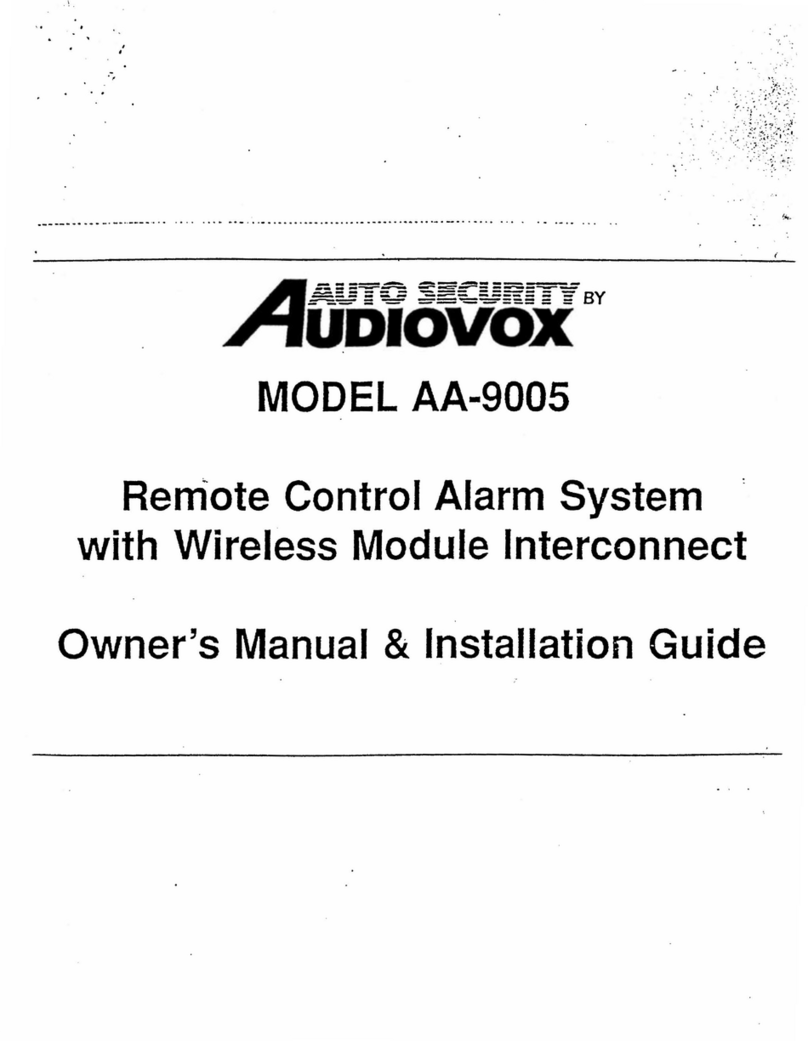

Audiovox AA-9005 Troubleshooting guide

Audiovox

Audiovox Prestige Platinum APS-700 User manual

Audiovox

Audiovox SECURIKEY+ Operating instructions

Audiovox

Audiovox Pursuit PRO 9842 User manual

Audiovox

Audiovox Pursuit PRO-9744 User manual

Audiovox

Audiovox Pursuit PRO 9845B User manual

Audiovox

Audiovox Pursuit PRO9801 User manual

Audiovox

Audiovox Prestige Platinum APS 600 User manual

Audiovox

Audiovox Prestige Platinum APS-350-A User manual

Audiovox

Audiovox Prestige Platinum APS 995 User manual

Audiovox

Audiovox ca 6552 User manual

Audiovox

Audiovox Prestige Platinum APS-300R User manual

Audiovox

Audiovox Pursuit PRO 9644a User manual

Popular Car Alarm manuals by other brands

Clifford

Clifford 3606X owner's guide

Ultra Start

Ultra Start 2500M SERIES install guide

Ultra Start

Ultra Start 650 Series owner's manual

Sparkrite

Sparkrite SRA8 Guide

Viper

Viper 4708V owner's manual

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Installation and maintenance manual

Falcon

Falcon Predator XL3 Installer manual

Clifford

Clifford Sabre II owner's manual

CrimeStopper

CrimeStopper CS-8717 Wiring diagram

Ultra Start

Ultra Start 450 SERIES install guide

Scytek electronic

Scytek electronic Vectra X3 product manual

Excalibur

Excalibur AL-1860-EDPB Operation guide

Clifford

Clifford CYBER 2 owner's manual

Gemini

Gemini 7057 user manual

FlashLogic

FlashLogic FLRSBA PRESTIGE Product guide

Magicar

Magicar FAI-440 manual

Clifford

Clifford Nova 3 owner's manual

Viper

Viper 560XV owner's guide
