Audiovox AA-925 User manual

128-6710

1 of 6

Model AA-925

Owner's Manual

FEATURES:

w2 Three Button, RF Transmitters

wFour Channel Code Learning Receiver

wRemote Panic In All Modes

wBuilt-In Parking Light Output

wLED Status Indicator

wIgnition Door Locking/Unlocking

wHorn Output

OPTIONS:

wRemote Trunk Release

wRemote Power Window Control

wRemote Garage Door Interface

wRemote Engine Starter

wStarter Interrupt

wSiren

wAccess Guard / 2 Step Unlock

wIlluminated Entry

Page 1

3 Button Remote Keyless Entry System

With Two Auxiliary Outputs

Released: 3-12-03

128-6710

2 of 6

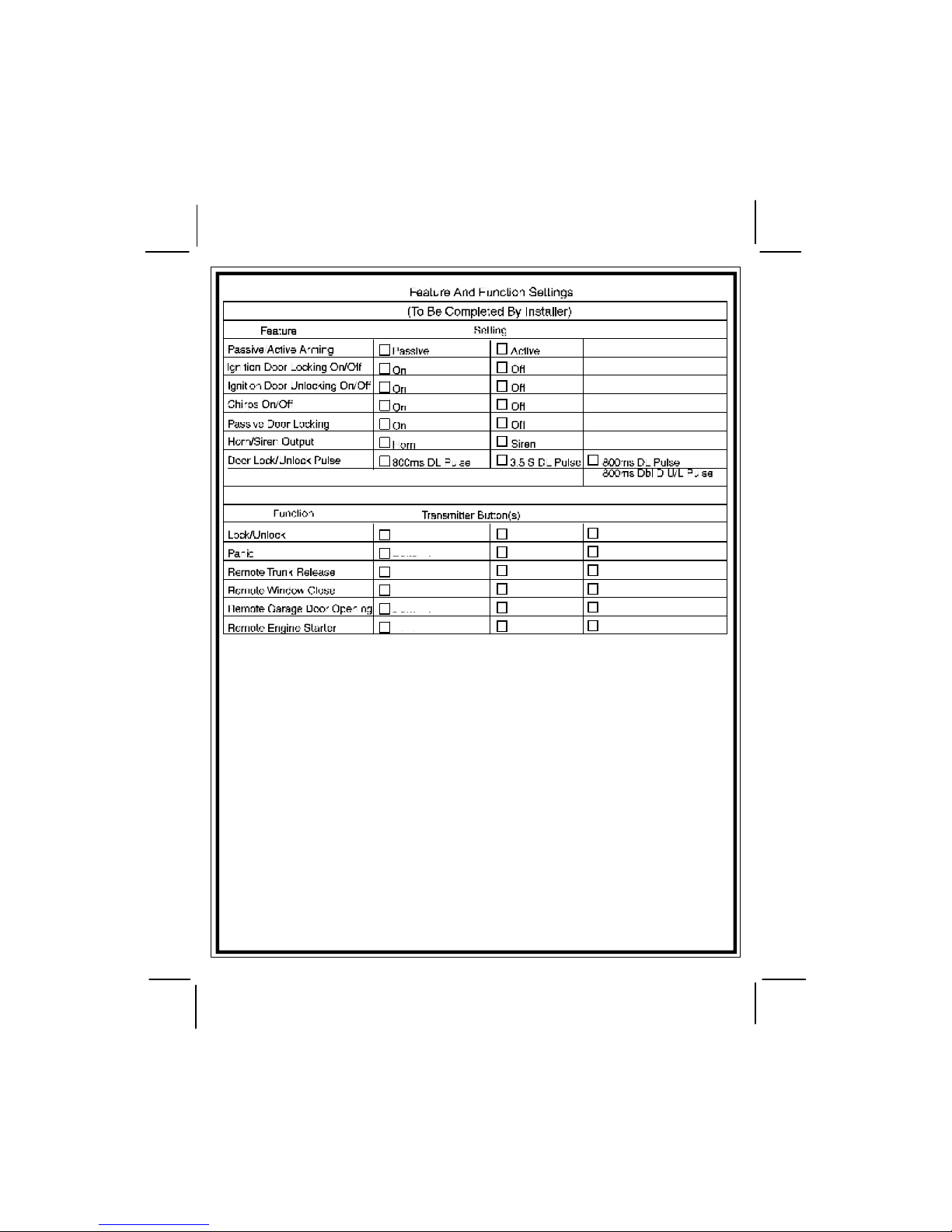

Your Keyless Entry System has many features and available options some of

which must be selected at time of installation. For your reference, the list on the

back page of this manual shows what features and options have been installed

with this particular system. Consult your installing dealer for options that may

have been installedand are not listed.

REMOTE DOOR LOCKING - ACTIVE

1. Turn the engine off, exit the vehicle and close all doors.

2. Press and release the lock button of your key chain transmitter one time, the doors will

lock, the parking lights will flash once, the vehicle's horn (or optional siren) will chirp once

and the dash mounted LED will begin to flash slowly confirming the system is locked.

SILENT LOCKING - ACTIVE

1. Turn the engine off, exit the vehicle and close all doors.

2. Press and hold the lock button of your key chain transmitter for two seconds, the doors

will lock, the parking lights will flash once and the dash mounted LED will begin to flash

slowly confirming the system is locked. The horn or optional siren will not chirp.

BACKUP PASSIVE OPERATION (AUTOMATIC)

If the passive arming feature has been selected:

Turn the engine off, exit the vehicle and close all doors.

The dash mounted LED will immediately begin to flash rapidly indicating that the 30 second

passive arming timer has begun.

If any entry point is opened during the 30 second arming cycle, arming will be suspended.

When all entry points are closed, the arming cycle will begin again.

At the end of the 30 seconds, the parking lights will flash once, the vehicle's horn (or optional

siren) will chirp once, and the dash mounted LED will begin to flash slowly confirming the

system is armed. If the horn (or optional siren) did not sound when arming, then the chirps

have been turned off. Please refer to the section titled "Eliminating the Arm/Disarm

Chirps" later in this manual. Passive door locking is a selectable feature. The doors may or

may not lock passively dependent upon the setup during installation.

PROTECTION WHILE THE SYSTEM IS ARMED

If the optional Starter Interrupt relay has been installed, then whenever the system is armed,

the vehicle starter circuit is disabled. Thus, even with the ignition key, the vehicle will not

start.

Whenever the system is armed, the dash mounted LED will slowly flash. This serves as a

visual deterrent to a potential thief. This LED is a very low current light emitting diode and will

not cause the battery to drain even if left unattended for long periods of time.

UNLOCKING THE SYSTEM

As you approach the vehicle, press and release the unlock button on the keychain transmitter.

The doors will unlock, the parking lights will flash two times, the vehicle horn (or optional

Page 2

128-6710

3 of 6

Page 3

siren) will chirp twice and the dash mounted LED will turn off. If you have the optional entry

illumination circuit installed, the interior light will turn on for 30 seconds or until the ignition key

is switched on.

Note: If the passive arming mode was selected at time of installation, the dash mounted

LED will start flashing rapidly indicating that the system is rearming. Opening any

door will suspend the automatic arming.

SILENT UNLOCKING

1. As you approach the vehicle, press and hold the unlock button of your key chain

transmitter for two seconds, or until the system responds.

The doors will unlock, the parking lights will flash twice and the dash mounted LED will turn

off, confirming that the system is disarmed. The vehicle horn (or optional siren) will not chirp.

If you have the optional entry illumination circuit installed, the interior light will turn on for 30

seconds or until the ignition key is switched on.

Note: If the passive arming mode was selected at time of installation, the dash mounted

LED will start flashing rapidly indicating that the system is rearming. Opening any

door will suspend the automatic arming.

OPTIONAL ACCESS GUARD ( Two Step Unlock )

If the optional 2-step unlock feature was installed, then only the driver's door will unlock

after the first press of the unlock button. If you want to unlock all doors, you can simply

press the unlock button of the keychain transmitter a second time.

Note: Two Step unlocking is an optional feature that must be wired upon installation.

VALET / PROGRAM / MANUAL OVERRIDE SWITCH

The valet switch allows you to temporarily prevent the system from arming, eliminating the

need to hand your keychain transmitter to parking attendants or garage mechanics. When

the system is in the valet mode, it will not passively arm or activate the starter interrupt

circuit. However, all keyless entry features, as well as the remote panic feature will remain

operational. To enter the valet mode:

1. Start with the valet switch in the "off" position

2. Turn the ignition switch to the "on" position.

3. Flip the valet switch to the "on" position.

The dash mounted LED will turn on solid (not flashing) indicating that the valet mode has

successfully been entered.

To return to the normal mode of operation, move the valet switch to the "off" position at any

time the ignition switch is in the on position.

Note: In the event that you lose your keychain transmitter or the transmitter fails to

operate the keyless entry system, the valet switch can be used to override the optional

Starter Interrupt, and therefore allow the engine to be started. To override system:

1. Open the door with the vehicle's door key.

2. Turn the ignition switch to the on position.

3. Flip the valet/override switch to the on position. LED will turn on solid.

128-6710

4 of 6

Page 4

The system will disarm, allowing the engine to be started and the vehicle to be operated

normally. Always remember to move the valet switch to the off position to allow the passive

arming and optional starter interrupt features to be operable the next time you park the

vehicle.

ELIMINATING THE LOCK/UNLOCK CHIRPS

You can selectively eliminate the normal lock and unlock chirps by holding the transmitter button

slightly longer when locking and unlocking. This will prevent the horn/siren chirps for one

lock or unlock cycle. If you find this inconvenient and wish to eliminate these chirps perma-

nently,

1. Start with the valet switch in the off position.

2. Turn the ignition switch "on" then "off".

3. Within 10 seconds of turning off the ignition, flip the valet switch on, "off", "on", "off",

"on","off".

4. If the chirps were on before you started, the siren will emit 2 short chirps indicating

that the chirps are now off. If the chirps were off before you started, the siren will

emit one short chirp indicating that the chirps are now on.

REMOTE PANIC OPERATION

The lock or unlock button of your keychain transmitter also serves as a panic button and will

cause the vehicle horn (or optional siren) to sound on demand. To use the panic feature, you

must be within the system's maximum operating range. In an emergency situation, to use the

panic feature, press and hold the lock or unlock button of your keychain transmitter for 3

seconds. This will cause the lights to flash, the vehicle horn (or optional siren) to sound, and

if the optional interior illumination circuit was installed, the interior lights to flash. The panic

mode will continue for 30 seconds and then reset.

To disengage the panic feature before the 30 seconds are up, press and hold either the lock

or unlock button of your keychain transmitter for 3 seconds or press the option button

momentarily. The doors can be unlocked or locked while in "panic" mode by momentarily

pressing the lock or unlock button respectively.

ADDITIONAL REMOTE FUNCTION CHANNEL 2

The system has an additional output, (Channel 2) , that can be connected to a number of

different optional accessories. Some of the more common uses for this channel are:

qRemote Trunk Release

qRemote Window Close

To operate the accessory associated with Channel 2, press and hold the option button of

your keychain transmitter for 4 seconds.

NOTE: You may access the Channel 2 command regardless of whether the system is

"locked" or "unlocked", but not when the ignition switch is in the on position. Thisprevents the

output from accidentally opening the vehicle's trunk when the vehicle is in motion.

128-6710

5 of 6

Page 5

ADDITIONAL REMOTE FUNCTION CHANNEL 3

The system has an additional output (Channel 3), that can be connected to a number of

different optional accessories. Some of the more common uses for this channel are:

qRemote Engine Start

qRemote Window Close

qRemote Garage Door Interface

To operate the accessory associated with Channel 3, simultaneously press both buttons of

your keychain transmitter which were configured and programmed for this function.

NOTE: The channel 3 output will remain active for as long as the transmitter buttons are

held. Certain accessories may take advantage of the extended output capability of this

channel. To discontinue the output, simply release the transmitter buttons.

IGNITION DOOR LOCKING/UNLOCKING

The system is capable of being programmed for the added safety and security of ignition

controlled door locking and unlocking. These features are separate, so the unit may be

programmed for one, or both, or neither.

When the ignition door locking feature is programmed, the system will cause all door locks

to lock whenever the ignition switch is turned from the off to on position (providing that all

doors are closed at that time). All doors will lock approximately 3 seconds after the vehicle's

ignition switch is turned on. This is a nice feature for maintaining the personal safety of the

occupants of the vehicle in an effortless and automatic manner.

When the ignition door unlocking feature is programmed, the system will cause all door locks

to unlock whenever the ignition switch is turned from the on to off position. All doors will

unlock immediately after the vehicle's ignition switch is turned off. If 2 Step unlock was

installed, only the driver's door will unlock.

As stated, these features are programmed separately, so you may chose to use one, both,

or neither. Please consult with your dealer to consider your options.

TWO STEP UNLOCK (ACCESS GUARD)

By pressing the unlock button of the keychain transmitter as you would normally (refer to the

section titled "Unlocking The System" earlier in this manual), the system will disarm, and only

the driver's door will unlock. If however, you should then decide instead that you want all

doors to unlock, you can simply press the unlock button a second time and all doors will

unlock.

128-6710

6 of 6

Page 6

AA-925

SYSTEM FUNCTIONS AT A GLANCE

LED INDICATORS:

RAPID FLASHING =PASSIVE ARMING

SLOW FLASHING =ARMED

OFF =DISARMED

ON SOLID =VALET MODE

OPTIONAL VEHICLE HORN OR SIREN CHIRP INDICATION:

1 CHIRP =LOCK / ARM

2 CHIRPS =UNLOCK / DISARMED

CONTINUOUS =PANIC MODE

ALARM PARKING LAMP INDICATIONS:

1 FLASH =LOCK / ARM

2 FLASHES =UNLOCK / DISARM

CONTINUOUS FLASH =PANIC MODE

Option Button

Unlock 2

Lock 1
