Ancnoble FMP-Solar User manual

Flow Meter, Pressure Meter,

Master Valve, Pump Controller

FMP-Solar

Manual

Version: 1.01

ANC Technology

www.anctech.com

1．General....................................................................................................................................................................................2

2．Specification........................................................................................................................................................................... 2

3．Function.................................................................................................................................................................................. 3

4．How to install..........................................................................................................................................................................3

4.1 Notes of installation:.......................................................................................................................................................4

4.2 Installation:..................................................................................................................................................................... 4

4.2.1 Pump connection illustration...............................................................................................................................4

4.2.2 How to install pressure sensor/switch................................................................................................................. 6

4.2.3 Valve connection..................................................................................................................................................7

4.3 How to do connection inside the connection box.......................................................................................................... 8

4.4 Printed instruction on the box:..................................................................................................................................... 10

5．How to operate......................................................................................................................................................................10

5.1 Turn on Controller........................................................................................................................................................ 10

5.2 How to register to GG-002wifi/3g system main controller..........................................................................................11

5.3 How to establish wireless communication mesh network........................................................................................... 11

5.4 How to turn off controller.............................................................................................................................................13

5.5 Controller sleep.............................................................................................................................................................13

5.6 Field manual open/close............................................................................................................................................... 14

5.6.1 Field manual open/close....................................................................................................................................14

5.6.2 Field manual open/close pump..........................................................................................................................14

5.7 Explanation of LCD information..................................................................................................................................15

5.7.1 Main working LCD display：...........................................................................................................................15

5.7.2 LCD display for protective shut down of pump：............................................................................................16

5.7.3 Communication window：............................................................................................................................... 17

5.7.4 Detail information windows..............................................................................................................................17

6．How to setup......................................................................................................................................................................... 19

6.1 Flow Meter setup.......................................................................................................................................................... 19

6.1.1 Register/Remove flow meter.............................................................................................................................20

6.1.2 How to setup flow meter coefficient number....................................................................................................22

6.1.3How to setup flow rate range..............................................................................................................................22

6.1.4 How to clear total flow volume.........................................................................................................................23

6.2 Pressure meter setup..................................................................................................................................................... 24

6.2.1 Reg/remove pressure meter...............................................................................................................................24

6.2.2 Setup pressure range (0 - 1Mpa)....................................................................................................................... 24

6.3 Pump setup....................................................................................................................................................................24

6.3.1 Register and remove pump................................................................................................................................25

6.3.2 Set up pump protection sensor.......................................................................................................................... 25

6.3.3 Setup pump protective time delay.....................................................................................................................26

6.4 How to setup master valve............................................................................................................................................26

6.4.1 Register/Remove master valve..........................................................................................................................26

6.4.2 How to setup detection devices.........................................................................................................................27

6.4.3 Setup valve open/close time delay.................................................................................................................... 28

6.5 Help...............................................................................................................................................................................28

6.5.1 Questions and Answer....................................................................................................................................... 28

6.5.2 Communication link.......................................................................................................................................... 28

7. How to upgrade wireless field controllers..............................................................................................................................29

1．General

FMP-Solar controller controls pump and master valve, measures flow rate, and water

pressure. Compatible with GG-002 WiFi / 3G wireless control system.

Solar powered with water proof shell design, good for outdoor application.

2．Specification

Solar Panel: 17.4V DC /220mA/3.8W (Support Extra panel)

Back battery: １0*1.2V/ 2.3AH AA NiMH

Solar charging time: About 10 hours under standard sunlight

Idle power：1mA

Lasting time under fully charged battery: 7 days

Wireless frequency：902MHz-928MHz

Receiving distance: Open space ≧500 米，can relay forward.

Application environment：Temperature:-30～60℃Relative humidity：＜90%

Flow meter specification：

1，Voltage：12VDC

2，Type：Turbine（3 wires system）

3，Signal：Pulse

Pressure meter specification：

1，Voltage：12VDC

2，Range：0-1Mpa

3，Signal output：Current4-20mA

Valve specification：

1，Voltage：6-12VDC Pulse

2, Latching valve

Pump control output：Open-（12VDC）Close-（0VDC）

Controller box size：Long：28cm Wide：17.5cm High：28.2cm

Controller box protective grade: IP56

3．Function

1，ASA weather proof shell design, water proof, for outdoor application

2，Solar powered, wireless, no need of power or communication lines in the field.

3，Solar panel is fixed on the shell. Can add extra solar panel for area without enough sun.

4，With relay function.

5，Control：pump and master valve, Monitoring flow rate, flow total, water pressure, and

water level of well or water tank.

6，Field manual open/close pump and master valve for convenience.

7，Setup flow rate and water pressure range to control protective shut down of pump and

master valve.

8，Using water level checking function to control protective shut down of pump, to avoid

pumping without right water level.

4．How to install

Please read manual before installation. We have how to install video online.

4.1 Notes of installation:

1，Make sure solar panel is face maximum sun. If there is not enough sun, add extra solar

panel.

2，For application of controlling pump and master valve, must install protective pressure

sensor or pressure switch. If pump water from well, suggest to sue water position sensor to

prevent pumping without water.

3，All accessories, suggest to using parts suggested on ANC web. If need to purchase from

another source, please communicate with ANC first to make sure it is compatible.

4，The connection box is water proof. Before cover up, make sure the rubber seal at right

position for seal and checking around to make sure all connectors are been tighten, including

connectors not been used.

4.2 Installation:

4.2.1 Pump connection illustration

How to install pump

4.2.2 How to install pressure sensor/switch

Note: Because that the threaded end of pressure sensor and switch is very small, suggest

using three way adaptor for small pipe, and drill hole to install for big pipe.

When water pressure out of setup range, the controller will protectively shut off the pump or

master valve.

If pump water from well ，suggest to install level sensor to protect pump from pumping

without water from well or rain tank. The setup will be one for high, and one for low. The

pump will not been open when the water level didn’t at high position. If the water reaches

low position, the controller will protectively shut down the pump.

Also could install flow meter, when the flow rate is out of range, the controller will

protectively shut down the pump and alarm.

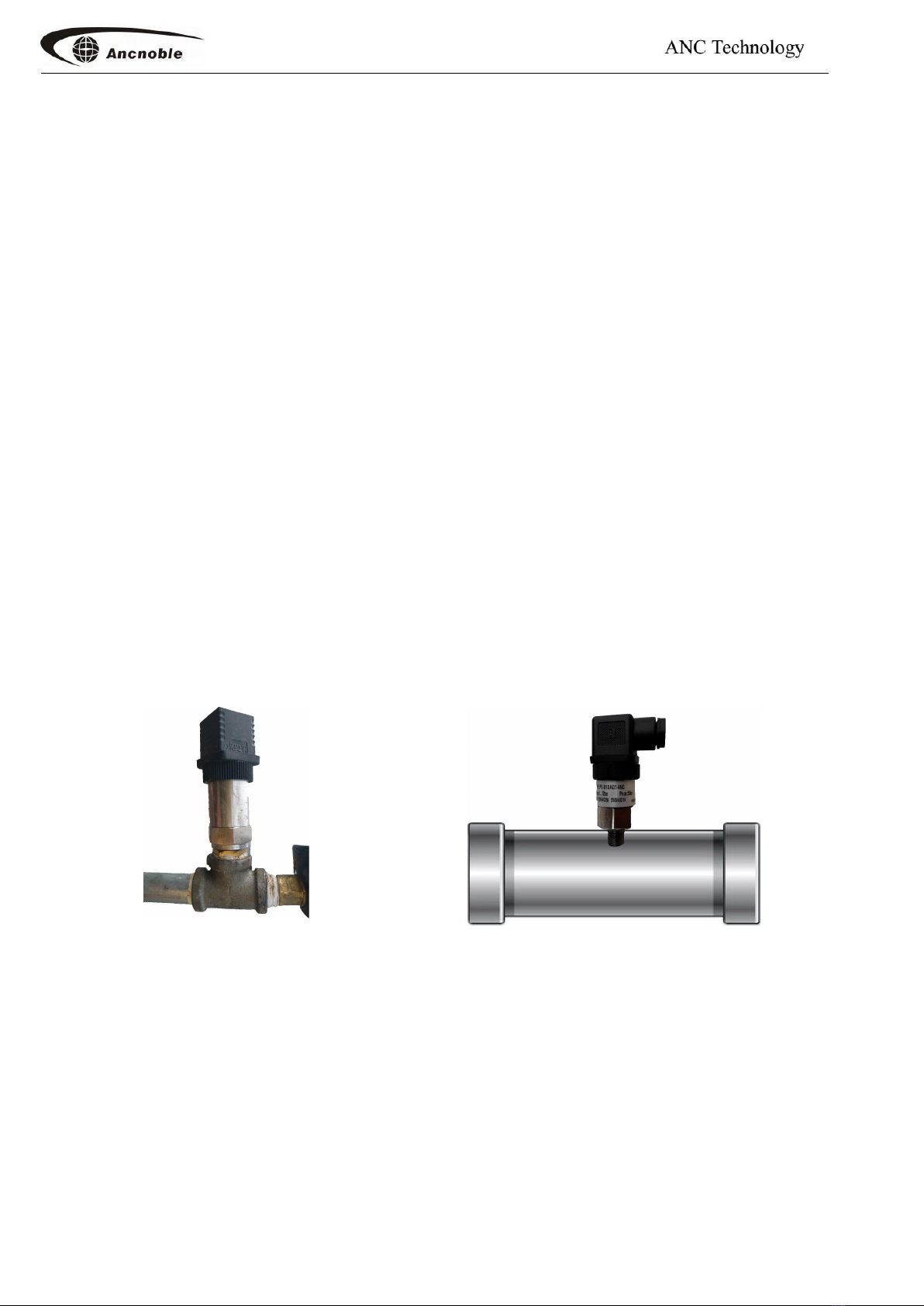

“T” connection drilling connection

4.2.3 Valve connection

For master valve, choose one of them as protective devices, pressure switch, pressure sensor,

or flow meter. To mechanical pressure switch, must do tiny adjusting when water go through

pipe, adjusting the screw until no alarms at normal situation. (Open water proof cap to do

adjusting. Screwing in to increase pressure, screwing out to reduce pressure until there is no

open/close valve alarm).

For pressure meter, if the open water pressure is bigger than the setup pressure, as normal or

otherwise alarm; when pump/valve is been closed, pressure less than this setup value, as

normal or otherwise alarm.

Pressure meter and switch, must installed after water flow.

3, Connection for supervising flow rate and pressure.

There are only total 5 wireless flow meter controllers for one GG-002 WIFI/3G system.

4.3 How to do connection inside the connection box

Turn off controller first. Check printed instruction at both beside of the controller, find the

one you want to do connection. And pick out the related connector from the box. Unscrew

and get ready.

Step 1：Unscrew outside water proof screw.

Step 2：Take connector out of box。

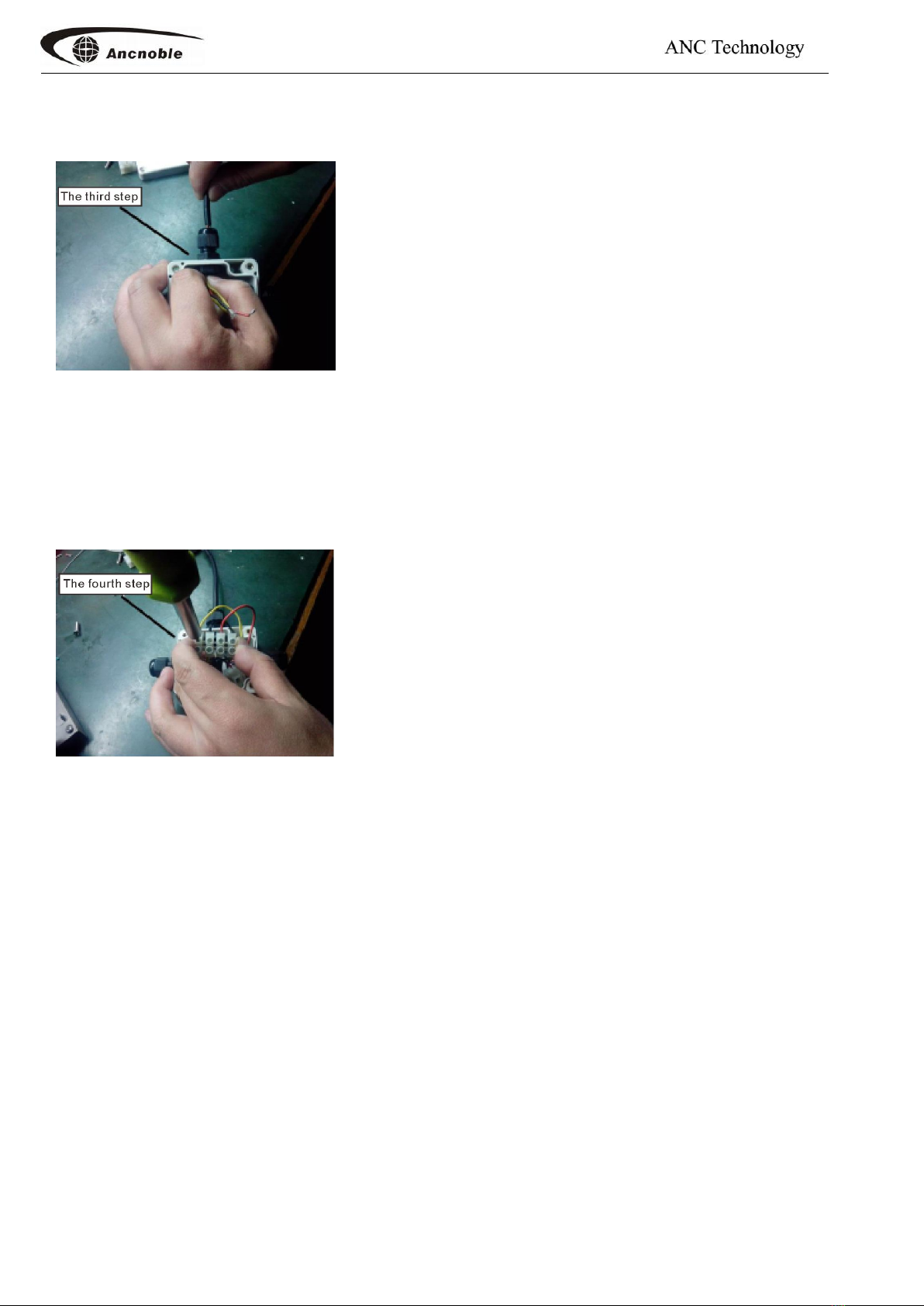

Step 3：Screw loose water proof cap from the cable, take off plug, and insert wires into the

box.

Step 4: According to printed instruction on the side of the box, connect the wires according

to color, and screw tight.

Step 5：Double check connection, put seal right, before put the connector back to box.

Cover and tight up.
