Amcor NanoMax CF14000E User manual

It is important that you

read these instructions

before using your new

purchase and we strongly

recommend that you keep

them in a safe place for

future reference.

Portable Air Conditioner

CF14000E

Owner’s

Manual

Innovative AutoDrain NanoMist Technology™

Patent Pending

Table of Contents

Thank You ……………………………………………………… 1

Safety Instructions …………………………………………… 1-2

Speciﬁcations …………………………………………………… 3

Parts …………………………………………………………… 4

AutoDrain NanoMist Technology™Assembly …………………… 5

Positioning ……………………………………………………… 6

Operation …………………………………………………… 7-8

Emptying the Water Container ………………………………… 9

Cleaning …………………………………………………………10

Installation of the Filters …………………………………………10

Storage……………………………………………………………11

Troubleshooting …………………………………………………12

Limited Warranty …………………………………………………14

Thank you for purchasing an AMCOR Portable Air Conditioner.

AMCOR is a leading brand in indoor air treatment. We would like you to enjoy the many beneﬁts this

unit offers, so please read this manual carefully and take full advantage of the many advanced features

that your AMCOR Air Conditioner offers you.

AMCOR has specialized in complete indoor environment control, manufacturing

world-class heaters, air conditioners, dehumidiﬁers and air puriﬁers with innovative technology.

In designing these advanced products, we have listened carefully to our customers and have passed their

views on to our research and development laboratories.

We wish you many years of enjoyable use.

After reading this manual, please keep it in a safe place for future reference.

Read this entire instruction manual before use.

Please keep your receipt. Your receipt is your Proof of Purchase and is

necessary for warranty service.

Thank You!

IMPORTANT!

• The unit is designed for indoor operation.

• Rating: This unit must be connected to a 115V/60Hz grounded outlet.

• The installation must be in accordance with regulations of the country where the unit is used.

If you are in any doubt about the electrical installation, have it checked and if necessary modiﬁed by a

qualiﬁed electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it with care.

• Keep out of the reach of children.

• Do not clean the unit by spraying it or immersing it in water.

• Do not insert any object into the openings of the unit.

• Disconnect the unit from the outlet before cleaning the unit or any of its components.

• Never connect the unit to an electrical outlet using an extension cord.

If an outlet is not available, one should be installed by a licensed electrician.

WARNING!

• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.

• A damaged supply cord should be replaced by the manufacturer, its service agent or a qualiﬁed person

in order to avoid a hazard.

• Any service other than regular cleaning or ﬁlter replacement should be performed by an authorized

service representative. Failure to do so could result in a loss of warranty.

Safety Instructions

Safety

Close to a heat source

Inside unit exposed to the

weather outdoors

In a permanent very humid

environment

If the power cable wires are

frayed or cut

When small children may be

left unattended

If an extension lead may

become overloaded

Where the power cable may

be damaged

On a slope or uneven surface

Where it may be damaged by

chemicals

Where there is a risk of

interference by foreign objects

This products is not made for

DIY repair

If there is a risk of liquid falling

on the unit

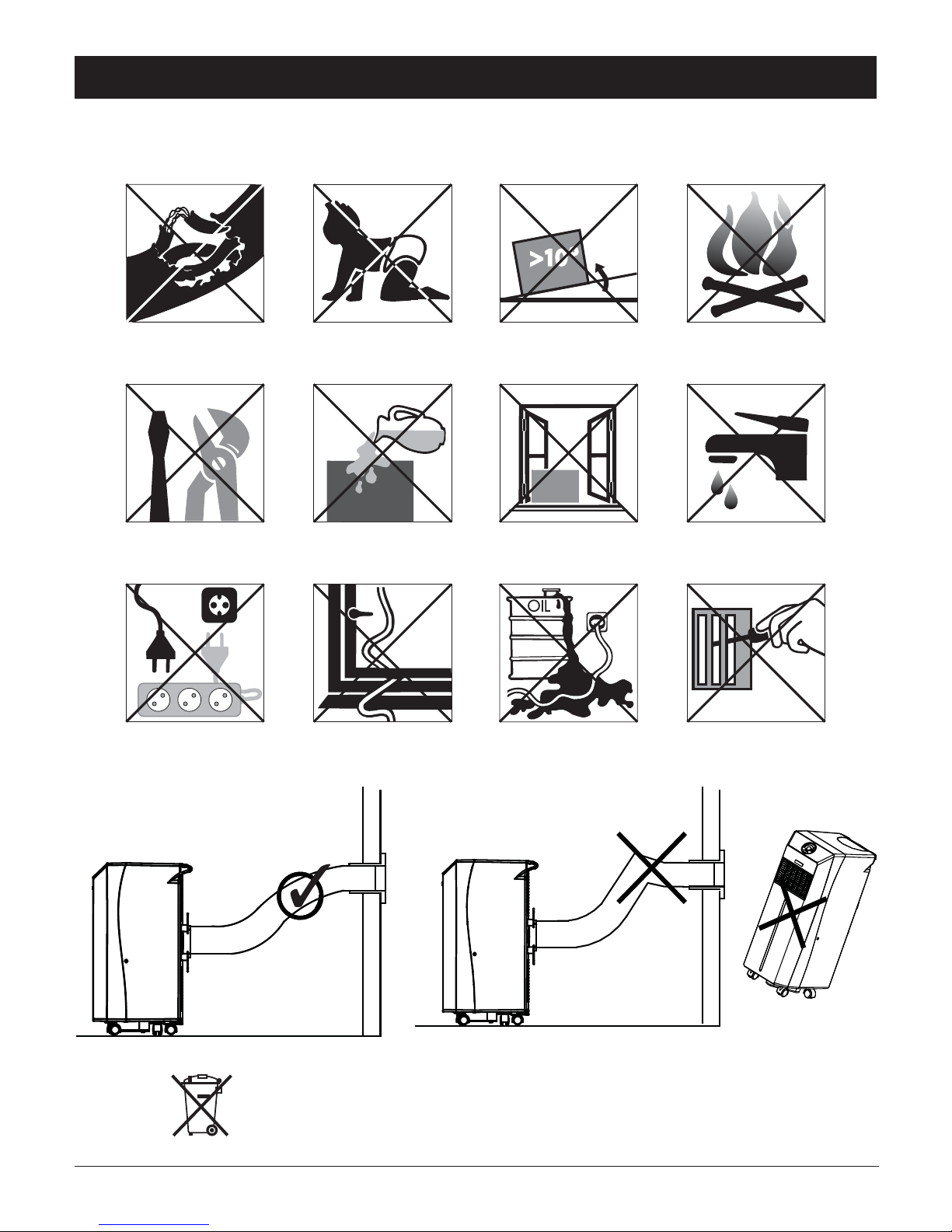

Do not use your air conditioner:

Reminder:

Waste electrical products must not be disposed of with household waste.

This product should be taken to our local recycling center for safe treatment.

Speciﬁcations

Model CF14000E

Cooling Capacity (BTU/hr) 14,000

Cooling Power Consumption / Current 1150W/10.2A

Heating Power Consumption Feature not available

on this model

Dehumidiﬁcation in Cooling Mode 62 Pints / 24h

Moisture Removal in Heating Mode N/A for this model

Power Supply 115V / 60Hz

Refrigerant R22

Compressor Rotary

Fan Speeds 2

Thermostat 62º - 90º F

Timer 1 - 12 Hours

Dimensions 12"W x 18"D x 30"H

Weight 63 lbs.

Subject to modiﬁcations without prior notice.

Please refer to the rating label for greater precision.

The cooling capacity of the unit may be affected by the height of your ceiling, quality of your

insulation,or number of windows in your room. There is no current testing statute for portable

air conditioningproducts in the United States, yet we have made every effort to design engineer

a superior qualityportable air conditioning unit that effectively and efficiently cools select areas

of the home or office.These portable air conditioning units are designed engineered to provide

supplemental air conditioning.To gain a better understanding of the performance capabilities of

your new Amcor portable AC unit,you can visit us online at:

www.amcorgroupusa.com/portableacdisclaimer

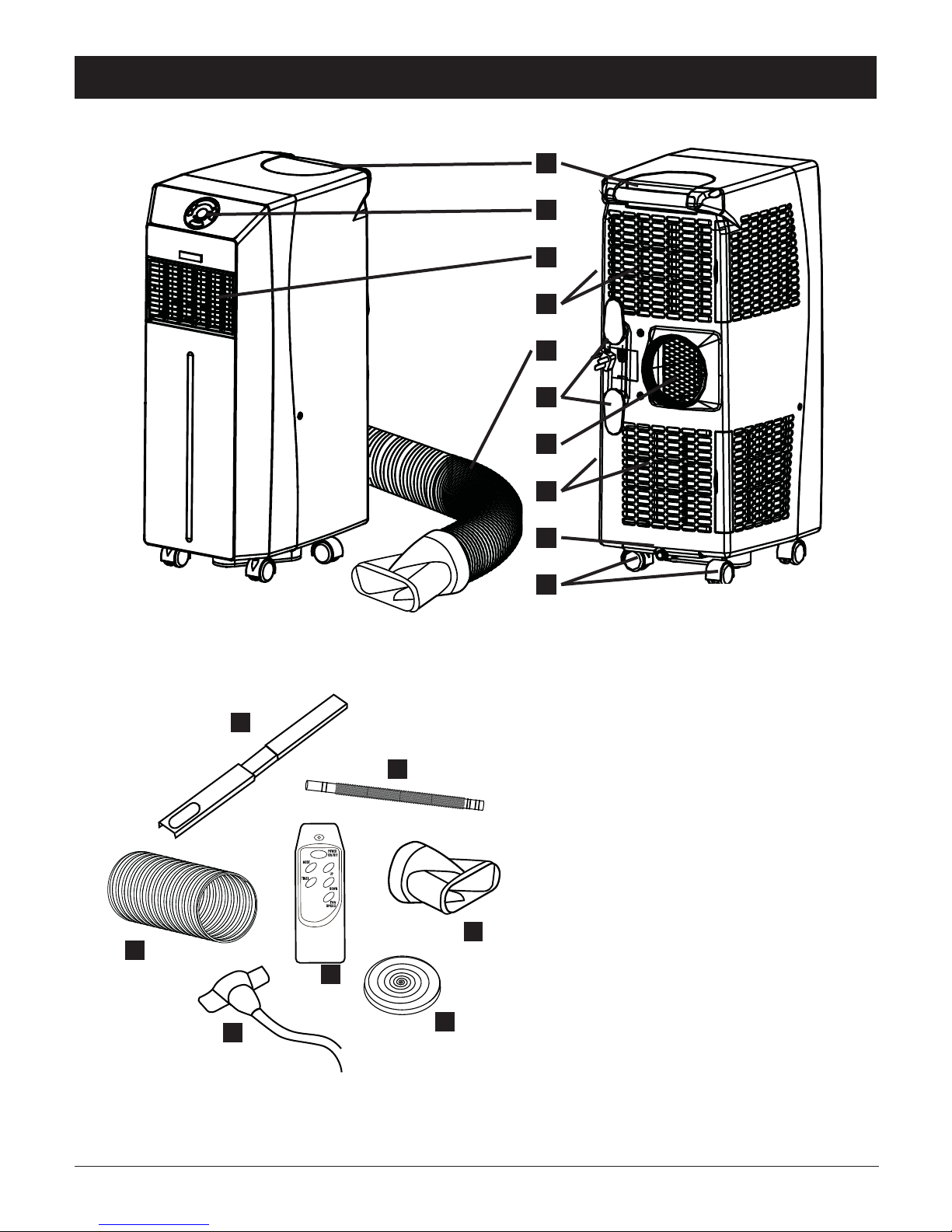

Parts

1. Handle

2. Control panel

3. Air outlet

4. Air inlet with filter

5. Exhaust hose

6. Power cord hanger

7. Exhaust air outlet

8. Water stopper (plug inside)

9. Casters

10. Adjustable Window Slide Bar

11. Flexible Drain Hose

12. Exhaust hose

13. IR Ergonomic Remote Control

14. Exhaust Hose Window

Slide Bar Connector

15. Insulation tape

16. Spiral water pipe with connector

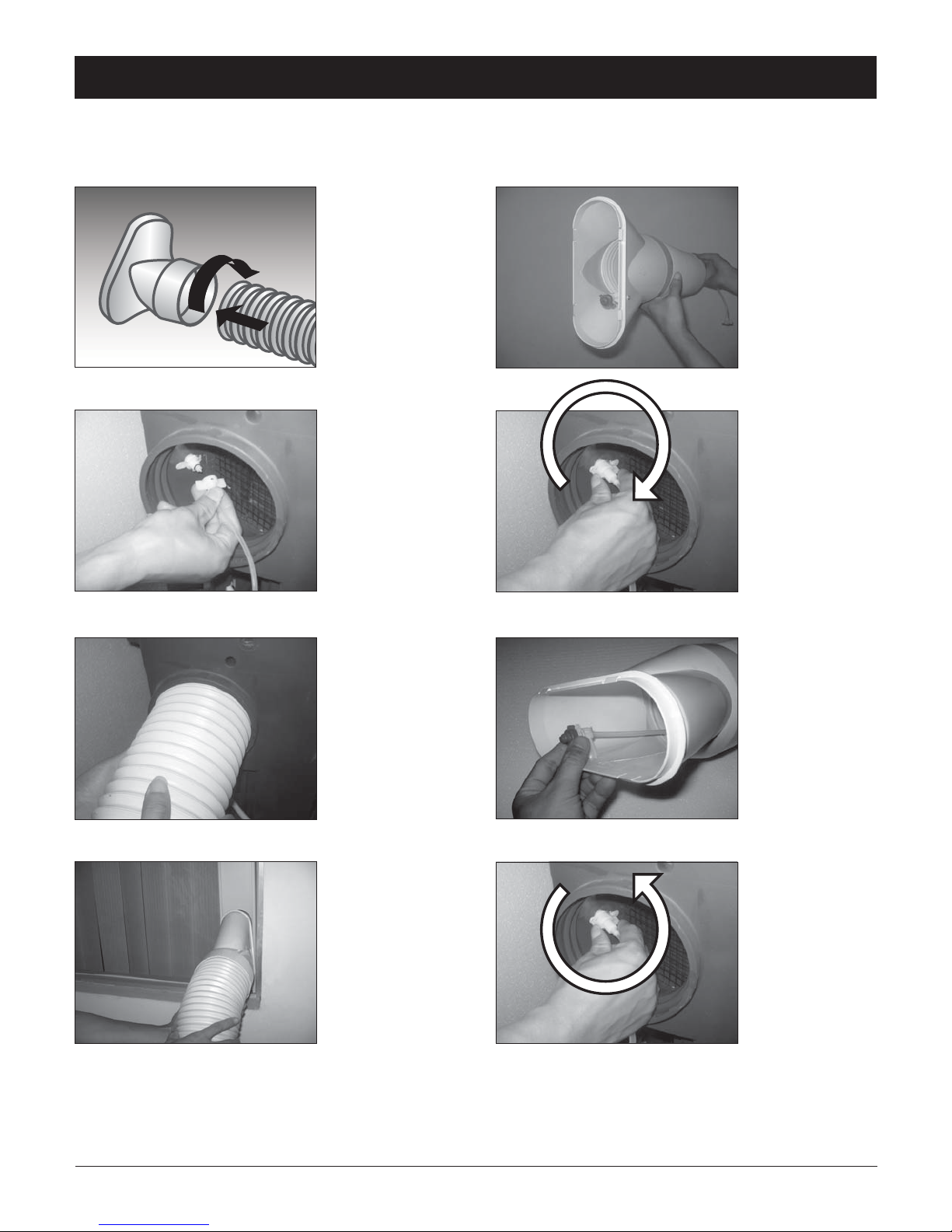

Put spiral water

pipe into hot air

ﬂexible hose.

Connect the

female half of the

quick connector

at the end of the

spiral water pipe

to the male part

in the hot air

outlet pipe.

Turn the

connector

90º clockwise

until it is locked

in place.

Stretch end of

the hose slightly.

Assemble the hot

air hose on the

unit by screwing

in clockwise.

Clip on the

water atomizer

at the end of

the spiral pipe

to the holder.

Unfold ﬂexible

hose with attached

hose adapter

connector, and

snap into

Window Slide Bar.

Only

Required For

Disassembly.

In order to

unlock the quick

connector, push

the tab and turn

the connector

counter-

clockwise.

AutoDrain NanoMist Technology™Assembly

1Stretch end of

the hose slightly.

Attach Window

Slide Bar

Connector to

Exhaust Hose by

twisting as shown.

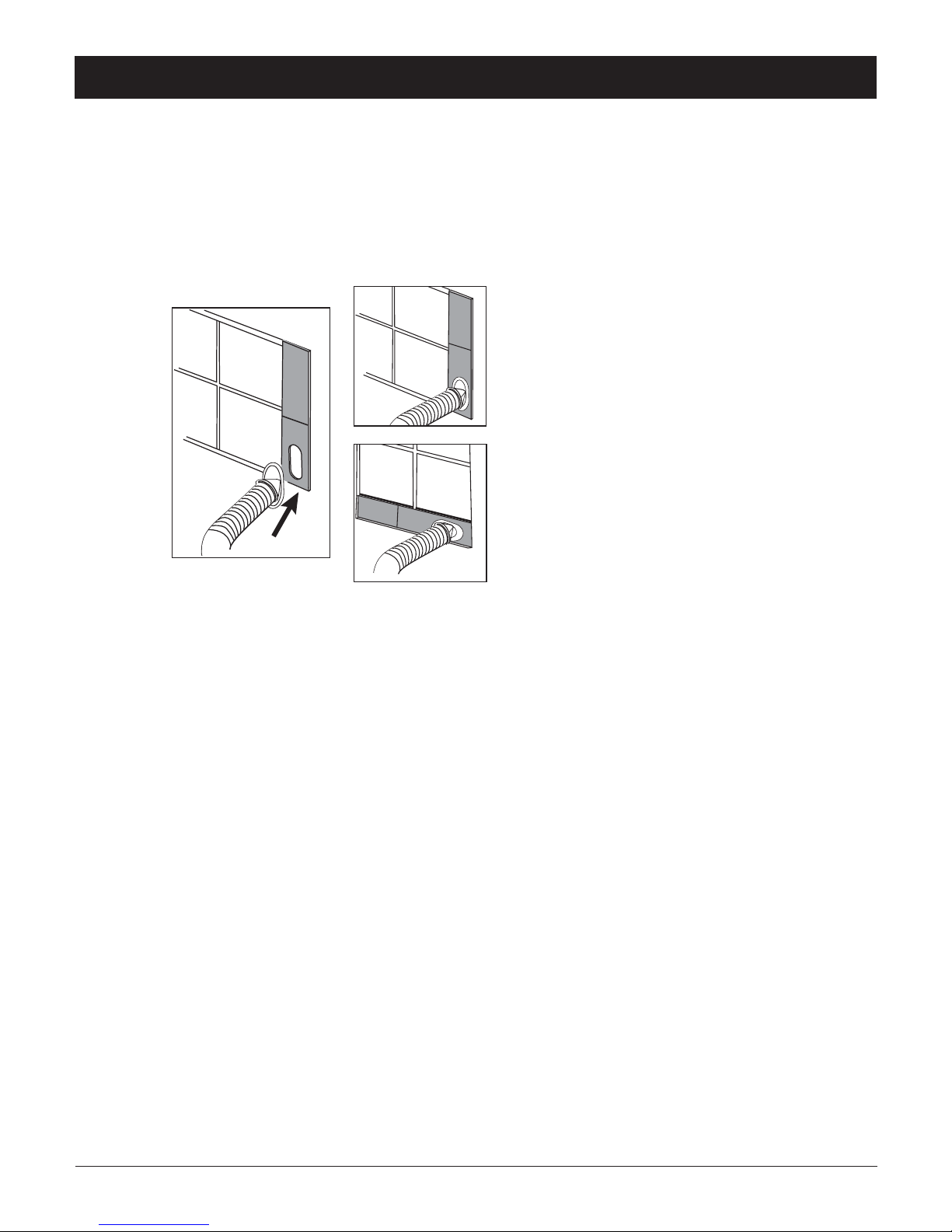

Installing Exhaust Hose to Window Slide Bar

After assembling Innovative AutoDrain NanoMist Technology™per instructions on page 5,

make sure hose is ﬁrmly attached to oval connecter that ﬁts into window slide bar.

Snap hose connecter into window slide bar opening. See Illustration 1.

Extend window slide bar to ﬁt your window opening, either vertical or horizontal,

depending on how the window opens. See Illustrations 2a-2b.

Important

The ﬂexible exhaust hose can be extended from 12" to 60" for mounting.

This length has been designed especially according to the speciﬁcations of the

air conditioner.

Do not use an extension or exchange for a different hose as that may lead to

malfunctioning.

The exhaust air must ﬂow freely, any blockage can lead to overheating of the air conditioner.

Take care to prevent any kink or bend in the exhaust hose.

This unit can easily be moved from one room to another. In doing so keep this in mind:

• The air conditioner must stand upright on an even surface.

• Do not position near bath, sink, or other permanent wet or damp area.

• Keep unit at least 18" from wall, curtains, draperies, to insure adequate air circulation.

Positioning

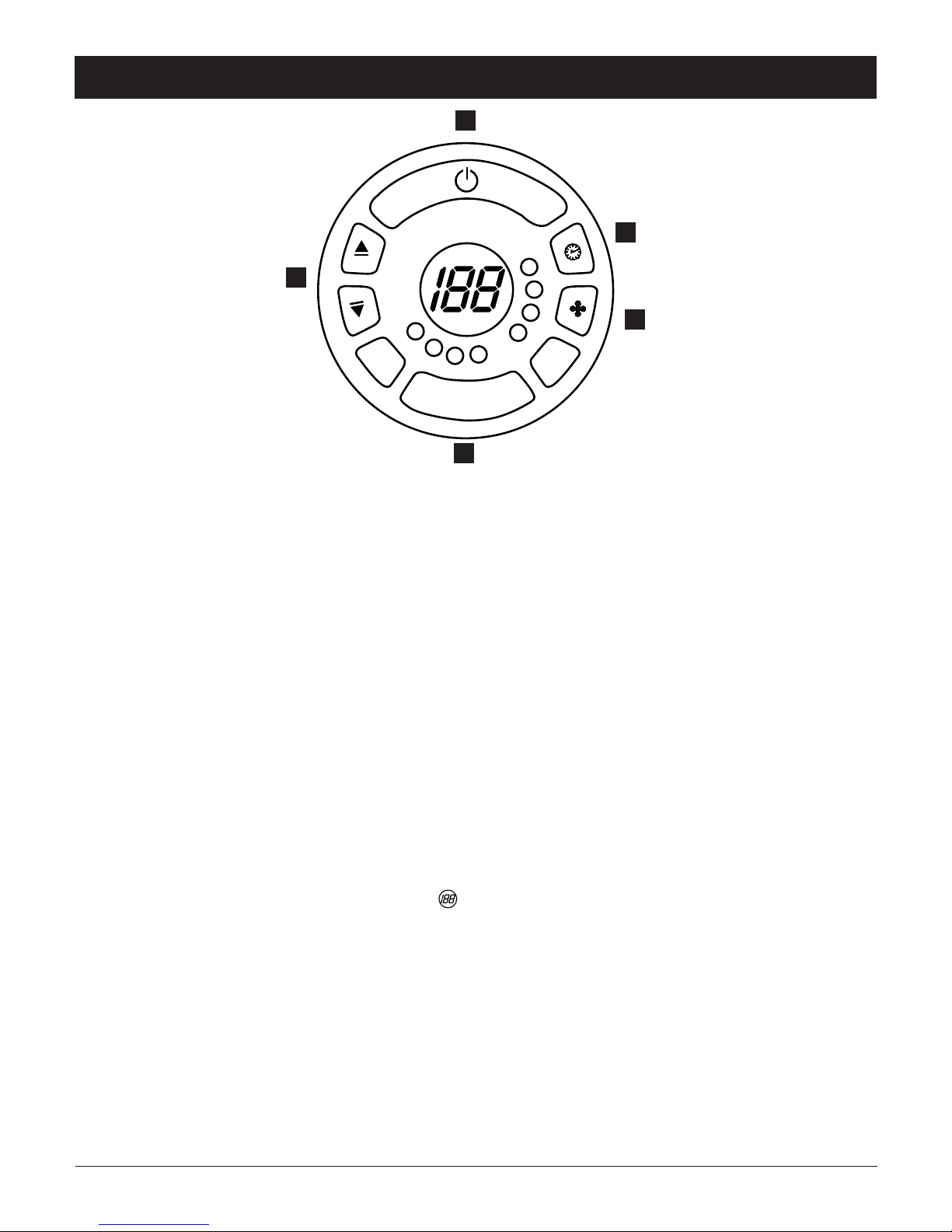

Operation

1. ON/OFF

Press the ON/OFF-button to switch the unit on or off.

2. Setting the Timer

Press the TIMER button, which will start the timer counter function.

Each press of the timer button will advance the timer setting by 1 hour, for setting 1-12

hours. If you pass the desired hour setting, you must advance the numbers completely

through 12, to start timer count from 1. When set, the TIMER LED will light up.

When the set hours have elapsed, the unit will turn off automatically.

The display will show the hour(s) remaining when you press the TIMER button.

By pressing the TIMER button but without turning the unit on, you can pre-set in how

many hour(s) the unit will switch on automatically.

3. Setting the Operating Mode

Select the required operating mode: COOL, FAN, or AUTO. The corresponding LED will lit.

In AUTO mode the unit will select cooling or fan depending on the ambient temperature.

4. Fan Speed

Select the fan speed, the corresponding LED will lit: LOW or HIGH.

5. Increase UP or DOWN

When the unit is ON, the display always shows the room temperature.

Press button UP or DOWN to see the current set temperature and adjust if necessary,

in the range of 62ºF to 90ºF. After 8 seconds, the room temperature will be displayed.

Warning lights COMPRESSOR and WATER FULL

When the water container is full, the unit automatically stops, the warning light WATER FULL

will ﬂash to signal that the container must be emptied (see page 9, “Emptying The Water

Container”).

When the unit is cooling, the compressor light will be on. If this light is off further cooling

is not needed at this time, or the compressor may be de-icing its coils.

The fan can still be on.

MODE

WATE R

FULL

AUTO

COOL

FAN

LOW

COMP

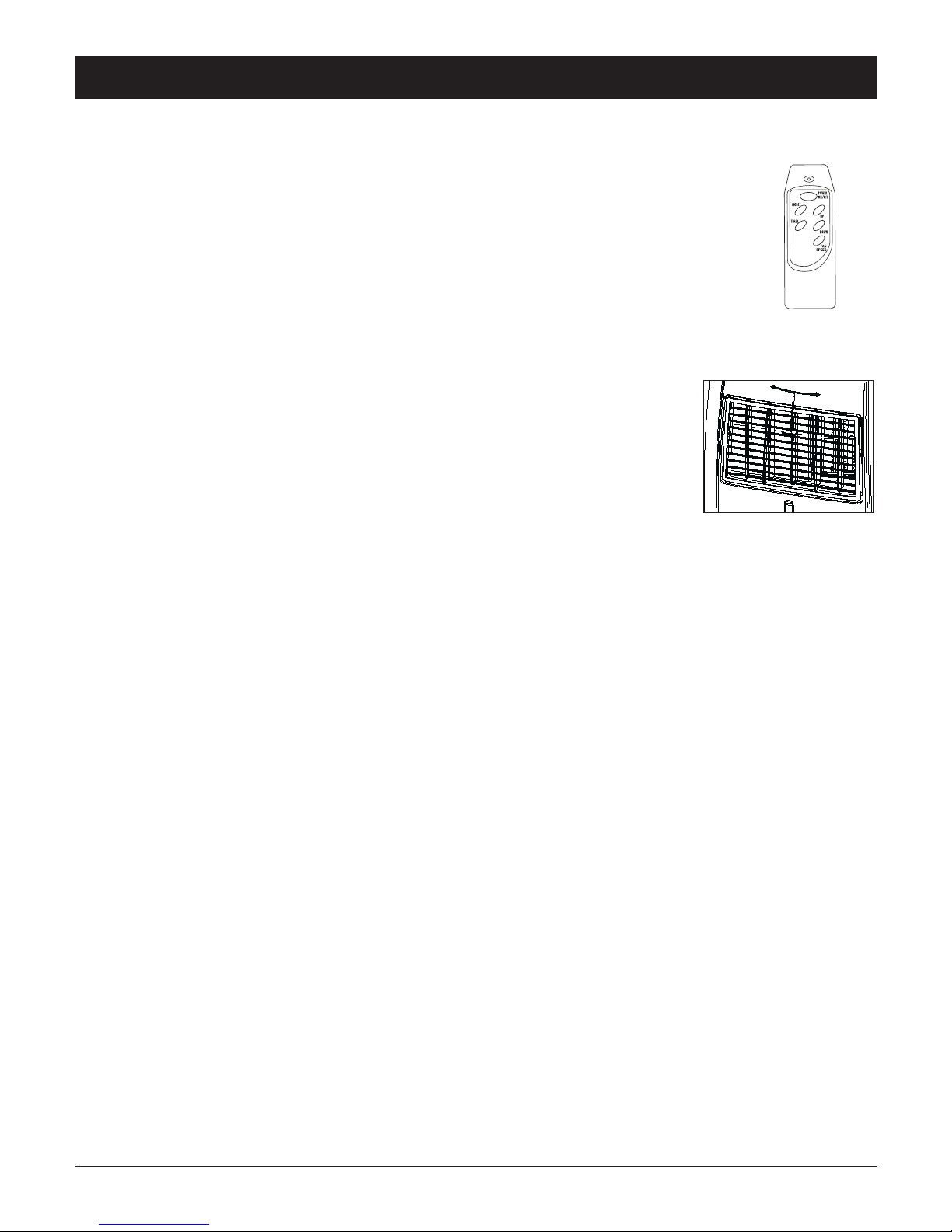

Remote control

The air conditioner responds to all signals that are sent by the remote

control. Two AAA-batteries are required to use the remote control.

Point the remote control hand set towards the control panel of the

unit and press the relevant button, the red LED on the hand set will ﬂash

whenever a button is pressed.

Note: the air ﬂow direction can not be adjusted with the remote control.

Air ﬂow

Adjust the left-right direction of the outﬂowing air by turning

the roller on the front of the air outlet grill.

Adjust the up/down air ﬂow by rotating the air outlet grill.

Important:

• The compressor will start approximately 3 minutes after the

unit is turned on (this will help prolong the life of the

compressor). After switching the unit off, please wait at least

3 minutes before turning the unit back on.

• The compressor will switch off when the room temperature

is lower than the set temperature. The fan will however

continue to work. When ambient temperature rises above

the set temperature, the cooling will resume.

Operation
