Amcor SF 12000E User manual

PORTABLE AIR CONDITIONER

SF 12000E 10000E

Portable air conditioner

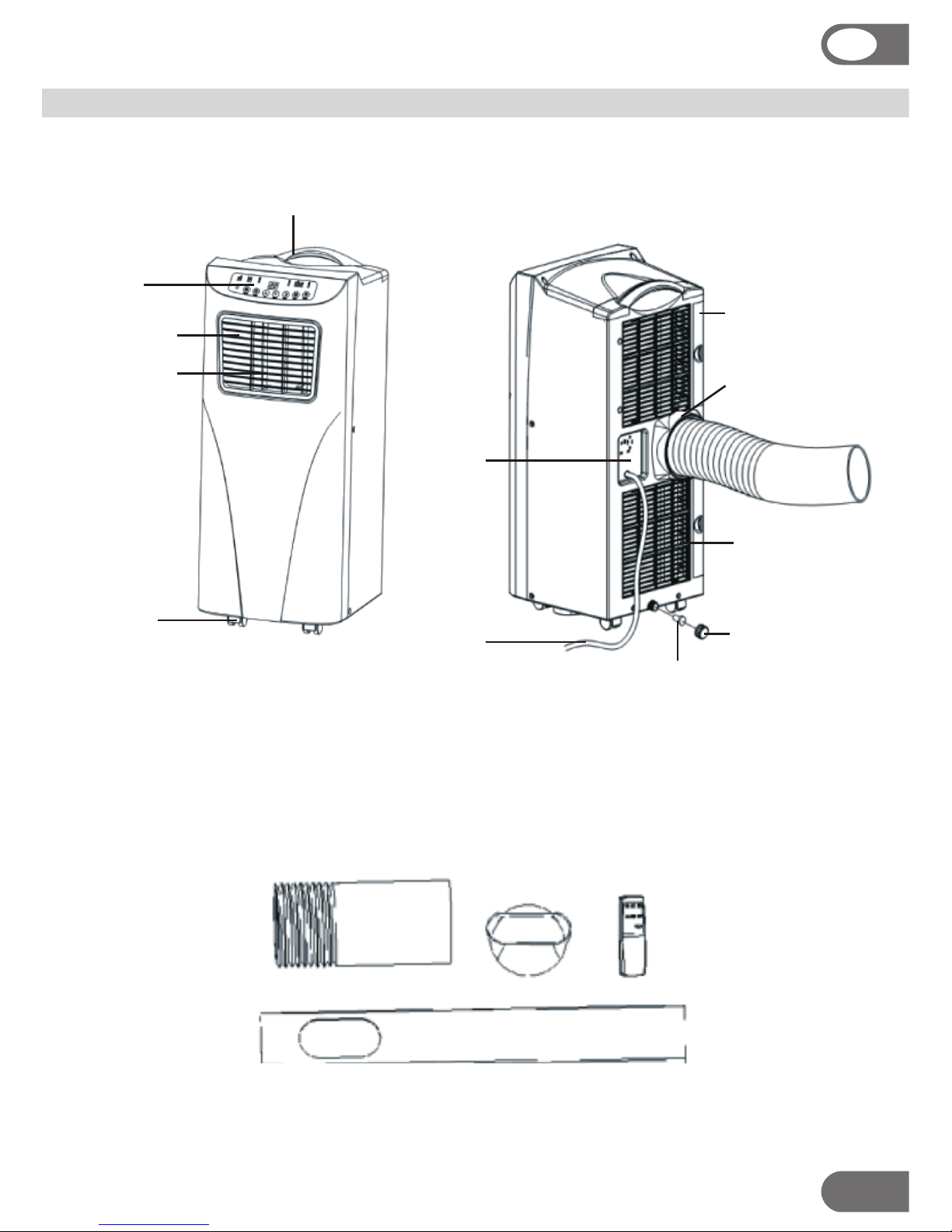

PARTS

Caster

Fan Blade

Back SideFront Side

Check packing accessories and read your user’s manual to learn how to use them.

Handle

Upper

Filter frame

Exhaust

Connector

Power

Cord

Location

Lower

Filter Frame

Rubber plug

Plug cap

Power

Supply

Cord

Control

Panel

Air Outlet

Exhaust Hose Slide Bar

Connector

Remote

Control

Adjustable Slide Bar

SAFETY INSTRUCTIONS

Thank you for choosing this innovative Amcor air conditioner. We suggest that you

keep this manual in a safe place for future reference. It describes the many benefits

and advanced features this unique product has to offer. Before you use your air

conditioner you should carefully read these instructions to maximise this product’s

performance.

For over 50 years Amcor has specialised in complete indoor environmental control,

manufacturing and marketing; dehumidifiers, portable air conditioners, coolers, air

purifiers, ionisers and aroma therapy scent diffusers. These world class products

incorporate the latest technological developments.

THANK YOU

IMPORTANT!

• The unit is designed for indoor operation.

• Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet.

• The installation must be in accordance with regulations of the country where the

unit is used.

If you are in any doubt about the electrical installation, have it checked and if

necessary modified by a qualified electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it

with care.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not clean the unit by spraying it or immersing it in water.

• Do not insert any object into the openings of the unit.

• Disconnect it from the mains before cleaning the unit or any of its components.

• Never connect the unit to an electrical outlet using an extension cord. If an outlet

is not available, one should be installed by a licensed electrician.

• Never operate this appliance if it has a damaged cord or plug. Do not lead the

cord over sharp edges.

• A damaged supply cord should be replaced by the manufacturer, its service agent

or a qualified person in order to avoid a hazard.

• Any service other than regular cleaning or filter replacement should be performed

by an authorized service representative. Failure to do so could result in a loss of

warranty.

Close to a heat

source

Inside unit exposed

to the weather

outdoors

In a permanent

very humid

environment

If the power cable

wires are frayed

or cut

When small

children may be

left unattended

If an extension

lead may become

overloaded

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may

be damaged by

chemicals

Where there is a

risk of interference

by foreign objects

This products is

not made for DIY

repair

If there is a risk of

liquid falling on

the unit

Do not use your air conditioner:

Disposal:

Waste electrical products must not be disposed of with household waste.

This product should be taken to your local recycling centre for safe treatment.

POSITIONING

Installing Exhaust Hose to Window Slide Bar

Note: The window kit is only designed to be installed with sliding windows or doors.

The window kit is not designed or to be used with casement style windows.

Step 1:

Measure your window kit according to the dimensions of your sliding window. If in case the unit is larger than

your required dimensions, it can be cut using a saw or power tool of the sort. If the unit is too short for your

opening, you can order an additional window kit from our online store to extend it.

Step 2:

Screw slide bar connector into exhaust hose �rst (Figure A) , then spin the exhaust hose into the air outlet located

at the rear of the unit (counter-clockwise) (Figure B).

Step 3:

Insert slide bar connector into adjustable slide bar (Figure C). Extend the Slide Bar length to match the

width of the window (vertically or horizontally), and then tighten the screw to hold the length of the slide bar

(Figure D). Make sure the adjustable slide bar �ts snug in your window and stays in place.

Proceed to close and lock your window on the Slide Bar to secure in place (Figure E).

IMPORTANT

The �exible exhaust hose can be extended from 10.25" to 58.5" for mounting.

We recommend that you keep the hose as short as possible to minimize possible loss back in the room.

This length has been designed especially according to the speci�cations of the air conditioner.

Do not use an extension or exchange for a different hose as that may lead to malfunctioning.

The exhaust air must �ow freely. Any blockage can lead to overheating of the air conditioner.

Handle with care to prevent any kink or bend in the exhaust hose.

This unit can easily be moved from one room to another. In doing, so keep this in mind:

• The air conditioner must stand upright on an even surface.

•Do not position near bath, sink, or other permanent, wet or damp area.

• Keep unit at least 18" from wall, curtains, draperies, or heat sources to insure adequate air circulation.

18"

45cm

18"

45cm

Exhaust

Hose

Exhaust

Hose

Slide Bar

Connector

Slide Bar

Connector

Window

Adjustable

Slide Bar

Adjustable

Slide Bar

Fasten

one screw

Air Outlet

Figure A

Figure B

Figure C

Figure E

Figure D

OPERATION

Cooling Mode

·After machine turns on, default value is cooling mode with 22ºC and low fan speed.

·Press “MODE” to select cooling mode, cooling mode indictor turns on .

·Press “UP” or “DOWN” to adjust temperature (from 16ºC to 31ºC).

·Press “FAN” to select fan speed (low, high)

Fan Mode

·Press “MODE” to select fan mode, fan mode indicator turns on .

·Press “FAN” to select fan speed (low, high)

·Temperature and sleeping function cannot be setup.

Timer Mode

·Under standby mode, press “TIMER” to setup the power-on time,

press “UP” and “DOWN” to adjust the timer (from 1 to 24 hours). Timer indicator turns on.

·Under power-on mode, press “TIMER” to setup power-off timer.

Press “UP” and “DOWN” to adjust the timer (from 1 to 24 hours). Timer indicator turns on.

Sleeping Mode

·Press key “SLEEP” enter into sleeping mode, default value of fan speed is low.

·When sleeping mode turns on , under cooling mode, the one hour later, setting temperature will go up

1ºC, the second one hour later, setting temperature will go up another 1ºC, and then keep the same;

·Sleeping mode is invalid under dehumidifying and fan mode.

Under water full, machine standby and mode conversion, sleeping mode will be cancelled .

Compressor Protection

·Three minutes later after power on / restart, compressor starts to run.

On/Off

Press “POWER” to switch the unit On or Off

Remote control

The air conditioner responds to all signals that are sent by the remote

control. Two AAA-batteries are required to use the remote control.

Note: the air flow direction can not be adjusted with the remote control.

Important:

• The compressor will start approximately 3 minutes after the unit is turned on

(this will help prolong the life of the compressor). After switching the unit off,

please wait at least 3 minutes before turning the unit back on.

• The cooling will switch off when the room temperature is lower than the set one.

Ventilation will however continue to work at the set level. When the ambient

temperature rises above the chosen value, the cooling will resume.

Power

Timer

Down

Mode

Fan

Sleeping

EMPTYING THE WATER CONTAINER

In case of the WATER FULL (W.F.) LED alert, the unit is required to be

drained. At the end of AC Season, this unit should be drained prior

to storage. In both situations, we recommend that you take the

following steps.

Switch off the unit and remove the plug from the outlet.

•Position a �at container or dish on the �oor under

the drain hole. Use container only for temporary

draining of the unit, do not allow the water to drip

continuously into the container, as it might easily

over�ow.

•Remove the drain knob.

•Remove the rubber plug, the water will �ow in the

container. When this is nearly full, replace the plug

to stop the water �ow and empty it. Repeat this

process until all water has been removed.

•For seasonal storage purposes, put the unit ON in fan mode on a warm, dry day for

a couple of hours to ensure that the inside can dry out completely. We also recom-

mend allowing the unit to air dry for a period of 24 hours without the drain plug and

cap in place.

•Insert the rubber plug into the drain hole �rmly,

the WATER FULL LED (W.F.) should not �ash any longer.

• Screw on the drain knob.

Additional maintenance/tasks prior to storage.

•Clean the �lters.

•Store the power cable as shown, protect the unit against dust (put back into its

original carton) and store in a dry place not accessible for children.

•To protect the unit against dust, store in a dry place not accessible by children

•Do not stock heavy objects on top of the unit

Rubber Plug Drain Knob

CLEANING

Always unplug the unit from the power supply (wall outlet) before beginning the

cleaning.

Housing

Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-

based products, detergents, chemically treated cloths or other cleaning solutions.

These could possibly damage the housing.

Filter

The active carbon filter must not be rinsed.

Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from

the filters and then rinse only the dust filter thoroughly under running water (not

warmer than 31 °C). Dry thoroughly before replacing.

Notice! Never operate the air conditioner without the filters.
