Agilent Technologies Cary 50 User manual

Cary 50 Installation Instructions

NOTE NOTICE: This document contains references to Varian. Please note that Varian, Inc. is now part of

Agilent Technologies. For more information, go to www.agilent.com/chem.

Unpack your Cary

WARNING

Heavy Weight Hazard

The instrument weighs approximately 25 kilograms (55 pounds). To avoid injury to personnel,

damage to the instrument or damage to other equipment, ALWAYS use at least two people to lift

it into position.

To unpack the Cary 50:

1Remove the packaging and any loose items.

2Use two people to lift the instrument onto the bench.

3Remove the adhesive tape. Remove the front panel by sliding it up. Unscrew

and remove the cell holder and base.

Cary 50 Installation Instructions

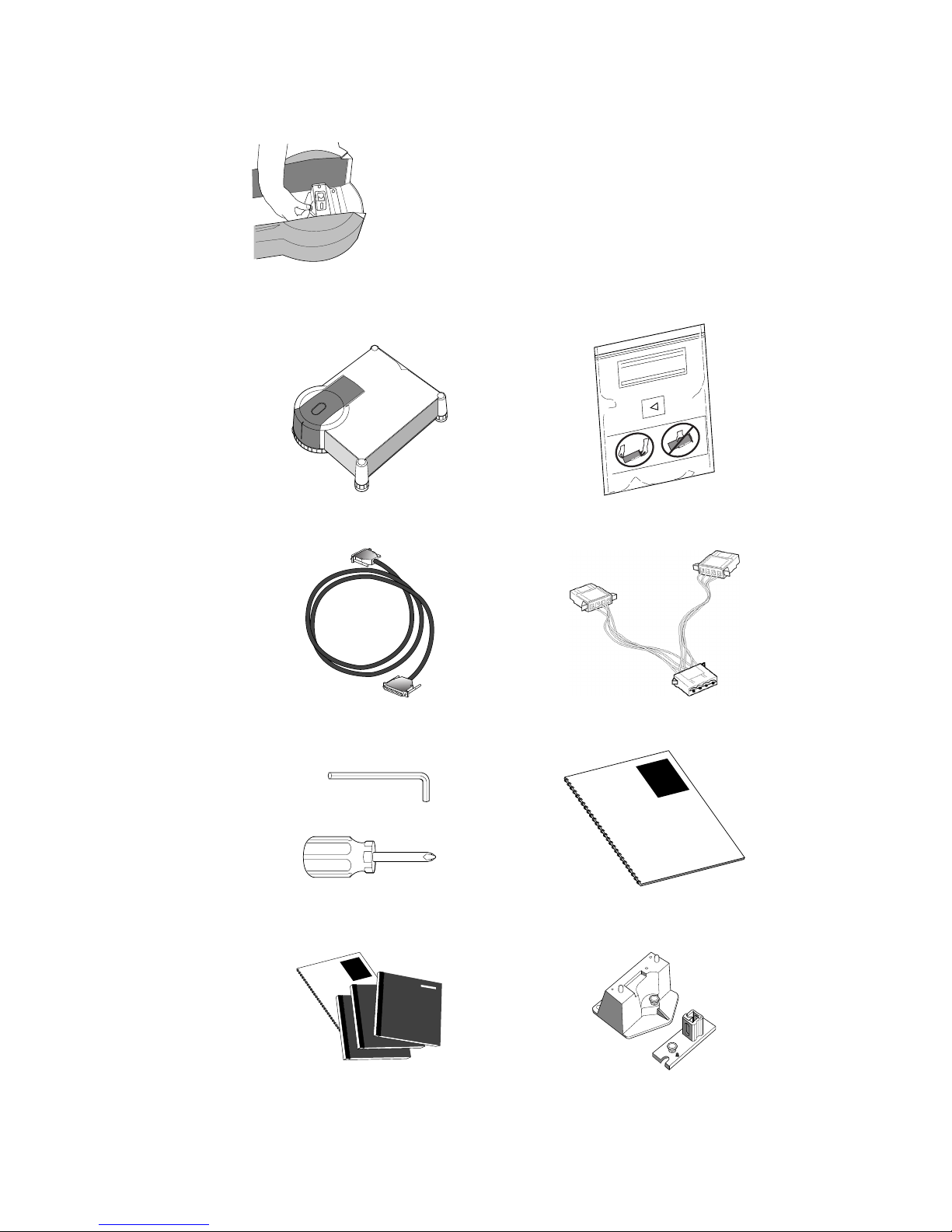

4Remove the items packed in the instrument sample compartment.

5Check that you have all of these components:

1 x Cary 50

1 x Cary PCI card

1 x Cary cable

2 x power supply connectors

1 x hexagonal wrench

1 x Pozidrive screwdriver

1 x Cary Hardware manual

1 x Cary WinUV software pack (containing 3

CD-ROMs and 1 Cary Software manual)

1 x cell holder and cell holder base

ATTENTION

FOLLOW INSTRUCTIONS ON THE BACK

2209Disposable GroundingWrist Strap

Cary 50 Installation Instructions

Prepare for software installation

Before installing the Cary WinUV software, it is important to ensure that:

You have installed Microsoft® Internet Explorer, version 6 or higher.

Your monitor color palette is set to 16 million colors and your desktop area

resolution is set to 800 x 600 pixels. (Refer to Chapter 2 of the Cary WinUV

software manual for details.)

You have a printer installed (optional).

You are logged on as an administrator.

The Cary 50 PCI card is not installed.

The Cary 50 PCI driver is not installed. To do this:

1Click Start > Settings > Control Panel (or just Control Panel if it is available

from the ‘Start’ menu).

2From the Control Panel, click System and then select the Hardware tab.

3On the ‘Hardware’ page, click Device Manager and then expand the Other

Devices listing, if present.

4Check whether Cary 50 PCI-Rev03 is listed.

If the Cary 50 PCI is not listed, close the dialog box and then close the Control

Panel. If the Cary 50 PCI is listed, right-click it and then select ‘Uninstall’ to delete

the device. Then close the dialog box and the Control Panel.

Install the Cary WinUV Software

To install the Cary WinUV software:

1Insert the Cary WinUV Software CD-ROM into the CD-ROM drive, select the

preferred language and then click OK.

2Follow the prompts on the Cary WinUV Setup Wizard until the ‘Select

Destination Location’ window appears. Confirm the directory in which you

would like to install the application. Alternatively, click Browse to choose a

different location. Click Next to continue.

NOTE Agilent strongly recommends the Cary WinUV folder and applications are installed in the

recommended C:\Program files directory.

3The ‘Folder Does Not Exist’ dialog box may appear. Click Yes to create the

folder.

4Follow the prompts on the screen until the ‘Ready to Install’ window appears.

Click Install to continue.

NOTE During installation of the Microsoft .Net framework and GPIB driver, the computer may appear frozen

and the ‘Cancel’ button may be unavailable. This is correct. The installation can take 3 to 5 minutes.

Do not try to exit the installation during this time.

5If prompted to complete the installation of the Cary WinUV software by

restarting your computer, select No, I will Restart the Computer Later. Click

Finish.

6‘Software Registration’ will appear. Click Next.

Cary 50 Installation Instructions

NOTE Ensure the software registration is completed by the User of the Agilent Cary UV-Vis

spectrophotometer. For further information, refer to the Software Registration Instructions,.

7Complete all the fields on the ‘Customer Details’ page. Click Next.

NOTE The Product Key is found on the cover of the Cary WinUV software CD-ROM case that was delivered

with the instrument.

8Complete all the fields on the ‘Product Details’ page. Click Next.

9Complete all the fields on the ‘Work Environment Details’ page. Click Register.

10 A dialog box appears stating ‘Your Agilent registration has been successful’. If

your computer is not connected to the Internet, refer to the Agilent Software

Registration Instructions for more information.

11 The ‘Validate Setup Wizard’ will appear. Click Next to install the Validate patch

if required.

12 Remove the application disk from the CD-ROM drive.

13 Insert the Cary WinUV Help disk. If a Media Window appears, click Cancel. The

installation will proceed.

14 A list of Help files to be installed will be displayed. Click OK.

15 Follow the instructions on the screen to install the Help.

16 When the status indicates ‘Finished’, click Close.

17 Remove the Help disk from the CD-ROM drive.

18 Select the System Information application from the ‘Cary WinUV’ folder on the

desktop. Enter the company details, instrument type and serial number. Click

OK.

19 Shut down the computer.

Cary 50 Installation Instructions

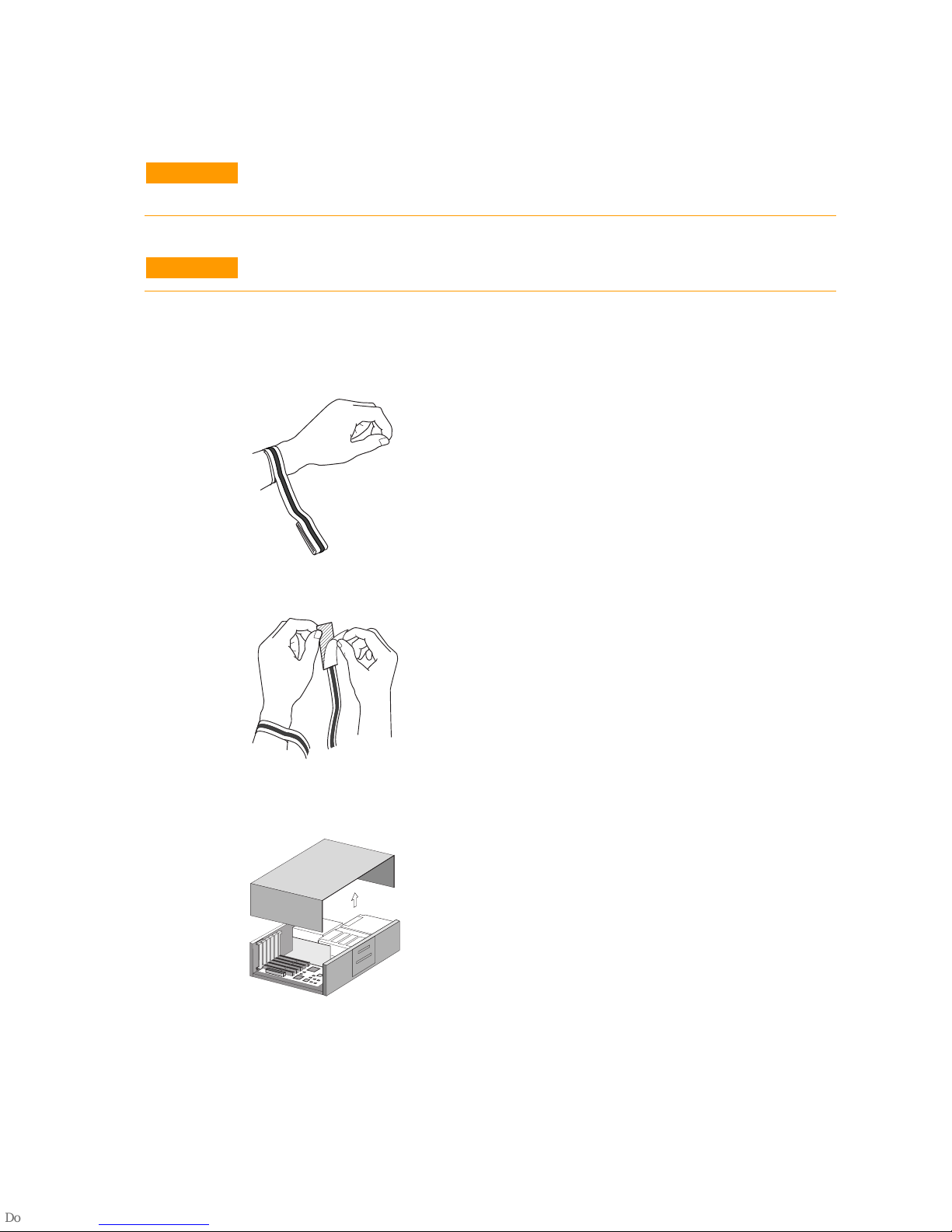

Install the Cary 50 PCI card

CAUTION Electrostatic discharge may damage electrical components or boards. When handling electronic

components or boards, ensure you use the provided wrist strap.

CAUTION Do not touch the components or the gold connectors. Handle the board only by the edges.

To install the Cary 50 PCI card:

1Remove the grounding wrist strap from the packaging. Wrap the adhesive side

around your wrist.

2Remove the adhesive backing.

3Turn off the computer. Disconnect the power cable. Remove the computer

cover.

;

Cary 50 Installation Instructions

4Attach the alligator clip of the grounding wrist strap onto a bare metal part of

the computer chassis.

5Locate a vacant PCI slot.

6Remove the blank plate.

7Insert the Cary PCI card. Press firmly into the slot and fasten the screws if your

computer has screws.

;

Cary 50 Installation Instructions

8The Cary 50 does not have its own power supply; it uses the power supply from

the computer. You will need to connect the Cary 50 to the computer power

supply.

To do this, you must first determine whether there is a spare power connector

coming from your computer power supply. The power connector will consist of four

wires (two black, one yellow and one red) and a white connector, which is

approximately 2.5 cm (1 in.) in wide.

NOTE If your computer does not have a spare connector coming from its power supply, follow the

instructions in Chapter 4 of the Cary 50 Hardware manual, and then continue with Step 10.

9Connect the hard disk power supply connector to the connector on the Cary

PCI card by pushing the connector all the way in until it clicks. If it is not long

enough, join the two provided power supply connectors together.

10 If you have purchased any accessories for your Cary 50 that require the

Accessory Cable Kit (part number 9910094300), install this now. Refer to the

Cary 50 Accessory Cable Kit instructions for details.

11 Remove the wrist strap and replace the computer cover.

Cary 50 Installation Instructions

Attach the cable to the Cary 50 and the computer

Attach one end of the Cary cable to the Cary 50 and the other end to the computer.

Connect power to the computer.

Cary 50 Computer

The xenon lamp

Your Cary 50 is fitted with a high-intensity, long-life xenon flashlamp that is

guaranteed for two years (against failure to strike). If you need to replace or realign

the lamp, refer to the section ‘Replacing lamps’ in the Cary WinUV Help.

NOTE It is possible the lamp may have become misaligned in transit. If your Cary 50 fails any of the

validation or calibration tests, refer to ‘How to align the source mirror’ in the ‘Align’ section of the

Cary WinUV Help.

Install the Cary 50 drivers

NOTE For Windows XP installations only.

To install the Cary 50 drivers:

1Restart the computer. The new PCI card should automatically be detected and a

‘Found New Hardware Wizard’ dialog box will appear. (If this does not appear,

shut down your computer and check that the PCI card is correctly plugged into

the PCI slot. If it is in correctly and the wizard still does not appear, open the

Control Panel and select ‘Add Hardware’ to display the wizard.)

2The wizard asks if you would like to connect to Windows Update to search for

software. Select No, Not This Time and then click Next.

3When prompted, select Install Software Automatically (Recommended).

4Select Don’t Search. I Will Choose the Driver to Install. Click Next.

5Select the device driver you want to install. Under ‘Manufacturers’, click Varian

and under ‘Models’, click Cary 50 PCI-Rev03. Click Next.

6During the installation of the hardware drivers for the Cary 50 PCI card, a

warning message will be displayed. Click Continue Anyway.

7Installation of the Cary 50 PCI hardware is now complete. Click Finish.

8Restart the computer to complete the installation of the instrument interface

card.

Cary 50 Installation Instructions

Warm up the Cary 50

Allow half an hour for the Cary 50 instrument to warm up to ensure that the

temperature is stable. If the Cary 50 fails any of the instrument performance tests,

it may be because the temperature of the instrument has not stabilized.

Test your instrument

To test your instrument:

1Click the Windows Start button, then All Programs > Agilent > Cary WinUV >

Validate.

2Click Tests.

3Click Instrument Performance Tests. Click OK.

4Close the sample compartment. Click the Cary Start button.

5Click Print after the tests are complete.

6Compare your results to those supplied with the instrument.

7Send the completed Quality card to Agilent in the supplied envelope.

Where to from here?

You will find instructions for the Cary 50 instrument and Cary WinUV software in

the Cary 50 Hardware manual or in the Cary WinUV Help.

Cary 50 Installation Instructions

This information is subject to change without notice.

8510185100

*8510185100*

8510185100

Part Number: 8510185100

Edition 03/12

Issue 11

2004, 2007, 2010 and 2012

Agilent Technologies

679 Springvale Road

Mulgrave, VIC 3170
