Installation:
•Mount mist collector level.
•Units can be mounted directly on top of machines, on a post or on the wall.
•Ensure that there is 20” free space above to open lid and remove filters.
•Minimize the length of ducting to avoid air flow loses.
•Metal ducting or flexible hose can be used.
•Do not locate suction intake on machining applications in direct line of the cutting spray.
•A chip strainer mounted in the machine (CNC) enclosure is recommended.

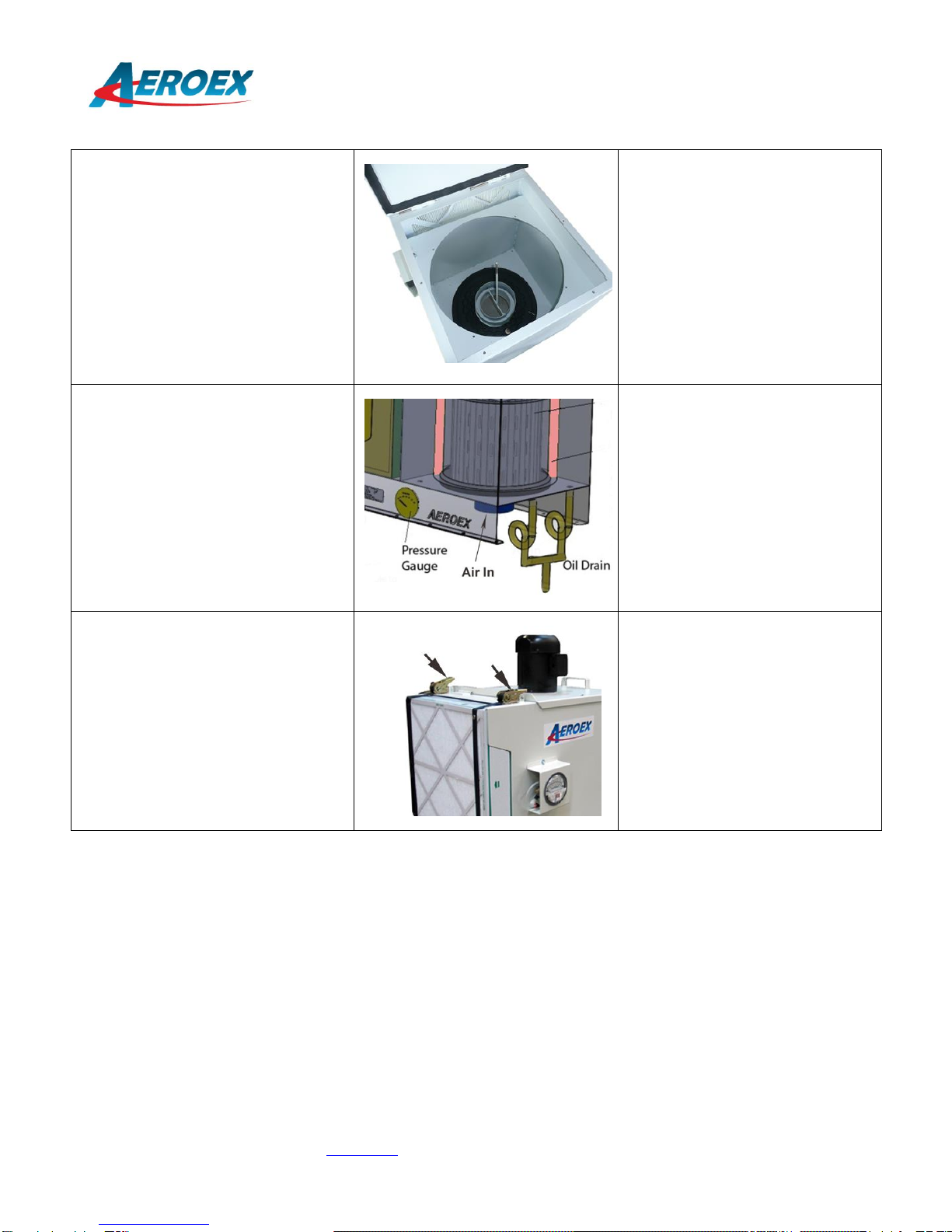

•Connect the 2 oil drain lines using a pee trap (5”) or loop in hose.
•Loop in hose must be minimum 8” below connection, no max.
•Connect into 1 hose after pee traps.
•Fill pee traps with water or oil to create air lock.
•Install motor starter and set overloads.
•Connect electrical power to motor using a flexible cable.
•Check motor rotation.
Typical installation:
