ADTEK AFM-8A User manual
AFM-8A
High Performance Power Analyzer
Rev 1.0
2023-02-22
Operation Manual
II
CopyRight ©
This manual is copyrighted.
Without the written permission of the Company, any of the paragraphs and chapters of
this manual shall not be extracted, copied or reproduced and transmitted in any form, or all
consequences shall be borne by the offender.
The Company reserves all legal rights.
The Company reserves the right to make changes to the specifications described in this
manual without prior notice. Please keep attention to the latest specifications of our official
website.
Safety warning
Please read this manual carefully before installing, operating or maintaining this
equipment. Please note the following special signs appearing in this manual or on
the device, which are used to warn of potential hazards or to interpret and specify the
operating procedures.
The presence of such safety signs indicates that there is a danger of
electricity, and failure to follow certain instructions will result in personal injury.
This is a safety warning sign that warns of the risk of potential personal injury.
Please follow all the safety information after this mark to avoid possible injury
or death.
The sign for the reminder, to avoid the operation due to inadvertently caused
the instrument can not work or even damage the instrument or cause harm to
the person.
The equipment must be turn offall power supplying and grounded before maintenance
and overhaul.
Maintenance only work by qualified personnel.
This manual applies to persons who have been trained to use. The company are not
responsible for any problems arising out of their abnormal use.
III
Table of Contents
Chapter 1. Meter overview...................................................................1
1.1 AFM-8A series function introduction.......................................................... 1
1.2 AFM-8A series product features ................................................................ 2
1.3 AFM-8A series applications ....................................................................... 3
Chapter 2 Installation...........................................................................4
2.1 Exterior and dimensions............................................................................ 4
2.2 Meter installation ....................................................................................... 4
2.3 Meter connections and wiring.................................................................... 4
Chapter 3 Meter display and operation .............................................9
3.1 Meter panel................................................................................................ 9
3.2 Display screen and operation buttons description..................................... 9
3.2.1 Operation buttons .............................................................................. 10
3.2.2 Symbol icons in main screen............................................................. 10
3.3 Measurement data display and key operation..........................................11
3.4 Max/Min data display and key operation ................................................. 15
3.5 Demand data display and key operation ................................................. 15
3.6 Harmonic data display and key operation ............................................... 16
3.7 Phasor diagram display and key operation ............................................. 17
3.8 Waveform display and key operation ...................................................... 17
3.9 Time of use (TOU) data display and key operation ................................. 18
3.10 Event logging display and key operation............................................... 18
3.11 Meter information and key operation ..................................................... 19
3.12 Setting display and key operation ......................................................... 19
3.12.1 Password input ................................................................................ 19
3.12.2 Parameter setting ............................................................................ 19
3.12.3 Setting menu list .............................................................................. 20
3.12.4 Parameter setting input key operation............................................. 23
3.12.5 Back to main page........................................................................... 23
Chapter 4 Detailed functions description .......................................24
4.1 Basic Measurements............................................................................... 24
4.1.1 Demand ............................................................................................. 24
4.1.2 Energy measurements ...................................................................... 25
4.1.3 Auto wire change ............................................................................... 25
4.2 MAX/MIN ................................................................................................. 26
4.3 Harmonics and Power Quality Analysis................................................... 27
4.3.1 Harmonics ......................................................................................... 27
4.3.2 Phase angle....................................................................................... 27
4.3.3 Unbalance analysis ........................................................................... 27
4.4 Event logging function ............................................................................. 27
IV
4.4.1 Setting of single event logging function ............................................. 27
4.4.2 Event logging function enable ........................................................... 28
4.4.3 Event log read ................................................................................... 28
4.5 Relay function.......................................................................................... 29
4.5.1 Alarm function setting ........................................................................ 30
4.5.2 Alarm function enable ........................................................................ 30
4.5.3 Alarm records read ............................................................................ 30
4.6 Digital input(DI) function .......................................................................... 31
4.6.1 DI function setting.............................................................................. 31
4.7 Analog output(AO) function ..................................................................... 32
4.7.1 AO function setting ............................................................................ 32
4.8 Pulse output(PO) function ....................................................................... 33
4.8.1 PO function setting ............................................................................ 34
4.9 Data logging function............................................................................... 34
4.9.1 Data logging function setting ............................................................. 34
4.9.2 Data log read ..................................................................................... 36
4.10 Time of use (TOU) function ................................................................... 37
4.10.1 Season setting................................................................................. 37
4.10.2 TOU season format ......................................................................... 37
4.10.3 Schedule setting .............................................................................. 37
4.10.4 Segment setting............................................................................... 38
4.10.5 Tariffsetting ..................................................................................... 38
4.10.6 Holiday setting ................................................................................. 38
4.11 Power quality event logging and Waveform capture ............................. 39
4.11.1 Event logging data format, see Table 4-11....................................... 40
4.11.2 Logging events ................................................................................ 40
4.11.3 Event logging triggering conditions.................................................. 40
4.11.4 Event log retrieve............................................................................. 42
4.11.5 Waveform capture data format ........................................................ 42
4.11.6 Waveform capture group ................................................................. 42
4.11.7 Waveform capture triggering condition ............................................ 43
4.11.8 Waveform capture retrieve............................................................... 44
4.12 Communication function........................................................................ 45
4.12.1 The first port of RS-485 communication .......................................... 45
4.12.2 The second port of RS-485 communication .................................... 46
4.12.3 Ethernet communication.................................................................. 46
4.13 Expansion DIO module function............................................................ 47
4.13.1 DIO expansion module setting ........................................................ 47
4.13.2 DIO expansion module read and control ......................................... 48
1
1.1 AFM-8A series function introduction
Chapter 1. Meter overview
This is a powerful multifunction power meter
AFM-8A series is a powerful multifunction power meter, designed by high-speed
microprocessors and advanced signal processing technology. With three-phase power
measurement, display, power accumulation, power quality analysis, event logging, power
quality event logging, waveform record, TOU and network communications functions. 3.5-
inch high-definition color TFT-LCD display provides a variety of data display, so you can
easily read the measurement data. User-friendly display and operation method allows
users to easily operate without having to find the manual at any time.
Perfect choice for power SCADA system
AFM-8A series can be used as a stand alone meter, but also can be a power monitoring
system (SCADA) of the front-end devices, through a variety of communication interface for
remote data collection and control. The industry standard RS-485 communication interface
and MODBUS communication protocol, as well as Ethernet and MODBUS TCP / IP
protocol makes the network easy and convenient, is the perfect choice for SCADA system
integration.
Energy management
AFM-8A series can calculate bidirectional and four-quadrant active power and reactive
power accumulation, as well as the maximum / minimum value of the parameters and
demand calculation function, with the system software can help users to measurement the
energy consumption of each circuit loop and load trends.
Remote control
AFM-8A series is not only a measurement meter, in addition to includ DI, relay output
and AO interface, also can via second RS-485 port to connect expansion DIO modules, to
achieve flexible I / O function, become a powerful discrete RTU system.
Analysis of power quality
AFM-8A series using digital signal processing technology, it can real-time measurement
the phase voltage and current total harmonic distortion (THD), individual harmonic (2-63rd),
voltage and current unbalance.
Data logging function
The AFM-8A series provides 4MB flash RAM for data storage, it's recording the specified
parameters on a regular time. Internal with high-precision real-time clock, each record with
a timestamp.
Time of use function(TOU)
The AFM-8A series has a powerful TOU function and up to 5 years of holiday setting
function. The user can be based on the local TOU price to settings for achieve energy
cumulative calculation.
2
Power quality event logging
AFM-8A series in the voltage sag, swell and over current events occur, will record the
time of the incident and the trigger conditions. It's up to 50,000 records of power quality
events.
Waveform records
AFM-8A series can record 8 groups of each phase voltage and current waveform data,
each cycle has 64 points sampling data of the record, the meter can record before and
after the 8 cycle waveform data from trigger conditions establish. The trigger conditions
can be setting by user, it's provided the data for power quality analyze.
1.2 AFM-8A series product features
Multi-function, high precision
AFM-8A multifunction meter series has a powerful data collection and processing ability,
can measure many power parameters, and demand calculation, harmonic analysis,
maximum / minimum values, event alarm, energy accumulation, data logging , TOU
function, power quality event logging and waveform recording.
Voltage and current measurement accuracy is 0.1%, power is 0.25% and energy is 0.5%.
Compact design, easy installation
The dimensions of the AFM-8A series conform to the IEC standard 92mm DIN square
shape, and thickness only 82mm. Installation by self-locking buckles without screws,
installation or removal are very convenient.
Intuitive display, easy to learn and use
3.5-inch large screen, high-brightness LCD display, the screen clear and the content
intuitive, easy to learn and use. All measurement data can be easily read through the panel
keys operation, the parameters can be set by the panel keys, also can be written by the
communication. The parameters setting and accumulated values are stored in the FRAM,
even if the power down is not lost. LCD brightness can be adjusted, and standby screen
brightness also can be set, allowing you to use in different environments.
Wiring flexible and convenient
Whether the system is high or low voltage, and whether it is single-phase or three-phase
, you can choose the appropriate wiring to meter connection. AFM-8A series support
multiple wiring method, can cover all the power system applications.
Safety, high reliability
AFM-8A series with multiple isolation and anti-interference design, can operating in high-
interference environment. The meter also approved by CE certification and IEC standards
of EMC testing.
3
1.3 AFM-8A series applications
• Energy management system
• Industry automation
• Power monitoring
• Power grid automation
• Intelligent Building
• Intelligent switchboard, switchgear
• Substation automation
4
2AO+4DI+4RO 2AO+8DI
2AO+4DI+4RO+LAN 2AO+8DI+LAN
Chapter 2 Installation
2.1 Exterior and dimensions
2.2 Meter installation
2.3 Meter connections and wiring
Terminal block
5

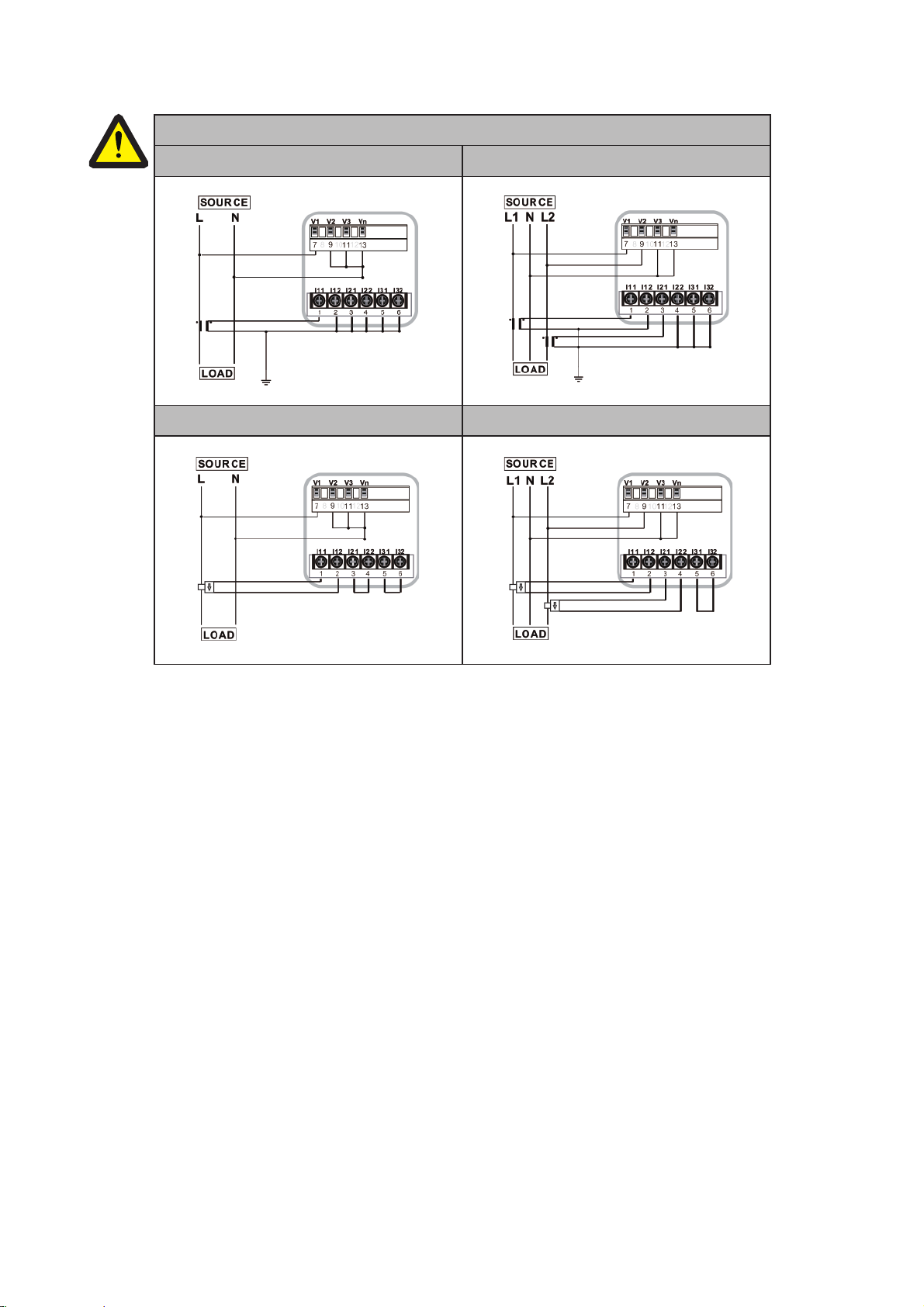

1 Phase
1P2W(0~1A/5A) 1P3W(0~1A/5A)
1P2W(0~333mV) 1P3W(0~333mV)
Voltage and current wiring (CT secondary side distinguishes 1A/5A and 333mV)
6
3P3W w/o PT
3CT(0~1A/5A) 2CT(0~1A/5A) 1CT(0~1A/5A)
3CT(0~333mV) 2CT(0~333mV) 1CT(0~333mV)
3P3W 2PT
3CT(0~1A/5A) 2CT(0~1A/5A) 1CT(0~1A/5A)
3CT(0~333mV) 2CT(0~333mV) 1CT(0~333mV)
Table of contents
Other ADTEK Measuring Instrument manuals
