Acrosser Technology AR-B6050 Installation guide

AR-B6050 Quick Manual

1 P/N:220010402-G

AR-B6050 Quick Manual V1.0

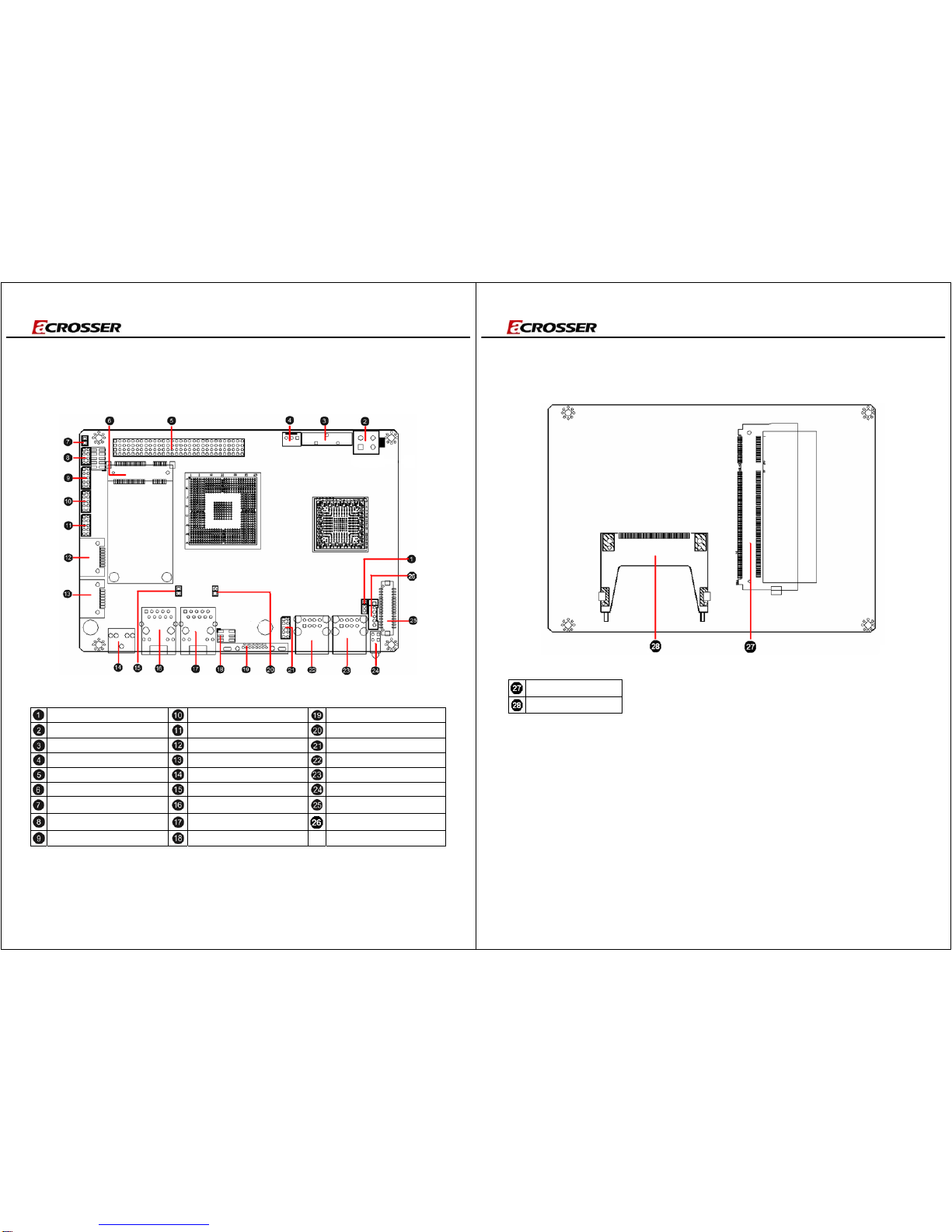

1. Main board illustration (Top Side)

JP1 COM1 VGA1

ATX1 COM2 J1

BAT1 SATA2 USB3

SYSFAN1 SATA1 USB1

CN2 CN4 USB2

CN3 JP3 LED1

JP2 LAN1 LVDS1

J7 LAN2 CN1

GPIO1 J6

AR-B6050 Quick Manual

2 P/N:220010402-G

Main board illustration (Bottom Side)

SODIMM1

AR-B6050 Quick Manual

3 P/N:220010402-G

2. Connectors and Jumper Settings

1. JP1: LCD panel driving

voltage selection. 2. ATX1: AT power input

connector. 3. BAT1: CMOS battery holder.

STATUS SETTING

1-2 +3.3V

(Default).

2-3 +5V

PIN SETTING

1 GND

2 GND

3 +12V

4 +12V

CMOS battery holder.

4. SYSFAN1: System DC

Fan connector. 5. CN2: PCI-104 connector. 6. CN3: MINI PCI-E connector.

PIN SETTING

1 GND

2 +12V

3 Fan speed data

PCI-104 connector.

MINI PCI-E connector.

7. JP2: Signal SERIRQ

connects to PCI-104 pin

#B1 selection.

8. J7: COM1/2 SELECT RI OR

+12V 9. GPIO1: GPIO connector.

STATUS SETTING

Open Disconnected.

(Default)

Short Connected.

PIN SIGNAL PIN SIGNAL

1 RI#1 2 RI#1_12V

3 +12V 4 RI#1_12V

5 RI#2 6 RI#2_12V

7 +12V 8 RI#2_12V

PIN SETTING PIN SETTING

1 GPIO0 2 +5V

3 GPIO1 4 GPIO7

5 GPIO2 6 GPIO6

7 GPIO3 8 GPIO5

9 GND 10 GPIO4

AR-B6050 Quick Manual

4 P/N:220010402-G

10. COM1: RS232 signal

connector for port #1. 11. COM2: RS232 signal

connector for port #2. 12. SATA1: SATA device

connector #1.

PIN SETTING PIN SETTING

1 DCD #1 2 DSR #1

3 RX #1 4 RTS #1

5 TX #1 6 CTS #1

7 DTR #1 8 RI #1

9 GND 10 GND

PIN SETTING PIN SETTING

1 DCD #2 2 DSR #2

3 RX #2 4 RTS #2

5 TX #2 6 CTS #2

7 DTR #2 8 RI #2

9 GND 10 GND

SATAdevice connector

#1.

13. SATA2: SATA device

connector #2. 14. CN4: Audio signal

connector. 15. JP3:CF MASTER

SELECT

SATAdevice connector #2.

Audio line out

SET SIGNAL

SHORT MASTER

OPEN SLAVE

16. LAN1: RJ45 connector for

Gigabit Ethernet port #1. 17. LAN2: RJ45 connector for

Gigabit Ethernet port #2. 18. J6: Front panel

connector.

RJ45 connector for Gigabit

Ethernet port #1.

RJ45 connector for

Gigabit Ethernet port #2.

STATUS SETTING

1-2 Hardware reset

3-4 AT Mode - Short

ATX Mode - Open

5-6 Power Button

AR-B6050 Quick Manual

5 P/N:220010402-G

19. VGA1: D-SUB-15 female

connector for VGA output.

20. J1: CMOS data clear 21. USB3: Internal USB2.0

connector

D-SUB-15 female

connector for VGA

output. SHORT CMOS data clear

PIN SETTING PIN SETTING

1+5V 2 +5V

3USB5- 4 USB6-

5USB5+ 6 USB6+

7GND 8 GND

9GND 10 GND

22. USB1: USB connector 23. USB2: USB connector 24. LED1: System power and

HDD access indicators.

Upper: Port #2.

Lower: Port #1.

Upper: Port #4.

Lower: Port #3.

Green: System power

indicator.

Yellow: HDD access

indicator.

25. LVDS1: LCD panel inverter

power connector. 26. CN1: LCD panel inverter

power connector.

PIN SETTING PIN SETTING

1 LCD VDD 2 GND

3 NC 4 NC

5 GND 6 NC

7 NC 8 GND

9 NC 10 NC

11 NC 12 NC

13 NC 14 NC

15 GND 16 O CLK+

17 CLK- 18 GND

19 Data2+ 20 Data2-

21 I2C CLK 22 Data1+

23 Data1- 24 I2C Data

25 Data0+ 26 Data0-

27 NC 28 NC

29 LCD VDD 30 LCD VDD

PIN SETTING

1 +12V

2 +12V

3 GND

4 BKL ON

5 GND

6 Reserved.

AR-B6050 Quick Manual

6 P/N:220010402-G

27. DIMM1: DDR-II SODIMM

Socket. 28. CF1: Type-II compact flash

card socket.

DDR-II SODIMM

Socket.

+3.3V CF card only and

UDMA mode supported.
