ZKTeco AL30Z User manual
Installation Guide
AL30Z & AL40Z
Version: 1.1
Note: To ensure proper functioning of the lock, use
the correct set of screw C as per your door thickness.
16.5mm
30mm
35mm
1. What’s In the box
Outdoor unit Indoor unit
Latch
Gasket
Strike
box
Mounting
plate
Screw A Screw B
Keys
Screw C For door thickness
Strike
plate
Screw length
35-40mm
40-50mm
50-53mm
1
Outdoor unit
2. Installation Diagram (AL30Z)
Battery cover
Latch
Screw B
Door
Screw C
Gasket
Strike box
AAAlkaline
Screw A
2
(not included)
Battery
unit
Indoor
Left inward Right inward
Left outward Right outward
Door opening direction recognition.
3. Installation steps
Important notes.
The handle of the door is determined by the swing (handing) direction of the door. Below is the graphical
representation of handing in reference to your location outside the room.
Please read all the in this manual or call customer care before returning the product to the store.
Whenever you install this lock on any door, you must perform the initialization process just after the
installation as described in Initialization step on page 10.
3
Standpoint
instructions
Drilling holes in the door.
4
1. Paste the installation template at a desired handle height.
2. Mark the holes and start drilling the holes.
Handle center-line
35mm - 53mm
60mm
60mm backset
Press the bolt inside the latch Pull-out the faceplate
70mm backset
Adjust the backset of the lock to 70mm (if needed).
5

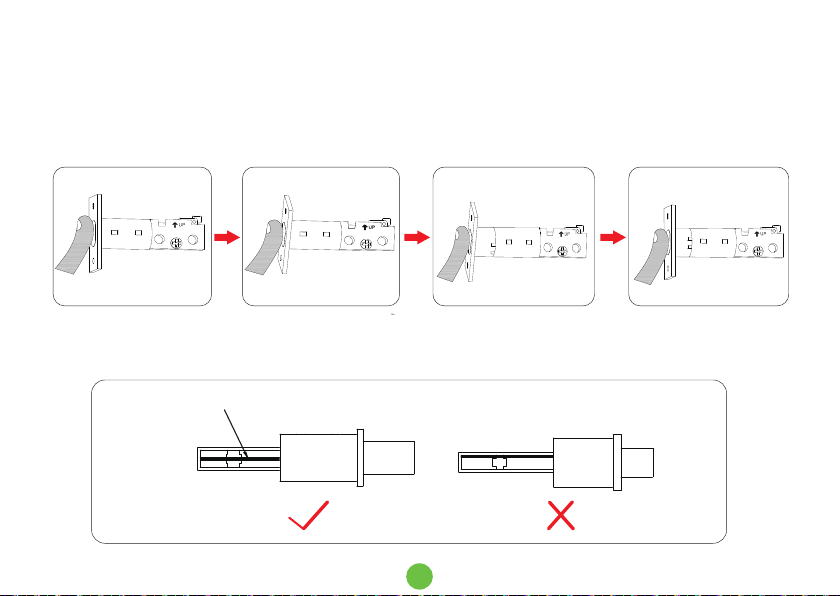

By default, the metal wire runs over the center as shown:
Backset is the distance from the edge of the door to the center of the hole drilled on the door.
The default backset is 60mm, if you want to change the backset to 70mm backset, grasp body and twist
faceplate as shown below:
By default, the metal wire runs over the center as shown:
Rotate the faceplate Rotate it back
Before installing the latch,
make sure the latch bolt is in
extended (Locked) position
and the UP arrow direction is
facing upwards.
UP
6
Installing the latch.
Secure the latch by inserting the screws B.
11
2
Installing outdoor unit on the door.
7
21
Firstly route the cable under the bolt through the
drilled hole. Then attach the outdoor unit to the
door by inserting it through the drilled hole.
Note:
If the direction of the door is right hand,the rotate
the highlighted spindle to the extreme right and if
the door is left hand then rotate it to the extreme
left.
Turn left
Left open
Right open
Turn right
Before inserting the unit inside the door, make sure
the highlighted spindle is in the vertical position as
shown.
Installing mounting plate with gasket on the door.
8
Attach the mounting plate to the gasket and route
the cable through the hole on the mounting plate
and gasket.
Place the gasket and mounting plate on to
the door and use screws C to secure them.
1 2
Installing the indoor unit.
9
2
Connect the cable connector to the port on
indoor unit.
Place the indoor unit properly on the mounting plate,
push and adjust the excess cable to the left. Then use
screws A to secure indoor unit. The knob dot must be in
direction of bolt.
Adjust and push the
cable to the left.
1
