SAFETY INFORMATION

Before beginning the installation and use of this appliance,

carefully read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the result of

incorrect installation or usage. Always keep the instructions in a

safe and accessible location for future reference.

- Read the supplied instructions.

CHILDREN AND VULNERABLE PEOPLE SAFETY

WARNING!

Risk of suffocation, injury or permanent disability.

•This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning the use of the

appliance in a safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons with very

extensive and complex disabilities shall be kept away from the

appliance unless continuously supervised.

•Children of less than 3 years of age should be kept away from

the appliance unless continuously supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of it

appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when the door

is open.

•If the appliance has a child safety device, it should be activated.

•Children shall not carry out cleaning and user maintenance of

the appliance without supervision.

GENERAL SAFETY

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine, use the

stacking kit. The stacking kit, available from your authorized

vendor, can be used only with the appliance specified in the

instructions supplied with the accessory. Read it carefully

before installation (refer to the Installation leaflet).

•The appliance can be installed as freestanding or below a

kitchen counter with correct space (refer to the Installation

leaflet).

•Do not install the appliance behind a lockable door, a sliding

door or a door with a hinge on the opposite side, that would

prevent the appliance door from being fully open.

•The ventilation opening in the base must not be covered by a

carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied through an

external switching device, such as a timer, or connected to a

circuit that is regularly switched on and off by a utility.

•Connect the mains plug to the mains socket only at the end of

the installation process. Make sure that the mains plug is

accessible after installation.

•If the mains power supply cable is damaged, it must be

replaced by the manufacturer, its Authorised Service Centre or

similarly qualified persons to avoid an electrical hazard.

•Do not exceed the maximum load of 8 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled with

industrial chemicals.

•Wipe away lint or packaging debris that has accumulated

around the appliance.

•Do not run the appliance without a filter. Clean the lint filter

before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as cooking

oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot

water with an extra amount of detergent before being dried in

the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in the

tumble dryer.

•Fabric softeners, or similar products, should only be used as

specified by the product manufacturer’s instructions.

•Remove all objects from items that could be a source of fire

ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly removed and spread

out so that the heat is dissipated.

•Before any maintenance operation, deactivate the appliance

and disconnect the mains plug from the socket.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with

the appliance.

• Always take care when moving the appliance as

it is heavy. Always use safety gloves and

enclosed footwear.

• Do not install or use the appliance where the

temperature can be lower than 5°C or higher

than 35°C.

• The floor area on which the appliance is to be

installed must be flat, stable, heat resistant and

clean.

• Make sure that there is air circulation between

the appliance and the floor.

• Always keep the appliance vertical when it is

being moved.

• The rear surface of the appliance must be put

against a wall.

• When the appliance is in its permanent position,

check if it is levelled correctly with the aid of a

spirit level. If it is not, adjust the feet accordingly.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electric

shock.

• Connect the mains plug to the mains socket

only at the end of the installation. Make sure that

there is access to the mains plug after the

installation.

• The appliance must be earthed.

• Make sure that the parameters on the rating

plate are compatible with the electrical ratings

of the mains power supply.

• Always use a correctly installed shockproof

socket.

• Do not use multi-plug adapters and extension

cables.

• Do not pull the mains cable to disconnect the

appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug

with wet hands.

• This appliance complies with the E.E.C.

Directives.

USE

WARNING! Risk of injury, electric

shock, fire, burns or damage to the

appliance.

• This appliance is for household use only.

• Do not dry damaged (torn, frayed) items that

contain padding or fillings.

• Only dry fabrics which are suitable for drying in

a tumble dryer. Follow the instructions on the

fabric label.

• If you have washed your laundry with a stain

remover start an extra rinse cycle before you

start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can cause

health problems to people and pets.

• Do not sit or stand on the open door of the

appliance.

• Do not dry dripping wet clothes in a tumble

dryer.

CARE AND CLEANING

WARNING! Risk of injury or damage

to the appliance.

• Do not use water spray and steam to clean the

appliance.

• Clean the appliance with a moist soft cloth. Only

use neutral detergents. Do not use any abrasive

products, abrasive cleaning pads, solvents or

metal objects.

• To prevent damage to the cooling system be

careful when you clean the appliance.

COMPRESSOR

WARNING! Risk of damage to the

appliance.

• The compressor and its system in the tumble

dryer is filled with the special agent which is free

from fluoro-chloro-hydrocarbons. This system

must stay tight. The damage of the system can

cause a leakage.

DISPOSAL

WARNING! Risk of injury or

suffocation.

• Disconnect the appliance from the mains

electrical and water supplies.

• Cut off the mains electrical cable close to the

appliance and dispose of it.

• Remove the door catch to prevent children or

pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with

local requirements for the disposal of Waste

Electrical and Electronic Equipment (WEEE).

EASY START

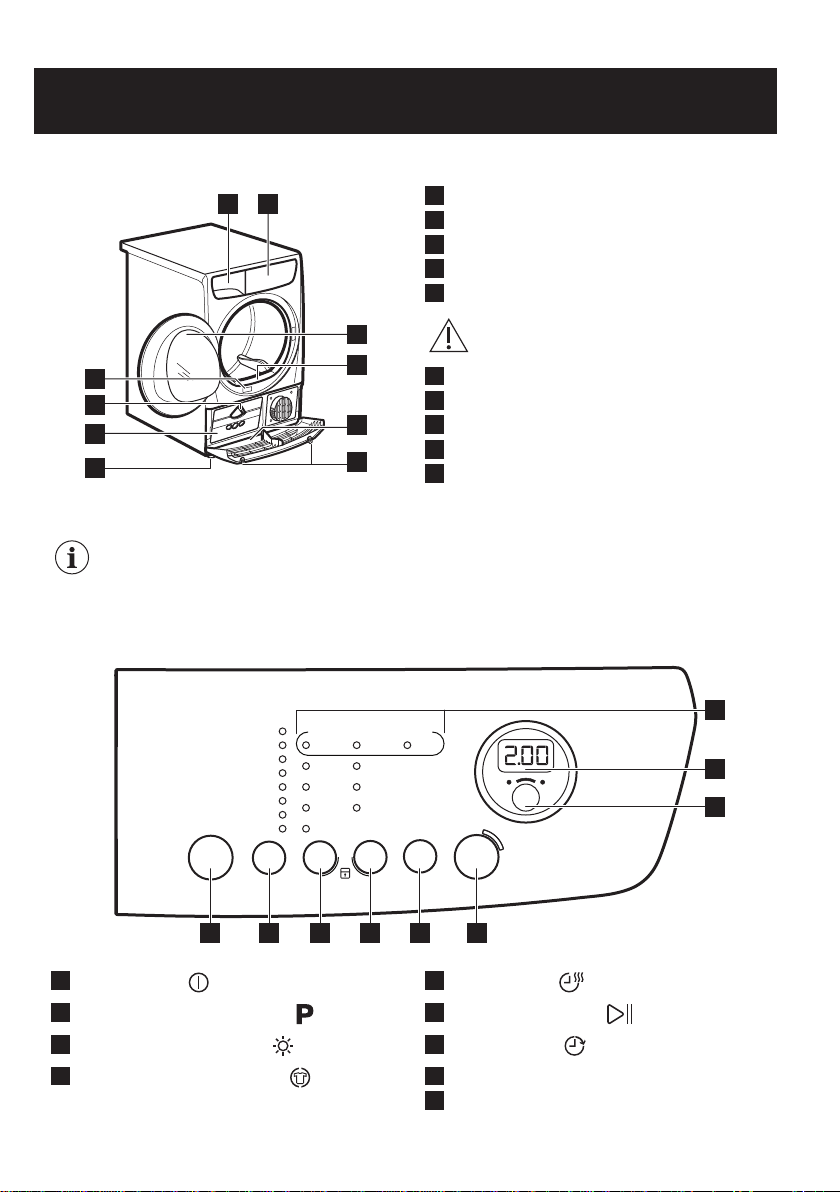

PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Primary Filter

5Bottom cover with the airflow slots

WARNING! Do not put any object

on the bottom cover

6Buttons to open the bottom cover

7Adjustable feet

8Heat exchanger door

9Knob to lock the heat exchanger door

10 Rating plate

For ease of loading laundry or ease of

installation the door is reversible. (see

separate leaflet).

CONTROL PANEL

1 2 3 4 65

1On / Off button

2Programme selection touchpad

3Dryness selection touchpad

4Anticrease selection touchpad

5Time touchpad

6Start/Pause touchpad

7Delay touchpad

8Display

9Indicators

Press the touch buttons with your

finger in the area with the symbol or

name of the option. Do not wear

gloves when you operate the control

panel. Make sure that the control panel

is always clean and dry.

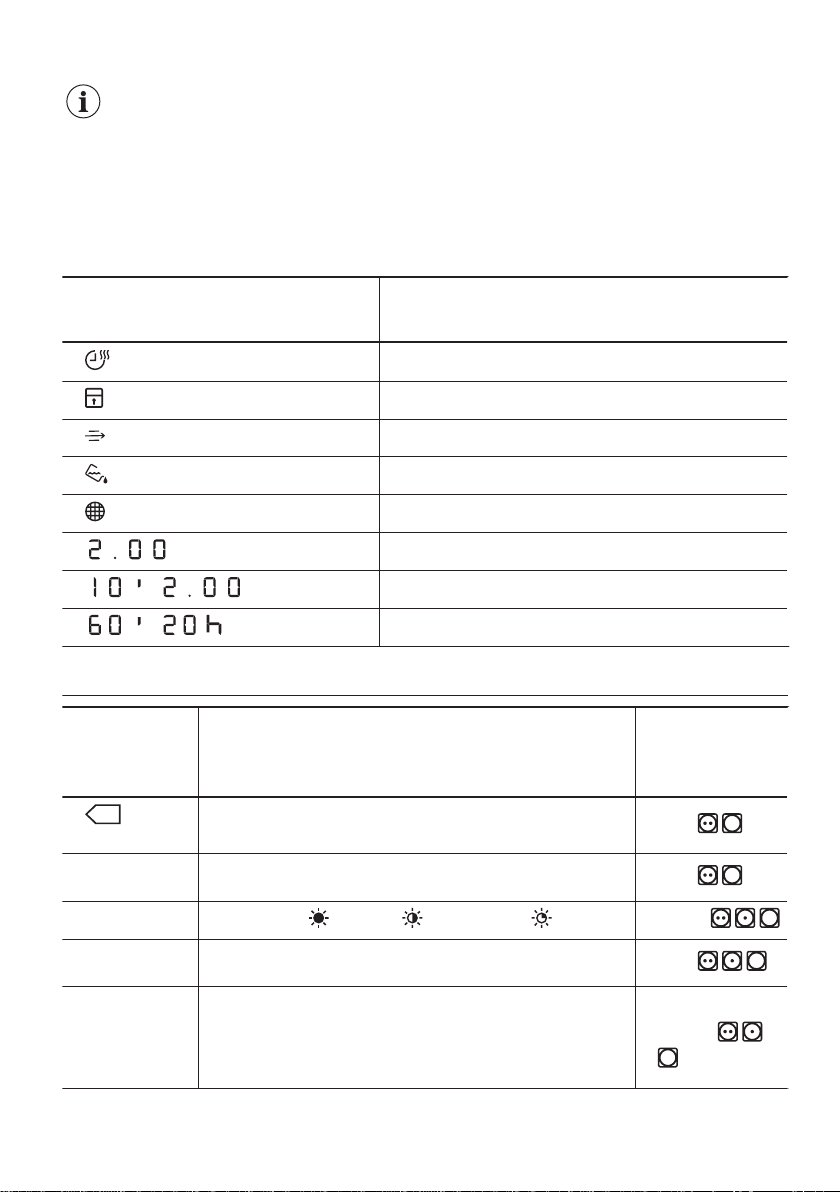

Indicators

Indicators Description

Time Drying

Child lock

Condenser

Water container

Filter

Programme duration

- Time Drying duration

- Delay start duration

PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

2) Cottons

Eco

Cycle to be used to dry cotton with "cotton cupboard" dry-

ness level, with maximum energy saving. 8kg/

Cottons Cycle defined to dry all types of cotton ready to store (cup-

board dry). 8kg/

Synthetics Drying level: Extra Dry, Cupboard Dry, Iron Dry 3,5kg/

Mix Cotton and synthetic fabrics. Low temperature programme.

Delicate programme with warm air. 3kg/

Easy Iron+

Easy care fabrics for which a minimum of ironing is neces-

sary. The drying results can be different from one type of

fabric to another. Shake the items before putting them in

the appliance. When the programme has ended, immediate-

ly remove the items and put them on a hanger.

1kg (or 5

shirts)/

Programmes Type of load Load (max.)1) /

Fabric mark

Duvet Single or double duvets and pillows (with feather, down or

synthetic fillings). 3kg/

Refresh Refreshing textiles that were in storage. 1kg

Time Drying With this programme you can use the Time option and set

the programme duration. 8kg/

1) The maximum weight refers to dry items.

2) The Cottons Cupboard Dry ECO programme is the “Standard cotton programme” according to

Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the

most efficient programme in terms of energy consumption for drying wet cotton laundry.

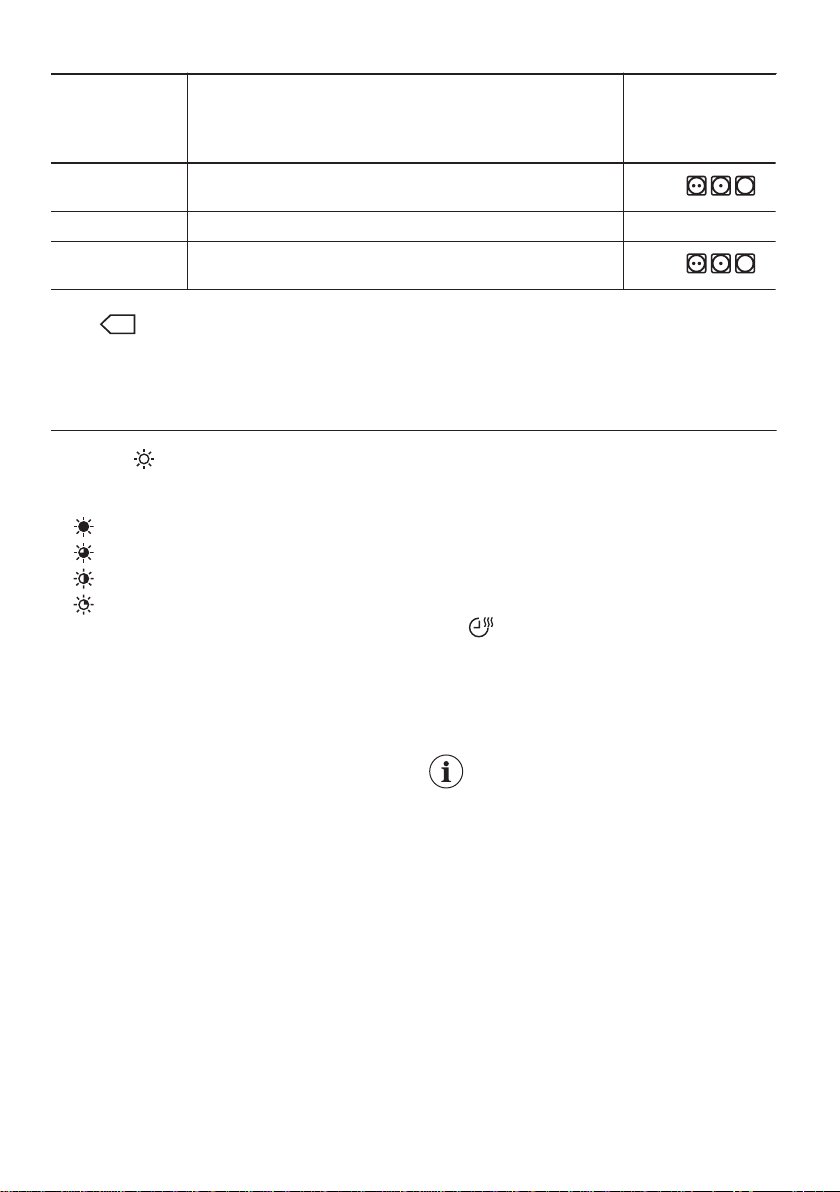

OPTIONS

DRYNESS

This function helps to get the laundry more dried.

There are 4 possible selections:

• Extra Dry

• Strong Dry (for Cotton only)

•Cupboard Dry

• Iron Dry

ANTICREASE 90 MIN

Extends the anti-crease phase by 60 minutes at the

end of the drying cycle. This function reduces

creases. The laundry can be removed during the

anti-crease phase.

ANTICREASE 60 MIN

Extends of 30 minutes the standard anticrease

phase (30 minutes) at the end of the drying cycle.

This function prevents the laundry from creases.

The laundry can be removed during the anticrease

phase.

ANTICREASE 30 MIN

Anticrease phase (30 minutes) at the end of the

drying cycle. This function prevents the laundry

from creases. The laundry can be removed during

the anticrease phase.

TIME

This option is applicable only to the Time Drying

programme. You can set the programme duration,

from a minimum of 10 minutes to a maximum of 2

hours. The setting of the duration is related to the

quantity of laundry in the appliance.

We recommend that you set a short

duration for small quantities of laundry

or for only one item.

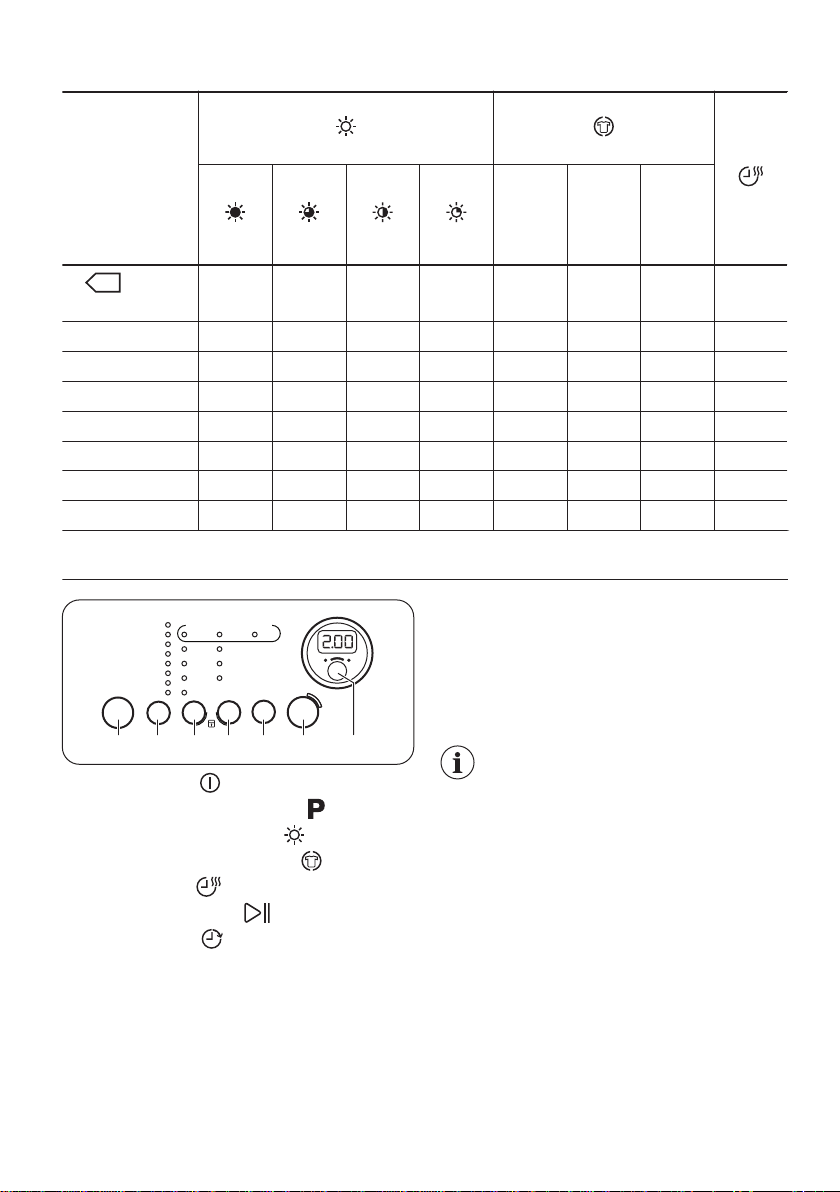

OPTIONS TABLE

Programmes Anti-

crease

90 min

Anti-

crease

60 min

Anti-

crease

30 min

Cottons

Eco ■■ ■ ■

Cottons ■ ■ ■ ■ ■ ■ ■

Synthetics ■■ ■ ■ ■ ■

Mix ■■ ■ ■

Easy Iron+ ■ ■ ■ ■

Duvet ■

Refresh ■ ■ ■

Time Drying ■ ■ ■ ■

SETTINGS

A B C D GE F

A. On / Off button

B. Programme selection touchpad

C. Dryness selection touchpad

D. Anticrease selection touchpad

E. Time touchpad

F. Start/Pause touchpad

G. Delay touchpad

CHILD LOCK FUNCTION

This option prevents children to play with the

appliance while a programme operates. The

programme knob and the touchpads are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the

appliance.

2. Wait approximately 8 seconds.

3. Press and hold touchpads (C) and (D) at the

same time. The child lock indicator comes on.

The child lock indicator comes on.

It is possible to deactivate the child

lock option while a programme

operates. Press and hold the same

touchpads until the child lock indicator

goes off.

BUZZER ON/OFF

To deactivate or activate the acoustic signals, press

and hold for approximately 2 seconds touch

buttons (B) and (C) at the same time.

ADJUSTMENT OF THE REMAINING LAUNDRY

MOISTURE DEGREE

To change the default degree of the remaining

moisture of the laundry:

1. Press the on/off button to activate the

appliance.

2. Wait approximately 8 seconds.

3. Press and hold buttons (B) and (D) at the same

time.

One of the these indicators comes on:

•the maximum dry laundry

• the more dry laundry

• the standard dry laundry

4. Press the button (F) again and again until the

indicator of the correct level comes on.

5. To confirm the adjustment, press and hold

buttons (B) and (D) at the same time for

approximately 2 seconds.

BEFORE FIRST USE

Before you use the appliance for the first time:

• Clean the tumble dryer drum with a moist cloth.

• Start a 1 hour programme with moist laundry.

At the beginning of the drying cycle

(first 3-5 min) there could be a slightly

higher sound level. This is due to the

compressor starting up. This is normal

for compressor powered appliances

such as refrigerators and freezers.

DAILY USE

START A PROGRAMME WITHOUT DELAY

START

1. Prepare the laundry and load the appliance.

CAUTION! Make sure that when

you close the door, the laundry

does not get caught between the

appliance door and the rubber

seal.

2. Press the on/off button to activate the

appliance.

3. Set the correct programme and options for the

type of load.

The display shows the programme duration.

The drying time you see on the display,

when the cotton programme is

selected, is related to the load of 5 kg

and standard conditions . Real drying

time will depend on type of the load

(quantity and composition), the room

temperature and the humidity of your

laundry after spin drying phase.

4. Press the Start/Pause touch button.

The programme starts.

STARTING THE PROGRAMME WITH DELAY

START

1. Set the correct programme and options for the

type of load.

2. Press the delay start button again and again

until the display shows the delay time you want

to set.

You can delay the start of a

programme from a minimum of 60

minutes to a maximum of 20

hours.

3. Press the Start/Pause touchpad.

The display shows the countdown of the delay

start.

When the countdown is completed, the programme

starts.

CHANGE A PROGRAMME

1. Press the on/off button to deactivate appliance

2. Press the on/off button to activate the

appliance.

3. Set the programme.

STAND-BY FUNCTION

To decrease the energy consumption, this function

automatically deactivates the appliance:

• After 5 minutes if you do not start the

programme.

• After 5 minutes from the end of the programme.

AT THE END OF THE PROGRAMME

When the programme is completed:

• An intermittent acoustic signal operates.

• The indicator flashes.

• The indicators Filter and Tank comes on.

• The Start/Pause indicator is on.

The appliance continues to operate with the crease

guard phase for approximately other 30 minutes.

Table of contents

Other Zanussi Dryer manuals

Zanussi

Zanussi 864512 Instruction manual

Zanussi

Zanussi ZTE 171 User manual

Zanussi

Zanussi TD 523 User manual

Zanussi

Zanussi ZTE 280 User manual

Zanussi

Zanussi TCE7145 User manual

Zanussi

Zanussi ZTE283 User manual

Zanussi

Zanussi ZDC 5370 W User manual

Zanussi

Zanussi TC 450 User manual

Zanussi

Zanussi TC7103W User manual

Zanussi

Zanussi TDS360T User manual

Zanussi

Zanussi ZDC8202P User manual

Zanussi

Zanussi TD 513 User manual

Zanussi

Zanussi TD 524 User manual

Zanussi

Zanussi ZTE 250 User manual

Zanussi

Zanussi TD184 User manual

Zanussi

Zanussi ZI 935 Operating and safety instructions

Zanussi

Zanussi ZTE 273 User manual

Zanussi

Zanussi TD250 User manual

Zanussi

Zanussi ZTB 200 User manual

Zanussi

Zanussi TDE 4224 User manual

Zanussi

Zanussi TD 4213 W User manual

Zanussi

Zanussi TDE 4224 W User manual

Zanussi

Zanussi TCS 674 E Quick guide

Zanussi

Zanussi TC7102S User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
