Zanussi TC7102S User manual

TUMBLE DRYER

TC 7102 W

TC 7102 S

DRYING TIME

COTTON SYNTHETICS

STORE DRY

Spun at rpm

kg 6

kg 2.5

IRON DRY

Spun at rpm

kg 2.5

kg 1

STORE DRY

800 / 900

95'- 115'

45'- 60'

1000 / 1200

85'- 105'

40'- 55'

800 / 900

120'-140'

60'- 75'

1000 / 1200

95'- 115'

55'- 70'

650

65'- 75'

30'- 40'

AUTOREVERSE

LOW

TEMP. START

TC 7102 W

CONDENSER DRYER

DUAL TEMPERATURE

XTRACAPACITY

INSTRUCTION BOOKLET

125993251

Unpacking: see page 14

125993251.qxd 10/14/02 8:51 AM Pagina 1 (Nero/Process Black pellicola)

Installation

•This appliance is heavy. Care should be taken when

moving it.

•It is dangerous to alter the specifications or attempt

to modify this product in any way.

•Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

•Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

•If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

•If the tumble dryer is placed on top of a washing

machine, it is compulsory to use the stacking kit

(optional accessory).

Child Safety

•This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the

controls or play with the product.

•Pets and children have been known to climb into

tumble dryers. Please check your drum before use.

•Keep all packaging well away for children.

Use

•Do not overload the appliance (see programme

chart).

•Clothes which are dripping wet should not be

placed in the dryer.

•As some bulky items such as duvets and

eiderdowns should be dried in large commercial

machines because of their bulk, check with the

manufacturer of the item if it is suitable for drying

in a domestic machine, even if the dry weight of

the item is within the limit advised.

•Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substance are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

•In order to avoid danger of fires caused by

excessive drying, do not use appliance to dry the

following items:

Cushions, quilts and the like (these items

accumulate heat).

Items containing rubber foam or materials similar

to rubber foam.

•Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

•Clean fluff filters after using tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filters are damaged.

•Do not allow fluff to accumulate around the dryer.

•Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Zanussi Service

Centre. Always insist on genuine Zanussi spare

parts.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for

future reference. Should the appliance be sold or transferred to another owner, or should

you move house and leave the appliance, always ensure that the book is supplied with the

appliance in order that the new owner can get to know the functioning of the appliance

and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully

before installing or using the appliance.

125993251.qxd 10/14/02 8:51 AM Pagina 2 (Nero/Process Black pellicola)

For the User

Important Safety Information

•Installation 2

•Child Safety 2

•Use 2

Your New Tumble Dryer

Description of the Appliance

The Control Panel

•Programme Chart 5

•Mains-on Light 5

•Low Temperature Button 5

•Start Button 5

•Water Full Indicator Light 5

•Time Selector Dial/On-Off Switch 5

Programme Chart

Operating Sequence

Hints & Tips on Drying

Maintenance and Cleaning

•External cleaning 9

•Cleaning the door 9

•Cleaning fluff filters 9

•Cleaning the condenser unit 9

•Emptying the water reservoir 10

•Cleaning the air intake grille 10

Something Not Working

Customer Care

Guarantee Conditions

For the Installer

Installation Instructions

Technical Specifications

•Unpacking 14

•Positioning 14

•Stacking kit (optional accessory) 14

•Door reversal 14

•Electrical connection 14-15

Contents

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

125993251.qxd 10/14/02 8:51 AM Pagina 3 (Nero/Process Black pellicola)

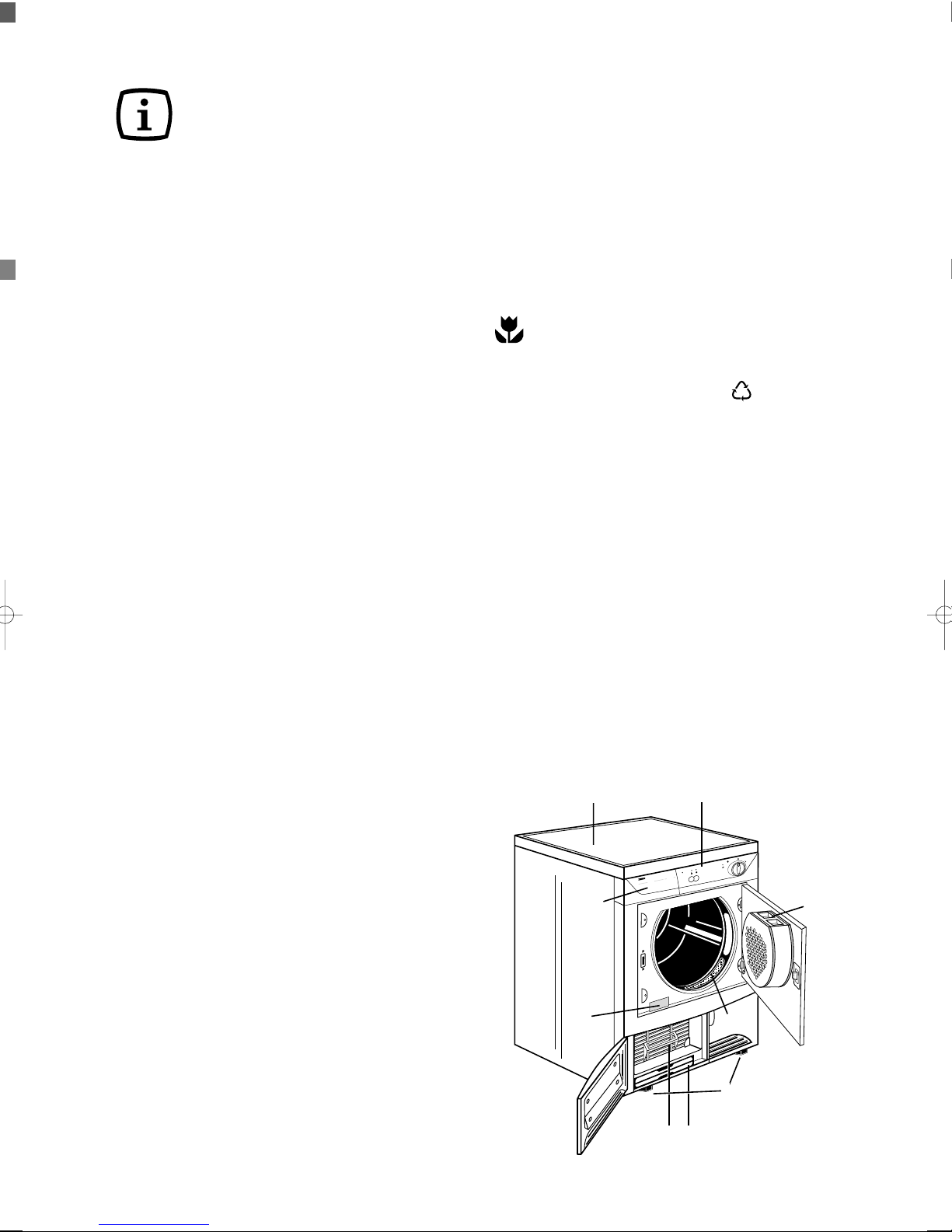

Description of the Appliance

1 Worktop

2 Programme chart

3 Control panel

4 Fluff filters

5 Rating Plate

6 Condenser unit

7 Water reservoir

8 Adjustable feet

DRYING TIME

TC 7102 W

CONDENSER DRYER

DUAL TEMPERATURE

TRA

APACITY

AUTOREVERSE

800 / 900

95'- 115'

45'-60'

1000 / 1200

85'-10

40'-5

800 / 900

120'-140'

60'-7

1000 / 1200

95'-1

15'

55'-70'

650

65'-75'

30'-40'

COTTONSYNTHETICS

STORE DRY

Spun at rpm

kg 6

kg 2.5

IRON DRY

Spun at rpm

kg 2.5

kg 1

STORE DRY

LOW

TEMP.

START

This tumble dryer will give your wash that soft, relaxed feel whatever

the weather.

Extremely high quality standards both during development and

manufacturing guarantee a long service life for your appliance.

Maximum economy in the operation of your dryer is achieved through

very frugal electricity consumption and short drying times.

Your New Tumble Dryer

In the interest

of the environment

•Materials marked with the symbol are

recyclable.

•Check with your local Council or Environmental

Health Office to see if there are facilities in your

area for re-cycling this appliance.

•When the appliance is to be scrapped, cut off the

power supply cable and make the door closing

device unusable to prevent young children from

being trapped inside.

•Help to keep your country tidy - use authorised

disposal sites for your old appliance.

How do we help to protect the

environment? We use recycled paper!

Energy saving tips

To save energy we recommend that you follow these

hints:

•Try to load the maximum capacity of the machine

as small loads are uneconomical.

•Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

•Do not over-dry laundry, this avoids creasing and

saves energy.

•Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

•Ventilate the room well. The room temperature

should not exceed +35°C during drying.

125993251.qxd 10/14/02 8:51 AM Pagina 4 (Nero/Process Black pellicola)

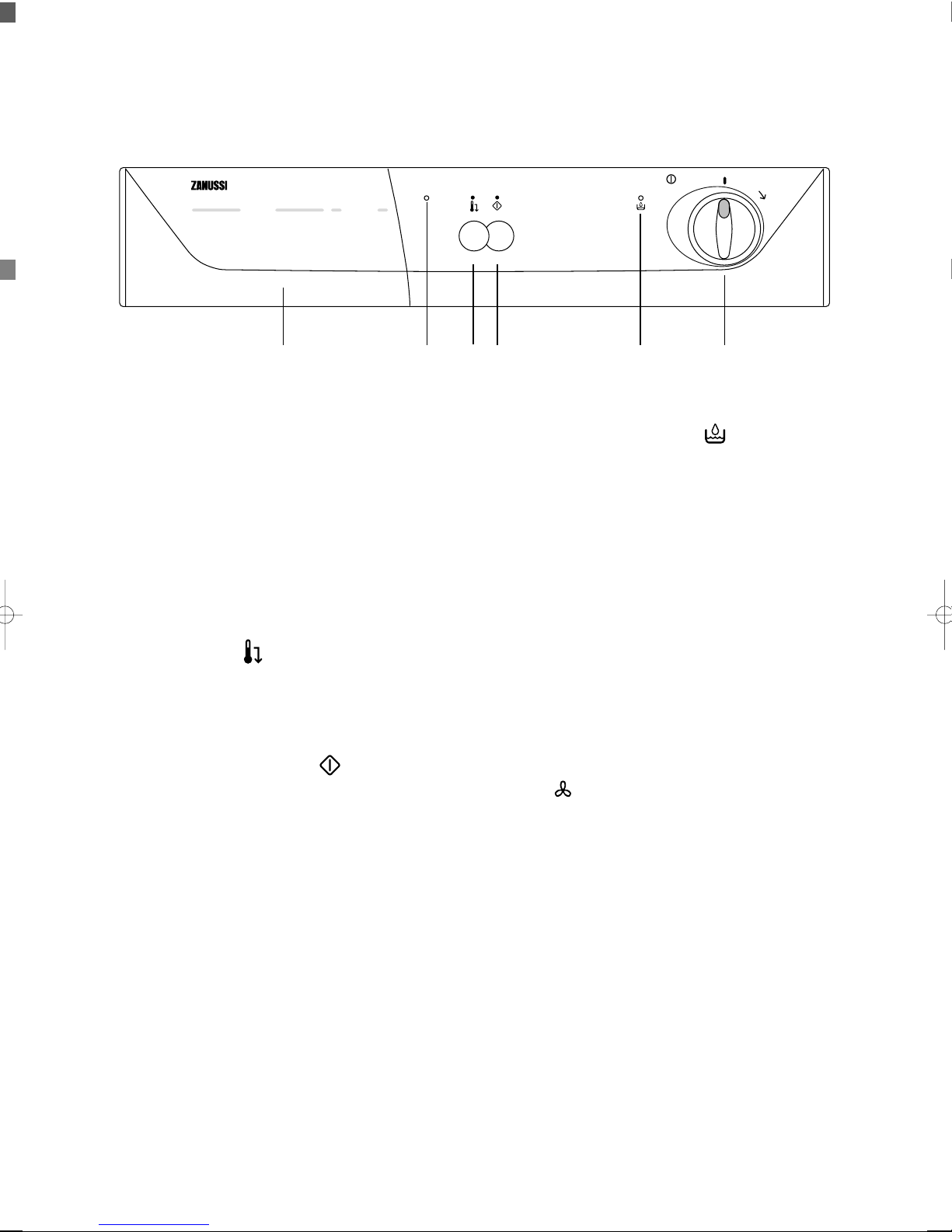

The Control Panel

1 Programme Chart

This will help you to select the correct time for

drying.

2 Mains-On Light

This lights up when the machine starts operating and

goes out when the selector dial is on position “0” and

when you open the door of the appliance or the small

door covering the condenser and the water reservoir.

3 Low Temperature

Button

Press this button to reduce the temperature when

drying particularly delicate cotton or linen items.

In this case you should select a longer drying time.

4 Start button

Press this button to start the dryer after having

selected the programme.

If the door of the appliance is opened while the

programme is running, this button must be pressed

again after closing the door in order to restart the

programme from the point at which it was

interrupted.

Water Full

Indicator Light

This light illuminates when the reservoir is full or

improperly fitted.

6 Time Selector Dial /

On Off Switch

The selector dial incorporates two drying cycles, one

of up to 150 minutes at a high temperature for cotton

and linen, and one of up to 100 minutes at a low

temperature for synthetic fabrics. To set the machine

to the selected time, turn the dial clockwise until the

time you want coincides exactly with the pointer.

NEVER attempt to turn the dial in an

anticlockwise direction.

When selecting the drying time you should

remember that it includes a 10 minute cooling phase

(position on the dial).

This phase should not be shortened, stopped or

avoided, as this could cause skin burns or damages to

the laundry.

DRYING TIME

TC 7102 W

CONDENSER DRYER

DUAL TEMPERATURE

XTRACAPACITY

1 2 3 4 5 6

AUTOREVERSE

800 / 900

95' - 115'

45' - 60'

1000 / 1200

85' - 105'

40' - 55'

800 / 900

120' - 140'

60' - 75'

1000 / 1200

95' - 115'

55' - 70'

650

65' - 75'

30' - 40'

COTTON SYNTHETICS

STORE DRY

Spun at

kg 6

kg 2.5

IRON DRY

Spun at

kg 2.5

kg 1

STORE DRY

LOW

TEMP.

START

125993251.qxd 10/14/02 8:51 AM Pagina 5 (Nero/Process Black pellicola)

Programme Chart

Attention! Please follow the instructions on labels when drying mixed fabrics.

Drying times are given as a guide only and vary according to the size of the load, the type of laundry, the degree

of spinning prior to drying.

Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.

Experience will soon enable you to estimate the drying time needed for your usual laundry loads. It is advisable

to take note of them.

Size of load

It is not necessary to weigh the laundry, if these instructions are followed:

• Cottons, linen: full drum, but not overloaded.

• Synthetics: half drum.

For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most delicate

fabrics and then increase it by approx 10 mins.

Cottons

Selector dial up to 150 minutes (high temperature section)

Type of laundry

Cotton

Towelling

Shirts

Sheets

Hand towels

Tablecloths

Table napkins

Degree of drying

Store dry

(wardrobe dry)

6 kg 120 - 140 95 - 115

2.5 kg 60 - 75 55 - 70

6 kg 95 - 115 85 - 105

2.5 kg 45 - 60 40 - 55

Iron dry

(not completely dry;

suitable for ironing)

Amount

of laundry

Drying time in minutes for

laundry spun at

800/900 rpm 1000/1200 rpm

Synthetics

Selector dial up to 100 minutes (low temperature section)

Type of laundry

Synthetics or mixed fabrics

which do not require

ironing.

Degree of drying

Store dry

2.5 kg 65 - 75

30 - 401 kg

Amount of laundry Drying time in minutes for laundry

spun at a minimum speed of 650 rpm

125993251.qxd 10/14/02 8:52 AM Pagina 6 (Nero/Process Black pellicola)

Operating Sequence

Before using your tumble dryer for the first time, we

recommend you place a few damp cloths inside the

appliance and dry for 20 minutes.

There may be dust inside a brand new tumble dryer.

Drying

1. Connect the appliance.

2. Open the door.

3. Load the items one at a time, shaking them out

loosely.

4. Close the door. Please check the laundry does not

get caught between the door and filter.

5. Select the drying time by turning the Time

Selector Dial clockwise.

6. If required, press the Low Temperature Button .

7. Press the Start Button : the machine starts

operating. The mains-ON light comes on.

The drum turns alternately in both directions

during drying.

All drying programmes end with a 10 minute

cooling phase (position on selector dial).

The machine stops automatically at the end of this

phase. The mains-on light goes out.

8. Immediately remove the laundry.

P1108

P1149

After each use

• Clean the filters (see page 9).

• Empty the water reservoir (see page 10).

Important!

If the drying programme has to be stopped before it

reaches the end, we recommend that you turn the

Time Selector Dial to position (cooling) and wait

until the end of this phase before removing the

laundry. This will avoid a build-up of heat inside the

appliance.

Modifying the programme

To change a programme which is running, turn the

Time Selector Dial clockwise to the required position.

125993251.qxd 10/14/02 8:52 AM Pagina 7 (Nero/Process Black pellicola)

Before placing articles of laundry in your tumble

dryer, check the care labels to ensure they are

recommended for tumble drying.

Care Labels you may find on your laundry

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

Do not overload the appliance.

Here is a list of the approximate weight of some

common laundry items.

Sheet 700 to 1000 g

Pillowcase 100 to 200 g

Tablecloth 400 to 500 g

Table Napkin 50 to 100 g

Kitchen Towel 70 to 120 g

Linen Hand Towel 100 to 150 g

Hand Towel 150 to 250 g

Bath Towel 700 to 1000 g

Bathrobe 1000 to 1500 g

Shirt 200 to 300 g

Apron 150 to 200 g

•Always load well spun laundry. The higher the spin

speed the lower the electricity consumption and the

shorter the drying time.

•DO NOT load dripping wet laundry into the dryer.

Roll the article in a towel or spin to remove excess

water.

•Close poppers and zips and fasten any buttons.

•Sort the laundry. Separate synthetics from

cotton/linens, and dry separately.

•Remove the laundry immediately after the

programme has finished.

•Use a fabric conditioning sheet to reduce static. We

recommend the sheet is pinned to an article of

laundry (using a safety pin).

•Mix the load i.e. large and small articles.

•When drying large items such as sheets, we

recommend you periodically stop the dryer to

redistribute the load.

DO NOT use the tumble dryer to dry the following:

•Articles contaminated with inflammable substances

e.g. petrol, cleaning solvents, cooking oil, fats or

hair lacquer.

•Woollen and synthetic/wool mixtures unless the

item is labelled as suitable for tumble drying.

•Very delicate articles such as silk.

•Very large and bulky items such as duvets or

sleeping bags.

Hints & Tips on Drying

125993251.qxd 10/14/02 8:52 AM Pagina 8 (Nero/Process Black pellicola)

You must disconnect the appliance from the

electricity supply, before you can carry out any

cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly.

Important: do not use methylated spirit, diluents or

similar products.

Cleaning the door

Clean periodically the interior part of the door to

remove any fluff from the seals around the filter.

Regular cleaning ensures correct drying.

Cleaning the filters

Your dryer will only function well if the filters are

clean.

The filters collect all the fluff which accumulates

during drying and they must therefore be cleaned at

the end of each programme, before removing the

laundry, with a damp cloth.

The filter in the inner door must be removed for

cleaning.

Do not be alarmed by the amount of fluff. It is not

due to excessive wear caused by the dryer. All fabric

looses fluff when drying but it goes un-noticed in the

air. In a tumble dryer it simply collects in the filter.

AUTOREVERSE

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

P1151

P1110

AUTOREVERSE

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

P1150

Maintenance and Cleaning

If necessary the filters can be cleaned with warm

water using a brush. In this case, remove the filter in

the door opening as per picture (it can be positioned

with the tongue facing to the left or to the righ).

Do not use the appliance without filters.

Cleaning the condenser unit

Clean the air condenser periodically, 3 or 4 times a

year depending on how frequently the dryer is used.

The condenser is situated at the lower part of the

cabinet behind a small door. To open the door, push

the catch as per picture.

To pull out the condenser, first turn the two red stops

inwards as shown and then remove the condenser

unit holding it at the handle.

P1155

P1159

P1153

AUTOREVERSE

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

P1152

125993251.qxd 10/14/02 8:52 AM Pagina 9 (Nero/Process Black pellicola)

Clean it with a brush and rinse it under the shower if

necessary.

Also clean the outside, removing all fluff.

Clean the rubber seal round the condenser cabinet

and in the inner part of the small door with a damp

cloth.

Important! Do not use pointed objects or utensils to

clean the spaces between the plates, as this could

damage the condenser and make it permeable.

Re-fit the condenser, turn the red stops upwards and

close the door.

Do not use this appliance if the condenser

has not been fitted.

Emptying the water reservoir

Water extracted from the laundry condenses inside

the machine and is collected in a reservoir.

The reservoir must be emptied after each drying

cycle to ensure efficient operation when the machine

is next used.

If this is not done a safety device trips: pilot light

on the control panel comes on and the

programme stops, leaving the laundry damp.

The reservoir can be emptied even in the middle of a

programme.

P1158

P0639

The reservoir must be re-inserted correctly.

After inserting the reservoir the programme will

continue after about 20 seconds.

Handy tip: The condensed water may be used in a

steam iron or to top up a battery, etc. In this case it

must be filtered (e.g. through a coffee filter).

Cleaning the air intake grille

Using a vacuum cleaner remove the fluff from the

air intake grille at the back of the appliance.



P1162

125993251.qxd 10/14/02 8:52 AM Pagina 10 (Nero/Process Black pellicola)

This manual suits for next models

Table of contents

Other Zanussi Dryer manuals

Zanussi

Zanussi ZTE285 User manual

Zanussi

Zanussi TDE 4224 User manual

Zanussi

Zanussi TCE 7124 W User manual

Zanussi

Zanussi ZDE67560W User manual

Zanussi

Zanussi TCS 683 LT User manual

Zanussi

Zanussi SD 2801 Operating and safety instructions

Zanussi

Zanussi Z930 Operating and safety instructions

Zanussi

Zanussi ZDC82B4PW User manual

Zanussi

Zanussi TD530 User manual

Zanussi

Zanussi TD 182 User manual

Zanussi

Zanussi TDS 362 T User manual

Zanussi

Zanussi ZDH87A2PW User manual

Zanussi

Zanussi TD 4212 W User manual

Zanussi

Zanussi ZTA 110 User manual

Zanussi

Zanussi TDS 372 T User manual

Zanussi

Zanussi THE7201 User manual

Zanussi

Zanussi ZID100 User manual

Zanussi

Zanussi ZTE283 User manual

Zanussi

Zanussi ZDC8203P User manual

Zanussi

Zanussi U33109 ZDE 26000 W User manual

Zanussi

Zanussi ZDC47100G User manual

Zanussi

Zanussi TE350 User manual

Zanussi

Zanussi ZTB 200 User manual

Zanussi

Zanussi TD4100 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
