White Knight C36AW User manual

SERVICE MANUAL

Wiring Diagram

Exploded Views

Parts List

April 2016

White Knight

Upside Down Uni-directional Compact Dryer

0312 36A 15193 - C36AW

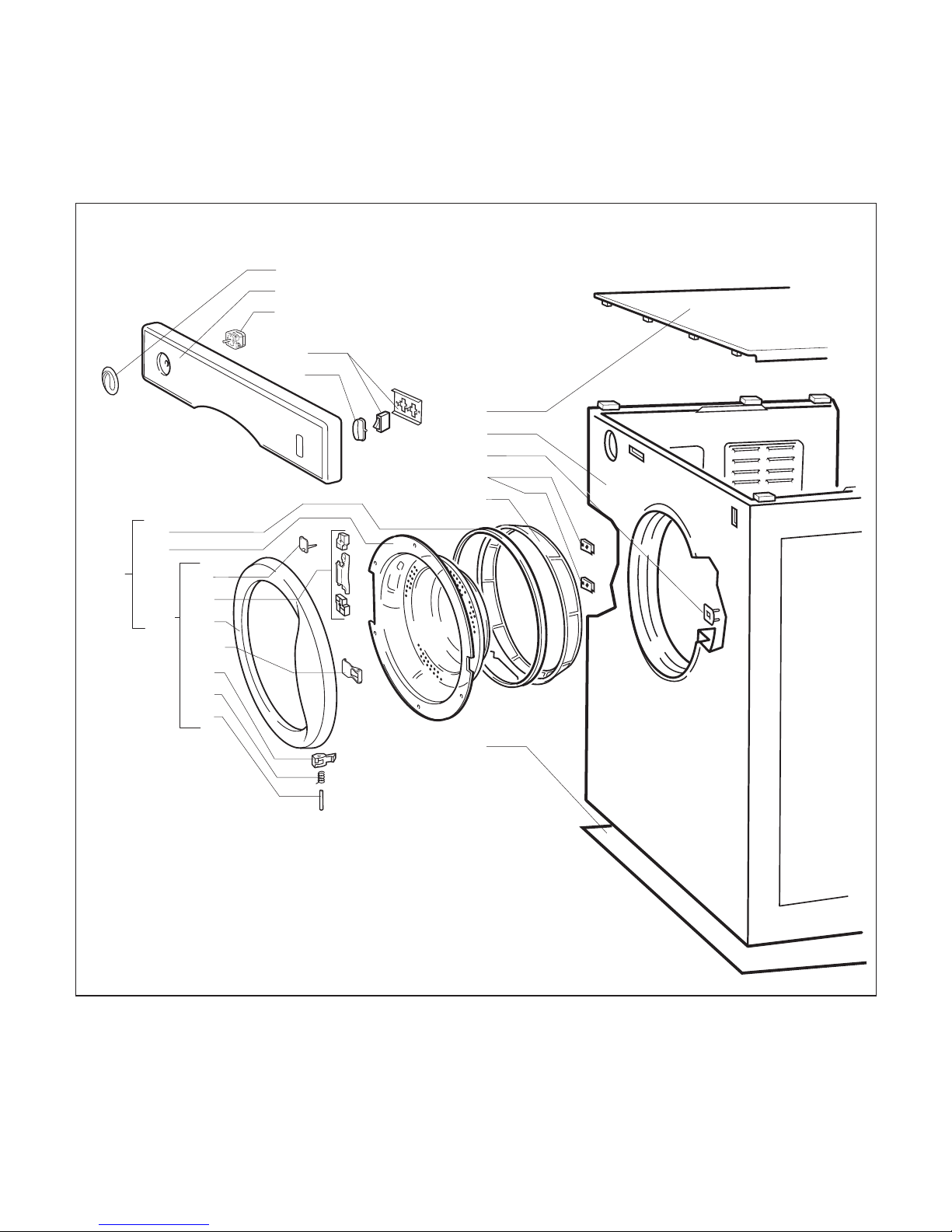

Exploded View 1

369

454

201

362 367

203

366

365

364

363

359

203a

363a

353

352

211

361

370

196

375

235

411

437

Exploded View 2

388

378

389

142 368

391

228

226

141

144

387

438

230

Exploded View 3

125

396

266

248

415

413

229

417

197

400

427

112

432

101

Drum

Earthing

Rivet

401

Wiring Diagram

White Knight C36AW Upside-down Compact Dryer - Parts List

Item Description Code Expl.View

101 Motor, Pulley & Capacitor Assembly 4213 092 45251 3

112 8uf Capacitor Assembly 4213 092 08091 3

125 Drive Belt 4213 078 57382 3

141 Mains Cable & Plug 4213 076 91771 2

142 Terminal Block 4213 078 44621 2

144 Earth Tab Assembly 4213 092 41181 2

196 Cabinet Assembly 4213 092 46261 1

197 Access Cover 4213 070 13841 3

201 Door Seal (grey) 4213 077 56252 1

203 Complete Door Assembly 4213 092 62241 1

203a Door Frame Assembly 4213 092 69201 1

211 Timer 4213 078 58431 1

226 Sheathed Heater 4213 092 35791 2

227 Sheathed Heater & Mounting Plate Complete Assembly Available on

production of

serial No

228 Combined Inlet/TOC 4213 092 35811 2

229 Exhaust Thermostat 4213 078 48373 3

230 Thermostat 4213 078 56321 2

235 Heat Selector Rocker Switch Assembly - Refer to Bulletin No

62 4213 092 64721 1

248 Microswitch/Bracket Assembly 4213 092 05251 3

266 Drum Assembly 4213 092 34291 3

352 Timer Knob Assembly 4213 092 46281 1

353 Control Panel Assembly 4213 092 59081 1

359 Hinge Assembly 4213 092 25361 1

361 Captive Nut 8213 130 37711 1

362 Window 4213 077 44095 1

363 Door Frame 4213 077 92132 1

363a Door Handle 4213 077 92351 1

364 Latch Pivot 4213 075 13013 1

365 Latch Spring 4213 075 70833 1

366 Door Latch 4213 077 40125 1

367 Switch Strike 4213 077 83571 1

368 Reset Button 4213 077 69321 2

369 Metal Base 4213 089 96961 1

370 Latch Guide 4213 077 40113 1

375 Top Cover Assembly 4213 092 46311 1

378 Exhaust Tube 4213 077 69371 2

387 Rear Bearing Pad Set 4213 092 62231 2

388 Rear Seal 4213 078 43981 2

389 Back Panel Assembly 4213 092 40461 2

391 Rear Banjo Cover Assembly 4213 092 38741 2

396 Lifter 4213 077 69332 3

400 Fan Assembly 4213 080 30211 3

401 Fan Retaining Clip 8213 130 30721 3

411 Softline Button 4213 077 92511 1

413 Front Bearing Pad Set 4213 092 09731 3

415 Front Seal 4213 078 43981 3

417 Thermostat Cover 4213 074 50602 3

427 Motor Mounting Clip 4213 078 45362 3

432 Motor Mount 4213 070 0675B 3

437 Vent Hose Assembly 0312 001 02000 2

438 Felt Strip 4213 078 55114 2

0312 36A 15193

White Knight C36AW Upside-down Compact Dryer - Parts List

454 Cone Filter Assembly 4213 092 19121 1

User Instruction Booklet 4213 194 12373

Additional Items Not Shown On Exploded Views

0312 36A 15193
