INSTALLATION INSTRUCTIONS

Commercial Dryer Gas or Electric

www.whirlpoolcommerciallaundry.com

W10919522B

W10919523B—SP

INSTRUCTIONS D’INSTALLATION

Sécheuse à usage commercial

à gaz ou électrique

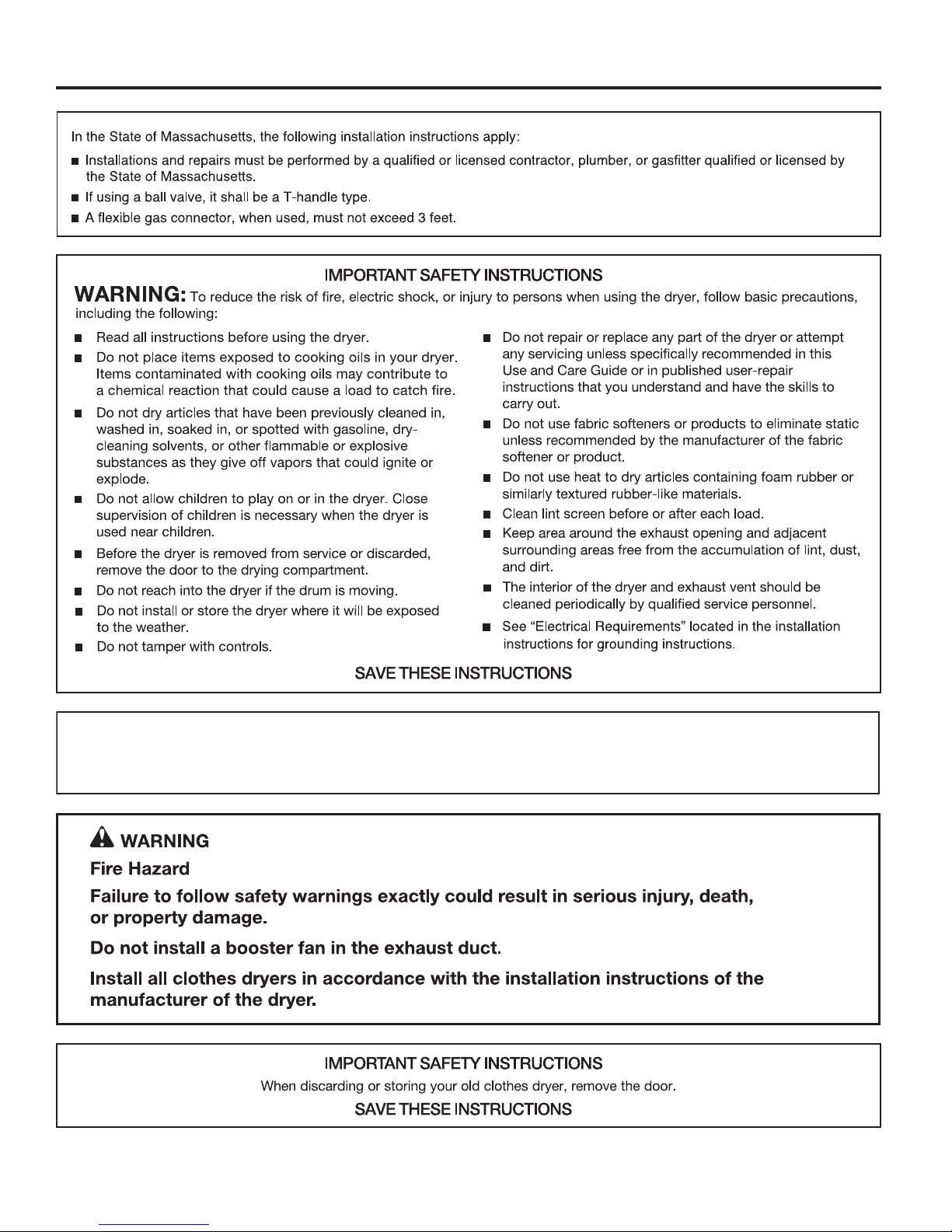

DRYER SAFETY

QIt is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer

smells gas. This information should be obtained from your gas supplier.

QPost the following warning in a prominent location.

TABLE OF CONTENTS

Page

DRYER SAFETY ....................................................................... 2

INSTALLATION REQUIREMENTS........................................... 5

Tools and Parts .................................................................... 5

Dimensions/Clearances ...................................................... 6

Venting Requirements ........................................................ 7

Gas Dryer Installation Requirements ................................ 10

Electric Dryer Installation Requirements ........................... 14

INSTALLING LEVELING LEGS, COIN SLIDE,

AND COIN BOX..................................................................... 17

INSTALLATION INSTRUCTIONS – GAS DRYER.................. 18

Make Gas Connection ...................................................... 18

INSTALLATION INSTRUCTIONS – ELECTRIC DRYER ....... 19

Electric Dryer Electrical Connections ............................... 19

LEVELING .............................................................................. 24

COMPLETE INSTALLATION ................................................. 24

REVERSING DRYER DOOR SWING .................................... 25

MAINTENANCE INSTRUCTIONS ......................................... 27

IF YOU NEED ASSISTANCE ................................................. 27

ELECTRONIC CONTROL SETUP INSTRUCTIONS ........... 28

WARRANTY .......................................................................... 34

TABLE DES MATIÈRES

Page

SÉCURITÉ DE LA SÉCHEUSE .............................................. 35

EXIGENCES D’INSTALLATION ............................................. 38

Outils et pièces .................................................................. 38

Dimensions/Distances de dégagement ............................. 39

Exigences concernant l’évacuation ................................... 40

Exigences d’installation pour la sécheuse à gaz................ 43

Exigences d’installation pour la sécheuse électrique ........ 47

INSTALLATION DES PIEDS DE NIVELLEMENT,

DE LA GLISSIÈRE À MONNAIE ET DE LA CAISSE

À MONNAIE ........................................................................... 49

INSTRUCTIONS D’INSTALLATION

POUR LA SÉCHEUSE À GAZ................................................ 50

Raccordement à la canalisation de gaz ............................. 50

NIVELLEMENT .......................................................................51

ACHEVER L’INSTALLATION ................................................. 52

INVERSION DU SENS D’OUVERTURE

DE LA PORTE DE LA SÉCHEUSE ........................................53

INSTRUCTIONS D’ENTRETIEN ............................................55

SI VOUS AVEZ BESOIN D’ASSISTANCE ..............................55

INSTRUCTIONS DE RÉGLAGE DU TABLEAU

DE COMMANDE ÉLECTRONIQUE ...................................... 56

GARANTIE ............................................................................. 63

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property

damage.

Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this

or any other appliance.

–

–WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

•If you cannot reach your gas supplier, call the re department.

–Installation and service must be performed by a qualied installer, service agency, or

the gas supplier.

•Clear the room, building, or area of all occupants.

DRYER SAFETY

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1.

Tools Needed:

8" (200 mm) 8" (200 mm) or 10" (250 mm) Flat-Blade Screwdriver Phillips Screwdriver

or 10" (250 mm) Adjustable Wrench

Pipe Wrench that opens to 1" (25 mm)

TORX®T-20®† Security 1" (25 mm) Hex-Head 1⁄4" Socket Wrench Pliers (that open to

Screwdriver or Bit Socket Wrench 19/16" [39 mm])

Level Utility Knife 1/4" (6 mm) Nut Driver 27" (686 mm)

Wood Block

Caulk Gun and Caulk Vent Clamps Pipe-Joint Compound Putty Knife

(for installing new exhaust vent) suitable for gas type

Flashlight (optional) 1" (25 mm) Ruler or Measuring Tape

Open-End Wrenches

INSTALLATION REQUIREMENTS

†®TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.

Parts Supplied:

Foot Boots (4) Leveling Legs (4)

Tools and Parts

To locate factory specied replacement parts in your area,

contact the dealer from whom you purchased your dryer.

INSTALLATION REQUIREMENTS

Front View Side View Back View

Dimensions

Clearances

Recessed Front View Closet Side View

Bottom Exhaust

Dimensions/Clearances

(0 mm)

INSTALLATION REQUIREMENTS

WARNING: To reduce the risk of re, this dryer MUST BE

EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or exible metal vent shall be used for

exhausting.

QOnly a 4" (102 mm) heavy, metal exhaust vent and clamps

may be used.

QDo not use plastic or metal foil vent.

Rigid metal vent:

QRecommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

QMust be fully extended and supported in nal dryer location.

QRemove excess to avoid sagging and kinking that may result

in reduced airow and poor performance.

QDo not install in enclosed walls, ceilings, or oors.

QThe total length should not exceed 73⁄4ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from entire

length of the system and make sure exhaust hood is not

plugged with lint. Replace plastic or metal foil vents with rigid

metal or exible metal vents. Review “Vent System Chart” and

if necessary, modify existing vent system to achieve best drying

performance.

NOTE: Although each single-load dryer should typically have

an unobstructed outdoor air opening of 24" (154 cm) (based

on 1" [6.5 cm] per 1,000 Btu [252 kcal]), common make-up air

openings are also acceptable.

Set up common openings so the make-up air is distributed

equally to all dryers. Coverage area must be increased by 33%

to account for the use of registers or louvers.

Make-up air openings should not be installed near the building

exits for exhaust vents.

(102 mm)

4" (102 mm) heavy, metal exhaust vent

Elbows:

Q45° elbows provide better airow than 90° elbows.

Clamps:

QUse clamps to seal all joints.

QExhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct

and catch lint. Do not use duct tape.

Improper venting can cause moisture and lint to collect

indoors, which may result in:

Moisture damage to woodwork, furniture, paint, wallpaper,

carpets, etc.

Housecleaning problems and health problems.

Better

Good

Venting Requirements

4" (102 mm) Diameter Exhaust Hoods

Box Hood Louvered Hood Angled Hood

Vent Hoods

INSTALLATION REQUIREMENTS

Exhaust hood must be at least 12" (305 mm) from the ground

or any object that may be in the path of the exhaust (such as

owers, rocks, bushes, or snow).

Maximum Vent Length/Vent Connection

Maximum length of vent system depends upon the type of vent

used, number of elbows, and type of exhaust hood.

For vent systems not covered by the vent specication chart,

see your parts distributor.

Provision must be made for enough air for combustion

and ventilation. (Check governing codes and ordinances.)

See “Recessed Area and Closet Installation Instructions”

in the “Location Requirements” sections.

A 4" (102 mm) outlet hood is preferred. However, a 21⁄2"

(64 mm) outlet exhaust hood may be used. A 21⁄2" (64 mm)

outlet creates greater back pressure than other hood types.

For permanent installation, a stationary vent system is required.

Connect Vent

1. If connecting to existing vent, make sure the vent is clean.

2. Using a 4" (102 mm) clamp, connect vent to exhaust outlet

in dryer.

NOTE: Do not remove vent collar.

Vent System Length

3. Tighten hose clamp with Phillips screwdriver.

4. Make sure the vent is secured to exhaust hood with

a 4" (102 mm) clamp.

5. Move dryer into nal position. Do not crush or kink vent.

Make sure dryer is level.

12" min.

(305 mm)

Vent collar

Vent System Chart (Rigid Metal Vent)

No. of

90˚ Turns Box and

Louvered Hood

Angled Hood

0 64 ft. (19.5 m) 58 ft. (17.7 m)

1 54 ft. (16.5 m) 48 ft. (14.6 m)

2 44 ft. (13.4 m) 38 ft. (11.6 m)

3 35 ft. (10.7 m) 29 ft. (8.8 m)

4 27 ft. (8.2 m) 21 ft. (6.4 m)

The outside end of main vent should have a sweep elbow

directed downward.

If main vent travels vertically through the roof, rather than

through wall, install a 180° sweep elbow on end of vent at least

2 ft. (610 mm) above surface of roof.

The opening in wall or roof shall have a diameter 1/2" (13 mm)

larger than vent diameter. Vent should be centered in opening.

Do not install screening over end of vent for best performance.

12" min.

(305 mm)*

A main vent can be used for venting a group of dryers. The

main vent should be sized to remove 5663 l/min. (200 CFM)

of air per dryer. Large-capacity lint screens of proper design

may be used in main vent if checked and cleaned frequently.

The room where the dryers are located should have make-up

air equal to or greater than CFM of all the dryers in the room.

Back-draft Damper Kit is available from your distributor and

should be installed in the vent of each dryer to keep exhausted

air from returning into dryers and to keep exhaust in balance

within main vent. Unobstructed return air openings are required.

Each vent should enter the main vent at an angle pointing in

the direction of the airow. Vents entering from the opposite

side should be staggered to reduce the exhausted air from

interfering with the other vents.

The maximum angle of each vent entering the main vent should

be no more than 30°.

Keep air openings free of dry cleaning uid fumes. Fumes

create acids which, when drawn through the dryer heating

units, can damage dryers and items being dried.

A clean-out cover should be located on the main vent

for periodic cleaning of the vent system.

If an Exhaust Hood Cannot be Used Multiple Dryer Venting

INSTALLATION REQUIREMENTS

24" min.

(610 mm)

*Minimum clearance above

any accumulation of snow,

ice, or debris such as leaves

30˚ max.

Air ow

Airflow

Your dryer can be installed in a basement, laundry room,

or recessed area.

This dryer is not intended for installation in a mobile home.

Companion appliance location requirements should also be

considered.

IMPORTANT: Do not install or store the dryer where it will be

exposed to water and/or the weather. Proper installation is your

responsibility.

You will need:

QA grounded electrical outlet located within 6 ft. (1.8 m) of

where the power cord is attached to the back of the dryer.

See “Electrical Requirements.”

QA level oor with a maximum slope of 1" (25 mm) under

entire dryer. Installing the dryer on soft oor surfaces,

such as carpets or surfaces with foam backing, is not

recommended.

Gas dryer installation clearances

QThe location must be large enough to allow the dryer door

to be fully opened.

QAdditional spacing should be considered for ease of

installation and servicing. The door opens more than 180°.

QAdditional clearances might be required for wall, door,

and oor moldings.

QAdditional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

When installing a gas dryer:

IMPORTANT: Observe all governing codes and ordinances.

QCheck code requirements: Some codes limit or do not

permit installation of clothes dryers in garages, closets,

or sleeping quarters. Contact your local building inspector.

QMake sure that lower edges of the cabinet, plus the back

and bottom sides of the dryer, are free of obstructions to

permit adequate clearance of air openings for combustion

air. See “Recessed Area and Closet Installation Instructions”

below for minimum spacing requirements.

Location Requirements

INSTALLATION REQUIREMENTS

Recessed Area and Closet Installation Instructions

This dryer may be installed in a recessed area or closet. For

recessed area and closet installations, minimum clearances

can be found on the warning label on the rear of the dryer

or in “Dimensions/Clearances.”

The installation spacing is in inches and is the minimum

allowable. Additional spacing should be considered for ease

of installation, servicing, and compliance with local codes

and ordinances.

If closet door is installed, the minimum unobstructed air

opening in the top and bottom is required. Louvered doors

with equivalent air openings are acceptable.

The dryer must be exhausted outdoors.

No other fuel-burning appliance may be installed in the same

closet as the dryer.

24 in.2

(155 cm

48 in.2

(310 cm2)3"

(76 mm)

Closet

door

Front

View

Closet

Door

Front

View

Gas Dryer Installation Requirements

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WGD5600SQ User manual

Whirlpool

Whirlpool ELECTRIC DRYER User manual

Whirlpool

Whirlpool WGD5605MC User manual

Whirlpool

Whirlpool LEV7646AW1 User manual

Whirlpool

Whirlpool LE3300XPWO User manual

Whirlpool

Whirlpool cabrio WED6200S User manual

Whirlpool

Whirlpool 3RAWZ480E User manual

Whirlpool

Whirlpool W10858720B - SP User manual

Whirlpool

Whirlpool W10524376B User manual

Whirlpool

Whirlpool WED8900BC0 User manual

Whirlpool

Whirlpool WGD7600XW0 User manual

Whirlpool

Whirlpool WGD7300DW User manual

Whirlpool

Whirlpool Gold GGQ9800PW User manual

Whirlpool

Whirlpool Duet YWED9200SQ0 User manual

Whirlpool

Whirlpool WGD6400SW0 User manual

Whirlpool

Whirlpool GCEM2990TQ User manual

Whirlpool

Whirlpool Duet Steam WGD9600T User guide

Whirlpool

Whirlpool LER5644EQ0 User manual

Whirlpool

Whirlpool LE7080XS User manual

Whirlpool

Whirlpool GGW9250PW User manual

Whirlpool

Whirlpool LDR3822PQ - Compact Electric Dryer User guide

Whirlpool

Whirlpool Gold GEX9868JQ1 User manual

Whirlpool

Whirlpool WED8000BW User manual

Whirlpool

Whirlpool WED95HEDW User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
