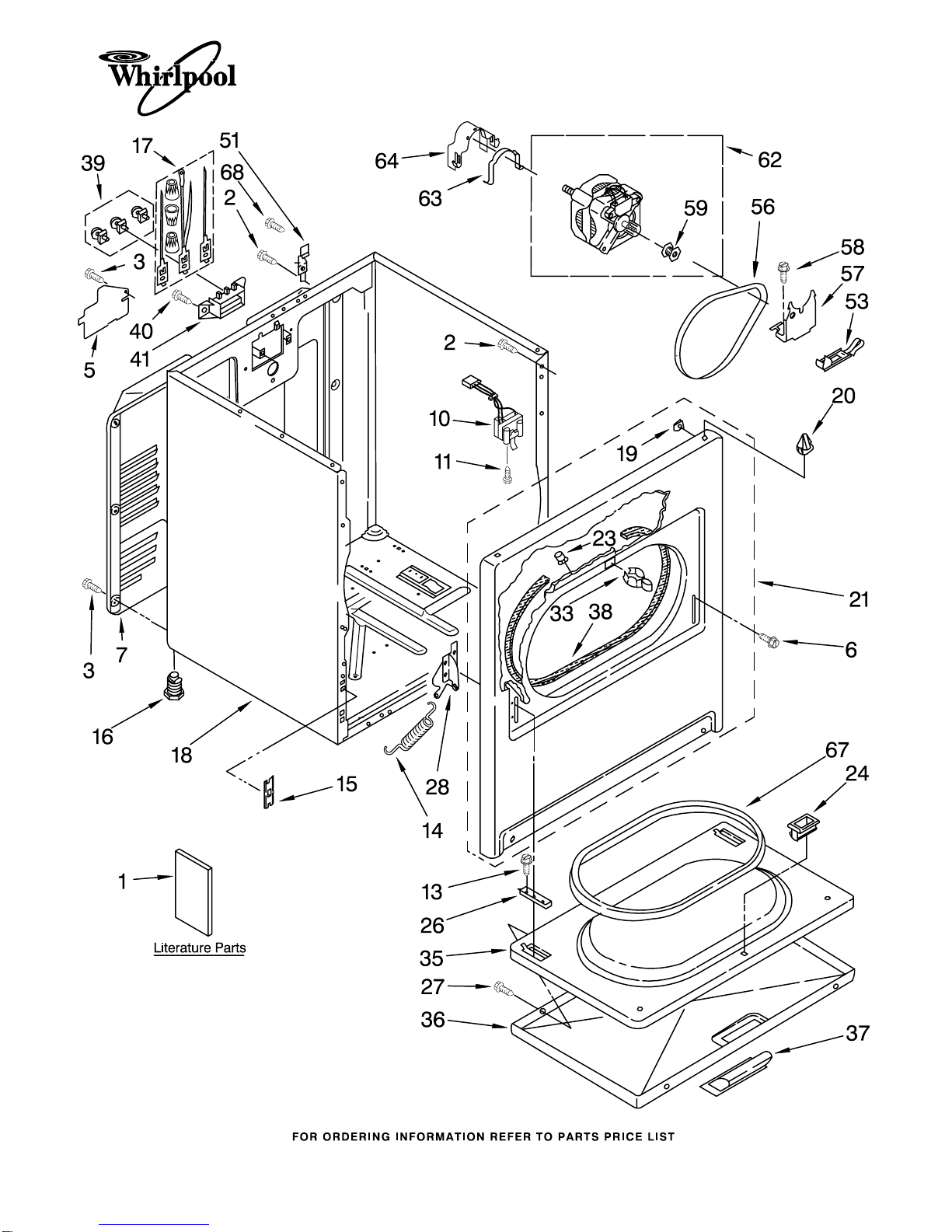

CABINET PARTS

For Model: LER6611LQ0

(Designer White)

4−02 Litho in U.S.A. (djc) Part No. 8179846

29"ELECTRIC DRYER

CABINET PARTS

For Model: LER6611LQ0

(Designer White)

8179846

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3397618

Installation

Instructions

LIT8528324

Use & Care Guide

LIT3979703

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

5 3396795 Cover,

Terminal Block

6 342043 Screw, 10−32 x 3/8

7 3396805 Panel, Rear

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 3357011 Screw, 10−16 x 1/2

14 692495 Spring, Door (2)

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 8530603 Cabinet

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 695620 Panel, Front

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

33 696144 Strike, Door

35 695737 Door, Rear

36 3393549 Door, Front

37 690270 Handle, Door

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)

40 3393008 Screw, 10−16 x 1/2

41 3397659 Block, Terminal

51 238088 Hinge, Top (2)

53 3394332 Idler & Slide

Assembly

56 8066065 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3394341 Pulley, 60 Hz.

62 661654 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3390731 Seal, Door

68 697776 Screw, 10−32 x 5/8

(External Ground)

TOP AND CONSOLE PARTS

For Model: LER6611LQ0

(Designer White)

8179846

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: LER6611LQ0

(Designer White)

8179846

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 3401684 Wire, Jumper

(Black)

3 694419 Buzzer

4 8271365 Cap, End (L.H.)

5 3405156 Switch,

Wrinkle Shield

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 8271359 Cap, End (R.H.)

9 3395683 Housing, Connector

(Motor)

10 349639 Screen, Lint

11 8283378 Cover, Lint

Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 3396029 Wire, Jumper

(Temperature)

16 8271390 Top

17 297535 Bumper, Lint Lid

18 94614 Terminal

19 3399639 Switch,

Temperature

20 3401144 Connector

(PTS Relay)

21 3979618 Timer, 60 Hz.

22 3397695 Wire, Jumper

(Guard On/Off)

23 3394427 Clip, Harness

24 3397269 Connector

(Timer)

25 3347243 Connector,

(6−Circuit)

29 3390646 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 8299873 Harness, Wiring

39 3398095 Switch,

Push−To−Start

48 8312687 Timer Knob

Assembly

49 8271339 Knob, Control (3)

50 3936144 Connector

53 8271418 Bracket, Control

54 8532621 Panel, Control

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3404351 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

BULKHEAD PARTS

For Model: LER6611LQ0

(Designer White)

8179846

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Thermal Fuse

8 3387134 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes Illus. 15)

10 694089 Wheel, Blower

(Includes Illus. 22)

11 3405016 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket,

Drum Light

17 3403585 Element, Heater

18 3403634 Socket Assembly

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 3406124 Bulb, Light

21 3402841 Lens,

Drum Light

22 3394196 Seal, Blower

23 487909 Screw, 8−15 x 1/2

24 8066086 Drum Hole Plug

25 3390647 Screw, 8−18 x 1/2

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3403493 Bulkhead

62 692526 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 3406130 Seal, Rear Drum

67 695587 Drum Assembly

68 692490 Baffle, Drum (2)

69 3976434 Bracket, Support

70 90296 Clip

71 3403636 Baffle, Drum (1)

73 339956 Seal
