Whirlpool LE5700XM User manual

AUTOMATIC

DRYERS

Electric Model

LE5700XM

and

Gas Model

LG5701XM

owave Ovens, Trash Compactors, Room Air Condltloners, Oehumldlflers, Aulomatlc Washers, Clothes Dryers. Freezers. Refrlgeralor-Freeze

Parts andIfeatures

CYCLE CONTROL KNOB

LAUNDRY INFORMATION CENTER

TEMPERATURE SELECTOR

START BUTTON

LINT SCREEN

DRYER DRUM

LOADING DOOR

MODEL AND

SERIAL NUMBER

PLATE

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model

and Serial Numbers here

When you need service or call with a

questton. have this tnformation ready Complete Model Number

1. Complete Model

and Serial Numbers

(from the plate

located as shown).

2. Purchase date from sales

slip.

Complete Serlol Number

Copy this information in these spaces.

Keep this book,

your warranty, sales slip Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation

Center on the back of the dryer

console Serv,ce Company and

Telephone Number

There is no warranty registration to return. Proof-of-purchase

all

that

required for in-warranty service.

Contents

PARTS AND FEATURES

YOUR RESPONSIBILITIES

SAFETY FIRST

SELECTING A CYCLE AND

STARTING YOUR DRYER

OPERATING INSTRUCTIONS

Dryer Setting and Cycles

Cool Down Times

DRYING TIPS

FLUFFAIR

TUMBLE PRESS” Setting

Mixed Loads

Page2

Drying Times

LINT SCREEN

LINT REMOVAL

CARING FOR YOUR DRYER

Vacation Care

IF YOU NEED SERVICE OR

ASSISTANCE

1. Before Calling for

Assistance

2. If You Need Assistance

3. If You Need Service

4. If You Have a Problem

Page 7

2 al984 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room’ on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2 C).

is connected to the right kind of out-

let. electric supply and grounding.*

is properly connected to fuel and

exhaust systems.’

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

‘See the “Installation Instructions” for

complete information.

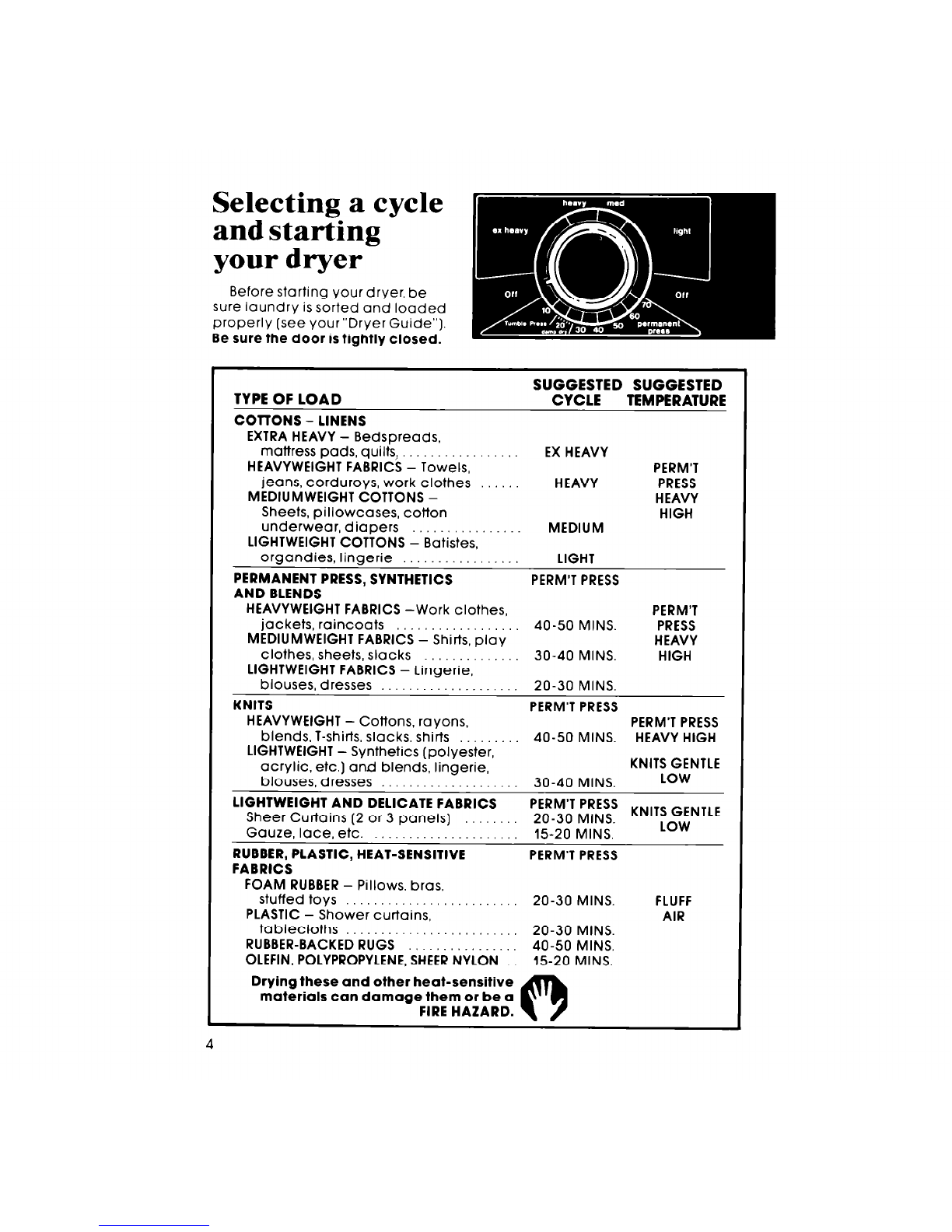

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts,. EX HEAVY

HEAVYWEIGHT FABRICS - Towels, PERM’T

jeans, corduroys, work clothes HEAVY PRESS

MEDIUMWEIGHT COTTONS - HEAVY

Sheets, pillowcases, cotton HIGH

underwear, diapers _. MEDIUM

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie _. LIGHT

PERMANENT PRESS, SYNTHETICS PERMIT PRESS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes, PERMIT

jackets, raincoats 40-50 MINS. PRESS

MEDIUMWEIGHT FABRICS - Shirts, play HEAVY

clothes, sheets, slacks 30-40 MINS. HIGH

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses 20-30 MINS.

KNITS PERM’T PRESS

HEAVYWEIGHT - Cottons, rayons, PERM’T PRESS

blends.T-shirts, slacks, shirts _. _. 40-50 MIN.% HEAVY HIGH

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie, KNITS GENTLE

blouses, dresses _. 30-40 MINS. LOW

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels] 20-30 MINS.

PERM’T PRESS KNITS GENTLE

Gauze, lace.etc. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE PERM’T PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys 20-30 MINS. FLUFF

PLASTIC - Shower curtains, AIR

tablecloths _. 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEERNYLON 15-20 MINS.

Drying these and other heat-sensitive

materials can damage them or be a

FIRE HAZARD.

Select a

1. CYCLE Set TEMPERATURE

SELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The dryer will start tumbling when

you push the START Button.

Changing a setting

The setting can be changed at any

time by turning the Control Knob to a

new setting.

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restart the dryer, close the door,

Select

cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

Dryer cycles and settings Cool down times

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...a period of heated drying

followed by a IO mrnute cool down.

The chart on page 4 suggests time

and temperature settings for different

krnds of loads,

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry.The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is designed to be

long enough to dry a load of heavy

fabrics [towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

f MOPETIME LESSTIME -b I

If the load is not as dry as you want,

set the dial more to the left the next

time you dry that kind of load.

If the load is dryer than you want,

set the dial more to the right the next

time you dry that kind of load.

In all cycles, the heat shuts off

before the dryer stops tumbling. This

cool down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

lo GNUTES 5 MlNUiES

COOL DOWN COOL DOWN I

The PERMANENT PRESSCycle has

10 minutes of cooldown time at the

end of the cycle.

411other cycles have 5 minutes of

cool down time.

Drying tips

FLUFF AIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR.The setting is useful for fluffing

bedding, pillows and clothing,or

dusting drapes.

Use FLUFFAIR when drying heat-

sensitive items, such as plastic

shower curtains, rubber-backed

rugs, plastic tablecloths,foam rubber

pillows, stuffed toys, sneakers, etc.

1. Set Temperature Selector on

FLUFFAIR.

2. Turn Control Knob to the number of

minutes you want in the PERMANENT

PRESSCycle.

3. Push STARTButton.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and resetthe control.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Temperature Selector on PERMIT

PRESS/HEAVY HIGH.

2. Set Control Knob on TUMBLE PRESS.

3. Push STARTButton.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash and

rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See page 6 in your”Dryer Guide”

for more information. 7

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

Open the lid and pull the lint screen ROLL the lint off the screen

straight out. with your fingers.

DO NOT run the dryer with DO NOT rinse or wash the screen.

the lint screen loose, Push the screen firmly back into

damaged or missing. place.

Doing so can cause over-

heating, can damage fabrics and

can be a FIRE HAZARD.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

ELECTRIC DRYERS \\ ’

GAS DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric) or

front panel [gas).

2. Avoid damaging wires, ther-

mostats, funnel or igniter.

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and re-

level dryer.

Caring for your dryer

Remove shzp objects from clothing

betore drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp, soft

cloth.Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry in

your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Non-colorfast items can stain the

drum. Wipe carefully after drying to

make sure there is no dye to be

transferred to items in the next load.

Vacation care

Disconnect power

supply cord.

Some pretreatment products can

damage dials, console and finish. Do

not use these products on or near

your dryer.

Clean lint screen.

If you need service or assistance, we suggest

you follow these four steps:

I. Before calling for

assistance.. .

Performance problems often re-

sult from little things you can find

and fix yourself without tools of any

kind.

DRYER DOES NOT RUN:

DRYER DOES NOT HEAT:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Is gas turned on? If not,turn Control

Knob to OFF.Turn on gas. Waif 5

minutes. Reset controls and start

An electric dryer has two fuses, if

not a circuit-breaker. If one is

blown, the dryer may run, but not

heat.

DRYING TIME SEEMS LONG:

Is power supply cord plugged

Is door closed tightly?

Did you push START Bution?

in?

Are fuses blown or a circuit-breaker

tripped?

the lint screen clean?

See oaae 6 in vour”Drver Guide:’

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WGD5310SQ0 User manual

Whirlpool

Whirlpool Gas dryer User manual

Whirlpool

Whirlpool 3RLEC8600 User manual

Whirlpool

Whirlpool WGD5200T User manual

Whirlpool

Whirlpool 3395314 User manual

Whirlpool

Whirlpool Gold GGQ8831LL0 Operating and installation instructions

Whirlpool

Whirlpool LEV7646AW2 User manual

Whirlpool

Whirlpool Cabrio,- WED7300X User instructions

Whirlpool

Whirlpool 8533582 User manual

Whirlpool

Whirlpool ELECTRIC DRYER User manual

Whirlpool

Whirlpool WED5500BW0 User manual

Whirlpool

Whirlpool WGD9470WW Parts list manual

Whirlpool

Whirlpool WED7500VW User manual

Whirlpool

Whirlpool LER3622HQ User manual

Whirlpool

Whirlpool AWZ 650 User manual

Whirlpool

Whirlpool 7MWGD1730 User manual

Whirlpool

Whirlpool Duet Steam WED94HEX User manual

Whirlpool

Whirlpool YWED9050XW User manual

Whirlpool

Whirlpool Cabrio WED6200SW0 User manual

Whirlpool

Whirlpool CGM2793BQ User manual

Whirlpool

Whirlpool W10097005A - SP User manual

Whirlpool

Whirlpool Duet WGD9400SB0 User manual

Whirlpool

Whirlpool WGD7300X User manual

Whirlpool

Whirlpool LER5848DQ0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
