Whirlpool LDR3822PQ1 User manual

BULKHEAD PARTS

For Model: LDR3822PQ1

(Designer White)

11−05 Litho in U.S.A. (LT) Part No. 8181032

COMPACT

ELECTRIC DRYER

BULKHEAD PARTS

28181032

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8578198 Use & Care Guide

9830513 Label, Operating

Instructions

9831728 Label, Wiring

Diagram

8535901 Label,

Energy Guide

2 696538 Air Duct Assembly

3 3390646 Screw, 8−18 x 5/16

4 660074 Thermostat, 145 F

(63 C)

5 345965 Guard, Exhaust

6 339956 Seal

7 696426 Wheel, Blower

8 694419 Buzzer, Mini

9 489463 Screw, 8−18 x 5/8

10 696419 Scroll, Fan

11 3394204 Bulkhead

12 3398161 Clip

13 3401380 Box, Heater

14 343641 Screw, 10−16 x 1/2

15 359702 Cap, Screw

16 9830393 Clip

17 3404153 Thermostat, 180 F

(82 C)

18 348197 Washer, Support

19 90767 Screw, 8−18 x 3/8

20 8558178 Control,

Electronic

21 3391885 Connector, Edge

22 3403591 Heater Element

23 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

24 3976479 Pad, Sensor

25 348378 Screen, Back−up

26 345325 Gusset (2)

27 3359452 Nut, 3/8−16

28 695943 Drum Assembly

29 345648 Seal, Rear

30 97787 Screw, 11−16 x 3/4

31 685207 Baffle, Drum (3)

32 3394508 Ring, Bearing

34 690997 Ring, Tri

35 3397590 Roller, Support

36 3399506 Shaft, L.H.

37 3399507 Shaft, R.H.

38 8066086 Drum Hole

Plug

41 8531964 Lint Screen

42 94614 Terminal

43 8531967 Cover, Lint

Screen

44 342202 Screw, 10−16 x 1/4

45 3395683 Connector

(Motor)

46 8066094 Seal

47 3397269 Connector, Timer

48 8299820 Harness, Wiring

49 3936144 Connector,

3−Circuit

50 3388703 Washer, Support

55 696302 Shield, Exhaust

For Model: LDR3822PQ1

(Designer White)

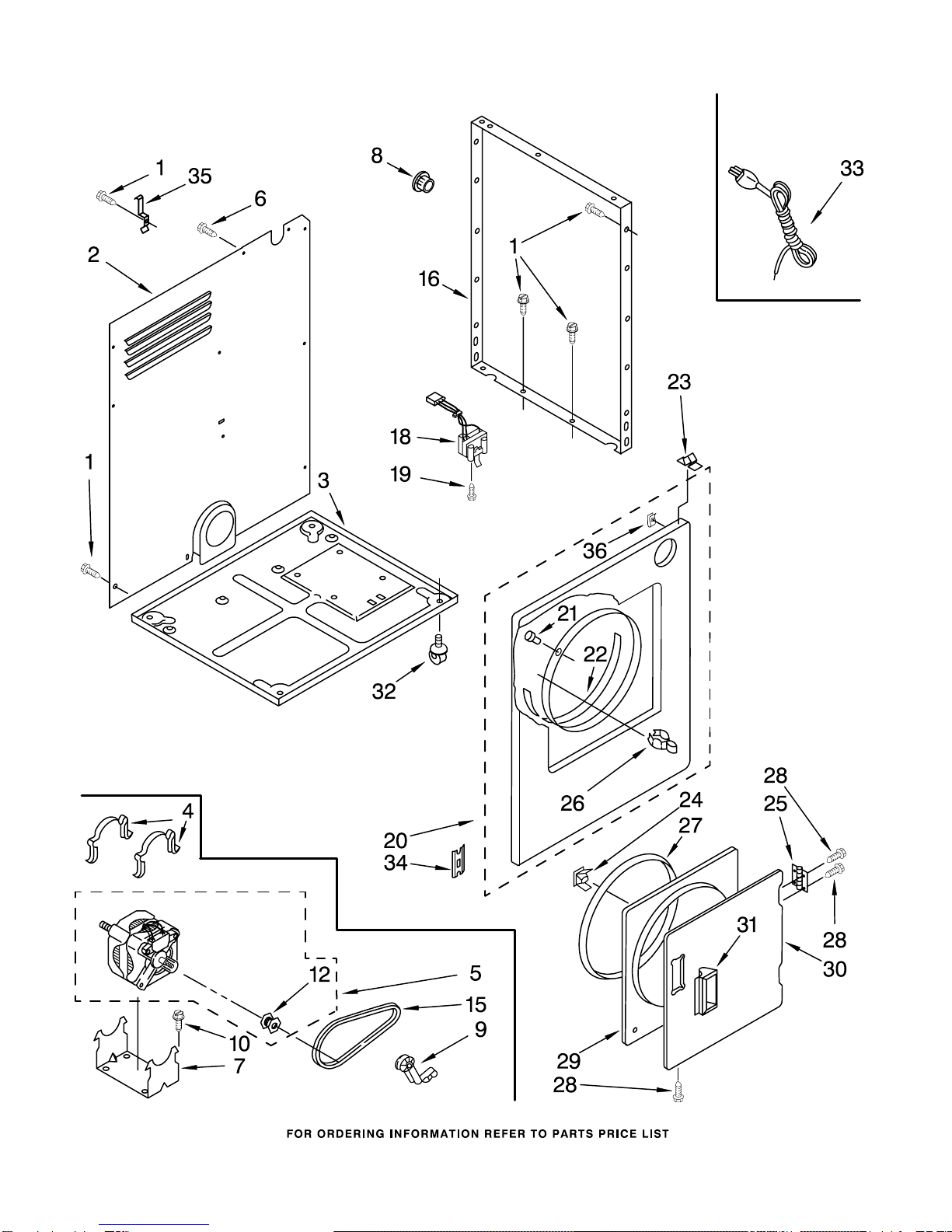

CABINET PARTS

For Model: LDR3822PQ1

(Designer White)

8181032

CABINET PARTS

48181032

Illus. Part

No. No. DESCRIPTION

1 343641 Screw, 10−16 x 1/2

2 347812 Panel, Rear

3 348726 Base Assembly

4 660658 Clamp, Motor(2)

5 8538265 Motor, 60 Hz.

6 697776 Screw, Ground

(10−32 x 5/8)

7 696541 Base, Motor

8 8066084 Bushing, Snap

9 691366 Idler & Pulley

Assembly

10 3390631 Screw, 10−16 x 3/8

12 8066051 Pulley, Motor

60 Hz.

15 8066064 Belt, Drive

16 348705 Panel, Side (2)

18 3406104 Door Switch

Assembly

19 697773 Screw, 6−20 x 7/8

20 693943 Front Panel

21 685203 Clip, Felt Pad

22 8066123 Seal & Bearing

Assembly

23 345670 Lock, Top

24 3389441 Catch, Door

25 348023 Hinge & Pin

Assembly (2)

26 696144 Strike, Panel

27 3390734 Seal, Door

28 694091 Screw, 8−18 x 3/8

29 695656 Door, Rear

30 348205 Door, Front

31 8562104 Handle, Door

32 660719 Caster (4)

33 20063371 Cord, Power

34 3394083 Clip (2)

35 345790 Bracket, Power

Cord

36 98234 Clip, Panel

For Model: LDR3822PQ1

(Designer White)

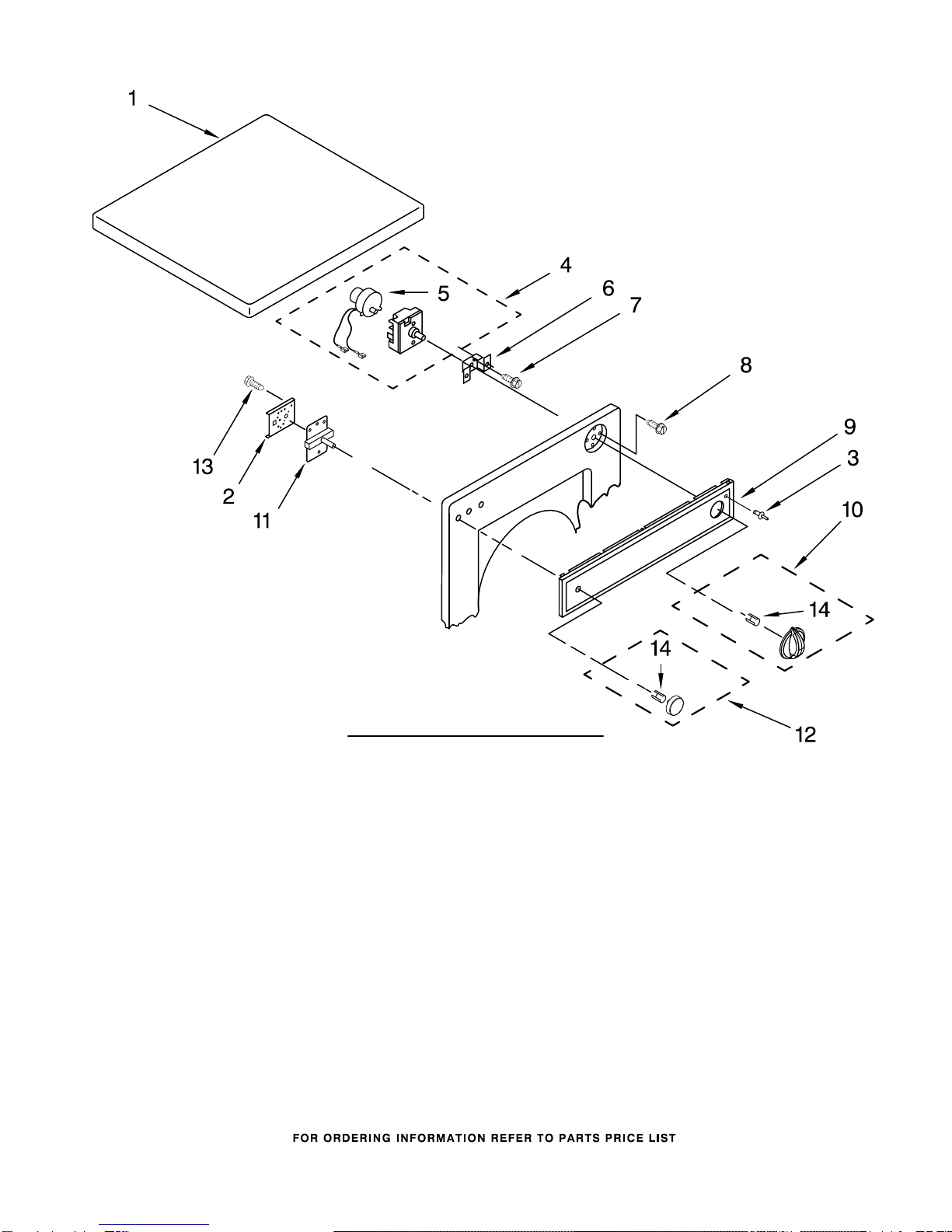

TOP AND CONSOLE PARTS

8181032

Illus. Part

No. No. DESCRIPTION

1 345703 Top

2 3406860 Bracket,

Front Panel

3 307563 Rivet, Pop (2)

4 8563881 Timer, 60 Hz.

5 (Timer Motor

Not Serviceable)

6 348171 Bracket, Timer

7 311865 Screw, 8−32 x 7/32

8 3390646 Screw, 8−18 x 5/16

9 8562101 Panel, Control

10 8544955 Timer Knob

Assembly

11 3977456 Switch,

Push−To−Start

12 8544939 Knob,

Push−To−Start

13 339554 Screw,

10−16 x 5/16

14 8536939 Clip, Spring

For Model: LDR3822PQ1

(Designer White)

OPTIONAL PARTS (NOT INCLUDED)

For Model: LDR3822PQ1

(Designer White)

8181032

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)
