BEFORE USING THE DRYER / CONNECTIONS

1. Removing the packaging and check

After unpacking, make sure that the dryer is

undamaged. If in doubt, do not use the dryer.

Contact After-Sales Service or your local retailer.

Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children, as

they are potentially dangerous.

Remove the protective foil from the control panel.

2. Electrical Connections

Electrical connections must be carried out by a

qualified technician in compliance with the

manufacturer's instructions and current standard

safety regulations.

Electrical connection must comply with local

Electricity Board regulations.

Voltage information, power consumption and the

required fuse protection is shown on the rating

plate mounted at the rear of the dryer.

The manufacturer cannot accept any liability for

personal injury or damage to property resulting

from failure to adhere to these instructions.

The dryer must be earthed as prescribed by law.

Do not use extension leads or multiple adaptors.

Before any maintenance on the dryer disconnect it

from the mains supply.

Do not operate the dryer if it has been damaged

during transport. Contact one of our After-Sales

Service technicians.

Mainscablereplacementisonlytobecarriedoutby

After-Sales Service.

After installation access to the mainsplug has to be

guaranteed, or the all-pole disconnection has to be

possible with a switch.

3. Installation

Do not install your dryer where itcan be subject to

extreme conditions, such as: poor ventilation,

temperatures around freezing or above 35° C.

Before running the first cycle ensure the water

container and heat exchanger are correctly

positioned.

Onlyforwatercontainertopversion:ifpossibleuse

ahoseto drain the waterdirectlyinto the domestic

plumbing system. This will avoid having to empty

the water container at the end of each drying cycle

since the condensation water can be directly

drained away. See also chapter “Drainage System”.

Take care not to install the dryer on a deep-pile

carpet.

Take care not to trap the mains cable between the

dryer and the wall.

Stability:

When installing the dryer always carefully level the

dryer adjusting the four feet and check the correct

levelling with a spirit level.

To built in the dryer

Remove the work-top and replace it with the Built-

In kit UBS 10 (according to Eec Electrical

Regulations), available at your dealer.

Stacking kit

Your dryer can be stacked on top of your front

loadingwashingmachine.The type of stackingkit is

stated in the Instruction for use of your washing

machine or pls. contact your dealer or our After

Sales Service.

Minimum housing dimensions:

Width: 600 mm

Height: 850 mm

Depth: 600 mm

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp

fused plug, to change a fuse in this type of plug use an A.S.T.A.

approved fuse to BS 1362 type and proceed as follows:

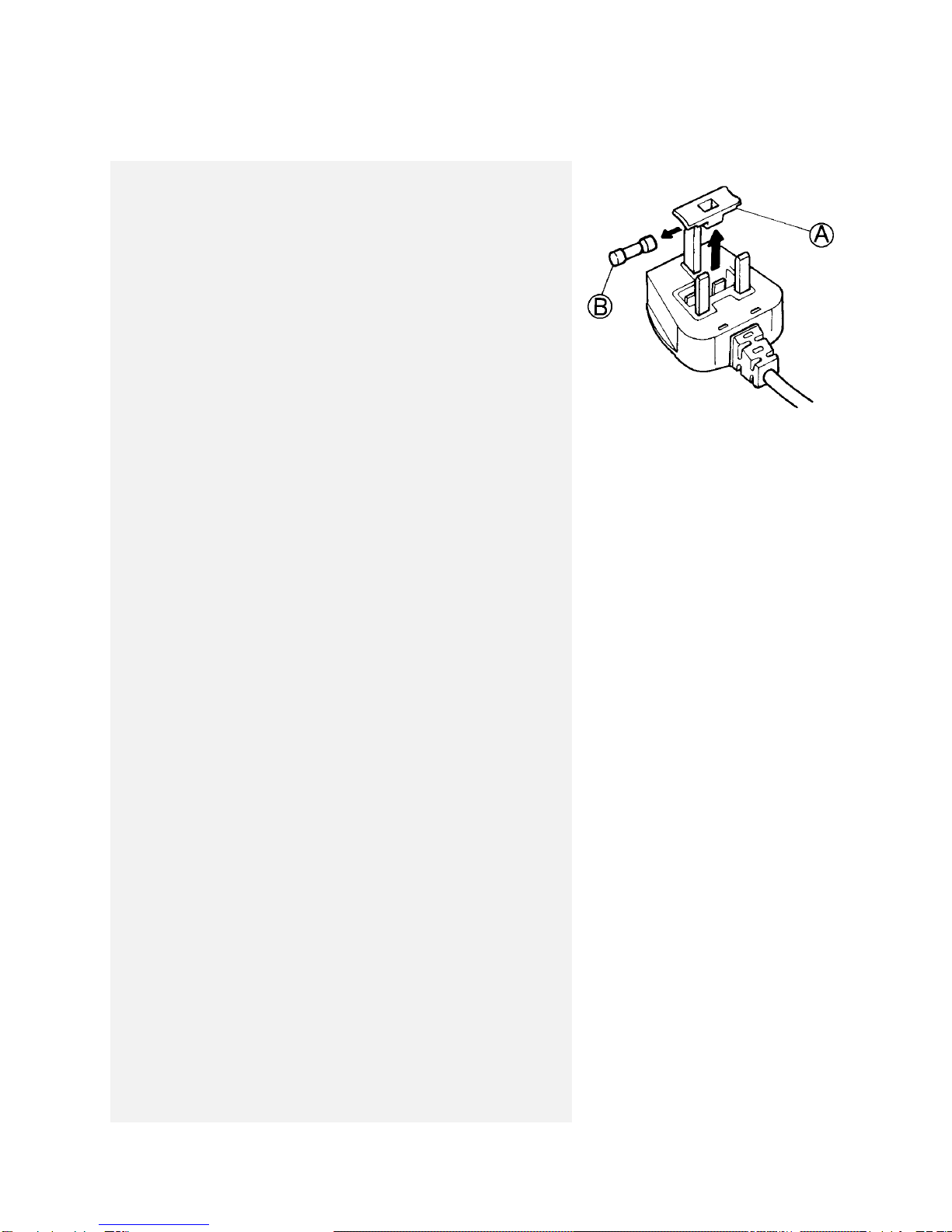

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse

cover is lost the plug must not be used until a correct replacement is

fitted.

Correctreplacementare identified bythe colourinsertor thecolour

embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical

store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently

apply, but a third type of plug and socket is also used, the

2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact

Whirlpool Service for further instruction. Please do not attempt to

change plug yourself. This procedure needs to be carried out by a

qualified Whirlpool technician in compliance with the manufactures

instructions and current standard safety regulations.

PRECAUTIONS AND GENERAL

RECOMMENDATIONS

1. Packing

The packing box may be fully recycled as

confirmed by the recycling symbol .

2. Energy saving tips

Always dry a full load: depending on the type of

laundry and the programme/drying time.

By preference use the maximum spin speed allowed

by your washing machine, since draining the water

mechanically requires less energy. You will save time

and energy when running your drying cycle.

Do not overdry the laundry.

Clean the lint filter after every drying cycle.

Place your dryer in a room with a temperature

between 15° C and 20° C. In case of higher

temperature ventilate the room.

Always select the correct programme/drying time

for the load in order to obtain the desired drying

results.

Select the gentle option only with small loads.

When drying cotton, for example. dry iron dry and

cupboard dry loads together. Start with the iron dry

programme/drying time setting, remove the laundry

to be ironed at the end of that cycle and dry the

remainder of the load on the cupboard dry setting.

3. Disposing of packaging and old Dryer:

The dryer is built from reusable materials. The

dryer must be disposed of in compliance with local

waste disposal regulations.

Before scrapping, cut off the power cable so that

the dryer cannot be connected to the mains.

4. Child safety:

Children must not be allowed to play with the

dryer.

5. General recommendations:

Always set the programme/time selector knob to

the “0” position after use.This prevents the dryer

from being switched on accidentally.

Before cleaning or carrying out maintenance,

switch off the dryer and disconnect it from the

mains supply.

To clean the outside of the dryer, use a neutral

detergent and a damp cloth.

Do not use abrasive detergents.

Wipe away lint from the door seal and the door

using a damp cloth.

If the lint filter mesh is clogged, clean it with water

and a soft brush.

Since lint can go through the filter it is necessary to

clean, from time to time, the complete filter area

(including below the filter) with a brush, a damp

cloth or with a vacuum cleaner.

Ifnecessary,thepower cable may bereplacedwith

an identical one obtained from our After-Sales

Service.The power cable must only be replacedby

a qualified technician.

EC Declaration of Conformity

This dryer has been designed, constructed and

distributed in compliance with the safety

requirements of EC Directives:

73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive

93/68/EEC CE Marking Directive.

The dryer must only be used in the household for

the prescribed uses.

DESCRIPTION OF THE DRYER

A. Work top.

B1. Water Container bottom

version or

B2. Water Container top version.

C. Contact pin.

D. Door:

To open the door: pull the

handle.

To close the door: push gently

until closed.

E. Filter.

F. Child Safety Lock.

G. Button for heat exchanger flap

opening.

H. Heat exchanger.

Reminder - Maintenance and Cleaning

Clean the lint filter at the end of every drying cycle.

Open the door

Pull the filter upwards

Open the filter

Remove lint using a soft brush or your fingertips

Close the filter

Push the filter back into place.

Heat exchanger

Clean the heat exchanger at least every 3 months (See “HEAT EXCHANGER” chapter).

Wipe away any lint/fluff from the door seal and interior using a damp cloth.

DRAINAGE SYSTEM

For water container top only

To avoid having to empty the

water container at the end of

each cycle, the condensation

water can be drained away.

Note: Normally the drain hose is

not supplied; the accessory AMH

883 kit, available at your dealer or

our After Sales Service, should be

used.

The connection for direct

draining is at the rear of the

dryer.

A. Place an absorbent cloth

underneath to collect water

spillage.

B. Remove the hose located at the

lower rear part of the dryer and

insert it in the nearby hole.

C. Fix the hose (length: 1.5 m) to the

outlet connection. The height

difference between the two

drainage connections should not

exceed 1m.

Notice: To avoid siphoning, the end

of the hose must not be

immersed in the drain water.

Avoid bending and twisting

the hose.

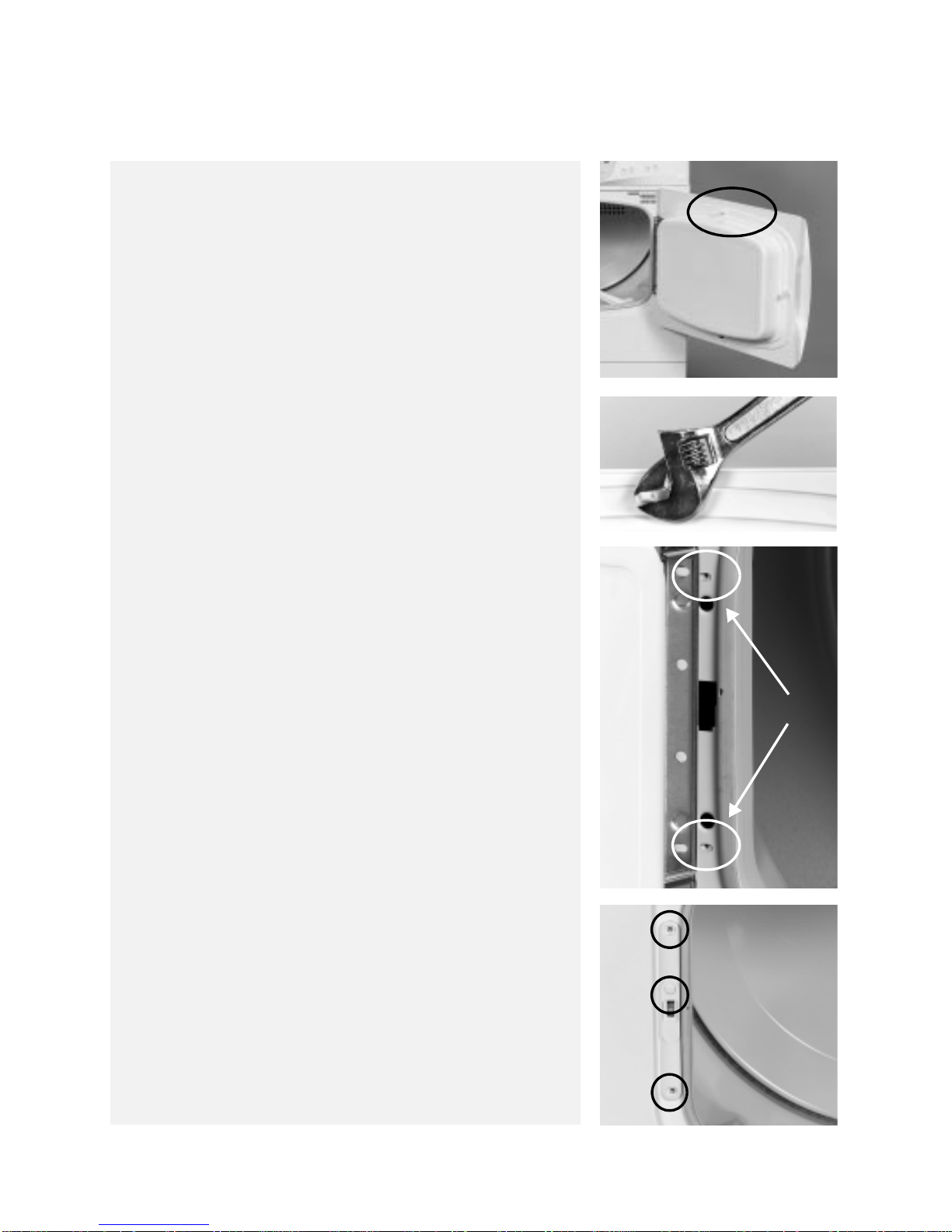

DOOR REVERSIBILITY / CHILD SAFETY LOCK

Door Reversibility

A. Unplug the dryer.

B. Open the door.

C. Using a spanner, turn the contact pinin the upper part of the door

by 90° and remove it.

D. Unscrew the 2 screws of the door hinge and remove the door.

E. Removing the door lock:

Unscrew the 2 screws above and below the door lock system.

Lift the door lock from the bottom, sliding it upwards about

1.5 cm, and remove it.

F. Reverse the door:

Fasten the door on the desired side with the 2 screws.

G. Insert the door lock system on the opposite side of the hinge

fixation and push it down 1.5 cm.

H. Fix the 2 screws above and below the door lock system.

I. Take care not to reverse the sense of the door lock system. The

child safety must be above the locking mechanism.

J. Replace the contact pin in the inside of the door (top).

Child Safety Lock

How to use the child safety lock

1. Open the door.

2. Usingacoinora screwdriver, turn the plastic screw(J)clockwise 90°.

Slot vertical: the door cannot be locked.

Slot horizontal: the door can be locked.

HEAT EXCHANGER

Before cleaning or carrying out

maintenance, switch off the dryer.

Clean the heat exchanger at least

everythreemonths,proceeding as

follows:

A. Open the door and press the heat

exchanger flap button on the

bottom of the door entrance.

B. The heat exchanger flap opens.

C. Fold the heat exchanger handle

upwardstothehorizontalposition

and remove the heat exchanger.

D. Clean the heat exchanger under

runningwater by turning itaround

to reach all sides.

E. Wipe away dust and lint from the

seals and the heat exchanger.

F. Remove the lint in the heat

exchanger housing. Keep the

drainage hole (left side in front in

the housing) free from lint.

G. Replace the heat exchanger in its

housing (TOP or HAUT mark

upwards) and press the handle.

H. Close the flap.

The heat exchanger aluminium plates

may become discoloured over time.

TROUBLESHOOTING GUIDE / AFTER-SALES

SERVICE

Troubleshooting Guide

If a fault occurs, before contacting our After-

Sales Service, make the following checks to

try and remedy the problem:

Drying takes too long / laundry is not dry enough:

Was the correct programme selected?

Was the inserted laundry too wet (Washing

machine spin speed less than 800 rpm? When the

spinning speed is less than 800 rpm the water

container fault may occur during the drying cycle)?

Is the lint filter dirty (filter indicator lamp on)?

Is the heat exchanger dirty? (refer to the

Instructions for use)

Is the ambient temperature too high?

Does “END” and “Anti-Crease” LED’s are lights

up?-Thedryingcycleisterminated,thelaundrycan

be taken out.

The dryer does not operate:

(after a power failure and/or interruption to the

mains supply, always press the Start/Pause

button).

Is the plug properly inserted into the mains

electricity socket?

Is there a power failure?

Has the fuse blown?

Is the door properly closed?

Has the programme been selected?

Has the start delay option been selected?

Has the Start/Pause button been pressed?

Lint filter or water container indicator lamp

light on:

Is the lint filter clean?

Is the water container empty?

Is the water container correctly positioned?

Is the heat exchanger clean?

Water droplets underneath the dryer:

Is the heat exchanger correctly positioned?

Hasanyfluffontheheatexchangersealbeenwiped

away?

Has any fluff on the door seal been wiped away?

Has the water container been positioned correctly?

After-Sales Service

If, after carrying out the above checks the

malfunction persists or appears again, turn

the dryer off and call our After-Sales Service

(refer to guarantee).

Please specify:

The nature of the fault.

The dryer type and model.

The service code (the number after the word

Service on the adhesive rating plate) on the

right-hand side when the door is open.

Your full address and phone number.

Other manuals for AWZ 7303

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool AWZ8377 User manual

Whirlpool

Whirlpool WGD8200Y Manual

Whirlpool

Whirlpool WGD97HEXL0 User manual

Whirlpool

Whirlpool CSP2761TQ User manual

Whirlpool

Whirlpool WED9400SB - 27" Electric Dryer User manual

Whirlpool

Whirlpool W10310420B - SP User manual

Whirlpool

Whirlpool WGD94HEX Manual

Whirlpool

Whirlpool LE7010XS User manual

Whirlpool

Whirlpool 8533582 User manual

Whirlpool

Whirlpool WED4985EW User manual

Whirlpool

Whirlpool ELECTRONIC DRYER User manual

Whirlpool

Whirlpool WGD8500DR User manual

Whirlpool

Whirlpool HybridCare WHD862CHC User manual

Whirlpool

Whirlpool Gold GEX9868JQ1 User manual

Whirlpool

Whirlpool WED9500TW2 User manual

Whirlpool

Whirlpool 3LWED4900YW User manual

Whirlpool

Whirlpool LE3300XS User manual

Whirlpool

Whirlpool WHP80250 User manual

Whirlpool

Whirlpool MDG22PRBWW0 User manual

Whirlpool

Whirlpool EL4030V Installation instructions

Whirlpool

Whirlpool AWZ220 User manual

Whirlpool

Whirlpool WED9250WR - Duet Cranberry - Electric Dryer User manual

Whirlpool

Whirlpool W10680139C User manual

Whirlpool

Whirlpool LGR7620LQ0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
