Whirlpool ACQ142XA0 User manual
1 997285 Cup, Condensate
2 708532 Bend, Return Condenser (17) Evaporator (2)
3 708531 Bend, Return Evaporator (13)
4 49599 Strainer, Tube
5 1155598 Tube, Outlet (Includes Illus. 4)
6 1163414 Tube, Restrictor (3)
7 1158665 Blade, Fan (Condenser)
8 1160870 Seal, Suction Tube
9 1160672 Bracket, Fan Motor
10 1164683 Motor, Fan
11 1160408 Nut
12 602851 Tie, Cable
13 1163408 Evaporator
14 950037 Gasket, Nut
15 1158703 Tube, Connect
16 1163522 Condenser
17 1156329 Tube, Riser (2)
18 1162146 Base (Includes 46)
19 1163412 Tube, Suction
20 1158689 Harness, Wiring (Compressor Service)
21 1157102 Compressor
22 950021 Grommet (3)
23 1162616 Seal, Anti-Rub
24 858121 Locknut (3)
25 950035 Gasket, Terminal Cover
26 1155700 OverLoad
27 950032 Spring, Overload
28 950036 Cover, Terminal
29 950027 Nut, Terminal Cover
30 1163407 Wheel, Blower (Evaporator)
31 1158692 Return Bend (2)
32 1162043 Manifold, Suction
33 1163850 Dampener
34 1158685 Bend, Return
35 947364 Tube, Flow Divider
36 471088 Clamp (2)
37 1162071 Flow, Divider
38 1158652 Pan, Drain
39 1157015 Clip, Motor (2)
40 1160357 Tube, Feeder
41 484238 Anticipator
42 642080 Clip, Anticipator
43 1160880 Washer (3)
44 1160358 Tube, Feeder
45 1161047 Tube, Discharge
46 1158668 Bolt, Compressor
FOLLOWING PARTS NOT ILLUSTRATED
Literature Parts
LIT1163503 Instructions, Installation
LIT1157501 Use And Care Guide
LIT1157446 Tech Sheet
LIT1157445 Wiring Diagram
REFRIGERANT CHARGE30 OZ. (R-22)
1 1157403 Shroud, Condenser
2 1157158 Screw,8x3/8
3 997221 Door, Exhaust
4 859369 Spring, Door
6 1158653 Scroll (Lower)
7 1160820 Seal, Evaporator
8 1157407 Top, Condenser
9 856094 Wire, Ground
11 1163527 Cord, Appliance
13 1159893 Capacitor, Running
14 1156967 Bracket, Capacitor
16 1161561 Screw, 8-18 x 3/8
17 1164511 Clip, Shroud (2)
18 1158654 Scroll, Upper
19 1157418 Raceway, Wiring
20 1156933 Panel, Control
21 1164561 Support, Unit (2)
22 1157443 Wire, Control
23 1158732 Seal, Shroud
24 1161556 Dividing Wall
25 1159130 Tie, Cable
26 1158669 Switch Rotary
27 1156982 Wire, Thermostat To Switch
28 1157404 Shroud Assembly, Evaporator
29 1162200 Grommet, Divider Wall
30 489092 Screw 7-18 x 5/8
31 997813 Cam, Exhaust
32 859233 Bushing, Shaft
33 488734 Screw, 6-32 x .175 (2)
34 1163519 Seal, Condenser Shroud Top
35 647881 Washer
36 1158253 Shaft, Control Exhaust
37 1157651 Harness, Wiring - Control Box
38 1156932 Control Box
39 1156965 Back Panel, Control Box
40 857547 Cable, Tie
41 1163535 Seal, Condenser Shroud Side
42 1161555 Impeller Guard (2)
43 1158658 Escutcheon
44 1158066 Spacer (2)
45 1158054 Knob, Controls (3)
46 1160214 Control, Temperature

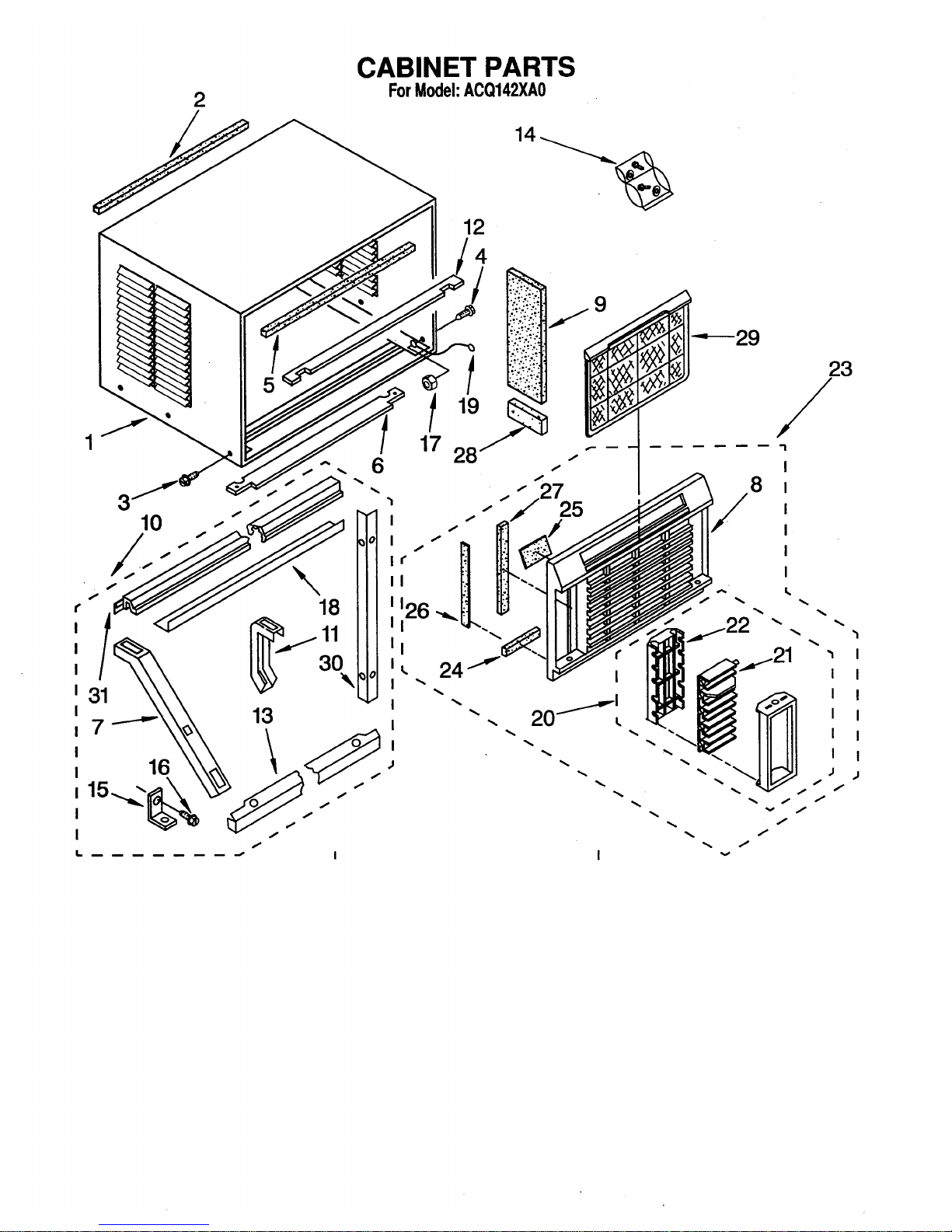

1 1162272 Cabinet
2 469877 Gasket, Meeting Rail
3 1157158 Screw, 8 x 3/8 (3)
4 488234 Screw
5 1158731 Seal, Top
6 1160768 Seal
7 649945 Support Cabinet
8 1157463 Cabinet Front
9 1160819 Insulation Cabinet Side (2)
10 1160600 Kit, Window Mounting
11 649946 Retainer, Cabinet Support
12 1160762 Seal
13 649947 Bracket, Support
14 1158746 Bag, Accessory
15 644228 Bracket, Window
16 488480 Screw,8x1/2
17 486529 Nut, Hex
18 644271 Angle, Top Mtg.
19 857022 Ground, Cabinet
20 1157464 Cartridge, Complete
21 1157466 Horzontal Louver
22 1157467 Ribs, Vertical
23 1157462 Front, Complete
24 Seal
1160764 Right Side
1160763 Left Side
25 Seal
1160770 Right Side
1161864 Left Side
26 1160769 Seal
27 1161863 Seal
28 1160818 Insulation Cabinet Side(2)
29 1157468 Filter
30 644272 Angle, Side Mtg.
31 644288 Gasket, Sash
1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Oz.
5 99243 Oil, Turbine 8 Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28"x19"x31"
484067 19"x12"x14"
484069 27"x19"x6 to 27"
484184 22"x15"x3 to 18"
15 813610 Retainer, Cord (Winter Cover)
1 1160600 Kit, Standard Installation
2 469877 Seal
3 644288 Gasket, Sash
4 855265 Strip, Seal
5 488750 Bolt, 1/4 x 3/4 (6)
6 649945 Support, Cabinet (2)
7 488808 Washer (6)
8 486009 Lockwasher (6)
9 486035 Nut, Hex (6)
10 649947 Bracket, Support
11 649946 Support, Retainer (2)
12 644303 Board, Filler
13 644228 Bracket
14 487371 Screw, 10 x 3/4
15 488720 Screw, 10 x 1/2
16 644271 Angle(Top)
17 644272 Angle (2)
18 995274 Spacer, Block (4)
19 488017 Screw,8x3/8
20 485856 Kit, Wide Window
21 644283 Support, Cabinet (2)
22 644284 Extension, Support (2)
23 644285 Retainer, Cabinet (2)
24 644281 Bracket, Support
25 485679 Kit, Outside Support
26 856979 Strip, Seal
27 470800 Seal, Meeting Rail
28 485457 Gasket, Sash (54")
Following Parts Not Illustrated
LITERATURE PARTS
LIT998618 Instructions, Installation (Standard and Wide Window Kits)
LIT485707 Instructions, Installation (Outside Support Kit)
