Whirlpool PORTABLE AIR CONDITIONER Original operating instructions

Copy your Model and

Serial Numbershere...

When you need service or call with a question,

have this information ready:

Complete Model and Serial Numbers (Model

and Serial Numbers are on a plate attached to

the front of the unit. You can see it after

removing the plastic front panel.)

Purchase date from sales slip.

Copy this information in these spaces. Keep

this book. vour warrantv and sales slip toaether

in a handy place, (To remove front panel,

see page 12.)

BEFORE YOU USE YOUR

AIR CONDITIONER

It is your responsibilityto make

surethat your air conditioner:

l Has been properly installed.

l Is the right size for the area you want

to cool.

l Is properly connected to electricity.

l Is properly electrically grounded.

l Is properly used only for the job it was

intended to do.

l Is not used by children or anyone not

able to operate it properly.

l Is properly maintained.

l Also, remove energy label and buy guide.

Use damp cloth to take off any glue

residue. Do not use a sharp instrument

or any harsh or abrasive cleaners.

Energy SavingTips

l Improve home insulation (seal doors,

windows, and close fireplace flue).

l Close blinds or drapes on sunny side of

house; add window awnings.

l Keep air filter clean. Don’t block air flow

with drapes or furniture.

l Ventilate attic (high temperature levels

add to normal cooling load).

l Try not to use heat producing appliances

during the hottest part of the day. Turn

lights, radios, televisions, and other

appliances off when not needed.

l Keep heat registers and cool air returns

closed or blocked off so cooled air won’t

escape.

l Use a vent fan in areas where cooking,

laundry, or bathing is done to pull out

extra heat and moisture near its source.

Contents

page paw

Before You Use Your Air Conditioner .... 2 Cleaning and Caring for Your

Energy Tips ........................ 2 Air Conditioner .................... 12

Electrical Requirements ............... 3 Cooling Load Guide ................. 14

Installation Instructions ............... 7 Self-Service Checklist ................ 15

How to Start and Service Information ................. 15

Use Your Air Conditioner ............ 10

GJl985 Whirlpool Corporation

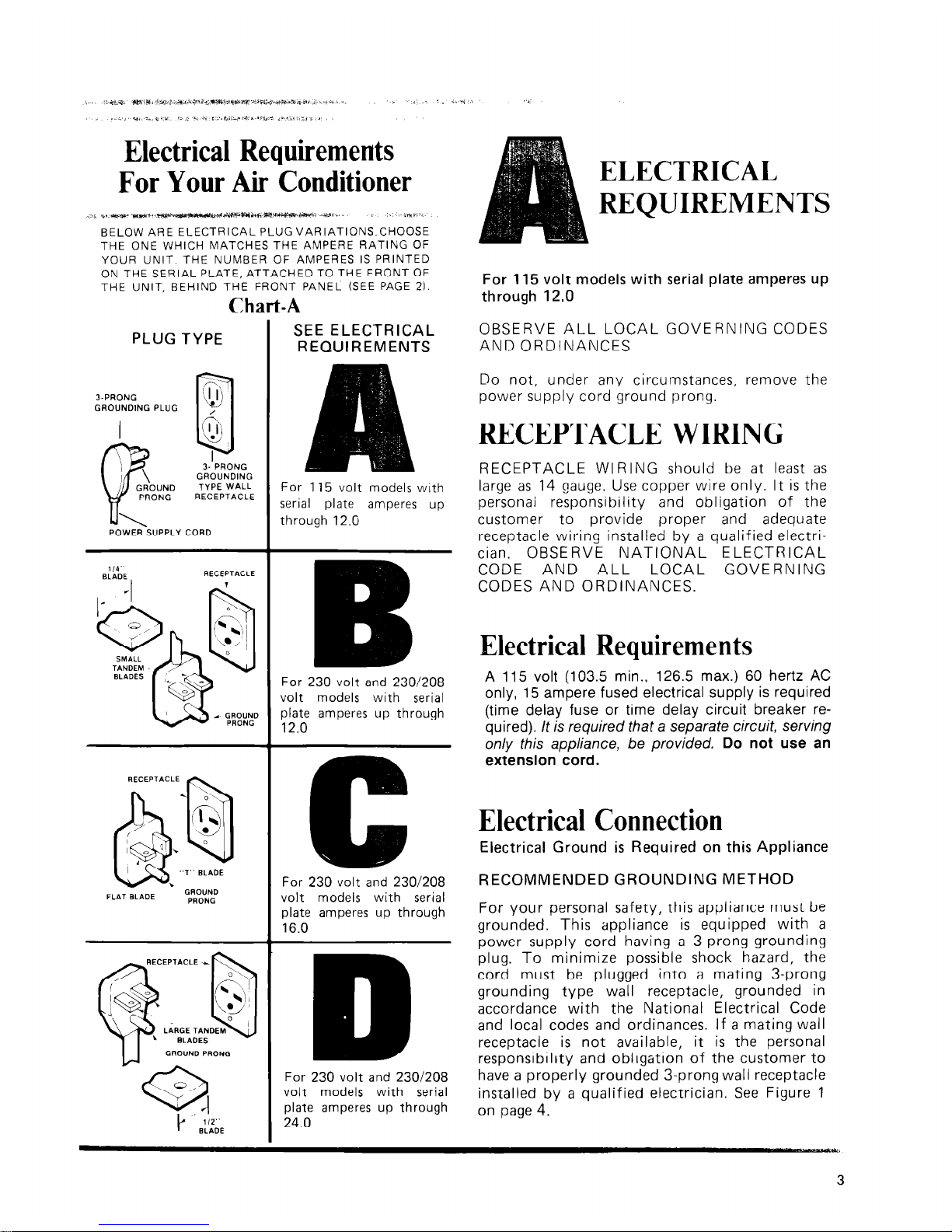

Electrical Requiremerrts

For Your Air Conditioner

‘i ;* *ppII’rrar-,.~~~~~~,~IIF!~~.~I -eeli. i L i*r,.<

BELOW ARE ELECTRICAL PLUGVARIATIONS.CHOOSE

THE ONE WHICH MATCHES THE AMPERE RATING OF

YOUR UNIT. THE NUMBER OF AMPERES IS PRINTED

ON THE SERIAL PLATE, ATTACHED TO THE FRONT OF

THE UNIT, BEHIND THE FRONT PANEL (SEE PAGE 2).

Chart-A

PLUG TYPE

3-PRONG

GROUNDING PLUG

3- PRONG

GROUNDING

TYPE WALL

RECEPTACLE

POWER SUPPLY CORD

GROVNO PRONG

SEE ELECTRICAL

REQUIREMENTS

For 115 volt models with

serial plate amperes up

through 12.0

For 230 volt and 2301208

volt models with serial

plate amperes up through

12.0

For 230 volt and 2301208

volt models with serial

plate amperes up through

16.0

For 230 volt and 2301208

volt models with serial

plate amperes up through

24.0

ELECTRICAL

REQUIREMENTS

For 115 volt models with serial plate amperes up

through 12.0

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES

Do not, under any circumstances, remove the

power supply cord ground prong.

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as 14 cauge. Use copper wire only. It is the

personai responsibility and obligation of the

customer to provide proper and adequate

receptacle wiring installed by a qualified electri-

cian. OBSERVE NATIONAL ELECTRICAL

CODE AND ALL LOCAL GOVERNING

CODES AND ORDINANCES.

Electrical Requirements

115 volt (103.5 min., 126.5 max.) 60 hertz AC

only, 15 ampere fused electrical supply is required

(time delay fuse or time delay circuit breaker re-

quired). It is required that a separate circuit, serving

only this appliance, be provided.

Do not use an

extension cord.

Electrical Connection

Electrical Ground is Required on this Appliance

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be

grounded. This appliance is equipped with a

power supply cord having a 3-prong grounding

plug. To minimize possible shock hazard, the

cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in

accordance with the National Electrical Code

and local codes and ordinances. If a mating wall

receptacle is not available, it is the personal

responsibility and obligation of the customer to

have a properly grounded 3-prong wall receptacle

installed by a qualified electrician. See Figure 1

on page 4.

Figure 1

3-PRONG

GROUNDING PLUG II

\ 0

0 6 !’

GROUND 1

PRONG 3- PRONG

GROUNDING

\ TYPE WALL RECEPTACLE

POWER SUPPLY CORD

ALTERNATE GROUNDING

METHOD

If changing and properly grounding the wall

receptacle is impossible and where local codes

permit (consult your electrical inspector), a

temporary adapter may be plugged into the

existing 2-prong wall receptacle to mate with the

3-prong power supply cord. See Figure 2. THIS,

HOWEVER, IS NOT RECOMMENDED.

If this is done, you must connect the grounded

eyelet on the adapter to the wall receptacle

cover plate screw and from this same screw, you

must connect a separate copper ground wire

(#14 minimum) to a grounded cold water pipe.*

See Figure 2. Do not ground to a gas supply

pipe. Do not connect to electrical supply until

appliance is permanently grounded.

GROUND ASSEMBLY

TTACH TO GROUNDED

ELECTRICALLY

GROUNDED MET

COLD WATER PIP

(REMOVE PAINT,

RECEPTACLE

POWER SUPPLY CORD

*Cold water pipe must have metal continuity to

electrical ground and not be interrupted by

plastic, rubber or other electrically insulating

connectors (including water meter or pump)

without adding a jumper wire at these con-

nections.

ELECTRICAL

REQUIREMENTS

For 230 volt and 230/208 volt models with serial

plate amperes up through 12.0

Refer to Chart B for specific wiring and receptacle

information to be used.

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the

power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE.

A three-wire, single-phase 60 hertz AC only

electrical supply is required.

A separate electrical supply is required on a

separately fused circuit. Do not fuse ground-

neutral.

See Chart 6 for receptacle voltage require-

ments, proper fuse size, wire and wiring con-

nections which must conform with rating of

the appliance. Do

not use an extension cord.

Chart-B

PLUG AND

RECEPTACLE

DATA

RECEPTACLE

USE TIME-DELAY

FUSE

OR TIME

DELAY CIRCUIT

BREAKER

RATING IN

AMPS

RECEPTACLE

SERIAL PLATE

OF 230 VOLTS

SERIAL PLATE

MINIMUM

RECEPTACLE

TYPE

WIRE SIZE OF BRANCH

CIRCUIT

SEE BELOW

14 GAUGE

SINGLE

OUTLET

USE COPPER ONLY

WIRE ONLY

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart B. Use

copper wire only. It is the personal responsibility

and obligation of the customer to provide proper

and adequate receptacle wiring installed by a

qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL

GOVERNING CODES AND ORDINANCES.

RECOMMENDED GROUNDING METHOD

Chart-C

For your personal safety, this appliance must be

grounded. This appliance is equipped with a

power supply cord having a 3-prong grounding

plug. To minimize possible shock hazard, the

cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in

accordance with the National Electrical Code

and local codes and ordinances. If a mating wall

receptacle is not available, it is the personal

responsibility and obligation of the customer to

have a properly grounded 3-prong wall receptacle

installed by a qualified electrician,

PLUG AND

RECEPTACLE

DATA

RECEPTACLE

VOLTAGE

(60 HERTZ

AC IN ALL

INSTANCES)

RECEPTACLE

MODEL WITH

SERIAL PLATE

OF 230 VOLTS

SERIAL PLATE

OF 2301206

For 230 volt and 230/208 volt models with serial

plate amperes up through 16.0

Refer to Chart C for specific wiring and recep-

tacle information to be used.

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the

power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE.

A three-wire, single-phase 60 hertz AC only

electrical supply is required.

A separate electrical supply is required on a

separately fused circuit. Do not fuse ground-

neutral.

See Chart C for receptacle voltage require-

ments, proper fuse size, wire and wiring con-

nections which must conform with rating of

the appliance.

Do not use an extension cord.

FLAT BLADE GROUND

PRONG

SERIAL PLATE

AhlPERES

VOLTS

(197.6 MIN

253 MAX ) I

through

16.0

USE TIME-DELAY

FUSE

OR TIME

DELAY CIRCUIT

BREAKER

RATING IN

AMPS

MINIMUM

RECEPTAC

WIRE SIZE

TYPE I

:LE 1 OF BRANCH

CIRCUIT I

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart C. Use

copper wire only. It is the personal responsibility

and obligation of the customer to provide proper

and adequate receptacle wiring installed by a

qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL

GOVERNING CODES AND ORDINANCES.

Chart-D

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be

grounded. This appliance is equipped with a

power supply cord having a 3-prong grounding

plug. To minimize possible shock hazard, the

cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in

accordance with the National Electrical Code

and local codes and ordinances. If a mating wall

receptacle is not available, it is the personal

responsibility and obligation of the customer to

have a properly grounded 3-prong wall receptacle

installed by a qualified electrician.

ELECTRICAL

REQUIREMENTS

PLUG AND

RECEPTACLE

DATA

RECEPTACLE _

USE TIME-DELAY

FUSE

OR TIME

DELAY CIRCUIT

BREAKER

RATING IN

AMPS

10 GAUGE

,..rnT

rrm,.

SINGLE

TYPE OUTLET

ONLY USE COPPER

30 WIRE ONLY ONLY

. . I

RECEPTACLE

VOLTAGE

(60 HERTZ

AC IN ALL

INSTANCES)

MODEL WITH

SERIAL PLATE

OF 230 VOLTS

(207 MIN,253

MAX.)

MODEL WITH

SERIAL PLATE

OF 230/208

VOLTS

(197.6 MIN-

253 MAX,)

MINIMUM

RECEPTACLE

WIRE SIZE

SEE BELOW

SERIAL PLATE

AMPERES I

“P

--I

through

24.0

OF BRANCH

For 230 volt and

230/208 volt models with

serial plate amperes up through 24.0

Refer to Chart D for specific wiring and recep-

tacle information to be used.

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

Do not, under any circumstances, remove the

power supply cord ground plug.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE.

A three-wire, single-phase 60 hertz AC only

electrical supply is required.

A separate electrical supply is required on a

separately fused circuit. Do not fuse ground-

neutral.

See Chart D for receptacle voltage require-

ments, proper fuse size, wire and wiring

connections which must conform with rating of

the appliance.

Do not use an extension cord.

RECEPTACLE WIRING

RECEPTACLE WIRING should be at least as

large as size shown on electrical Chart D. Use

copper wire only. It is the personal responsibility

and obligation of the customer to provide proper

and adequate receptacle wiring installed by a

qualified electrician. OBSERVE NATIONAL

ELECTRICAL CODE AND ALL LOCAL

GOVERNING CODES AND ORDINANCES.

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be

grounded. This appliance is equipped with a

power supply cord having a 3-prong grounding

plug. To minimize possible shock hazard, the

cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in

accordance with the National Electrical Code

and local codes and ordinances. If a mating wall

receptacle is not available, it is the personal

responsibility and obligation of the customer to

have a properly grounded 3-prong wall receptacle

installed by a qualified electrician.

INSTALLATION INSTRUCTIONS

for Your Air Conditioner

Through-the-wall

Installation Instructions

for installing the unit in a pre-installed cabinet.

Unpack accessory parts

(see Figure 3) be-

fore installing your air conditioner.

Figure 3

CAUTION:

Be sure air conditioner does not fall

during installation.

Handle the air conditioner with care.

Watch out for the sharp metal fins on

the front and rear coils.

Do not use the water condensate for

drinking purposes. It is not sanitary.

PLASTIC

DRAIN

SPOUT

USED ON $

MODELS

WITH DRAIN

CUP AND WEATHER

HOLE IN SEAL USED

REAR

CABINET ON 18 3/4”-

RAIL HIGH

CABINETS

ONLY

SEAL

STRIP

(Ya” x X”

( Some

Models)

Pick the right wall.

First, decide what room(s)

you want to cool. Then choose a wall that

will allow the air-conditioned air to flow

freely and directly into the room(s) you want

cooled. Remember, it’s difficult to move air

around corners. Choose a location that’s

also

near

an electrical outlet. (Refer to

ELECTRICAL REQUIREMENTS for re-

ceptacle and wiring needed.) Do not use an

extension cord. (CAUTION: DO NOT LOCATE

AIR CONDITIONER WHERE PLASTIC

CABINET FRONT WILL BE EXPOSED TO

A HEAT SOURCE THAT RAISES THE

SURFACE TEMPERATURE IN EXCESS

OF 120” F.)

.:_ _ -‘a -.:<!za~a <-‘1’ ! ,uw”+we*A-

Choose the type of decorative molding you

want to use around the room side of the

cabinet. Your choice affects the finish frame

alignment with the inside wall. When using a

wood, metal or plastic molding, the finish

frame should almost line up with the inside

wall. If the wall is plastered to the cabinet

and no molding is used, the finish frame

must be set into the wall by l/2” (see Figure 4

for frame construction or Figure 5 for brick

veneer construction). Cut through two studs

for support.

‘IDE I’,,. CLEARANCE

FOR SERVICE CORD

ENTR” ON LEFT SIDE

APPROPRIATE

NEADER IF CONSTR”CTlON “SE ,,*,,a DIMENSION

REOUIRED ON 2,‘,qi CABINET

APPROPRIATE USE ,I’,,. DIMENSION

Figure 5

ON 23’lw CABINET

PRO”,DE I’,,< CLEARAN

FOR SERVICE CO

ENTRY ON LEFT SI RICK VENEER

ONSTRUCTION

APPROPRIATE /

HEADER IF

REOUIRED

. Provide an opening through the wall

for a

finish frame. Observe all local governing codes

and ordinances. For wall opening dimensions,

use those shown in Figure 6 and add wood

frame thickness (use 1” lumber or heavier).

When determining finish frame thickness,

be sure you do not cover side cabinet louvers.

A 4” minimum clearance between sidecabinet

louvers and adjoining wall allows for proper

airflow into air conditioner.

Figure 6

TNlS DIMENSION

DEPENDS ON WALL

TNICKNESS AND SED

“SE 26% DIMENSION

CABINET 18% HIGH

“SE 17v2 DIMENSION FOR

(INCLUDES ALLOWANCE FOR

‘1.. FLANGE ON BOl7OM OF

..I

CABINET.)

Construct finish frame.

Apply creosote or

something equal to the outside exposed

surface.

. Install the finish frame

in the wall opening.

Square and level frame and nail it securely to

the studs.

Remove front panel

by pushing top down and

out. This protects the panel from damage and

makes the air condtioner easier to handle

during installation (see Figure 7).

Slide unit out of cabinet.

First, disconnect the

green ground wire at the left-front corner of

base unit by removing retaining screw (save

screw for reuse later). Now slide unit out of

cabinet by pulling on handle at bottom (see

Figure 7).

. Insert exterior cabinet through wall opening.

Leave l-3/16” minimum projection into the

room at service cord exit hole in cabinet, after

allowing for trim. For proper outward water

drainage, shim or reposition cabinet to pro-

vide the proper downward tilt to the outside

(l/2” bubble or l/4” and side-to-side leveling.

Fill all spaces

between cabinet and finish

frame with insulation.

Drill holes

in the cabinet and attach it securely

to finish frame. Use ten #lO x 1” wood

screws (four screws for each side and two

screws for the top; not included). Do not

overtighten screws or cabinet will distort and

provide a poor air seal between cabinet and

unit.

Insert plastic drain-cup spout

and metal holder

(on certain models) into hole at rear of cabinet,

as shown in Figure 8. Spout should be facing

downward through hole. OPTIONAL: During

high humidity, condensate may drip from

the outside of your air conditioner onto the

ground below. If your air conditioner is

installed where this is undesirable, you can

direct the water to a more suitable spot by

simply attaching a 5/8” inside-diameter, thin

walled hose to the drain spout at rear of

cabinet (see Figure 9). On models without

plastic drain cup spout, use flashing as needed

to guide water.

Note the type of drain parts you have. Insert

drain cup according to instructions in Figure 8.

Figure 8

PLACE PLASTIC

DRAIN INTO HOLE

IN REAR OF

CABINET WITH

SPOUT DOWN

r---l

L-Q,

r-l

INTO METAL I

BRACKET AND

INSERT INTO I’ ’

CABINET RAIL

SLOTS I

TYPE 1 1 TYPE 2

Figure 9

OUTSIDE 4

ROOM

SIDE

If you received one adhesive-backed seal strip

(l/4” x l/2”), remove paper backing from

seal and install on air conditioner as shown in

Figure 10.

Fig1

Insert air conditioner into cabinet. Do not

push against sharp fins and plastic parts.

Attach green ground wire to the left-front

corner of unit base by using retainer screw

(see Figure 11).

Figure 11

SCREW I GROUND WIRE

Figure 12

BOTTOM WEATHER

SEAL -PRESS UPWARD

(Adhesive side on

bottom of base )

For installation of bottom weather seal

on unit

with 18 3/4”-high cabinet, see Figure 12.

. Attach front,

by placing bottom edge on clips

and pushing top down, then in and up.

. Caulk all

outside wall openings around cabinet.

If needed,

install molding around room side

of cabinet.

HOW TO START AND USE

YOUR AIR CONDITIONER

To Start Your Air Conditioner

EXHAUST CONTROL

FAN SPEED/

HEAT CONTROL

THERMOSTAT CONTROL

Be sure air conditioner is OFF before plugging

it in.

Set exhaust control (if your unit is so equip-

ped) to OFF for maximum cooling or heating.

Choose a fan speed setting for cooling or

heating.

LO COOL . . . . . . . . . for sleeping comfort

HI COOL . . . . . . for maximum cooling

LO HEAT.. . . . for reduced air movement

with heat

HI HEAT . . . for maximum air movement

with heat

Turn thermostat control to Number 6 (mid-

setting). You can adjust the air conditioner’s per-

formance by resetting the thermostat control to

a higher number for maximum cooling. Lower the

number setting for less cooling. You will need to

experiment to find the setting which suits you

best.

Other manuals for PORTABLE AIR CONDITIONER

This manual suits for next models

Table of contents

Other Whirlpool Air Conditioner manuals

Whirlpool

Whirlpool ACE184XR0 User manual

Whirlpool

Whirlpool CA13WQ4 User manual

Whirlpool

Whirlpool PORTABLEAIR CONDITIONER User manual

Whirlpool

Whirlpool 1188177 User manual

Whirlpool

Whirlpool 1188176-W Parts list manual

Whirlpool

Whirlpool 1188018 User manual

Whirlpool

Whirlpool ACE184XL0 User manual

Whirlpool

Whirlpool SLIM RANGE R22 User manual

Whirlpool

Whirlpool WHAP121AW User manual

Whirlpool

Whirlpool ACH082 User manual

Whirlpool

Whirlpool ACS072XE User manual

Whirlpool

Whirlpool WAHMS User manual

Whirlpool

Whirlpool SPOW 407 User manual

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER User manual

Whirlpool

Whirlpool Through-The-Wall Air Conditioner User manual

Whirlpool

Whirlpool 3PACH21DD0 User manual

Whirlpool

Whirlpool BHAC1400XS0 User manual

Whirlpool

Whirlpool WMB User manual

Whirlpool

Whirlpool ACQ058PP0 User manual

Whirlpool

Whirlpool ACC602XP0 User manual

Whirlpool

Whirlpool SPIW409A2WF User manual

Whirlpool

Whirlpool ACU109PR Assembly instructions

Whirlpool

Whirlpool CA10WXP0 User manual

Whirlpool

Whirlpool ACM102XF0 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
