Vivo STAND-V155C User manual

Single Wide Screen TV Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v155c

SKU: STAND-V155C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

VESA Plate

B(x1)

Pole

C(x1)

Pole Cap

J (x1)

3mm Allen

Wrench

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D(x1)

Clamp

E(x1)

Cable Clip

F (x1)

Decorative

Cover

G(x1)

Grommet Base

Plate

H (x5)

Rubber Pad

I (x1)

Grommet Plate

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

K (x1)

4mm Allen

Wrench

M-A (x4)

M5x14

M-B (x4)

M6x14

M-C (x4)

M6x30

L (x2)

Arm

M (x2)

Arm

M-F (x4)

D5 Washer

M-D (x4)

M8x30

M-E (x4)

M8x50

O (x2)

Bolt

N (x8)

Screw

P (x2)

Nut

Q (x1)

Wrench

M-G (x4)

D8 Washer

M-H (x8)

D8 Washer

M-I (x8)

Spacer

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

66lbs

(29.94kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

Place pole cap (C) onto pole (B).

STEP 2

OPTION A: Clamp Installation

Slide cable management clip (E) and decorative cover (F) onto pole (B). Then thread pole (B) into base

of clamp (D). Tighten grub screws with allen wrench (J) as shown in diagram. Slide decorative cover (F)

down. Apply rubber pads (H) as shown in diagram. Secure clamp (D) to desk.

B C

10-88mm

STEP 2 (Continued)

OPTION B: Grommet Base Installation

Remove screw and plate from clamp (D) as shown in diagram. Apply rubber pads (H) to the bottom

of grommet base (G) as shown in diagram. Slide cable management clip (E) and decorative cover (F)

onto pole (B). Then thread pole (B) into grommet base (G). Tighten grub screws with allen wrench (J)

as shown in diagram. Slide decorative cover (F) down. Slide grommet plate (I) onto hand crank. Insert

hand crank through grommet hole from bottom and into grommet base (G).

STEP 3

10-80 mm

If installing a TV with a VESA 300x300mm or

400x400mm pattern, attach arm (L, M) to

VESA Plate (A) with screws (N) as shown in the

diagram.

STEP 4

OPTION A: Flat Back Monitor

Attach VESA plate (A) to back of TV with screws (M-A, M-B) and washers (M-F, M-G). Make sure the two

keyholes on back have the small end facing up.

OPTION B: Curved Back Monitor

Attach VESA plate (A) to back of TV using screws (M-C, M-D, M-E), washers (M-G), and spacers (M-H,

M-I) depending on your TV’s requirements as shown in diagrams. Make sure the two keyholes on back

have the small end facing up.

M- A

M- B

M- F

M- G

M- H

M- C

M- D

M- G

M- C

M- D

M- I

M- G

M- H

M- C

M- D

M- I

M- G

M- E

M- I

M- G

M- E

M- I

M- H

M- G

M- E

M- I

M- H

STEP 6

Store allen wrenches (J, K) in cable clip (E) as shown in diagram.

Insert bolts (O) into pole (B) at desired height, making sure there are 3 holes unused between bolts.

Thread nuts (P) onto bolts leaving 3mm of thread exposed behind bolt heads. Hang VESA plate (A)

with TV onto bolts, and tighten with 4mm Allen wrench (K) and wrench (Q).

STEP 5

3mm

105mm

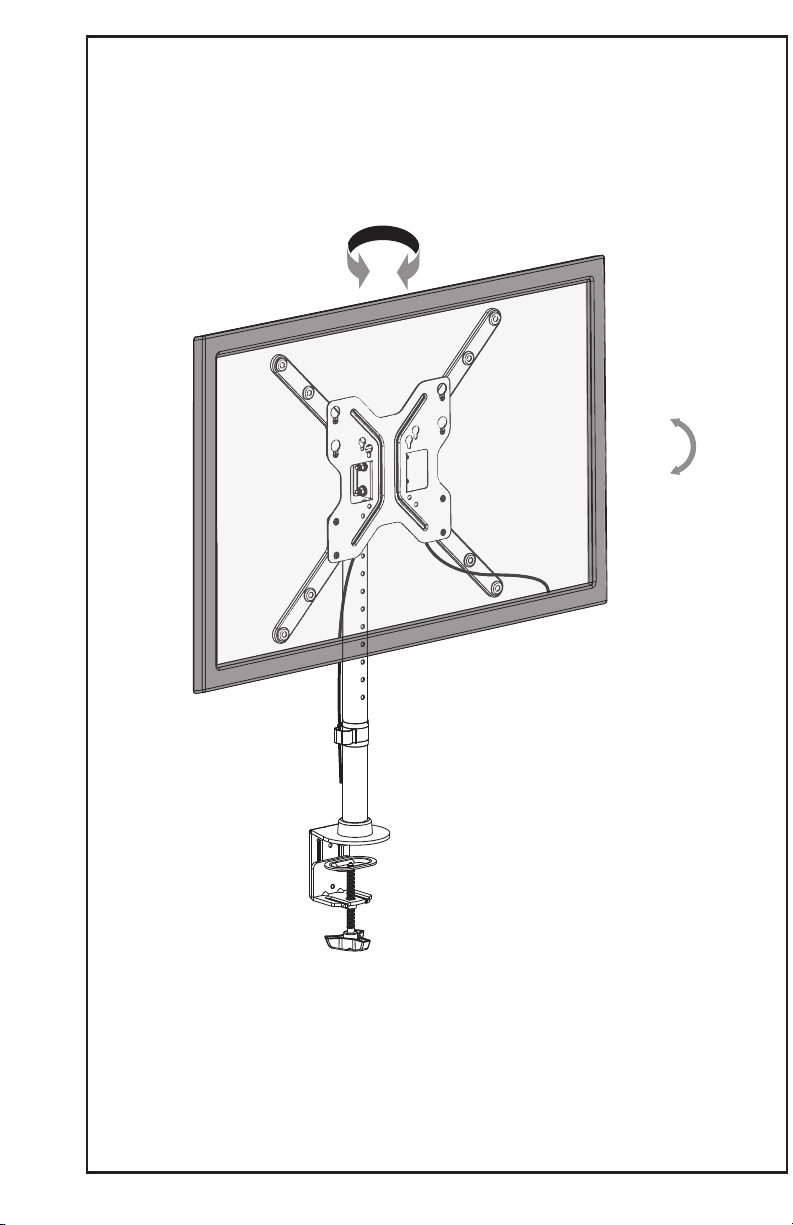

STEP 7

Manage cables using cable clip (E). Adjust tilt and swivel of TV.

±50°

+15°

-15°

LAST UPDATED: 03/06/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
