Vivo MOUNT-E-MM070W User manual

White Electric TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-mm070

SKU: MOUNT-E-MM070W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

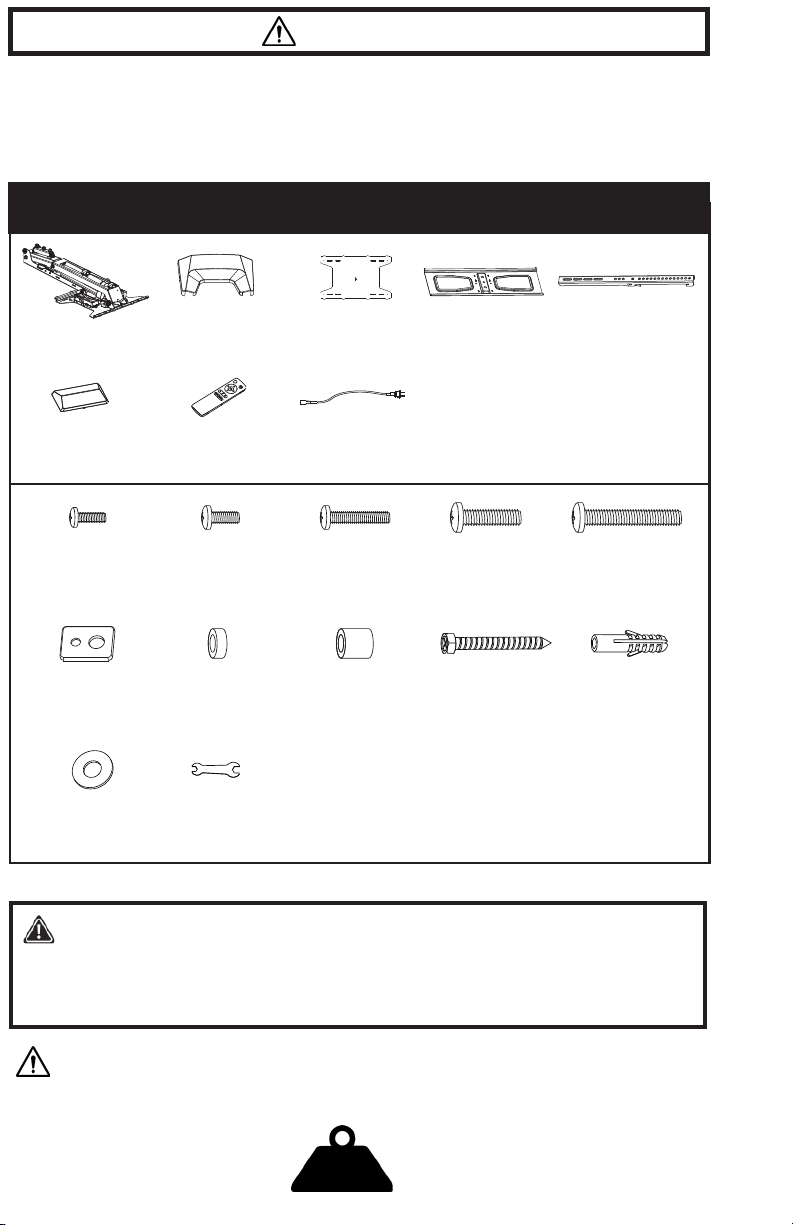

PACKAGE CONTENTS

77lbs

(35kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

A (x1)

Mount

B(x2)

Wall Plate Cover

C(x1)

Stencil

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D(x1)

TV Plate

E (x2)

VESA Bracket

F (x1)

Front Cover

G (x1)

Remote

H(x1)

Power Cord

T-A (x1)

Wrench

M-A (x4)

M5x14mm Screw

M-B (x4)

M6x14mm Screw

M-C (x4)

M6x30mm Screw

M-D (x4)

M8x30mm Screw

M-E (x4)

M8x50mm Screw

M-F (x4)

Square Washer

M-G (x8)

5mm Spacer

M-H (x8)

15mm Spacer

W-A (x6)

ST6.3x55mm Screw

W-B (x6)

Anchor

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

W-C (x6)

Washer

ASSEMBLY STEPS

STEP 1

Measure the required mounting height using the

chart below. Ensure the front edge of the mantel

does not exceed 110°F (43°C).

STEP 2

Remove pre-installed Nuts (A1), Metal Washers

(A2) and Plastic Washers (A3) from Mount (A)

using Wrench (T-A).

STEP 3 (Option A)

Wood Stud Installation

Align the bottom edge of Stencil (C) with the measured height from step 1 and mark drilling locations

using a pencil. Use of a stud nder and level is recommended. Remove Stencil (C) and drill 2.2”

(55mm) deep holes using a 3/16” (4.5mm) drill bit. Attach Mount (A) to the wall with ST6.3x55mm

Screws (W-A) and Washers (W-C) using a 10mm socket.

TOOLS NEEDED

3/8” Drill Pencil

Phillips

Drill

3/16” Drill

Hammer Ruler Stud Finder

≤ 13-3/4” (350mm)

≤ 4” (100mm)

≤ 7-7/8” (200mm)

≤ 11-3/4” (300mm)

≥ 9-7/8” (250mm)

≥ 7-7/8” (200mm)

≥ 3-1/8” (80mm)

≥ 11-3/4” (300mm)

T-A

10mm Socket

W-C

W-A

STEP 4

Plug Power Cord (H) into Mount (A). Place Power Cord (H) into the slot as shown and snap Wall Plate

Covers (B) in place.

STEP 3 (Option B)

Concrete/Brick Installation

Align the bottom edge of Stencil (C) with the measured height from step 1 and mark drilling locations

using a pencil. Use of a level is recommended. Remove Stencil (C), drill 2.4” (60mm) deep holes using

a 3/8” (10mm) drill bit, and insert Anchors (W-B) into the holes. Attach Mount (A) to the wall using

ST6.3x55mm Screws (W-A) and Washers (W-C) and a 10mm socket.

W-B

W-C

W-A

STEP 5

Plug Power Cord (H) into a wall outlet. Press and hold the down button on Remote (G) until the arm is

fully lowered. Remove and discard the plastic wedge (A4).

WARNING! The arm is not able to fully raise and may

cause damage to the mount if the wedge is not removed

STEP 6

Remove the nut from each VESA Bracket (E) and ip open the clip.

STEP 7

Attach VESA Brackets (E) to the back of the TV using

combination of Screws (M-A - M-E), Washers (M-F)

and Spacers (M-G, M-H) appropriate for your TV. The

bottom edge of the VESA brackets should be greater

than 7-7/8” (200mm) above the bottom edge of the

TV.

STEP 9

Hang the TV with VESA Brackets (E) onto TV Plate (D). Close the clips, and secure using the

previously removed nuts. Tighten with Wrench (T-A).

STEP 8

Place previously removed Plastic Washers (A3) on Mount (A). Attach TV Plate (D) to Mount (A) using Nuts

(A1) with Metal Washers (A2). Make sure TV Plate (D) is level, and tighten nuts using Wrench (T-A). Press

Front Cover (F) onto the front of TV Plate (D).

T-A

STEP 10

Manage cables using the cable clips on the arm. Use Remote (G) to raise and lower Mount (A). The TV

may be manually swiveled to the le and right.

CAUTION: To avoid injury, do not place hand in the arm while operating.

LAST UPDATED: 04/05/2022

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
