Vivo STAND-V003KL User manual
Pneumatic Arm Dual Monitor and Laptop Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v003kl
SKU: STAND-V003KL
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

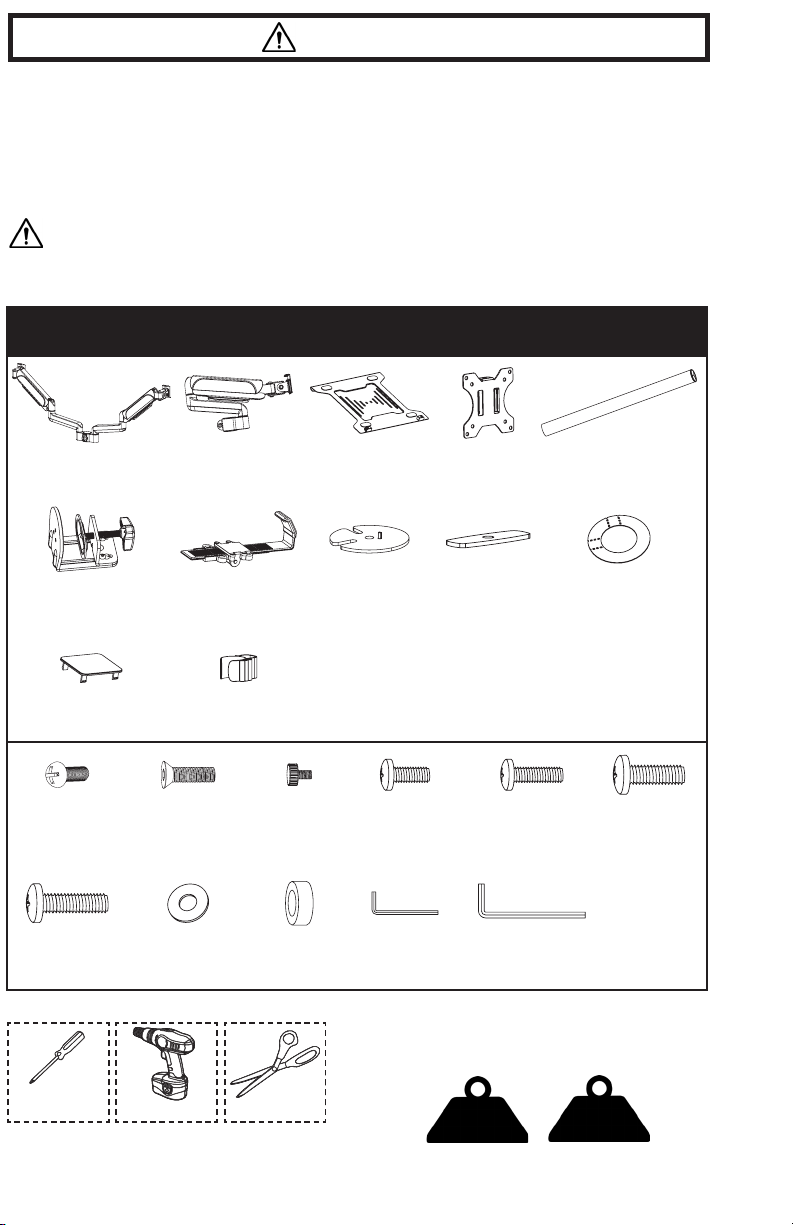

PACKAGE CONTENTS
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product for
any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot
be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate
use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
A (x1)
Dual Arm
B (x1)
Arm
C (x1)
Laptop Tray
J (x1)
So Pad
D (x3)
VESA Plate
E (x1)
Pole
F (x1)
Clamp
G (x2)
Laptop Arm
H (x1)
Grommet Plate
I (x1)
Support Plate
M-A (x12)
M4x12mm Screw
M-C (x12)
M5x12mm Screw
M-B (x12)
M4x16mm Screw
M-D (x12)
M5x16mm Screw
M-F (x12)
Spacer
M-E (x12)
M5 Washer
K (x2)
Clip
L (x1)
Cable Clip
S-A (x4)
M4x8mm Screw
S-B (x3)
M6x16mm Screw
S-C (x3)
Thumbscrew
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
2.2-19.8lbs
(1-9 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
9.9lbs
(4.5kg)
KEYBOARD TRAY
T-A (x1)
4mm Allen Wrench
T-B (x1)
6mm Allen Wrench
Phillips
Screwdriver Drill Scissors
3
ASSEMBLY STEPS
STEP 1
Loosen the screws on Clamp (F) using the 4mm Allen Wrench (T-A) and seperate into Upper Clamp
(F1) and Lower Clamp (F2).
OPTION A: Clamp Installation
Assemble Upper Clamp (F1) to Pole (E) using the
M6x16mm Screws (S-B) and 4mm Allen Wrench
(T-A). Remove the adhesive backing on So Pad
(J) and place it onto Upper Clamp (F1).
OPTION B: Grommet Base Installation
Cut So Pad (J) along the indentations. Remove
the adhesive backing on So Pad (J) and place it
onto Grommet Plate (H).
STEP 2
F
T-A
F1
F2
F1
S-B
E
T-A
J
J
H
4

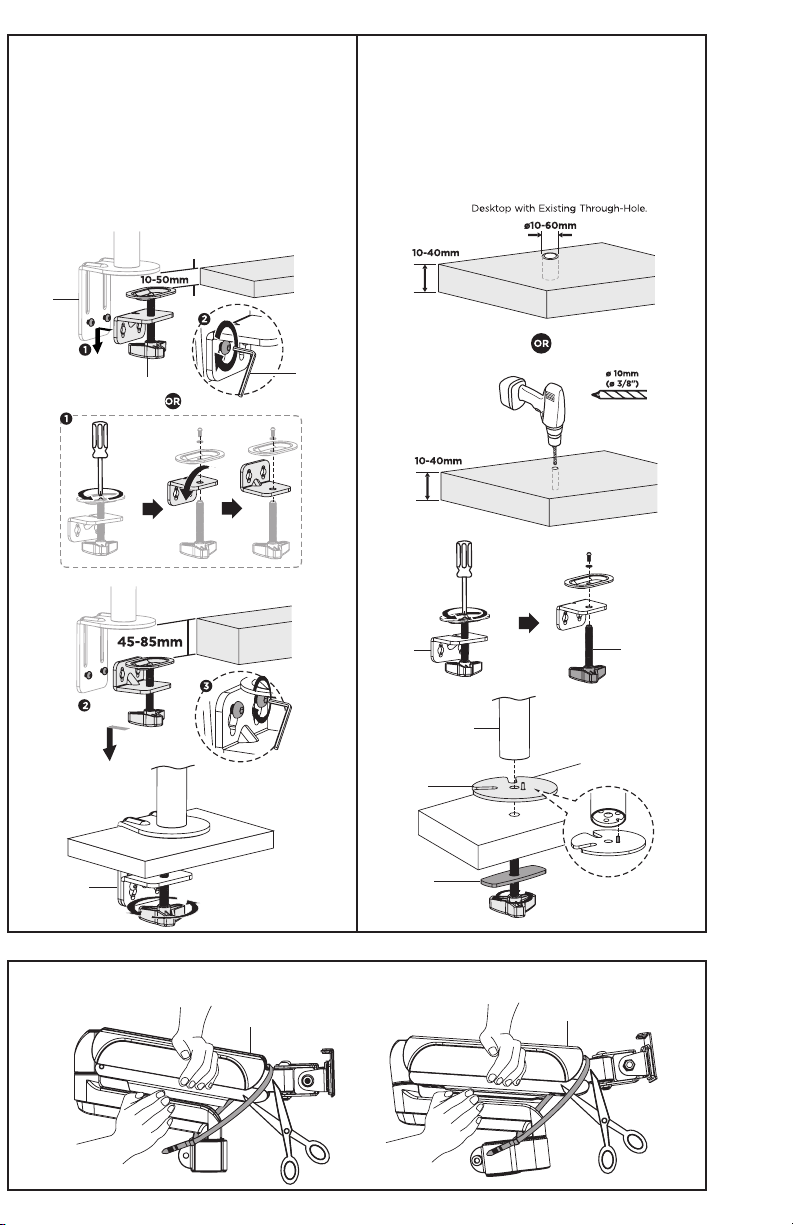

STEP 2 (Continued)
OPTION A: Clamp Installation
For thinner desktops, re-attach Lower Clamp (F2)
to Upper Clamp (F1) and tighten the screws using
the 4mm Allen Wrench (T-A). For thicker desktops,
disassemble Lower Clamp (F2) using a Phillips
screwdriver as shown below. Flip the L-bracket
over and reassemble. Then re-attach Lower Clamp
(F2) to Upper Clamp (F1) and tighten the screws
using 4mm Allen Wrench (T-A). Secure Clamp (F)
to the desktop.
OPTION B: Grommet Installation
Using a 10mm (⅜”) drill bit, drill through the
desktop at least 2” away from the edge.
Disassemble Lower Clamp (F2) using a Philips
screwdriver. Set aside all parts except for Clamp
Bolt (F3). Assemble Pole (E) with Grommet Base
(F) to the desktop using Support Plate (I) and
Clamp Bolt (F3) as shown below.
STEP 3
F
F1
F2 T-A
F2 F3
E
H
I
While holding Dual Arm (A) and Arm (B) closed, cut the shipping tie and gently release.
AB
5
STEP 5
STEP 4
STEP 6
STEP 7
Loosen the screw on the back of Dual Arm (A) and Arm (B) using 6mm
Allen Wrench (T-B). Slide Dual Arm (A) and Arm (B) onto Pole (E) and
retighten screws. Secure Cable Clip (L) to Pole (E).
A
B
T-B
E
L
Place Laptop Arms (G) underneath each side of Laptop Tray (C), aligning square holes in arms with the
edge and long slot oneach side. Insert Clips (K) through top to secure
arms, making sure all four locks on each clip are
engaged with the square
holes in arms. G
C
K
Attach Laptop Tray (C) to 75mm and 100mm holes on VESA Plate (D) using M4x8mm Screws (S-A) and a
Phillips screwdriver.
C
D
S-A
Slide VESA Plate (D) with Laptop Tray (C) onto Arm (B) and secure using Thumbscrew (S-C).
D
C
B
S-C
6

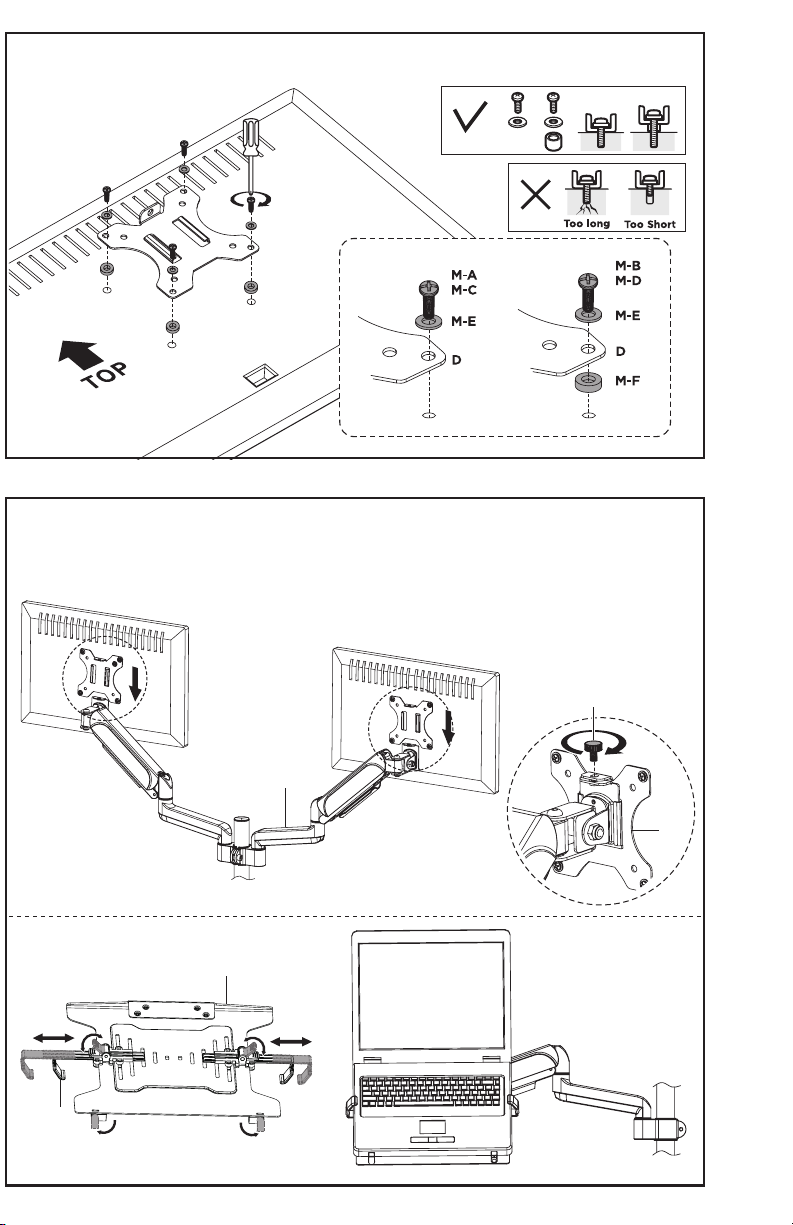

STEP 8
Attach VESA Plates (D) to the back of the monitors using Screws (M-A through M-D) and Washers (M-E).
If needed, use Spacers (M-F).
STEP 9
Slide VESA Plates (D) with monitors over bracket on Dual Arm (A). Secure using Thumbscrews (S-C).
Release locks on underside of Laptop Arms (G). Extend Laptop Arms (G), place the laptop on Laptop
Tray (C), then adjust Laptop Arms (G) to the width of the laptop. Engage locks to secure the laptop. If
using a thicker laptop, turn the front bumpers to the upward position for additional support.
A
S-C
D
G
C
7
STEP 10
STEP 11
Remove bottom covers from Dual Arm (A) and Arm (B) by sliding them o. Organize cables and
re-attach covers.
A
B
Adjust tilt support using 6mm Allen Wrench (T-B). Store Allen Wrenches (T-A and T-B) in Cable Clip (L).
Adjust as desired. Adjust the tension in gas spring arms using 6mm Allen Wrench (T-B).
T-B
L
T-A
T-B
T-B
LAST UPDATED: 10/10/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
