Vivo STAND-V100F User manual

Single Ultrawide Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v100f

SKU: STAND-V100F

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

ASSEMBLY STEPS

TOOLS NEEDED

44lbs

(20kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualied technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

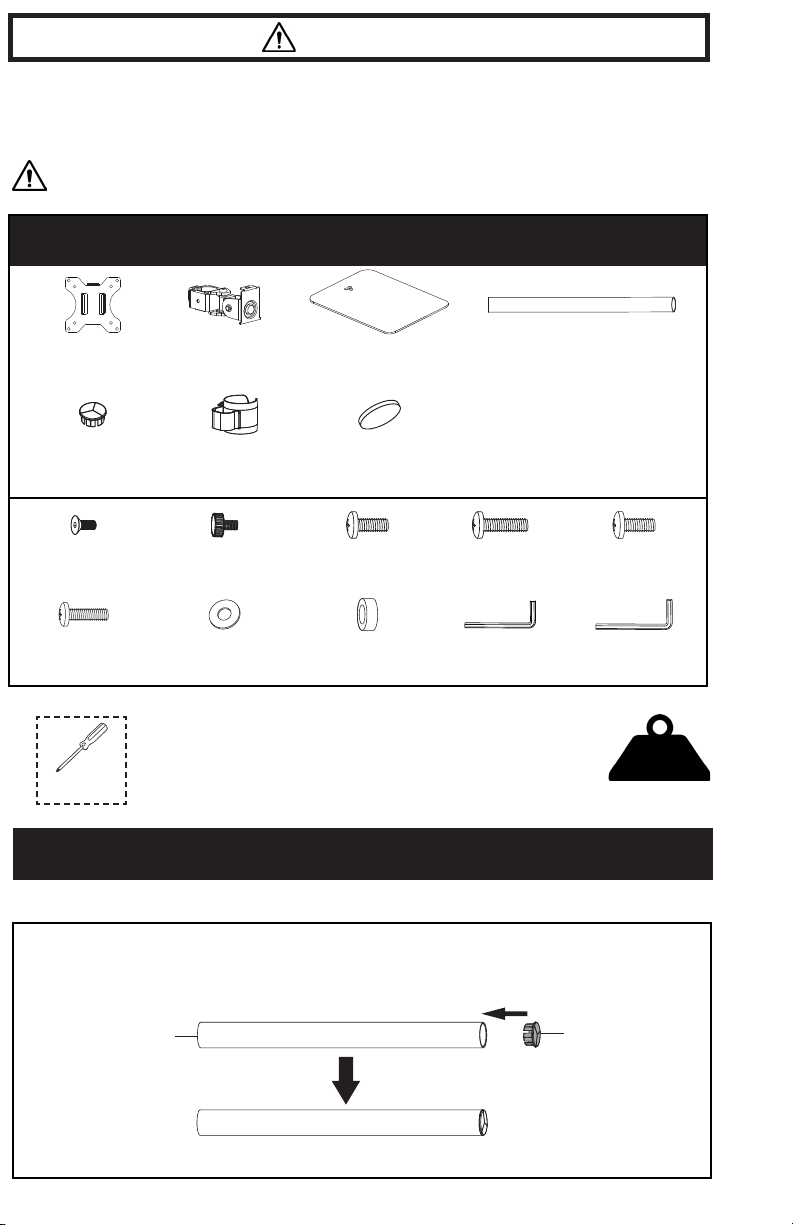

NOTE: SOME HARDWARE MAY NOT BE USED

A (x1)

VESA Plate

B (x1)

VESA Bracket

C (x1)

Base

D (x1)

Pole

E (x1)

Pole Cap

F (x1)

Cable Clip

G (x4)

Pad

S-A (x3)

M6x16mm Screw

S-B (x1)

M6x10mm Thumbscrew

M-A (x4)

M4x12mm Screw

M-B (x4)

M4x16mm Screw

M-C (x4)

M5x12mm Screw

M-D (x4)

M5x16mm Screw

M-E (x4)

M5 Washer

M-F (x4)

Spacer

T-A (x1)

4mm Allen Wrench

T-B (x1)

6mm Allen Wrench

PACKAGE CONTENTS

STEP 1

Press Pole Cap (E) into Pole (D), using the side without internal threading .

D E

3

STEP 2

STEP 3

Install Pole (D) to Base (C) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-A).

Remove protective lm from Pads (G) and apply them to Base (C) as shown.

D

C

G

S-A

T-A

B

F

D

Slide Cable Clip (F) and VESA Bracket (B) onto Pole (D). Adjust the height location of VESA

Bracket (B) and tighten using the 6mm Allen Wrench (T-B).

T-B

4

STEP 4

Mount VESA Plate (A) to monitor using appropriate Screws (M-A thru M-D), M5 Washers

(M-E), and Spacers (M-F).

A

A

5

STEP 5

STEP 6

Slide monitor with VESA Plate onto VESA Brackets (B) and secure using M6x10mm

Thumbscrew (S-B).

Use Cable Clip (F) to route cables. Store Allen Wrenches (T-A, T-B) in slots of Clip.

F

T-B

T-A

S-B

B

6

ADJUST AS DESIRED

Use 6mm Allen Wrench (T-B) to loosen or tighten Monitor Bracket (B) tension.

T-B

B

7

WARNING

Keep the displays positioned over the desktop within the arrow range shown.

LAST UPDATED: 03/08/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
