Vivo MOUNT-PC10BU User manual
Black Clamp-on Desk and Wall PC Mount with USB
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
SKU: MOUNT-PC10BU
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
https://vivo-us.com/products/mount-pc10bu
2
PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
A (x1)
PC Mount
B(x1)
USB Cover
S-A (x4)
ST4.8x38 Screw
S-B (x4)
Concrete Anchor
C (x12)
Pad
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
Drill
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,
email at [email protected]om, or call us at 309-278-5303.
T-B (x1)
5mm Allen
Wrench
Level
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Pencil
Phillips
Screwdriver
T-A (x1)
4mm Allen
Wrench
3
ASSEMBLY STEPS
STEP 1
Apply Pads (C) to top, bottom, and side of PC Mount (A) as shown.
C
A
4

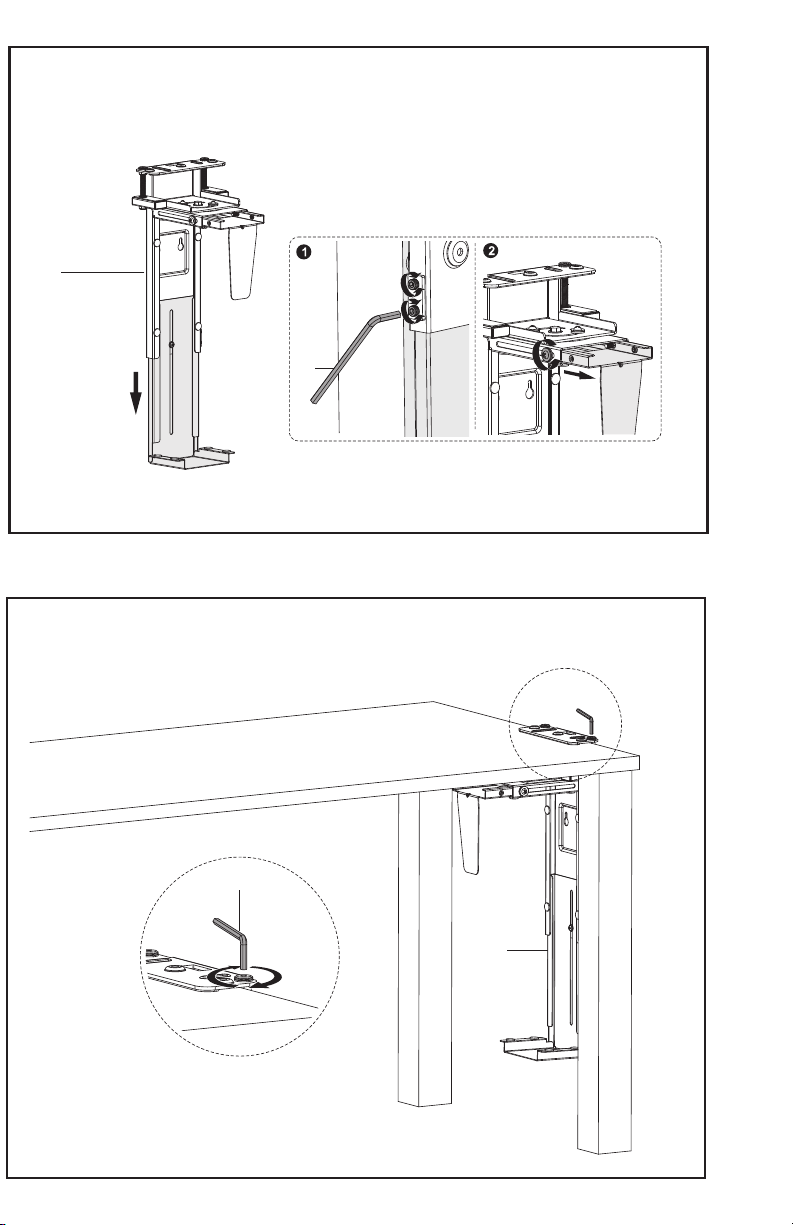

STEP 3 (Option A)
Clamp Mount Installation
Clamp PC Mount (A) to the desktop by tightening the set screws on top using 5mm Allen Wrench (T-B).
1
3
1
2
STEP 2
T-A
A
Loosen set screws for lower support using 4mm Allen wrench (T-A) and slide the support down.
Loosen two screws on top of PC Mount (A) (one on each side) and slide side support bracket out to
maximum width.
A
T-B
5
STEP 3 (Option B)
Solid Wood Wall Installation
For solid wood wall, place PC Mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm)
drill bit, drill holes 0.67” (15mm) deep. Insert two ST4.8x16 Screws (S-A) into top holes, leaving 3mm
of thread exposed. Hang PC Mount (A) over screws and insert two more ST4.8x16 Screws (S-A) into
lower holes. Tighten screws with a Phillips screwdriver.
Wood Stud Frame Installation
If wall has a wood stud frame, use a stud nder to locate the stud, then place mount against wall and
mark drilling locations for top and bottom holes on only one side of the mount. Using a 1/8” (3.5mm)
Hang PC Mount (A) over screw and insert another ST4.8x38 Screw (S-A) into lower hole. Tighten
screws with a Phillips screwdriver.
12
S-A
A5
6
STEP 3 (Option C)
Concrete Wall Installation
For concrete wall installation, place PC Mount (A) against the wall and mark locations with a pencil.
Drill 1.2” (35mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert Concrete Anchors
(S-B) into holes, and insert two ST4.8x38 Screws (S-A) into top holes, leaving 3mm of thread exposed.
S-B
S-A
A
Hang mount over two screws in the wall. Secure with two additional ST4.8x38 Screws (S-A), and tighten
screws with a Phillips screwdriver.
S-A
5
7
STEP 4
Place PC tower in PC Mount (A), slide bottom support up until mount is t vertically to PC, and tighten
set screws using the 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten
screws using a Phillips screwdriver.
1
3
STEP 5
Route cables from USB Cover (B) through PC Mount (A), and plug into PC tower. Secure USB Cover (B)
in place on PC Mount (A).
B
A
LAST UPDATED: 08/06/2021
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
