Pneumatic Arm Dual Monitor Desk Mount with USB

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002ou

SKU: STAND-V002OU

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

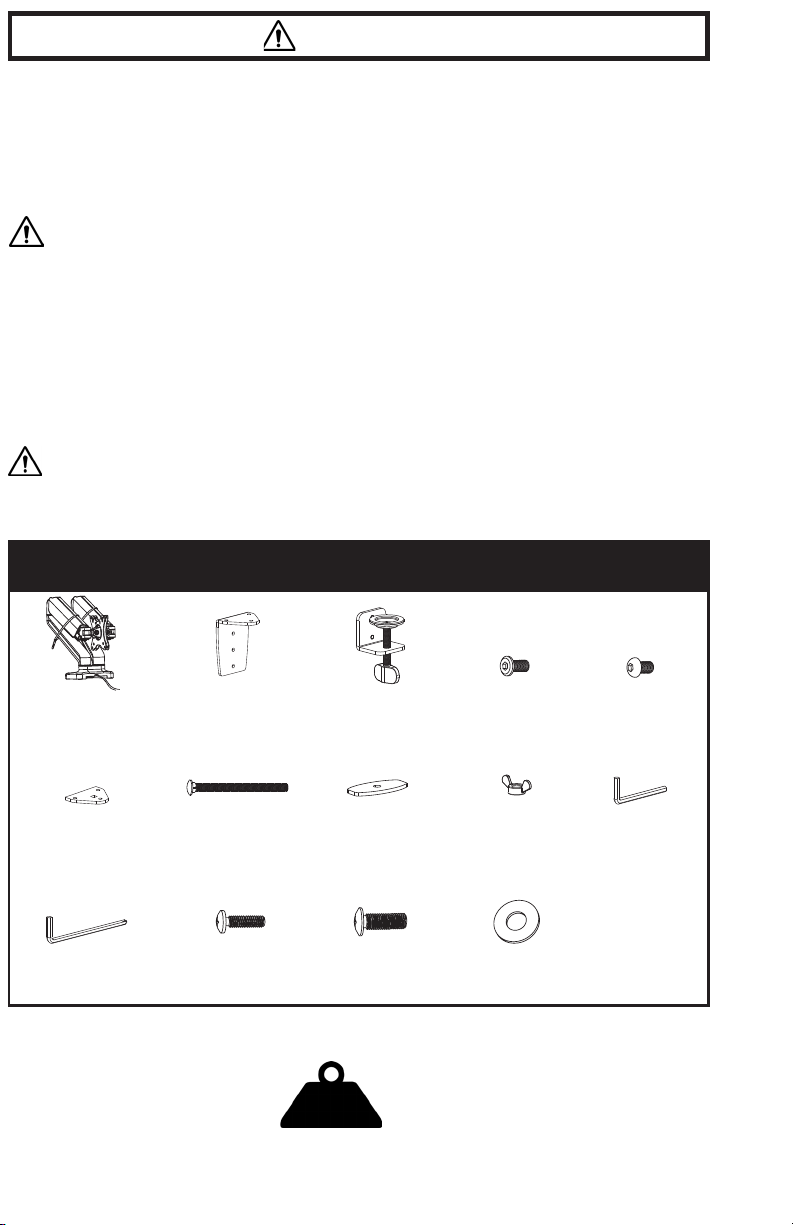

PACKAGE CONTENTS

A (x1)

Gas Spring

Arm

B(x1)

Bracket

C(x1)

Clamp

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x3)

M6x12

E(x2)

M6x10

F (x1)

Grommet

Base

G (x1)

Carriage Bolt

H (x1)

Support Plate

M-A (x8)

M4x12

M-B (x8)

M5x12

I(x1)

Wing Nut

J(x1)

4mm Allen Wrench

M-C (x8)

D5 Washer

K(x1)

5mm Allen Wrench

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

4.4-19.8lbs

(2-9kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

3

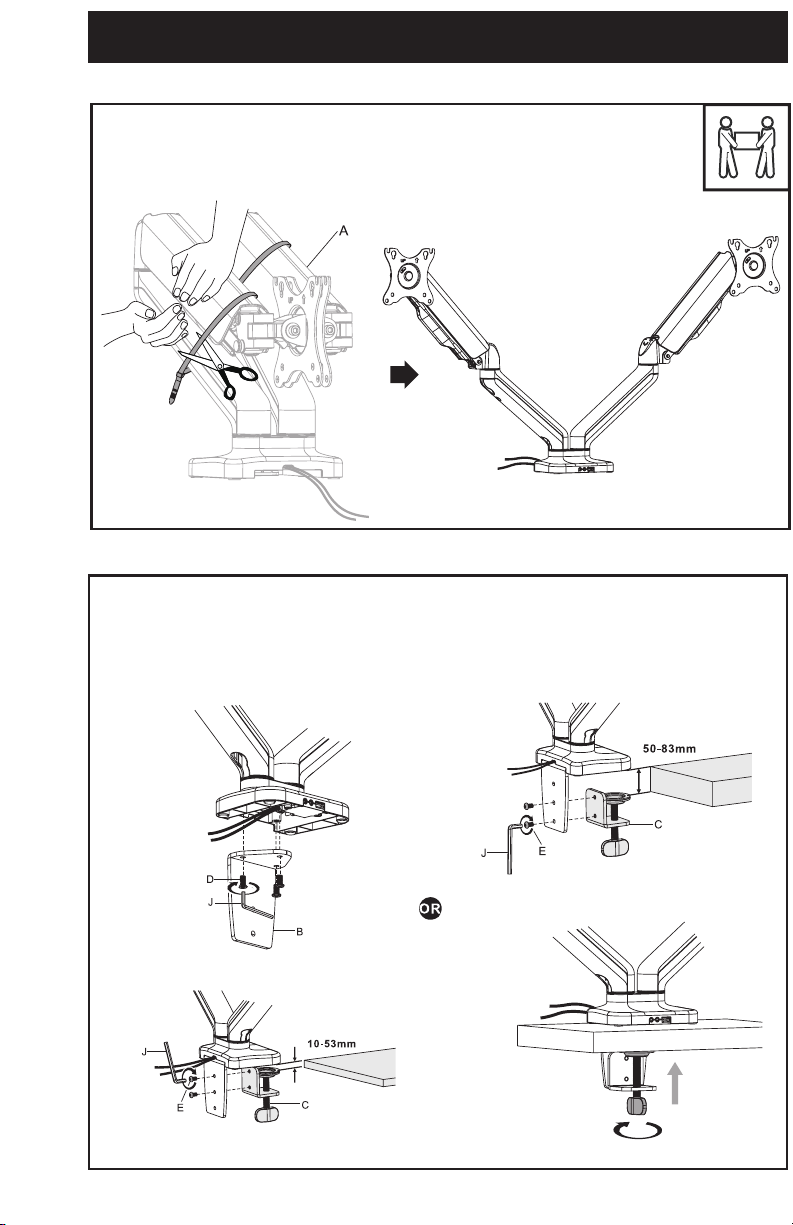

ASSEMBLY STEPS

STEP 2

OPTION A: Clamp Installation

Mount bracket (B) to bottom of gas spring arms (A) using M6x12 bolts (D). Tighten using 4mm

Allen wrench (J). Attach clamp (C) to bracket (B) using M6x10 bolts (E) and 4mm Allen wrench

(J). Install according to thickness of desktop as shown in diagrams. Secure stand to desktop by

tightening clamp (C).

STEP 1

Remove gas spring arm (A) from packaging. While holding arm closed, cut the

shipping tie and gently release arm.

4

STEP 2 (Continued)

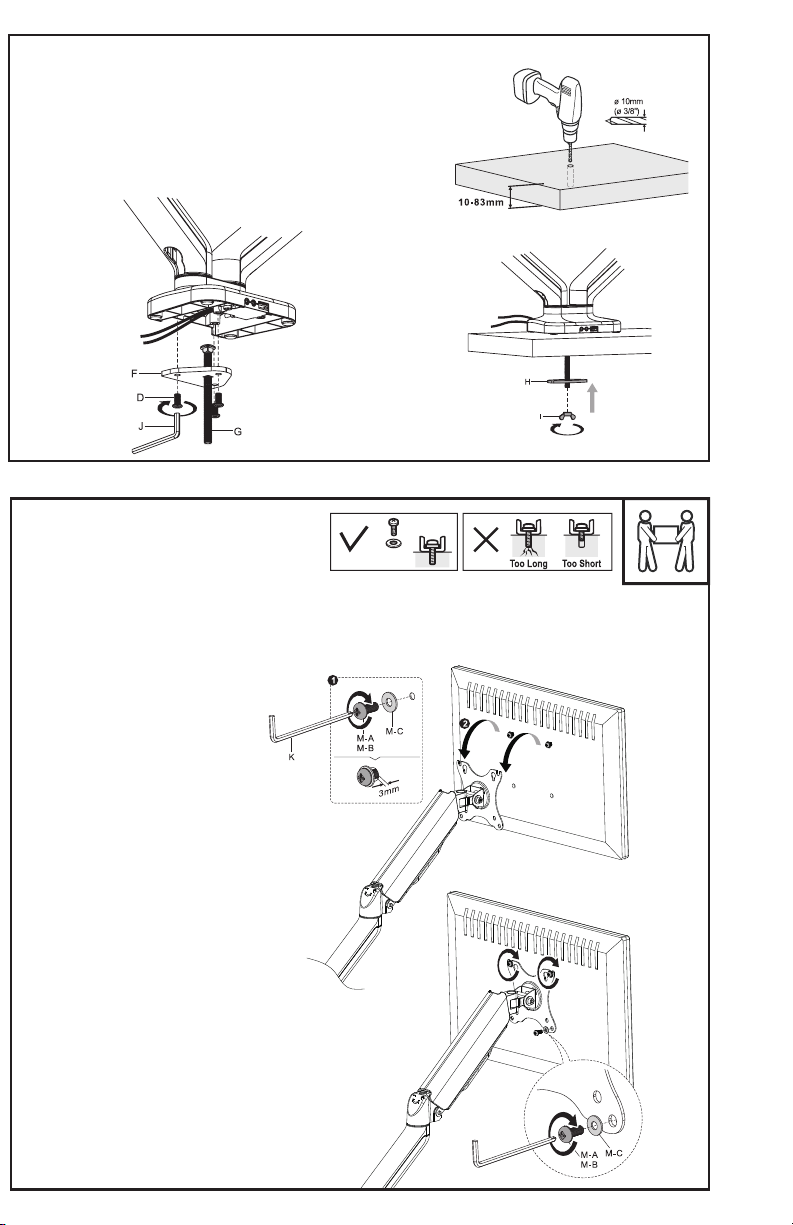

OPTION B: Grommet Base Installation

For grommet hole mounting, place carriage bolt (G) through the center

of grommet base (F). Mount grommet base to bottom of gas spring

arms (A) using M6x12 bolts (D). Tighten using 4mm Allen wrench (J).

Run carriage bolt (G) through grommet hole in desktop. If no grommet

hole is present, drill hole using a 3/8” (10mm) drill bit. Attach support

plate (H) and wing nut (I). Tighten wing nut to secure.

STEP 3

Attach two bolts (M-A or M-B) and washers

(M-C) to top mounting holes of monitors,

making sure to leave 3mm of threads

exposed. Align bolts (M-A, M-B) in VESA

plates. Secure using two more bolts (M-A or

M-B) and washers (M-C) in the bottom two

holes. Tighten all eight bolts using Phillips

screwdriver end of 5mm Allen wrench (K).

5

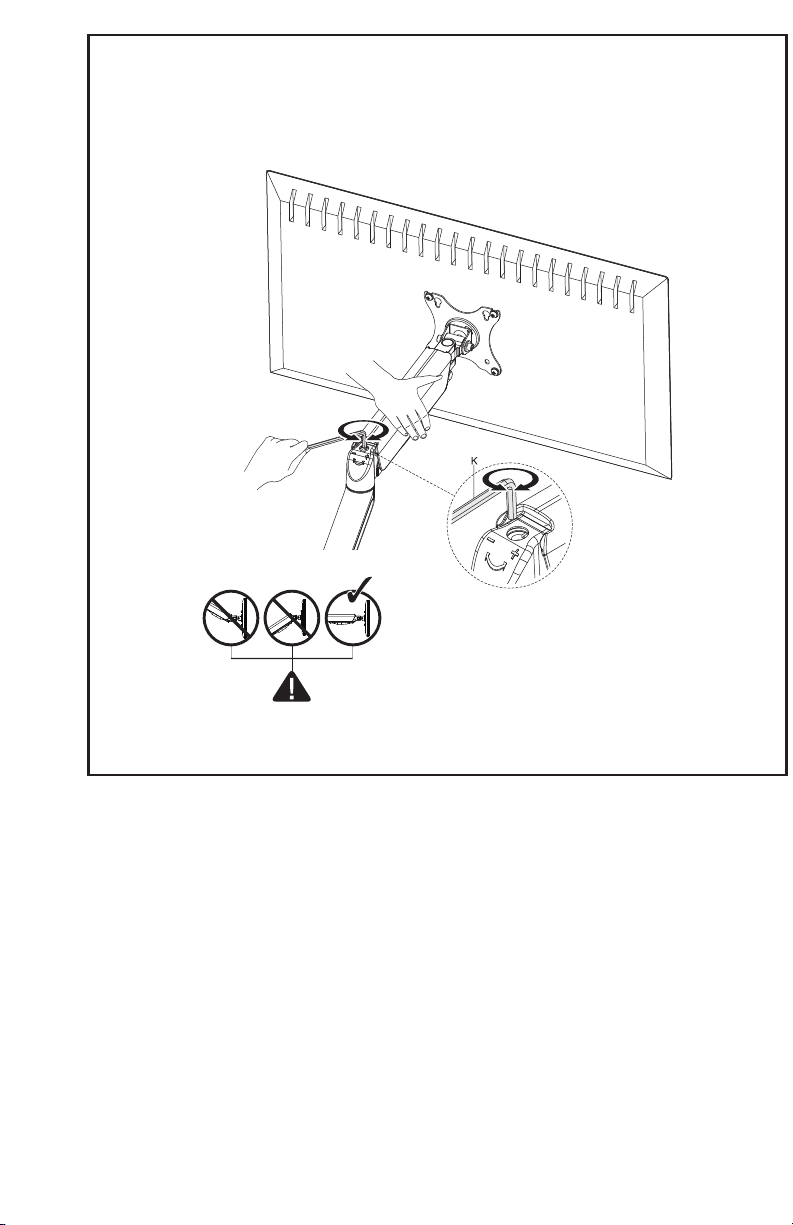

STEP 4

Adjust tension in gas spring arms (A) using 5mm Allen wrench (K). Turning clockwise decreases

strength, and counter-clockwise increases.

6

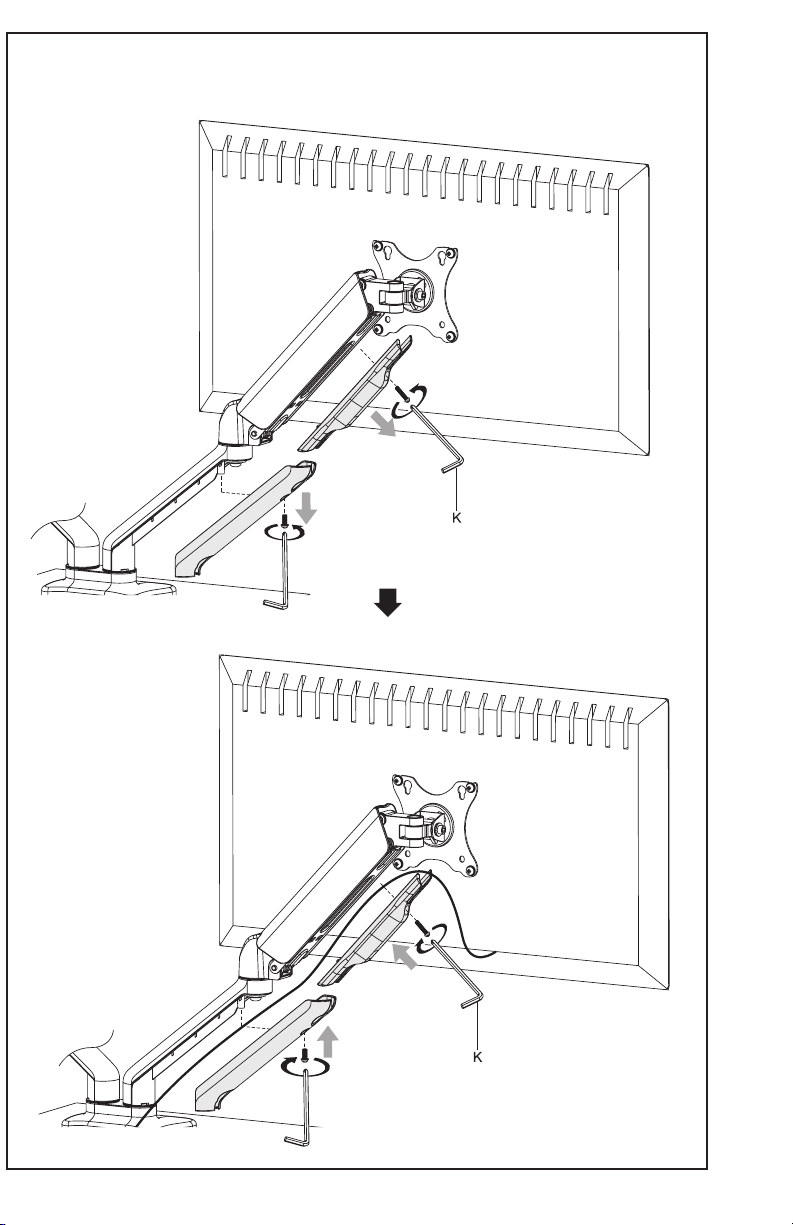

STEP 5

Remove bottom plastic covers from gas spring arms (A) using Phillips screwdriver end of 5mm Allen

wrench (K). Run cables from monitors through bottom of gas spring arms (A), then reattach plastic

covers.

7

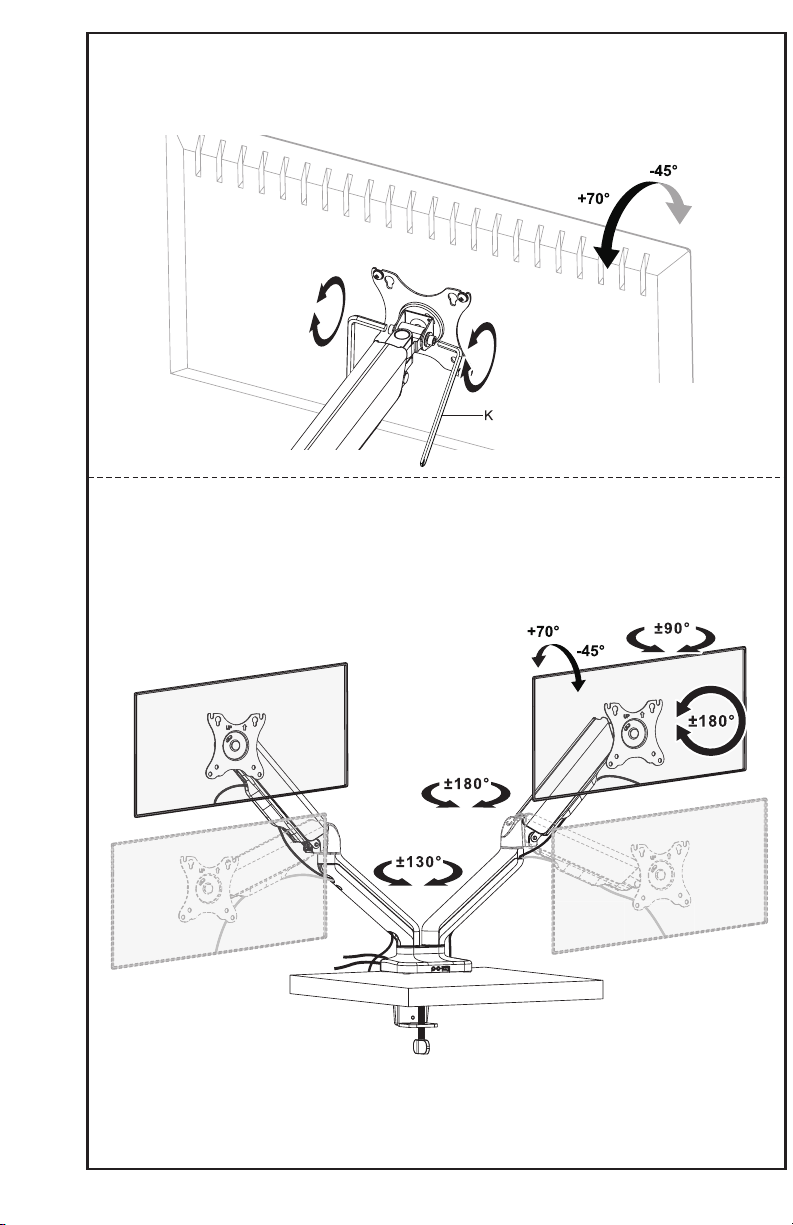

STEP 6

Adjust monitor tilt support using 5mm Allen wrench (K) as shown.

Adjust monitor position as desired. Connect USB and audio cables to ports on computer.

LAST UPDATED: 08/06/2020
