Vivo STAND-V102 User manual

Dual Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v102

SKU: STAND-V102

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

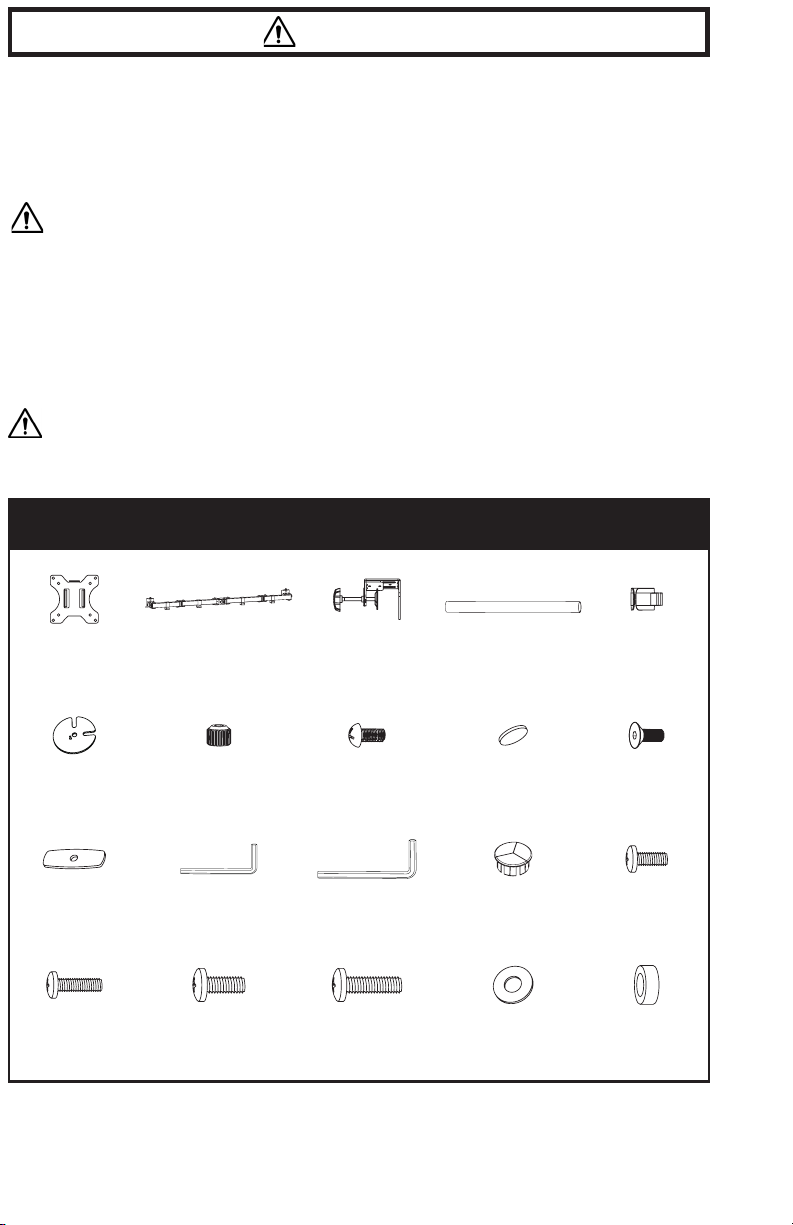

PACKAGE CONTENTS

WARNING!

A (x2)

VESA Plate

B(x1)

Arm

C(x1)

Clamp

L (x1)

4mm Allen Key

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE MAY NOT BE USED

D (x1)

Pole

E(x1)

Cable Clip

F (x1)

Grommet

Base Plate

G(x2)

Thumbscrew

H (x2)

Bolt

I (x5)

So Pad

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M (x1)

6mm Allen Key

N (x1)

Pole Cap

M-C (x8)

M5x12

M-A (x8)

M4x12

M-B (x8)

M4x16

M-D (x8)

M5x16

M-E (x8)

D5 Washer

M-F (x8)

Spacer

J (x3)

Flathead Bolt

K (x1)

Support Plate

ASSEMBLY STEPS

TOOLS NEEDED

Phillips

Screwdriver

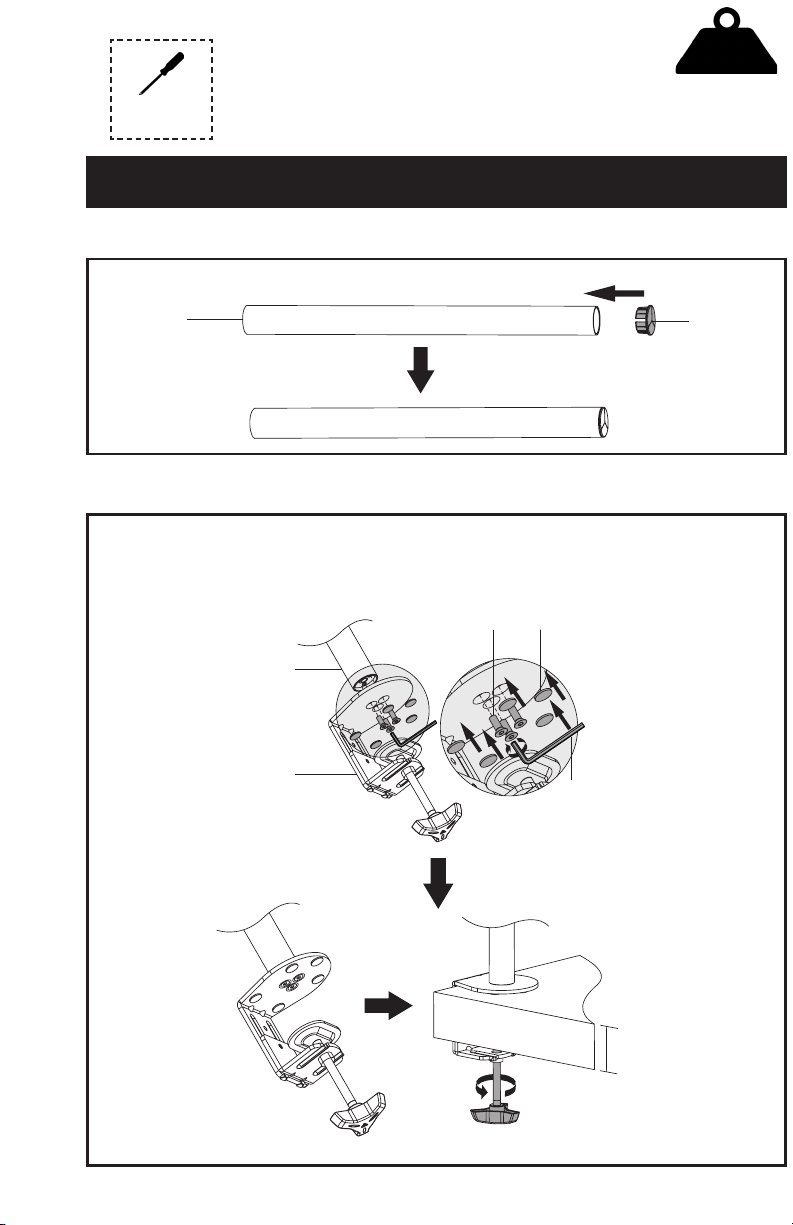

STEP 2

OPTION A: Clamp Installation

Assemble pole (D) to clamp base (C) with bolts (J) using 4mm Allen key (L). Install pads (I), and clamp

to desktop.

STEP 1

Install pole cap (N) to top of pole (D).

17.6 lbs

(8 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

D N

10-88m m

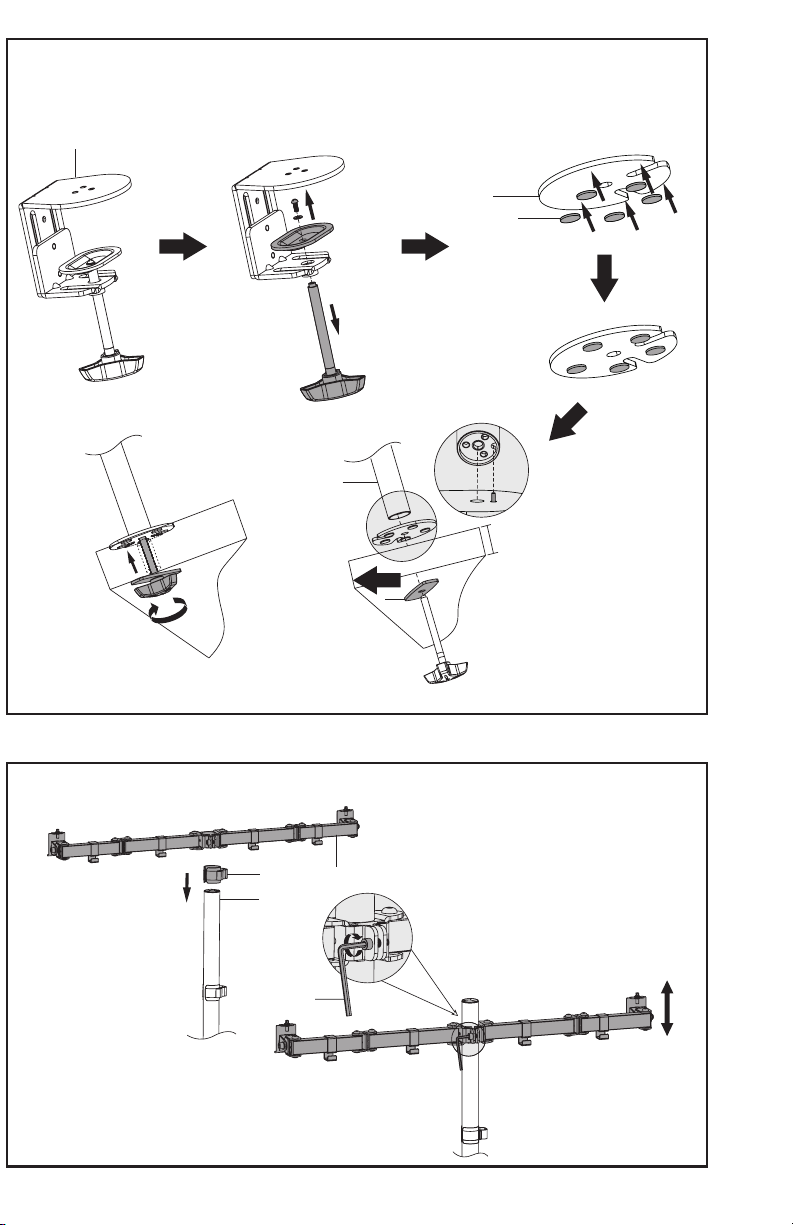

STEP 2 (Continued)

STEP 3

OPTION B: Grommet Base Installation

Remove screw from clamp bolt, and remove clamp bolt from clamp (C). Install pads (I) to grommet

base (F). Align pin on top of grommet base (F) with the small hole on the bottom of pole (D), position

over hole in desktop, and install to desktop using clamp bolt and support plate (K).

Install swivel arms (B) and cable clip (E) to pole (D). Fasten the bolt with the supplied 6mm Allen key

(M).

10-88mm

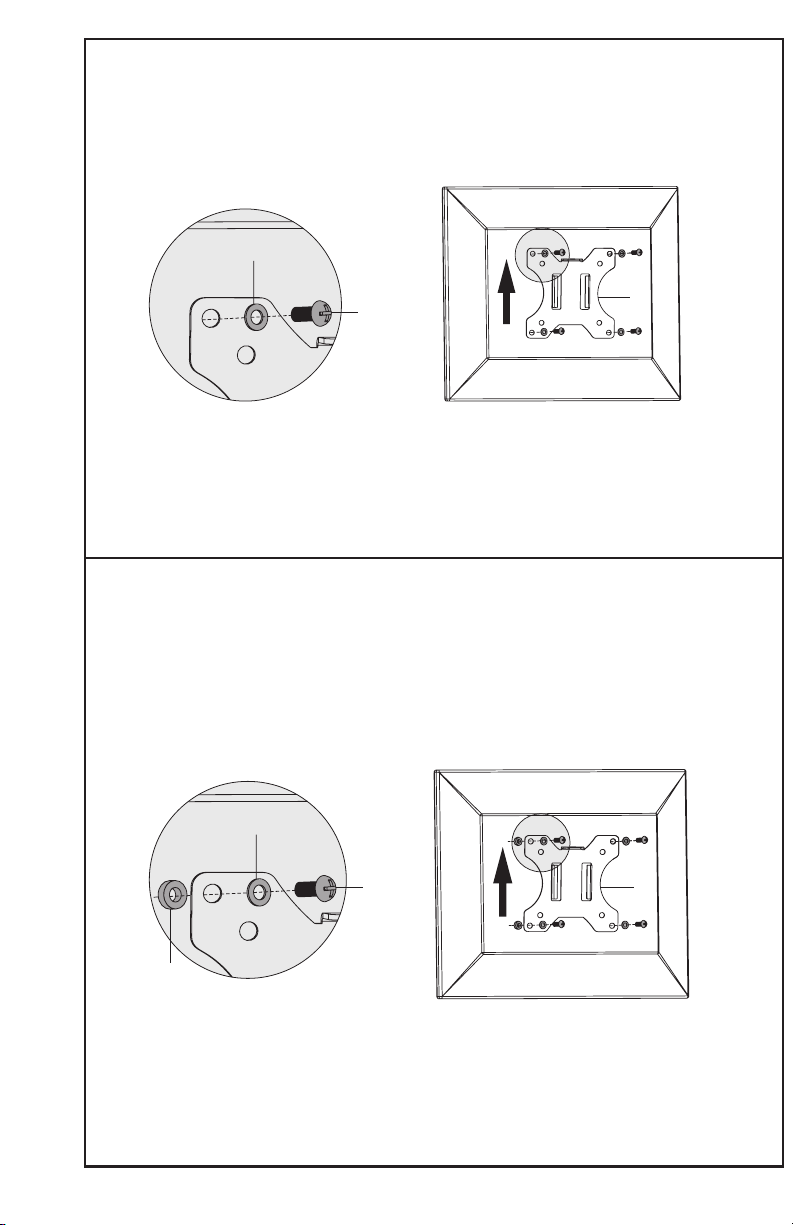

STEP 4

OPTION A: Flat Back Monitor

For flat back monitor, install VESA plate (A) to monitor using bolts (M-A) or (M-C) and washers (M-E).

OPTION B: Curved Back Monitor

For curved back monitor, install VESA plate (A) to monitor using bolts (M-B) or (M-D), washers (M-E),

and spacers (M-F).

M- A

M- C

M- E

M- B

M- D

M- E

M- F

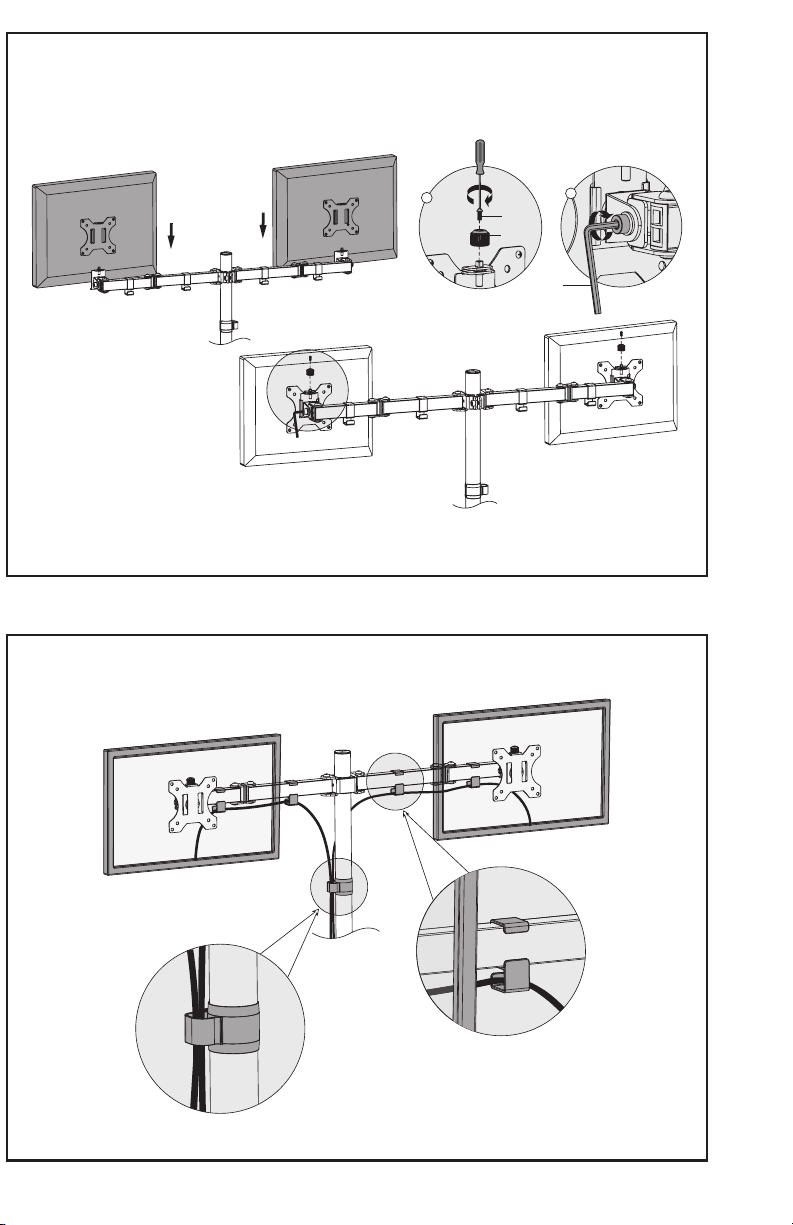

STEP 5

Slide the monitors onto the heads of swivel arms (B). Install thumb screws (G) using bolts (H). Make

sure the screws are installed before you rotate the monitors. If needed, adjust the bolt on the side of

the hinge behind the VESA plate to tighten or loosen the tilt angle using 6mm Allen key (M).

STEP 6

Manage the cables using the installed cable clips.

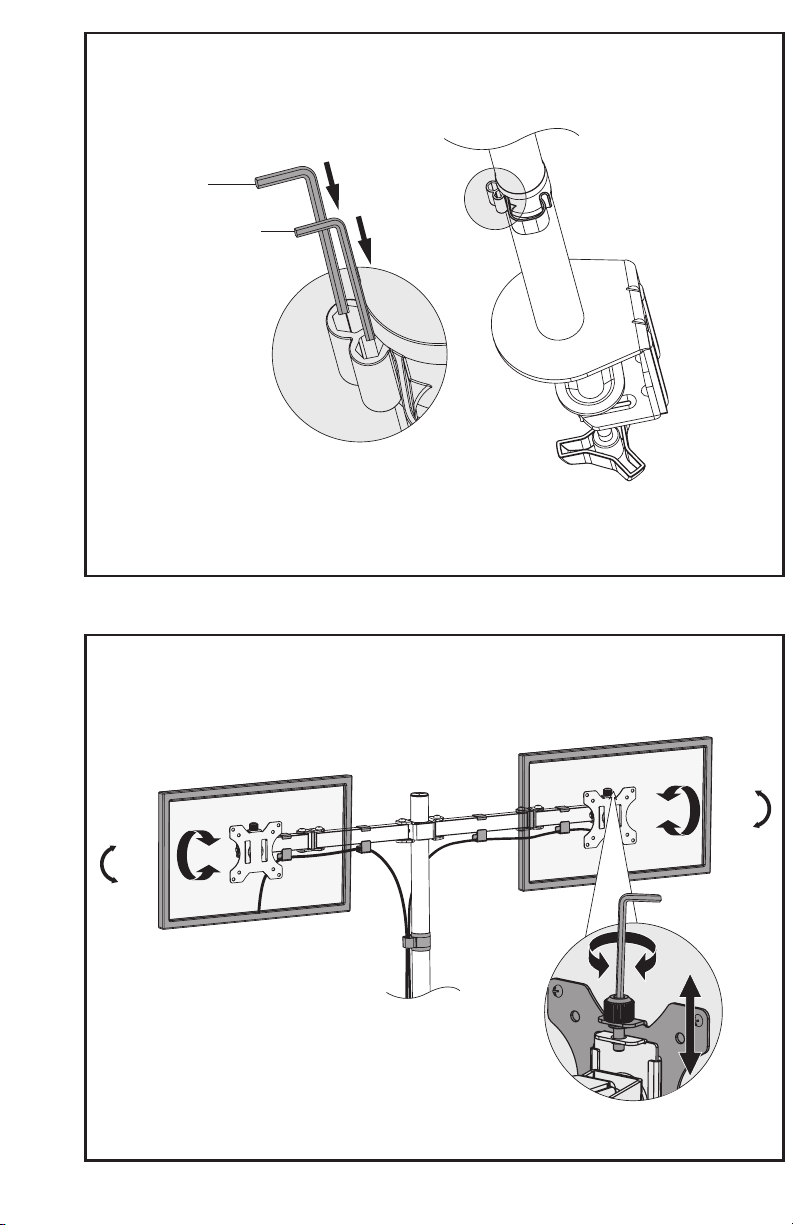

STEP 7

Store the Allen keys in cable clip (E) for future use.

STEP 8

Adjust monitor alignment using thumb screws (G). If needed, use 6mm Allen key (M) to turn screw.

+45 °

-45°

360 °

+45 °

-45°

360 °

LAST UPDATED: 05/11/2020
