Vivo MOUNT-PL1A-LAP3 User manual

Pole Mount Laptop Holder

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pl1a-lap3

SKU: MOUNT-PL1A-LAP3

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

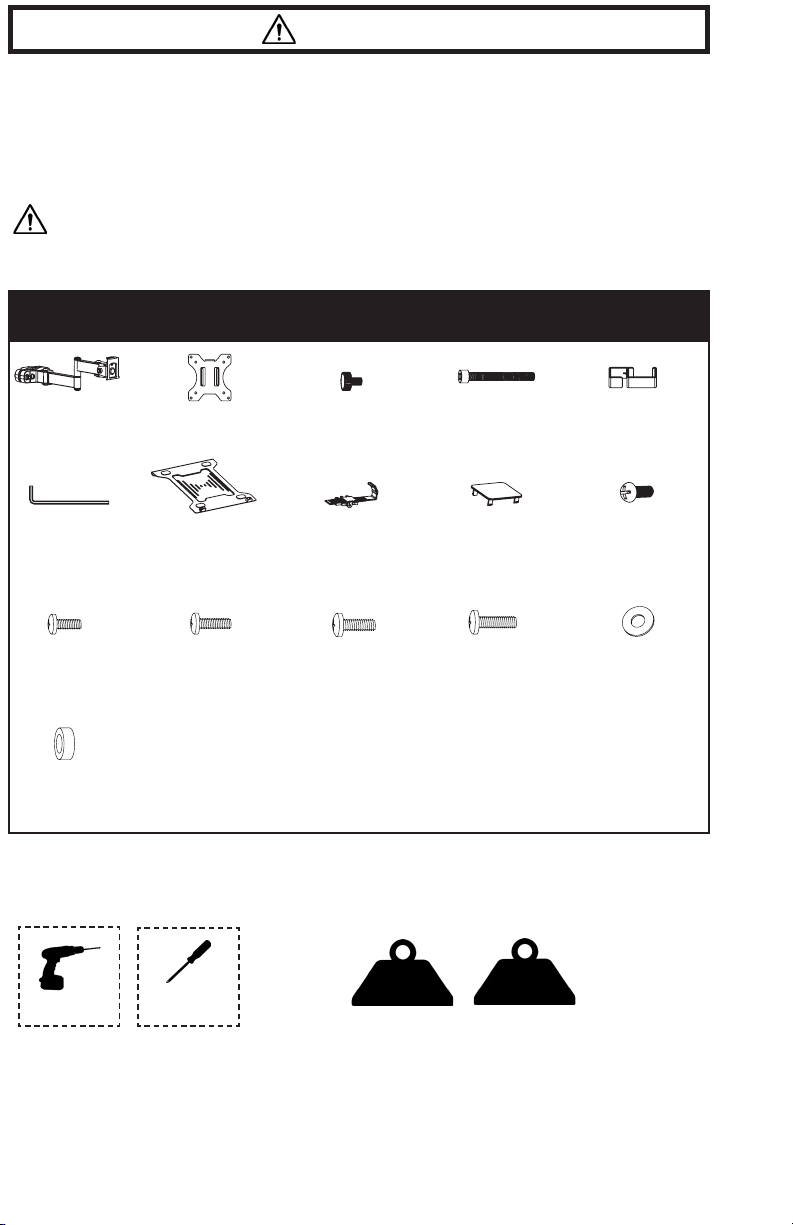

PACKAGE CONTENTS

WARNING!

A (x1)

Mount

B(x1)

VESA Plate

C(x1)

Thumbscrew

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE MAY NOT BE USED

D(x2)

M8x70mm

E (x1)

Clip

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

F (x1)

6mm Allen

Wrench

G(x1)

Laptop Tray

H(x2)

Tray Arm

I(x2)

Cover

J (x4)

M4x8

M-A (x4)

M4x12

M-B (x4)

M4x16

M-C (x4)

M5x12

M-D (x4)

M5x16

M-E (x4)

D5 Washer

M-F (x4)

Spacer

9.9lbs

(4.5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

TOOLS NEEDED

Phillips

Screwdriver

Drill

17.6lbs

(8kg)

MONITORLAPTOP

ASSEMBLY STEPS

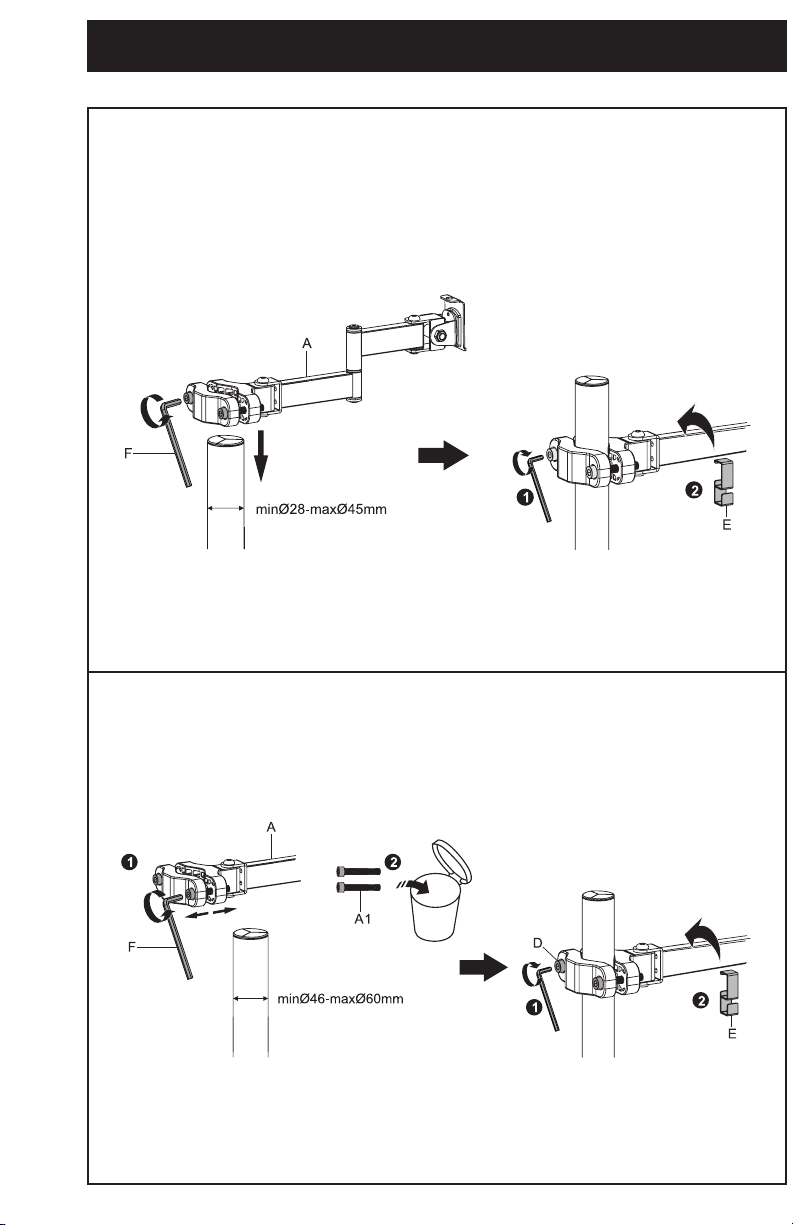

STEP 1

OPTION A: 28mm - 45mm (1.1” - 1.77”) Pole

Slide the mount (A) onto the pole and tighten bolts using the 6mm Allen wrench (F).

Install the cable clip (E) to the mount.

OPTION B: 46mm - 60mm (1.8” - 2.36”) Pole

Remove the pre-installed clamping bolts from the mount (A) and replace with M8x70 bolts

(D). Slide mounting arm (A) onto pole and tighten bolts using the 6mm Allen wrench (F).

Install the cable clip (E) to the mount.

STEP 2: FOR LAPTOPS

OPTION A: Laptop Installation

Place tray arms (H)

underneath each side of

the laptop tray (G), aligning

square holes in arms with the

edge and long slot on each

side. Insert clips (I) through

top to secure the arms,

making sure all 4 locks on

each clip are engaged with

square holes in the arms.

Attach assembled laptop tray

to the 75mm and 100mm

holes in the VESA plate (B)

using M4x8 bolts (J). Tighten

screws using a Phillips

screwdriver.

Slide the VESA plate (B) with

laptop tray (G) over the bracket on

the mount (A). Secure using the

thumbscrew (C).

STEP 2: FOR LAPTOPS (Continued)

Release locks on the underside of the tray arms (H). Extend arms, place laptop on the tray,

then adjust arms to fit the width of the laptop. Engage locks to secure the laptop. If using

a thicker laptop, turn the front bumpers to the upward position for additional support.

Adjust the tilt and swivel joints with the

Allen wrench (F).

Use the cable clip to organize cables.

Adjust the laptop position as desired.

STEP 2: FOR MONITORS

OPTION A: Flat Back Monitor

Attach VESA plate (B) to monitor using 12mm screws (M-A, M-C) with washers (M-E).

OPTION B: Curved / Recessed Back Monitor

Attach VESA plate (B) to monitor using 16mm screws (M-B, M-D) with washers

(M-E) and spacers (M-F).

Slide the VESA plate (B) with monitor over the bracket on the mount (A), and

secure with the thumbscrew (C).

STEP 2: FOR MONITORS (Continued)

Adjust the tilt and swivel joints with the Allen wrench (F).

Use the cable clip to organize cables. Adjust the monitor position as desired.

LAST UPDATED: 12/15/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
