Vivo STAND V012F User manual
Instruction Manual
Email: [email protected]
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
-
phillips screwdriver
1
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
- - !!"" #$! ! "%
(x1)
Pole
& (x1)
Weighte Base
(x1)
Swivel Arm
(x2)
VESA Plate
(x3)
M5x14
% (x2)
N t
(x1)
M10
(x1)
S pport Plate
(x1)
M10 Washer
' (x1)
Spring Washer
(x3)
Wire Clip
(x1)
Grommet
Base Plate
(x4)
Wire Clip
$ (x1)
Allen Key
(x1)
Wrench
(x8)
M4x30
(x8)
M4x12
(x8)
M4 Spacer
(x1)
Soft Pa
$&(
2
$&
)

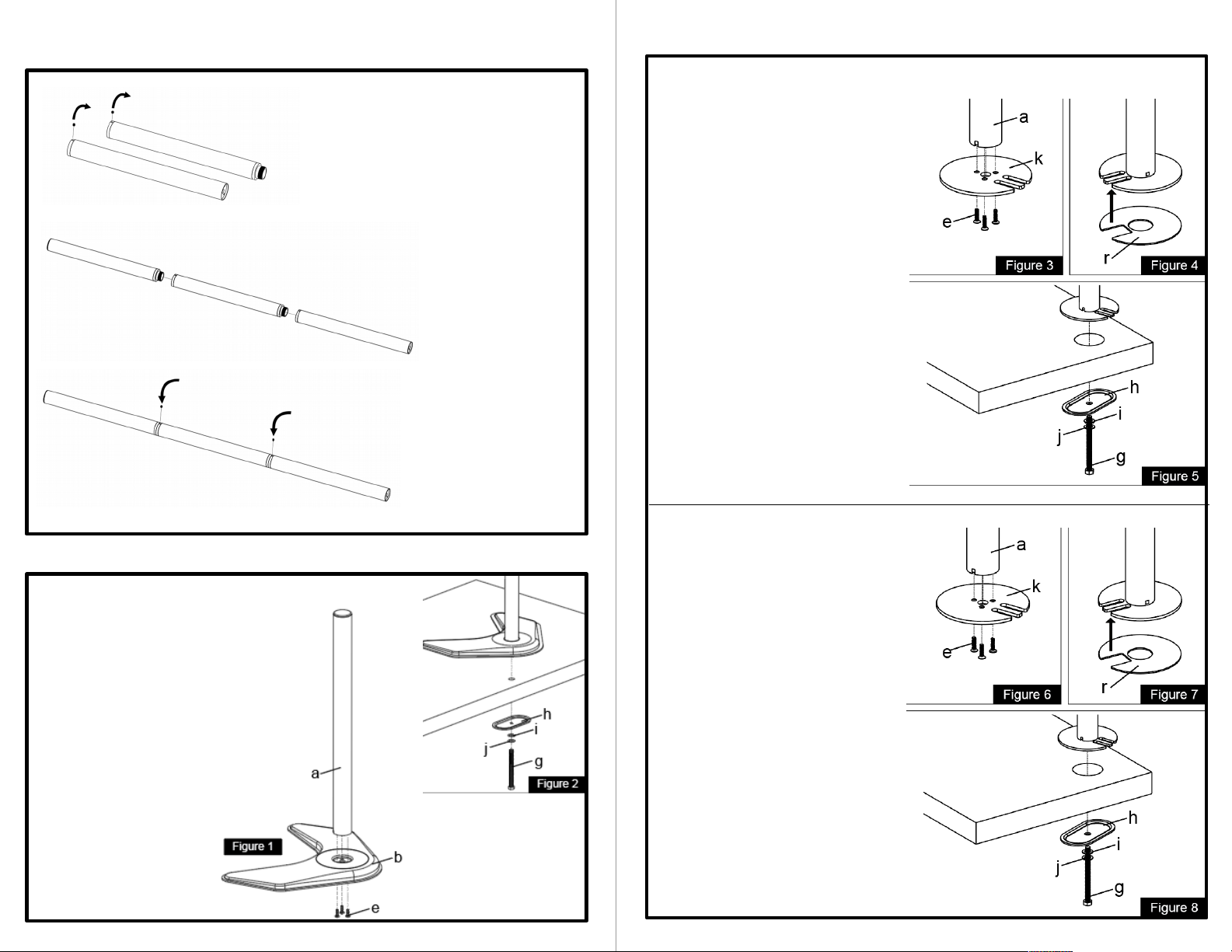

Remove the grub screws using the
small Allen Key (m). Connect the
poles by threads. Install grub screws
and fasten them by provided Allen
Key (m).
* + , )
Install the Pole (a) to the
Weighted base (b) using
3 M x14 Bolts (e) and
tighten using the Allen
Key (m), see Figure 1.
Optionally, you can drill
a 10mm diameter hole
in your desk and secure
using the Support Plate
(h), M10 Washer (i),
Spring Washer (j) and
M10 Bolt (g). Fasten the
M10 Bolt with provided
Wrench (n), See figure 2.
) -.
If the existing grommet hole comes
with a plastic protector, remove it to
ensure a flat surface before
installing the desk mount. Install
the Grommet Base Plate (k) to the
Pole (a) using 3pcs M x14 Bolts (e),
and tighten using the Allen Key (m),
see Figure 3. Attach Soft Pad (r) to
the Grommet Base Plate (k), see
Figure 4. Position the Pole (a) on the
mounting surface and secure using
the Support Plate (h), M10 Washer
(i), Spring Washer (j) and M10 Bolt
(g). Fasten the M10 Bolt using
provided Wrench (n), see Figure .
* , /$$ , )
* /$$ , )
Position the Pole (a) on the
mounting surface and mark the
center hole. Drill a 3/8" (10mm)
diameter hole at the marked
position through the mounting
surface. Install the Grommet Base
Plate (k) to the Pole (a) using 3pcs
M x14 Bolts (e), and tighten using
the Allen Key (m), see Figure 6.
Attach Soft Pad (r) to the
Grommet Base Plate (k), see
Figure 7. Position the Pole (a) on
the mounting surface and secure
using the Support Plate (h), M10
Washer (i), Spring Washer (j) and
M10 Bolt (g). Fasten the M10 Bolt
using provided Wrench (n), see
Figure 8.
0 1 2"

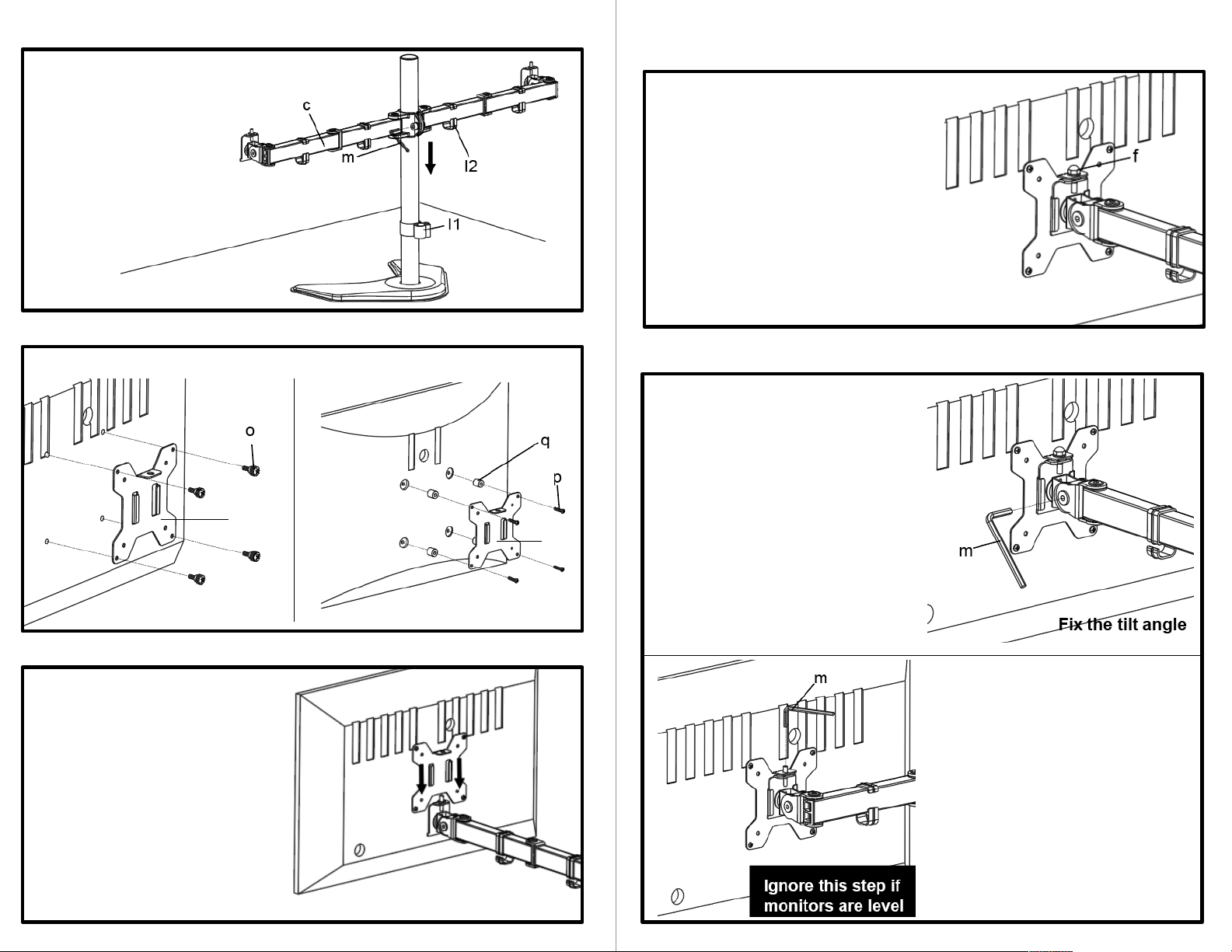

Tighten the bolt with
the supplied Allen Key
(m) to fix the tilt angle.
If one monitor is lower,
remove the Nut (f) and turn
the bolt counter-clockwise
with the Allen Key (m) to
raise the monitor. Replace
Nut (f) after the
adjustment.
Install the security Nut (f). Make
sure the security nut is installed
before you rotate the monitor.
3 4" $
-.
5 6
) $
3 4" $
* ,
Install Swivel Arm (c)
to the Pole (a).
Fasten the bolt with
supplied Allen Key
(m). Attach the Wire
Clip (l1,l2) to the Pole
(a) and Swivel Arm
(c).
* , " ,
Slide the monitor onto the
head of Swivel Arm (c).
d
d
3
If you do not understand these directions, or if you have any
doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no
missing or defective parts. Improper installation may cause
damage or serious injury. Do not use this product for any
purpose that is not explicitly specified in this manual. We
cannot be liable for damage or injury caused by incorrect
assembly or inappropriate use.
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
For more VIVO products, check out our
website at
www.vivo-us.com.
If any parts are received damaged or defective, please contact
us. We are happy to replace parts to ensure you have a fully
functioning product.
%( +
Last updated: 0 /23/18
7 '$ +
Use the supplied Allen Key (m) to make any necessary adjustments.
Manage the wires and store the Allen keys (m) in the Wire Clip (l1) for future
use.
