Vivo STAND-V002F User manual

Dual Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002f

SKU: STAND-V002F

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

Pole

B(x1)

Base

C(x1)

Swivel Arm

I(x8)

M4x12 Thumb

Bolt

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

VESA Plate

E(x3)

M5x14 Bolt

F (x2)

Nut

G1 (x1)

Wire Clip

G2 (x4)

Wire Clip

H (x1)

Allen Wrench

Set

K(x8)

M4 Spacer

J(x8)

M4x30 Bolt

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

ASSEMBLY STEPS

STEP 1

Install the pole (A) to the base (B) using M5x14 bolts (E). Tighten with the small Allen wrench (H).

TOOLS NEEDED

Phillips

Screwdriver

22 lbs

Per Arm

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

STEP 2

OPTION A: Flat Back Monitor

Attach the VESA plates (D) to the monitors using

M4x12 thumb bolts (I).

NOTE: Hand tighten screws to avoid stripping

the plastic screw heads.

STEP 3

Slide swivel arm (C) down onto the pole and tighten the bolt with large Allen wrench (H). Attach the

wire clips (G1, G2) to the pole and swivel arm.

STEP 3 (Continued)

STEP 4

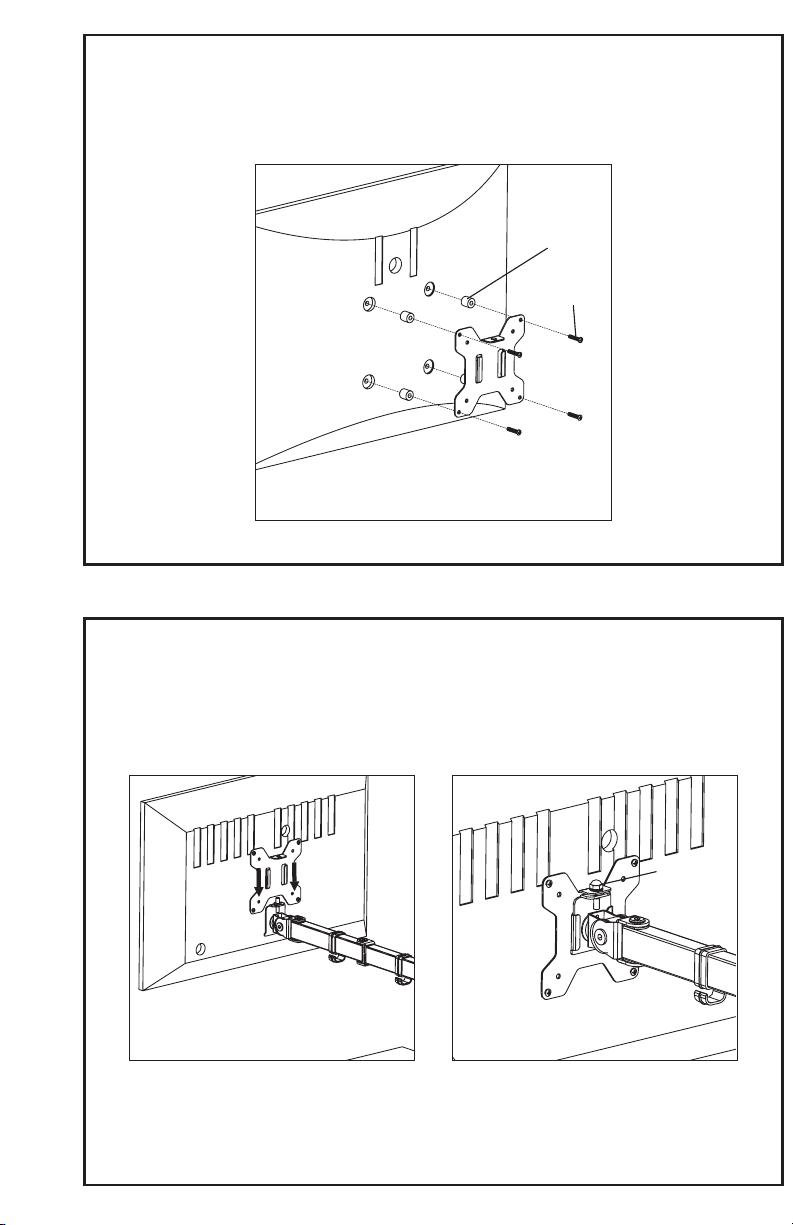

OPTION B: Curved Back Monitor

Attach the VESA plates (D) to the monitors using M4 spacers (K) and M4x30 bolts (J). Tighten with a

Phillips screwdriver.

Slide the monitors onto the heads of swivel arm and install the security nuts (F). Make sure the security

nuts are installed before you rotate the monitors.

STEP 5

Tighten the bolt on the side of the tilt joint with the medium Allen wrench (H) to fix the tilt angle.

To level the monitors, remove the security nut and turn the bolt with the small Allen wrench (H) to

raise or lower the monitor. Replace nut aer the adjustment.

Fix the tilt angle

Ignore this step if

monitors are level

STEP 6

Use the medium Allen wrench (H) to adjust swivel joints if needed. Manage cables and store the Allen

wrenches (H) in wire clip for future use.

STEP 7

CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward.
