Vitek VTD-VPH User manual

BLACK

VITEK

VTD-VPH

Vandal Resistant Color

Dome Camera Series

Product Manual

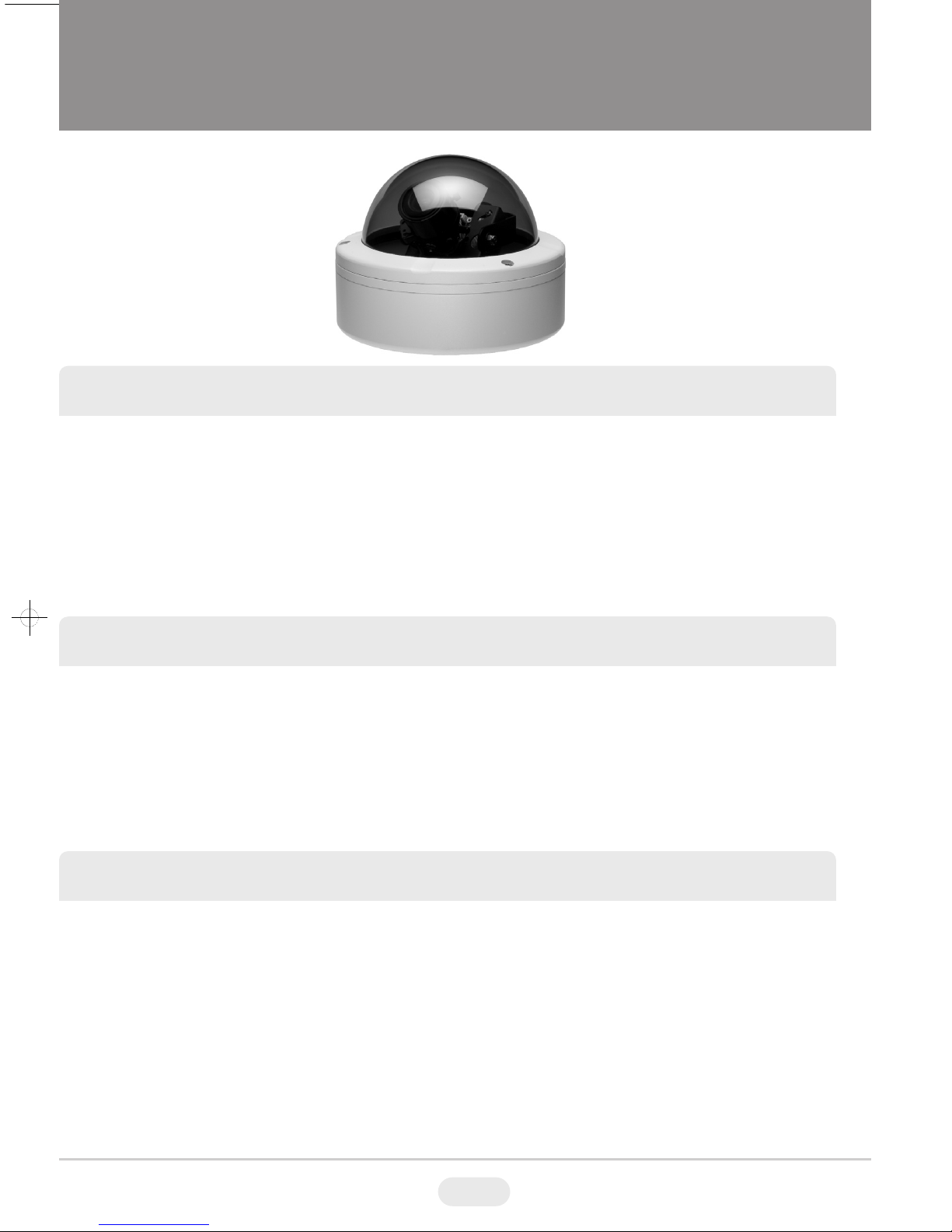

The VTD-VPH Vandal Resistant Dome Camera is a

smaller, more attractive camera ideal for use in

commercial or residential applications. It measures only 5”

in diameter and comes with a 24 Volt AC power input for

easy integration with standard cameras and power

systems. Versatile mounting and lens options allow you to

achieve perfect video images in virtually any environment.

All VTD-VPH domes feature Sony Super-HAD and/or

Ex-View Technology with Hi-Resolution of 480 Television

Lines.

CONTENTS OF PACKAGE

•One Fully Assembled VTD-VPH Series Dome Camera

•One Additional Knock-Out Plug

•One Tamper-Proof Wrench

•One Rubber Sealer Mat

•One Instruction/Installation Manual

•Assorted Additional screws for Convenience

Your VTD-VPH Dome Camera is designed to be flush or ceiling mounted on a wall or ceiling and

comes complete with a surface mount rear casing including conduit knockouts. Its patented 3-axis

gimbal allows for perfect viewing angles on any vertical or horizontal surface. An optional goose

neck wall mount (VT-VPHWM) is available if desired. The VTD-VPH Dome Camera is weather

sealed for indoor or outdoor locations.

The VTD-VPH Dome Camera should be powered by 24 Volts AC. Polarity is not important but you

should make sure that the power supply you are using is CSA Certified Class 2 Power Supply

delivering a minimum of 2.5 Watts.

For optimum video signal, use 95% copper shielded coax cable. Twisted pair or CAT-5E cable may

also be used with optional VT-TR1M Passive Video Transceivers. Maximum cable distance for 95%

copper braid coax is approximately. 800’; For Cat-5E or twisted pair, 2000’ using VT-TR1M

transceivers.

INSTALLATION OVERVIEW

WIRING CONNECTIONS

BLACK

FLUSH MOUNT INSTALLATION

Begin by removing the three tamper proof screws in the outer bezel with the special wrench

included and removing it. Continue by removing the tamper proof screws on the inner casing (you

may want to remove and set aside the polycarbonate bubble to avoid scratching it).

Remove the inner casing from the outer surface mount casing and set the outer casing aside. You

may want to keep the surface mount box in case you decide to re-mount it at a later time.

Cut a hole in the ceiling or wall the exact size of the inner back box and set the camera into the

hole securing it with anchors. When installing in a drop ceiling always attach a guy wire to a beam

above the camera to hold the weight and secure the camera for safety reasons.

Begin by removing the three tamper proof screws in the outer bezel with the special wrench

included and removing it. Continue by removing the tamper proof screws on the inner casing (you

may want to remove and set aside the polycarbonate bubble to avoid scratching it).

Remove the inner casing from the outer surface mount casing (back box) and temporarily set the

inner casing/camera to the side.

Secure the outer back box directly to a wall or ceiling using wood screws or anchors. If installing

outside, remember to glue the rubber matting to the wall and then attach the back box. Conduit

may be attached to the rear or the side of the back box depending on the installation.

Re-secure the inner casing with the camera to the back box but remember to attach the wiring

before doing so. You may also want to find a desirable angle of view and adjust the iris and focus

before making the final wiring connections.

Remove Inner Screws Detach CasingRemove Top Bezel

SURFACE MOUNT INSTALLATION

CAMERA SETUP

Your VTD-VPH Dome Camera has been set at average default settings from the factory so the

performance should be excellent right from the start. However, certain challenging environments

may require additional set-up procedures to enhance the image.

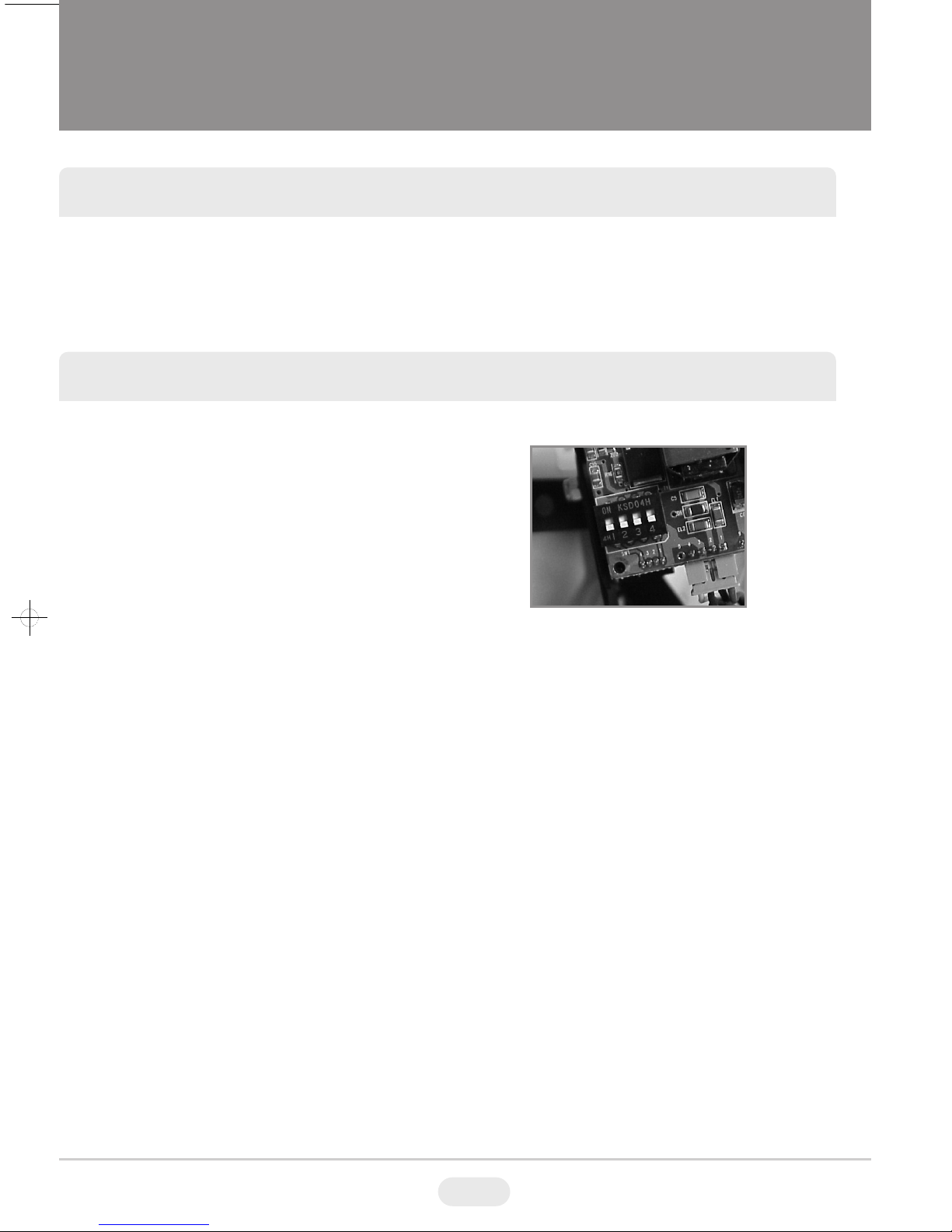

There are four dip switches on the rear board

of the camera. They should all be set to off

from the factory. The following adjustments may

be made:

DIP SWITCH SETTINGS

Electronic Shutter Control

Leave this switch in the “Off” position if your camera has an auto

iris lens.

Switch to the “On” position when using a fixed lens version to

enhance the camera’s ability to react to changing light.

Back Light Control

Leave this switch in the “Off” position if your camera is being

installed outdoors or if the installation is indoors in a controlled

lighting environment.

Switch to “On” position when installing the camera indoors looking

toward windows or doors or if outdoors looking into semi-direct

sunlight. Never install camera looking into direct sunlight.

Flickerless On/Off

Flickerless shutter speed for minimizing image flicker under

fluorescent lighting.

Auto White Balance

Switch “On” if the image appears discolored or floats between

colors. This will enable the camera to find “White”.

Dip Switch 1 =

Dip Switch 2 =

Dip Switch 3 =

Dip Switch 4 =

Dip Switch Adjustments

BBLLAACCKK

AUTO IRIS LENS ADJUSTMENT

Your DC Auto Iris Lens should be set properly at default from the factory. However, if the picture

appears too bright or too dark, the iris function can be adjusted by turning the small silver

potentiometer located on the board above the lens.

On all varifocal versions, the width of view may be

adjusted by turning the forward lever toward the

smaller number for wider and toward the larger number

for more telephoto.

The Focus may be adjusted by turning the rear lever

toward the “W” for near and toward the “T” for far (or

telephoto). After making these adjustments, tighten the

levers to lock them in place.

On the fixed version, the focus may be adjusted by

simply screwing or unscrewing the lens. Be careful

not to over tighten the lens or you may

damage the pick-up sensor.

Auto Iris Adjustment

Focus Adjustment

FIELD OF VIEW AND FOCUS ADJUSTMENT

ROUTINE MAINTENANCE

Use mild liquid cleaners to remove dirt and grime from the dome surface.

Do not use harsh or abrasive cleaners which can scratch the polycarbonate dome and reduce

visibility for the camera.

If the camera view is obstructed by scratches, remove the front plate (bezel) and rotate the bubble

to a portion that is not scratched.

If the dome becomes damaged or scratched beyond use, contact your distributor to order a

replacement.

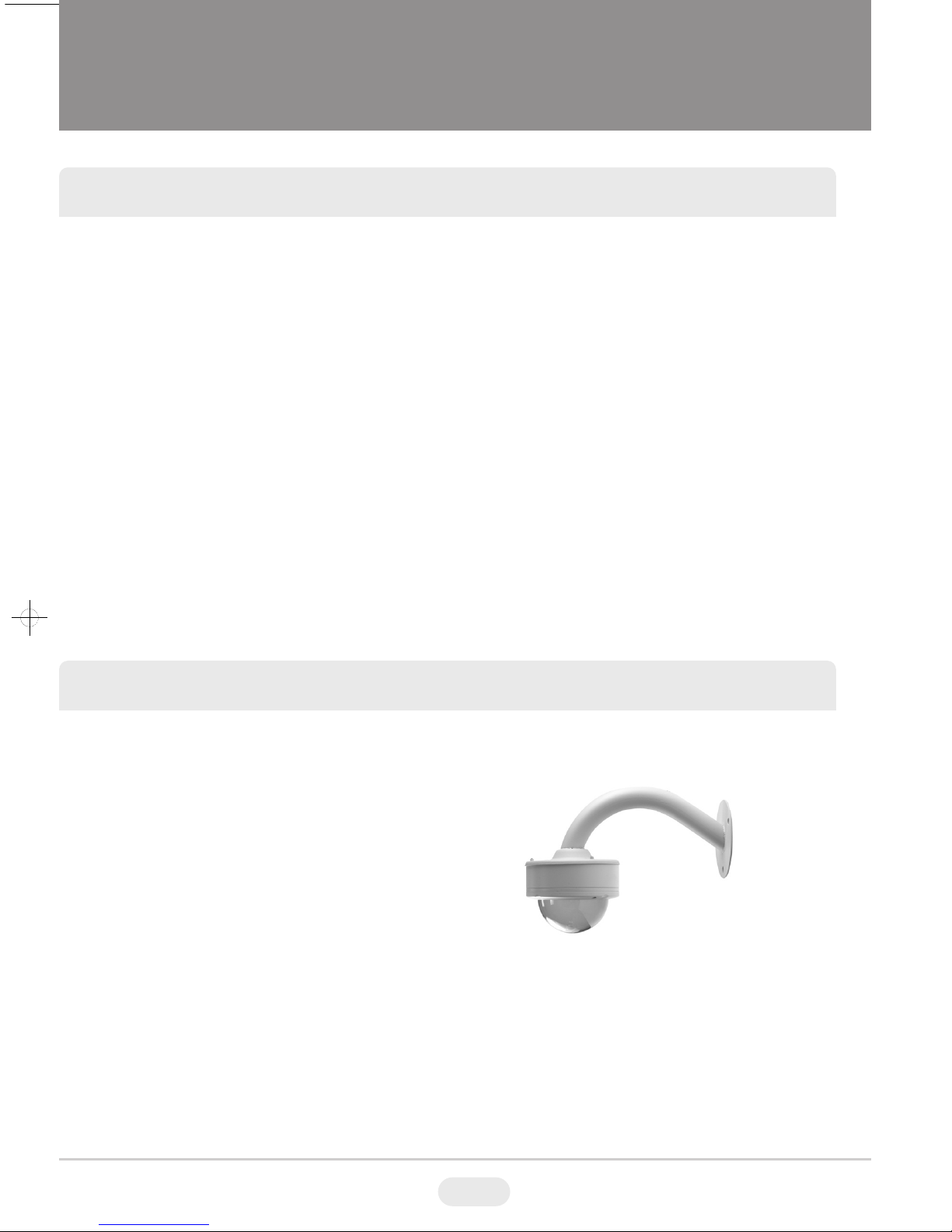

VT-VPHWM

Goose Neck Wall Mount w/Cable Feed thru.

OPTIONAL EQUIPMENT

VTD-VPH/WM

BBLLAACCKK

DOME SPECIFICATIONS

Image Device

Effective Pixels

Resolution

Minimum Illumination

S/N Ratio

Electronic Shutter

AGC

Lens

Video Output

White Balance

Power Source

Power Consumption

Weight

Dimensions

Construction

IP Rating

1/3” High Resolution Super HAD Color CCD

768 x 494

480 TV Lines

Standard Cameras: 0.7 Lux / F1.2 (AGC On)

Day/Night Cameras: 0.03 Lux / F1.2 (AGC On) With Day/Night Function

More than 48dB (AGC off)

1/60 to 1/100,000 Sec.

Built-In (On)

VTD-VPH3.6: Color Camera With 3.6mm Fixed Iris Lens

VTD-VPH266: Color Camera With 2.6-6mm Varifocal Lens

VTD-VPH3895: Color Camera With 3.8-9.5mm Varifocal Lens

VTD-VPH412: Color Camera With 4-12mm Varifocal Lens

VTD-VPH266DN: Day/Night Color Camera With 2.6-6mm Varifocal Lens

VTD-VPH3895DN: Day/Night Color Camera With 3.8-9.5mm Varifocal Lens

VTD-VPH412DN: Day/Night Color Camera With 4-12mm Varifocal Lens

Composite: 1.0 Vp-p / 75 Ohm

Auto White Balance (AWB)

24VAC 60Hz

220mA

750 g. / 26.46 Oz. / 1.65 Lbs.

160mm x 99mm / 6.29” x 3.89” (D x H)

Aluminum/Tin Base - Polycarbonate Bubble

IP66/68

9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352

PHONE: 888-VITEK-70 / 818-771-0300 FAX: 818-771-0400

WWW.VITEKCCTV.COM | SALES@VITEKCCTV.COM

LIMITED LIABILITY WARRANTY

Your new Camera is guaranteed to be free from defects in materials

and workmanship for a period of two years from the date of

purchase.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, willful or accidental

damage, caused by excessive voltage or lightning.

The product must not have been tampered with in any way then the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact VITEK or your local distributor if servicing should become

necessary.
